AC2600 StreamBoost™ MU-MIMO WiFi Router

TEW-827DRU (Version v1.0R)

Quad-stream AC2600: 1733 Mbps WiFi AC + 800 Mbps WiFi N bands
MU-MIMO boosts performance in a busy home
StreamBoost^™ Low latency gaming/voice prioritization
High performance 1.4 GHz dual-core processor
Pre-encrypted WiFi for your convenience
All Gigabit wired ports
USB 3.0 share ports
Detachable high gain antennas

TRENDnet's AC2600 StreamBoost^™ MU-MIMO WiFi Router, model TEW-827DRU, is built to perform in a busy connected home. It generates two extreme quad-stream WiFi networks—a 1,733 Mbps WiFi AC and a concurrent 800 Mbps WiFi N network. MU-MIMO technology processes multiple data streams simultaneously, increasing real-time WiFi performance when multiple devices access the network. Qualcomm^® StreamBoost^™ technology prioritizes low latency gaming and voice streams, shapes network traffic to optimize each connected experience, and graphically displays all connected device/app traffic. Use the Gigabit Ethernet ports and USB 3.0 share ports to further extend an extreme performance home network.

Extreme WiFi

Concurrent quad-stream WiFi networks and all Gigabit ports seamlessly network connected devices and high bandwidth streams such as 4K video.

Built For Busy Homes

MU-MIMO technology processes multiple data streams simultaneously, increasing real-time WiFi performance when multiple devices access the network.

Optimized Gaming

StreamBoost^™minimizes latency for gaming, video, and voice streams to eliminate stutter and lag caused by high bandwidth traffic such as torrents.

Easy Setup

Get up and running in minutes with the intuitive guided setup

AC2600 WiFi

Concurrent dual band quad-stream 1,733 Mbps WiFi AC + 800 Mbps WiFi N bands

MU-MIMO Performance

MU-MIMO technology enables the router to processes multiple data streams simultaneously—with so many connected devices in today's home, MU-MIMO increases real-time WiFi performance

Qualcomm® StreamBoost™ Latency Prioritization

StreamBoost™ prioritizes latency for gaming and voice streams to eliminate stutter or lag caused by other high bandwidth network traffic such as torrent downloads

Qualcomm® StreamBoost™ Traffic Shaping

StreamBoost™ intelligently allocates the optimal amount of bandwidth for each individual device/application and users can manually assign device priority

Qualcomm® StreamBoost™ Device/Traffic Mapping

See all connected network devices/applications and their respective real-time network usage and review historical usage data

Pre-Encrypted Wireless

For your convenience the WiFi is pre-encrypted with its own unique password

Wireless Coverage

High performance amplifiers and detachable external high gain antennas maximize wireless coverage

Gigabit Ports

Gigabit ports support high performance wired connections

USB 3.0 Share Ports

Share content across the network with the 5 Gbps USB 3.0 share ports

Guest Network

Create an isolated network for guest internet access only

Parental Controls

Control access to specific websites and control connected device access to the network

One Touch Connection

Connect to the router at the touch of the Wi-Fi Protected Setup (WPS) button

Targeted Beamforming

Beamforming increases real-time performance by directing stronger wireless signals to your specific location

Backward Compatible

Compatible with legacy wireless devices

File Sharing Support

Management controls to optimize BitTorrent sharing, iTunes server streams, and Samba (SMB) clients

Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3ab IEEE 802.3az IEEE 802.11a IEEE 802.11b IEEE 802.11g IEEE 802.11n (up to 800 Mbps)* IEEE 802.11ac (up to 1733 Mbps)*

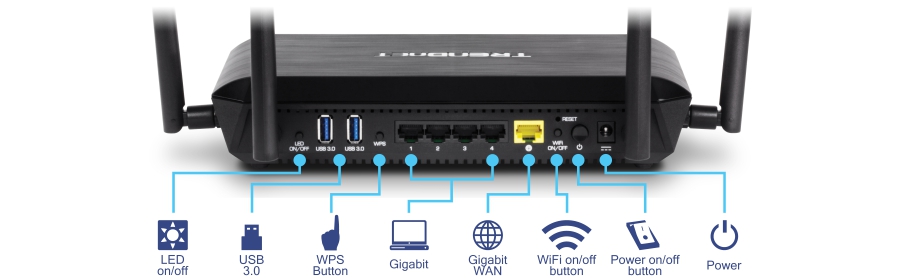

Hardware Interface	4 x Gigabit LAN ports 1 x Gigabit WAN port 2 x USB 3.0 (Storage FTP, Samba, iTunes® Media Server, BitTorrent Client) Power switch WPS button Reset button WiFi on/off LED on/off LED indicators
Special Features	StreamBoost™ automatically identifies and classifies network traffic to maximize bandwidth and speed*** Multi-User MIMO for increased bandwidth efficiency and better user experience* Multi-Language interface: English, French, Spanish, German, Russian Pre-encrypted wireless network IPv6 support 1 guest network per band with option for internet access only Up to 2 additional SSIDs per band Dynamic DNS support for dyn.com, no-ip.com, and easydns.com Samba/FTP server support Implicit and Explicit Beamforming
Access Control	Wireless encryption up to WEP, WPA/WPA2-PSK, WPA/WPA2-RADIUS Firewall: NAT, SPI, Virtual Server, Special Applications, Gaming, DMZ Host, allow/deny ping request from internet ALG: PPTP/L2TP/IPsec VPN Passthrough, TFTP/FTP/RTSP/SIP/H.323 Passthrough Parental (Access) Controls: MAC, URL, IP Filter
Quality of Service	WMM StreamBoost™ Traffic Shaping***
Internet Connection Types	Dynamic IP (DHCP) Static IP (Fixed) PPPoE (Dynamic IP/Static IP) PPTP (Dynamic IP/Static IP) L2TP(Dynamic IP/Static IP) Russia PPPoE (Dynamic IP/Static IP) Russia PPTP (Dynamic IP/Static IP) Russia L2TP (Dynamic IP/Static IP) IPv6 (Static, Auto-configuration (SLAAC/DHCPv6), Link-Local, PPPoE, 6to4)
Management/Monitoring	Local/remote web based management Upgrade firmware Backup/restore configuration Internal logging Reboot Restore to factory defaults Ping test
Routing	Static Dynamic (RIP v1/2)
Frequency	2.412 – 2.472 GHz 5.180 – 5.825 GHz
Modulation	802.11b: CCK, DQPSK, DBPSK 802.11a/g: OFDM with BPSK, QPSK and 16/64-QAM 802.11n: BPSK, QPSK, 16-QAM, 64-QAM with OFDM 802.11ac: OFDM with BPSK, QPSK and 16/64/256-QAM
Media Access Protocol	CSMA/CA with ACK
Antenna Gain	2.4 GHz: 4 x 3 dBi (max.) detachable/external; 5 GHz: 4 x 5 dBi
Wireless Output Power (max output power without antenna gain)	802.11a: FCC: 26 dBm (max.) / ETSI: 29 dBm (max.) / IC: 26 dBm (max.) @ 54 Mbps 802.11b: FCC: 27 dBm (max.) / ETSI: 14 dBm (max.) / IC: 27 dBm (max.) @ 11 Mbps 802.11g: FCC: 29 dBm (max.) / ETSI: 16 dBm (max.) / IC: 29 dBm (max.) @ 54 Mbps 802.11n (2.4 GHz): FCC: 29 dBm (max.) / ETSI: 16 dBm (max.) / IC: 29 dBm (max.) @ 800 Mbps 802.11n (5 GHz): FCC: 27 dBm (max.) / ETSI: 28 dBm (max.) / IC: 26 dBm (max.) @ 800 Mbps 802.11ac: FCC: 27 dBm (max.) / ETSI: 28 dBm (max.) / IC: 26 dBm (max.) @ 1733 Mbps
Receiving Sensitivity	802.11a: -68 dBm (typical) @ 54 Mbps 802.11b: -83 dBm (typical) @ 11 Mbps 802.11g: -70 dBm (typical) @ 54 Mbps 802.11n (2.4 GHz): -64 dBm (typical) @ 800 Mbps 802.11n (5 GHz): -68 dBm (typical) @ 800 Mbps 802.11ac: -55 dBm (typical) @ 1733 Mbps
Wireless Channels	2.4 GHz: FCC: 1-11; ETSI: 1-13 5 GHz: FCC: 36, 40, 44, 48, 149, 153, 157, 161, 165; ETSI: 36, 40, 44, 48, (52, 56, 60, 64, 100, 104, 108, 112, 116, 132, 136, 140)**
Power	Input: 100 – 240 V AC, 50 – 60 Hz, 1 A Output: 12V DC, 3 A external power adapter Consumption: 31 Watts max.
Operating Temperature	0 – 40 °C (32 – 104 °F)
Operating Humidity	Max. 95% non-condensing
Certifications	CE FCC
Dimensions	250 x 180 x 45 mm (9.8 x 7.1 x 1.8 in.)
Weight	752 g (26.5 oz.)
Warranty	3 year limited

PACKAGE CONTENTS

TEW-827DRU
Quick Installation Guide
CD-ROM (User's Guide)
4 x Detachable high gain antennas
Network cable (1.5 m/5 ft.)
Power adapter (12V DC, 3 A)

*Maximum wireless signal rates are referenced from IEEE 802.11 theoretical specifications. Actual data throughput and coverage will vary depending on interference, network traffic, building materials and other conditions. For maximum performance of up to 1.733 Gbps use with a 1.733 Gbps 802.11ac wireless adapter. For maximum performance of up to 800 Mbps, use with an 800 Mbps 802.11n wireless adapter. Multi-User MIMO (MU-MIMO) requires the use of multiple MU-MIMO enabled wireless adapters.
** Due to regulatory requirements, the wireless channels specified cannot be statically assigned, but will be available within the available wireless channels when set to auto.
***Qualcomm^® StreamBoost^™ is a trademark of Qualcomm Atheros, Inc.

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
