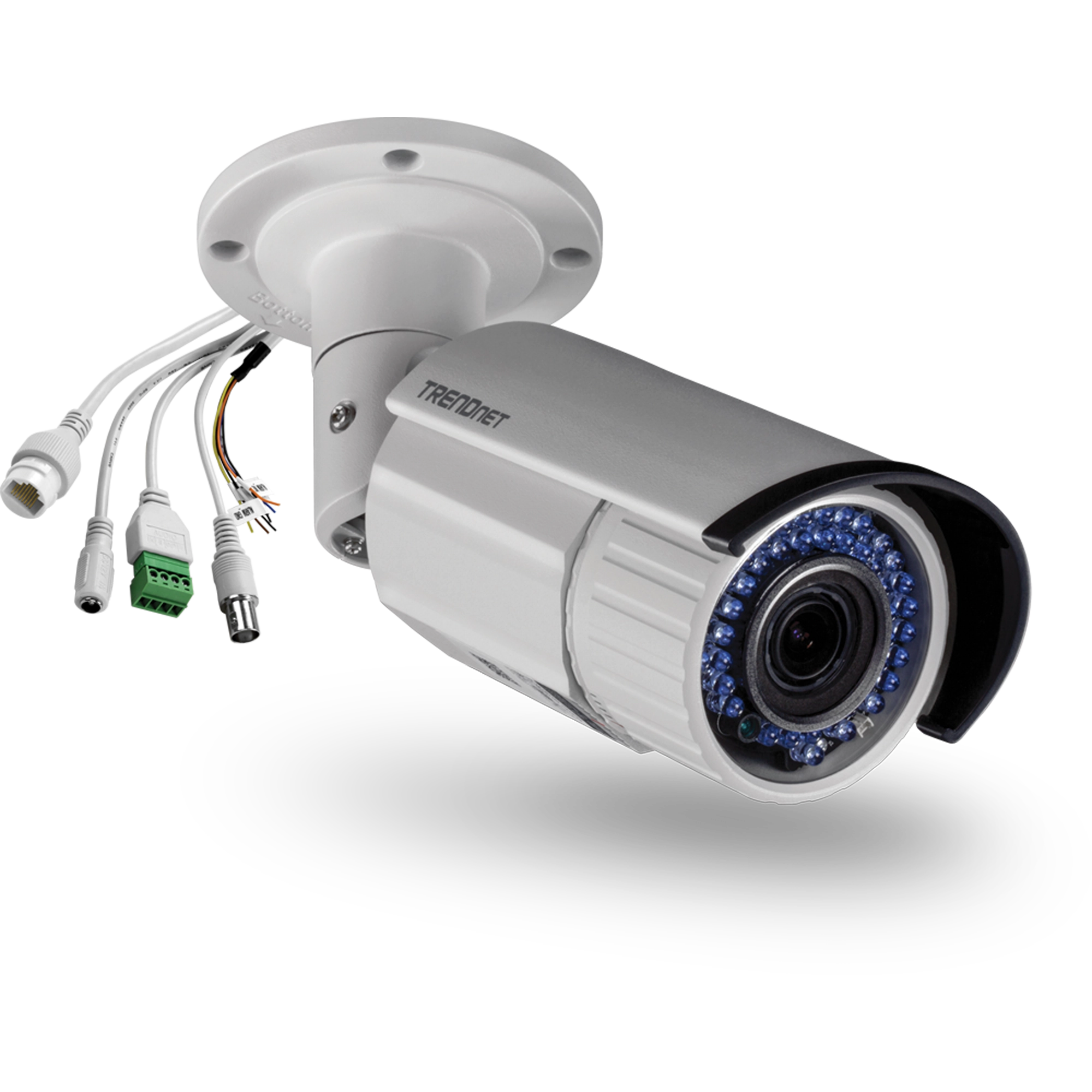

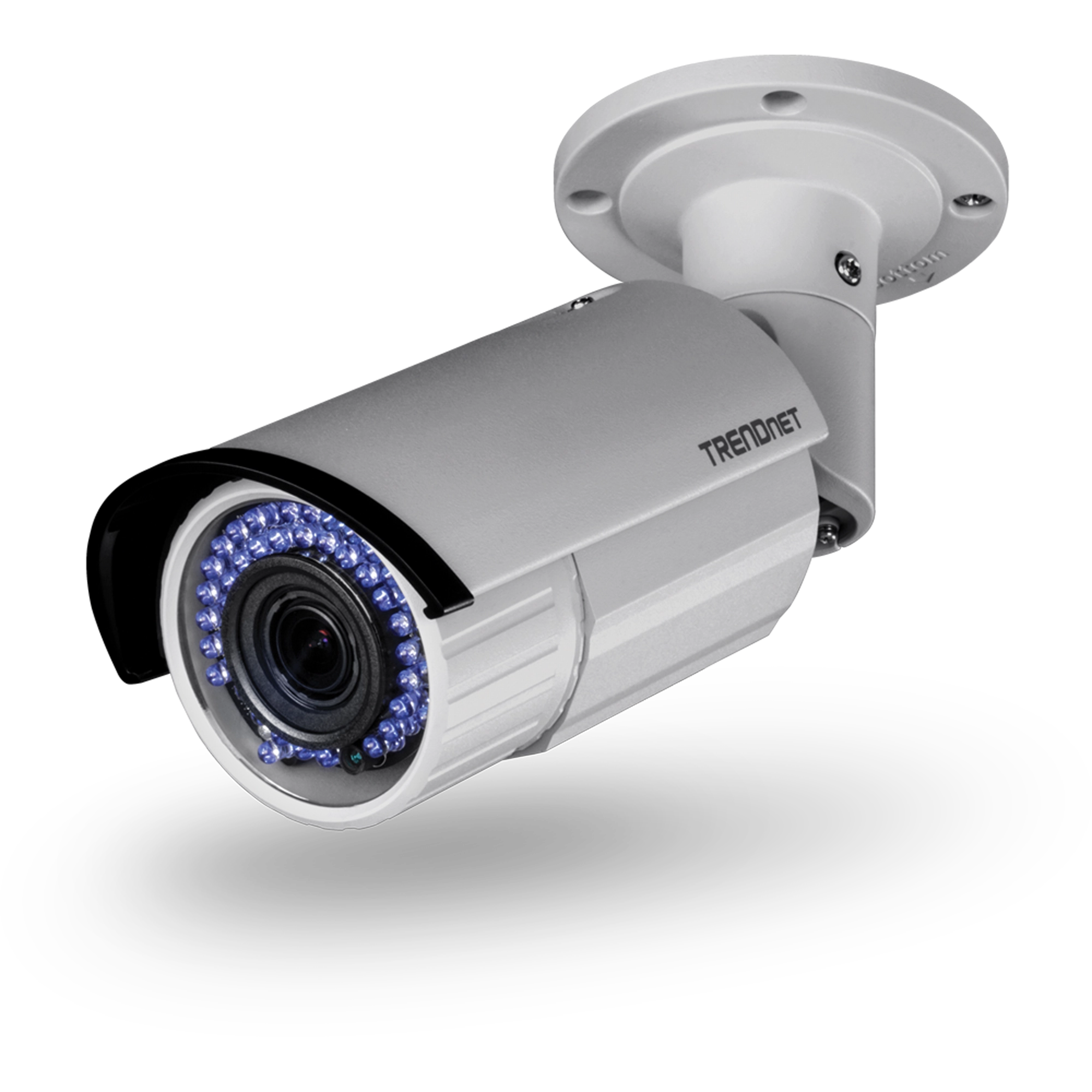

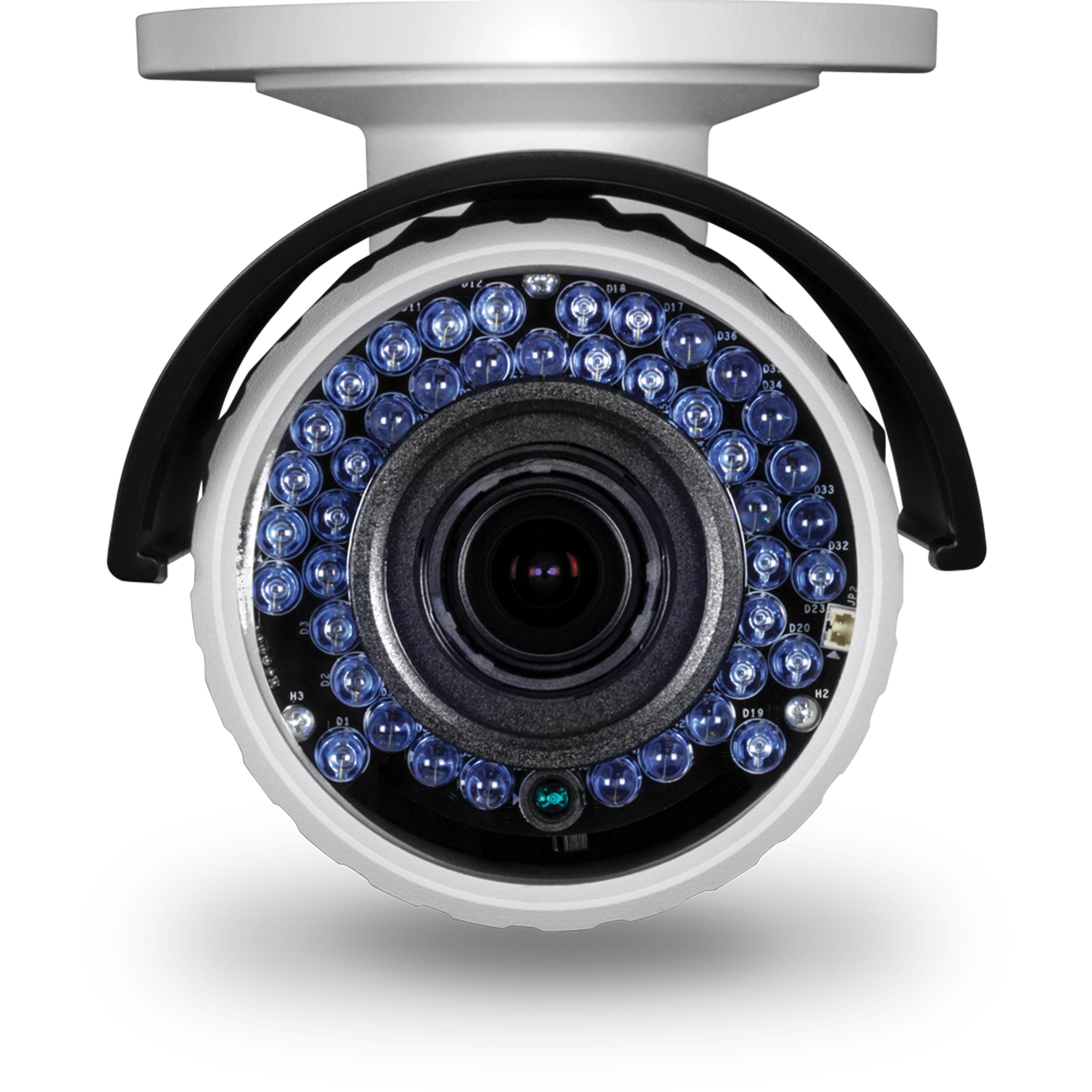

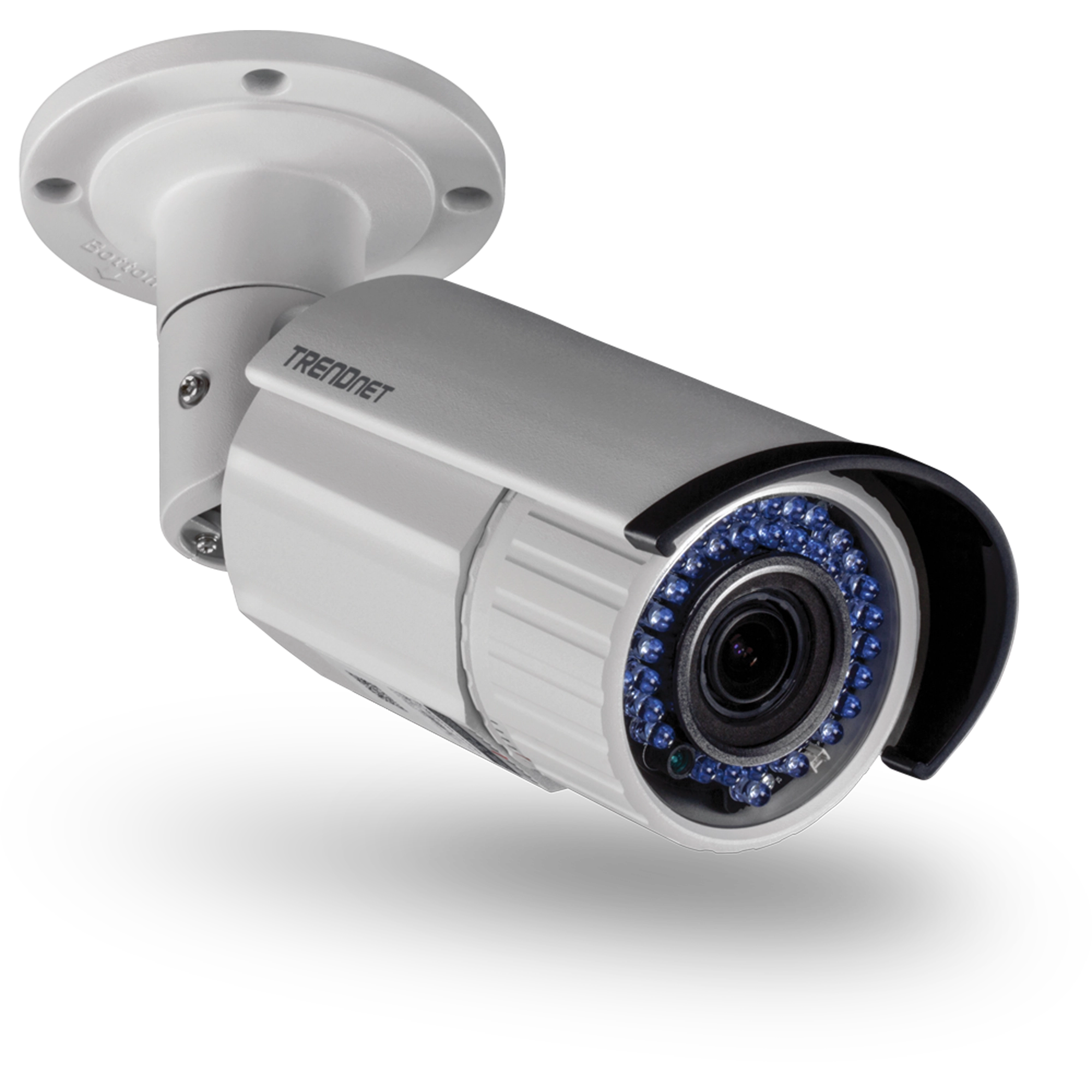

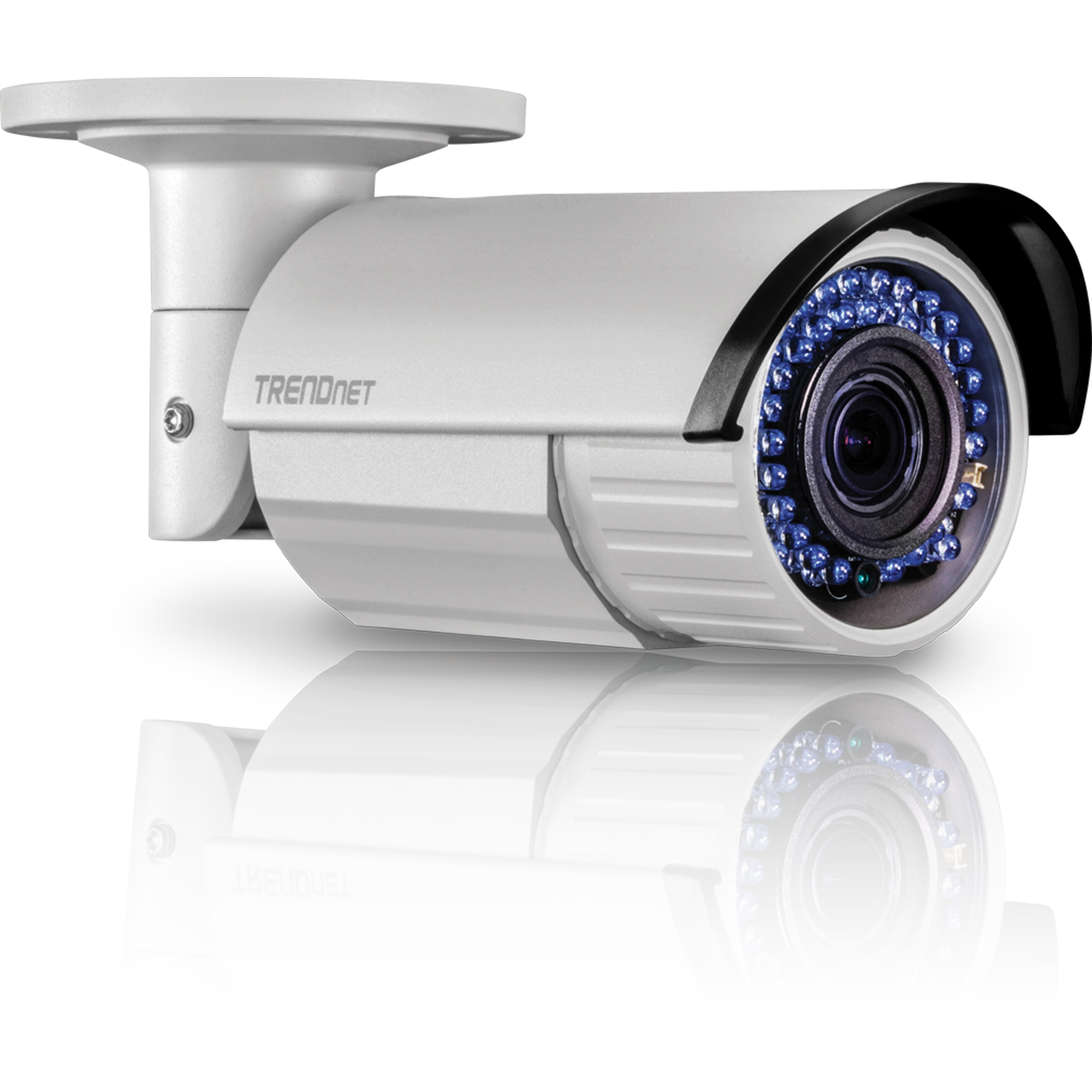

Indoor / Outdoor 2 MP 1080p Varifocal PoE IR Network Camera

TV-IP340PI   (Version v1.0R)

  • 2 MP 1080p HD resolution
  • Outdoor IP66 weather rating
  • Adjustable 2.8 – 12 mm manual zoom varifocal lens
  • Save installation costs with Power over Ethernet (PoE)
  • Digital Wide Dynamic Range image balancing
  • Program motion detection recording and email alerts
  • MicroSD card slot (up to 64 GB)
  • ONVIF and IPv6 support
  • Free iOS® and Android™ mobile apps


DISCONTINUED PRODUCT

The TV-IP340PI (Version v1.0R) has been discontinued. For a list of discontinued products, click here.

Drivers/Utility

MAC Plug-in
Web plug-in for MAC OS

Release Date: 07/2016
Release Note:
  • Fixes issue with live view in MAC OS 10.11

Filename: Mac_Plugin.zip
SHA-1 Checksum: 502C648F454B638F7A6445DB8D6FBA3DBC401D8C
Date: 7/26/2017
File Size: 3.66 MB
Download

Firmware

Firmware
DO NOT upgrade firmware on any TRENDnet product using wireless connection.
Firmware upgrade over wireless connection may damage the product. Please perform firmware upgrade with "wired" network connection only

Firmware Version: 5.3.4 Build 180411
Release Date: 4/2018
Release Note:

  1. Addressed WPA2 issue (only for TV-IP322WI)
  2. Fixed the snapshot issue
  3. Update company naming


Filename: FW_TV-IP32x_341_342(v5.3.4_180411).zip
SHA-1 Checksum: C31D6AD6BD30ED7FB55FCEA400B0468F04D2325F
Date: 4/23/2018
File Size: 13.89 MB
Download

Full Software Package

Luxriot EVO S Advanced camera management software (64-bit)

Luxriot EVO S terms and conditions
Notes:
Support following cameras
  • TV-IP1313PI
  • TV-IP1314PI
  • TV-IP1315PI
  • TV-IP1318PI
  • TV-IP1319PI
  • TV-IP1329PI
  • TV-IP1328PI

Filename: Luxriot_EVO_x64_1.19.1.zip
Date: 10/18/2021
File Size: 793.48 MB
Download

Individual Installation Software

Luxriot Monitor (64-bit)

Luxriot EVO S terms and conditions
Filename: Luxriot_Monitor_x64_1.19.1.zip
Date: 10/18/2021
File Size: 776.57 MB
Download
Luxriot Console (64-bit)

Luxriot EVO S terms and conditions
Filename: Luxriot_Console_x64_1.19.1.zip
Date: 10/18/2021
File Size: 793.01 MB
Download

Datasheet

Datasheet (English)
Filename: EN_datasheet_TV-IP340PI_(v1.0R).pdf
Date: 9/30/2021
File Size: 1.02 MB
Download Email
Datasheet (Français)
Filename: FR_datasheet_TV-IP340PI_(v1.0R).pdf
Date: 9/30/2021
File Size: 1.03 MB
Download Email
Datasheet (Deutsch)
Filename: GE_datasheet_TV-IP340PI_(v1.0R).pdf
Date: 9/30/2021
File Size: 1.14 MB
Download Email
Datasheet (Português)
Filename: PO_datasheet_TV-IP340PI_(v1.0R).pdf
Date: 9/30/2021
File Size: 1.04 MB
Download Email
Datasheet (Español)
Filename: SP_datasheet_TV-IP340PI_(v1.0R).pdf
Date: 9/30/2021
File Size: 1.03 MB
Download Email
Datasheet (Italiano)
Filename: IT_datasheet_TV-IP340PI_(v1.0R).pdf
Date: 9/30/2021
File Size: 1.03 MB
Download Email

Quick Installation Guide

Quick Installation Guide (English)
Filename: EN_Web_TV-IP340PI(V1.0R).pdf
Date: 11/23/2016
File Size: 2.94 MB
Download
Quick Installation Guide (Français)
Filename: FR_Web_TV-IP340PI(V1.0R).pdf
Date: 11/23/2016
File Size: 2.92 MB
Download
Quick Installation Guide (Deutsch)
Filename: GE_Web_TV-IP340PI(V1.0R).pdf
Date: 11/23/2016
File Size: 2.88 MB
Download
Quick Installation Guide (Português)
Filename: PT_Web_TV-IP340PI(V1.0R).pdf
Date: 11/23/2016
File Size: 2.88 MB
Download
Quick Installation Guide (Español)
Filename: SP_Web_TV-IP340PI(V1.0R).pdf
Date: 11/23/2016
File Size: 2.89 MB
Download
Quick Installation Guide (Italiano)
Filename: IT_Web_TV-IP340PI(V1.0R).pdf
Date: 11/23/2016
File Size: 2.89 MB
Download

User's Guide

User's Guide
Filename: UG_TV-IP340PI(v1.0R).pdf
Date: 11/1/2016
File Size: 3.99 MB
Download

Product Images

PNG Image
File Size: : 2.33 MB
Date: : 11/23/2016
Download
PNG Image
File Size: : 2.65 MB
Date: : 11/23/2016
Download
PNG Image
File Size: : 2.27 MB
Date: : 11/23/2016
Download
PNG Image
File Size: : 3.62 MB
Date: : 11/23/2016
Download
ROHS compliant WEEE crossed-out bin symbol.
Lens
  • Focal Length: 2.8 – 12 mm @ F1.4
  • Focal depth: 30 cm to infinity
  • Lens: Varifocal
  • Sensor: 1/3” CMOS sensor
  • Digital WDR
  • Digital zoom: 4x
Viewing Angle
  • Horizontal: 33.8 ˚ - 113˚
  • Pan : 0 ˚ - 355 ˚
  • Tilt : 0 ˚ - 75 ˚
Minimum Illumination
  • IR off: 0.014 lux
  • IR on: 0 lux
  • 30 m distance
  • IR wavelength : 850 nm
Resolution
  • H.264: 1920 x 1080 up to 30 fps
  • MJPEG: 704 x 480 up to 30 fps
Hardware Standard
  • IEEE 802.1x
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3af
Device Interface
  • 10 / 100 Mbps PoE port
  • Micro SD card slot
  • IR LEDs
  • GPIO terminal for audio
  • I / O for alarm
  • Power jack
Audio
  • 2-way audio supported (mix and speaker not included)
  • External microphone line in / speaker line out
  • 3D DNR
I / O
  • External input / output for alarm installation
Micro-SD slot
  • Supports Micro SD / SDHC / SDXC
  • Up to 64 GB
Housing
  • IP66 rated
  • Direct cabling through the bottom or side of housing
Network Protocol
  • IPv4, IPv6, UDP, TCP / IP, ONVIF, SPIA
  • DHCP, NTP, DDNS, SMTP, FTP, LLTD
  • SNMP v1-v3, QoS / DSCP, IEEE 802.1X
  • NFS, SMB / CIFS, Bonjour
  • HTTP, HTTPS
  • PPPoE
  • UPnP, RTSP, RTP
Dimension
  • Camera: 260 x 95 x 95 mm (10.2 x 3.75 x 3.75 in.)
Weight
  • 830 g (1.14 lbs.)
Operating Temperature
  • -30 – 60 °C (-22 – 140 °F)
Humidity
  • Max. 95% non-condensing
Power
  • Input: PoE
  • Consumption: 5.5 W max.
Power (Power adapter not included)
  • Input: 100 - 240 V AC , 50 / 60 Hz, 1 A
  • Output: 12 V DC, 1 A external power adapter (for non-PoE installations)
Management Interface
  • Multi-language support: English, French, German, Spanish and Portuguese
  • IP address filter
  • QoS traffic prioritization
  • Time, date, and text overlay
  • Image settings: brightness, contrast, hue, sharpness, D-WDR, Denoise 2D, Shutter time, sense-up, Saturation, AGC (automatic gain control), flip, mirror, 90 degree rotate, IR, day / night mode, white balance
  • D-WDR enhances video quality in high contrast daytime lighting
  • 2D Digital Noise Reduction enhances night vision quality
  • Recording: to computer, NAS, SAMBA, or through software
  • Video Recording: scheduled, motion detection, sound detection, and tamper detection
  • Motion detection: define up to three motion detection areas and motion sensitivity
  • Privacy masks: define custom privacy mask up to 3 areas
  • Tamper detection function: email notification, FTP, alarm, SD card, or Samba server if the viewing field darkens suddenly
  • Network disconnection fallback: set to automatically save video to Micro SD card (sold separately) if connection to network is broken
  • Snapshot: real time snapshot, sound detection, and motion detection
  • Supported dynamic DNS services: dyn.com, no-ip.com, and iptecno.com
  • Management setting: maximum 21 user accounts
  • Supports remote management
  • Compatibility (PC based): Internet Explorer® 8.0 or higher
Certifications
  • CE
  • FCC
Warranty
  • 3 year limited

PACKAGE CONTENTS
  • TV-IP340PI
  • Quick Installation Guide
  • CD-ROM (Utility, Software, & User's Guide)
  • Camera mounting hardware

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
