10G PoE+ Injector

TPE-315GI (Version v1.0R)

  • Converts a non-PoE port to a PoE+ port
  • Supplies PoE (15.4W) or PoE+ (30W)
  • 10GBASE-T compliant
  • Network a PoE device up to 100m (328 ft.) over Cat6A or better cabling
  • Save on installation and equipment costs
  • IEEE 802.3af and 802.3at compliant
  • NDAA / TAA compliant (U.S. and Canada only)
NDAA/TAA Compliant

TRENDnet’s 10G PoE+ Injector, model TPE-315GI, combines electrical power with a 10GBASE-T network connection to produce a 10G PoE+ network signal. Auto-sensing technology conveniently delivers the correct wattage needed to power your PoE or PoE+ devices. Connect the 10G PoE+ injector to a non-PoE switch, and then run an Ethernet cable with data + power to network a PoE or PoE+ device up to 100 meters (328 ft.) over Cat6A or better cabling. Network PoE devices, such as wireless access points, IP cameras, VoIP phone systems, IPTV decoders, access controls, and more.

A TRENDnet device is centrally connected to both a PoE+ access point and a non-PoE switch. The connection to the PoE+ access point is highlighted with a yellow lightning bolt, indicating it provides up to 30 watts of power. The PoE+ access point is positioned on the left, while the non-PoE switch is on the right.

PoE+

The 10G PoE+ injector supplies a PoE device with PoE (15.4W) or PoE+ (30W) power.

A black TRENDnet device is mounted on a white wall with ports labeled DC IN, DATA, LAN IN, and DATA/PoE OUT. A red magnet icon with yellow lightning bolts on the wall indicates the magnetic wall-mount design.

Installation Flexibility

Magnetic wall-mount design enclosure accommodates most installations scenarios.

A speedometer-style gauge displays network speeds in megabits per second (Mbps) with increments from 0 to 10,000 Mbps. The needle points to 10,000 Mbps, highlighted in red and yellow, indicating maximum speed.

10G Speeds

Equipped with a 10GBASE-T RJ-45 port, providing network speeds of up to 10Gbps over existing Cat6A or better cabling.

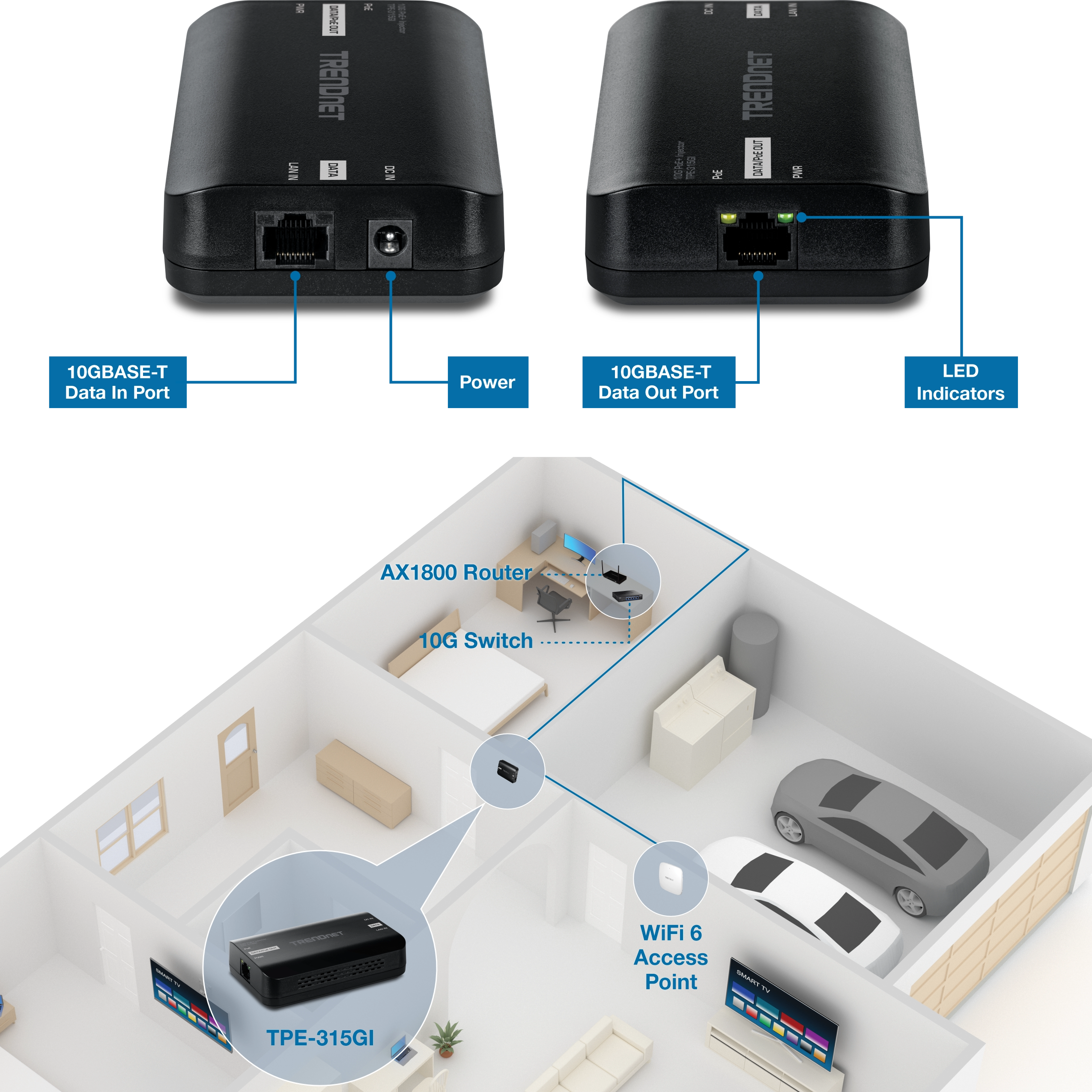

The image shows different views of a single TRENDnet device labeled TPE-315Gi. The device features a 10GBASE-T Data In Port and a Power port on one side, and a 10GBASE-T Data Out Port and LED Indicators on the other side. A diagram of a house with various network components highlights the device's placement within the network setup, emphasizing the use of 10GBASE-T technology for high-speed data transfer.

PoE+

10Gb PoE+ injector supplies a PoE device with PoE (15.4W) or PoE+ (30W) power

Auto-Sensing Technology

Featuring auto-sensing technology, the 10G PoE+ injector conveniently delivers the correct wattage needed to power your PoE or PoE+ devices

Easy Installation

Simply connect the multi-gig PoE+ injector to your switch and PoE device – no configuration needed

Installation Flexibility

Magnetic wall-mount design accommodates most installations scenarios

10G Ports

1 x 10G port (data) and 1 x 10G PoE+ port (data + power)

PoE Distance

Provides a PoE+ network connection up to 100m (328 ft.) over Cat6A or better cabling

LED Indicators

LED indicators on the 10G PoE+ injector confirm PoE and network connectivity

Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3af
  • IEEE 802.3an
  • IEEE 802.3at
  • IEEE 802.3bz
Device Interface
  • 1 x 10GBASE-T port (data)
  • 1 x 10GBASE-T PoE+ port (data + power)
Throughput & Distance
  • Cat5e Cabling: 1Gbps / 2.5Gbps @ 100m (328 ft.)
  • Cat6 Cabling: 10Gbps @ 50m (164 ft.)*
  • Cat6a Cabling: 10Gbps @ 100m (328 ft.)*
PoE
  • Mode A: Pins 1, 2 for power+ and pins 3, 4 for power-
  • Mode B: Pins 5, 6 for power+ and pins 7, 8 for power -
  • Max. 30W
Power Consumption
  • Max. 0.3W (without PD)
Temperature
  • 0° – 50° C (32° – 122° F)
Humidity
  • Max. 90% non-condensing
Certifications
  • CE
  • FCC
Dimensions
  • 109.7 x 70 x 28.6mm (4.3 x 2.8 x 1.1 in.)
Weight
  • 0.1 kg (0.22 lbs.)
Warranty
  • 3-year

PACKAGE CONTENTS
  • TPE-315GI
  • Power adapter (54V DC, 1.67A)

*Maximum distance of Cat6 and Cat6a cabling are references to IEEE 802.3an standard. Actual data throughput and distance will vary depending on the quality of the cable.

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
