12-Port 10G Web Smart Switch

TEG-7124WS (Version v1.0R)

8 x 10G ports
4 x SFP+ slots
Supports 10M/100M/1G/2.5G/5G/10G link speeds
Easy-to-use web-based management interface
Supports IPv6, LACP, VLAN, QoS, and IGMP Snooping
Bandwidth control per port
Private and Voice VLAN support
240Gbps switching capacity
IEEE 802.1p QoS with queue scheduling support
1U 19” rack mountable metal housing
NDAA / TAA compliant (U.S. and Canada only)

TRENDnet’s 10G Web Smart Switch, model TEG-7124WS offers advanced traffic management controls to meet the evolving demands of SMB networks. This rack mountable IPv6-ready managed switch comes with an intuitive web-based interface. Advanced managed switch features include LACP to increase bandwidth between switches by grouping ports together, VLANs for segmenting and isolating virtual LAN groups, QoS for traffic prioritization, port bandwidth controls, and SNMP monitoring, making this a powerful solution for any SMB network. Improve voice performance by isolating and prioritizing VoIP traffic from normal data traffic with an easy-to-use voice VLAN feature.

Free up router resources by offloading routing processes to this managed switch by using the L2+ IPv4/IPv6 static routing feature to efficiently route traffic at the switch level. The dynamic ARP inspection feature helps protect connected devices from man-in-the-middle attacks by discarding malicious and invalid ARP packets. Take advantage of the available multicast and IGMP/MLD snooping features to optimize IP surveillance system performance, and minimize network traffic.

TRENDnet’s 10G web smart managed switch also features eight 10GBASE-T Ethernet ports, and four 10G SFP+ slots for high-speed network uplinks or downlink NAS/access server connections providing a cost-effective solution in adding 10G link capability to an SMB network.

The illustration depicts a network cable labeled 10Gbps Capability with icons representing music, video, and data transfer moving through the network.

High-Speed 10GBASE-T and 10G SFP+

Offers eight 10GBASE-T Ethernet ports, and four 10G SFP+ slots for high-speed network uplinks or downlink NAS/access server connections providing a cost-effective solution in adding 10G link capability to an SMB network.

Line art of a Network switch with dashboard management speech bubble.

Web Smart Management

Provides an easy-to-use web-based GUI management for reduced switch configuration complexity and offers a combination of SMB management features for easy deployment.

Diagram showing a network switch connected to various network management protocols. A cloud labeled Network connects to three boxes labeled VLAN, QoS & IGMP all of which are linked to a network switch below. The switch features several Ethernet ports, illustrating its capability to manage multiple network functions.

Integration Flexibility

Managed features include access control lists, VLAN, IGMP snooping, QoS, RMON, SNMP trap, and syslog for monitoring and flexible network integration.

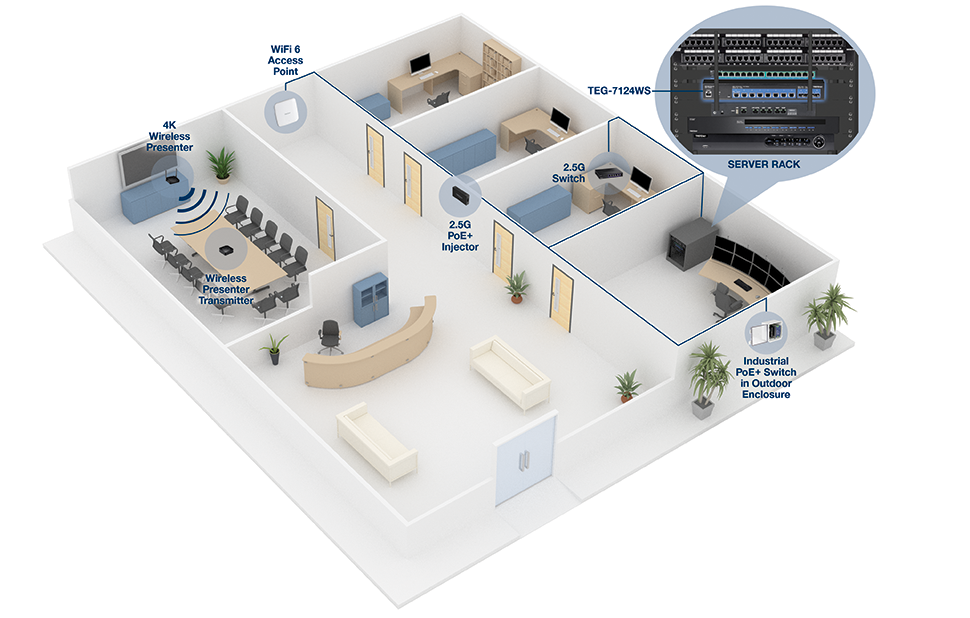

The 3D illustration shows an office cut-out with different areas highlighted where network devices are located. It includes a server room with a zoomed-in image of a server rack, highlighting the TEG-7124WS switch. This switch is connected to a 2.5G switch in an office room. A 2.5G PoE+ injector located in the middle of the office space connects to a WiFi 6 access point. Additionally, there's a 4K wireless presenter in a conference room, emitting a signal to the wireless presenter transmitter. An industrial PoE+ switch is placed in an outdoor enclosure outside the building wall from the server room.

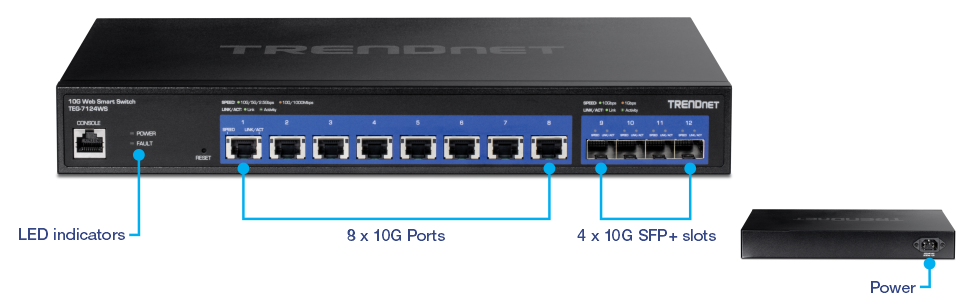

The illustration shows the front view of TEG-7124WS with labels for LED indicators, 8 x 10G ports, and 4 x 10G SFP+ slots, along with a back view on the right showing a label named Power.

Hardware Design

Provides eight 10G ports, four 10G SFP+ slots, a 240Gbps switching capacity, a built-in power supply, and rackmount brackets

IPv6 Ready

This switch supports IPv6 configuration and IPv6 neighbor discovery

Traffic Management

A broad range of network configurations are supported by: 802.3ad link aggregation, Asymmetric VLAN, 802.1Q VLAN, Voice VLAN, RSTP, MSTP, Loopback Detection, GVRP, 802.1p Class of Service (CoS), port bandwidth management, and QoS queue scheduling

Troubleshooting

A convenient cable diagnostic test and traffic statistics aid in network troubleshooting

Access Control

Features such as ACL, SSL, MAC/port filtering, 802.1X, TACACS+, and RADIUS are compatible with layered access controls

Monitoring

RMON, SNMP, SNMP Trap, and Port Mirroring support administrator monitoring solutions

Standards	IEEE 802.1d IEEE 802.1p IEEE 802.1Q IEEE 802.1s IEEE 802.1w IEEE 802.1X IEEE 802.1ab IEEE 802.3x IEEE 802.3z IEEE 802.3ab IEEE 802.3ad IEEE 802.3ae IEEE 802.3af IEEE 802.3at IEEE 802.3an IEEE 802.3az IEEE 802.3bz
Device Interface	8 x 10G Ports 4 x 10G SFP+ slots LED indicators
Data Transfer Rate	Gigabit Ethernet: 2000Mbps (full duplex) 2.5G Ethernet: 5000Mbps (full duplex) 10G Ethernet: 20Gbps (full duplex) SFP: 2000Mbps (full duplex) SFP+: 20Gbps (full duplex)
Performance	Switch fabric: 240Gbps RAM buffer: 16MB MAC Address Table: 32K entries Jumbo Frames: 10KB HOL Blocking Prevention Forwarding rate: 178.56Mpps (64-byte packet size)
Management	CLI (Telnet / SSHv2) for basic administration HTTP/HTTPS (SSL v2/3 TLS) Web based GUI SNMP v1, v2c, v3 RMON v1 Static Unicast MAC Address Enable/disable 802.3az Power Saving LLDP and LLDP-MED Virtual Cable Diagnostics Test IPv6: IPv6 Neighbor Discovery, IPv6 Static IP, DHCPv6, Auto configuration Dual image and configuration
MIB	RMON MIB RFC 1271 LLDP MIB IEEE 802.1ab RFC 1213 MIB II RFC 1643 Ethernet intf MIB RFC 1493 bridge MIB
Spanning Tree	IEEE 802.1d STP (Spanning Tree protocol) IEEE 802.1w RSTP (Rapid Spanning Tree protocol) IEEE 802.1s MSTP (Multiple Spanning Tree protocol)
Link Aggregation	Static Link Aggregation 802.3ad Dynamic LACP
Quality of Service (QoS)	802.1p Class of Service (CoS) DSCP (Differentiated Services Code Point) Bandwidth Control per port Queue Scheduling: Strict Priority, Weighted Round Robin (WRR)
VLAN	802.1Q Tagged VLAN Dynamic GVRP Up to 256 VLAN groups, ID Range 1-4094 Private VLAN (Protected Ports) Voice VLAN (10 user defined OUIs)
Multicast	IGMP Snooping v1, v2, v3 (per VLAN) MLD Snooping v1, v2 IGMP fast leave Up to 256 multicast entries
Port Mirror	RX, TX, or Both Many to one
Access Control	802.1X Port-Based Network Access Control, RADIUS, TACACS+ Local Dial-In User Authentication DHCP Snooping Loopback Detection Trusted Host Denial of Service (DoS) IP MAC port binding Block unknown multicast
ACL IPv4 L2-L4 & IPv6	MAC Address VLAN ID Ether Type (IPv4 only) IP Protocol 0-255 TCP/UDP Port 1-65535 802.1p TOS (IPv4 only) IPv4 Address and Mask (IPv4 only) IPv6 Address and Prefix Length (IPv6 only)
Layer 3 Features	IPv4 / IPv6 static routing IP interfaces: Up to 6 Routing table entries: Up to 32 (IPv4 / IPv6) ARP table (up to 128 entries) Inter-VLAN routing
Power	Input: 100 – 240V AC, 50/60Hz, internal power supply Max. consumption: 152.3W
Fan/Acoustics	Quantity: 1 Smart Fans Noise Level: 39 dBa (max.)
MTBF	53,900 hours
Operating Temperature	-0° – 50° C (32° – 122° F)
Operating Humidity	Max. 90% non-condensing
Dimensions	325 x 230 x 44mm (12.80 x 9.06 x 1.74 in.) Rack mountable 1U height
Weight	1.96kg (4.31 lbs.)
Certifications	CE FCC UL
Warranty	3 years

PACKAGE CONTENTS

TEG-7124WS
Quick Installation Guide
Power cord (1.8m/6 ft.)
Rackmount kit
Console cable (1m / 3.28 ft.)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.

Not Available in Europe
