9-Port Multi-Gig Switch

TEG-S591 (Version v1.0R)

8 x 2.5G RJ-45 ports
1 x 10G RJ-45 port
Compact fanless design eliminates noise
Wall mountable for installation flexibility
60Gbps switching capacity
IEEE 802.3bz (2.5G) compliant
IEEE 802.3an (10G) compliant
NDAA / TAA compliant (U.S. and Canada only)

Expand your network’s bandwidth and reduce traffic bottlenecks with TRENDnet’s high-speed and reliable Multi-Gigabit Switch. This multi-gig 2.5G / 10G switch comes equipped with 2.5G RJ-45 ports that provide speeds capable of up to 2.5Gbps over existing Cat5e or better cabling. It also offers one dedicated 10G RJ-45 port for an ultra-fast network connection, providing a cost-effective solution in adding 10G link capability to any SMB network. The fanless design on this multi-gigabit 2.5G / 10G switch lowers energy consumption and eliminates distracting operating noise. TRENDnet’s reliable multi-gigabit switches are cost-effective solutions to increase your network’s throughput.

A 9-port network switch connected to a computer with 10G speed.

10G Port

Offers one 10G port for high-speed network connection providing a cost-effective solution in adding 10G link capability.

Internet speed gauge showing quick data transfer rate.

2.5G Ports

Equipped with eight 2.5G RJ-45 ports that provide multi-gigabit speeds capable of up to 2.5Gbps over existing Cat5e or better cabling.

A 9-port network switch with a no fan symbol.

Fanless

The compact fanless design lowers power consumption, energy costs, and eliminates distracting operating noise.

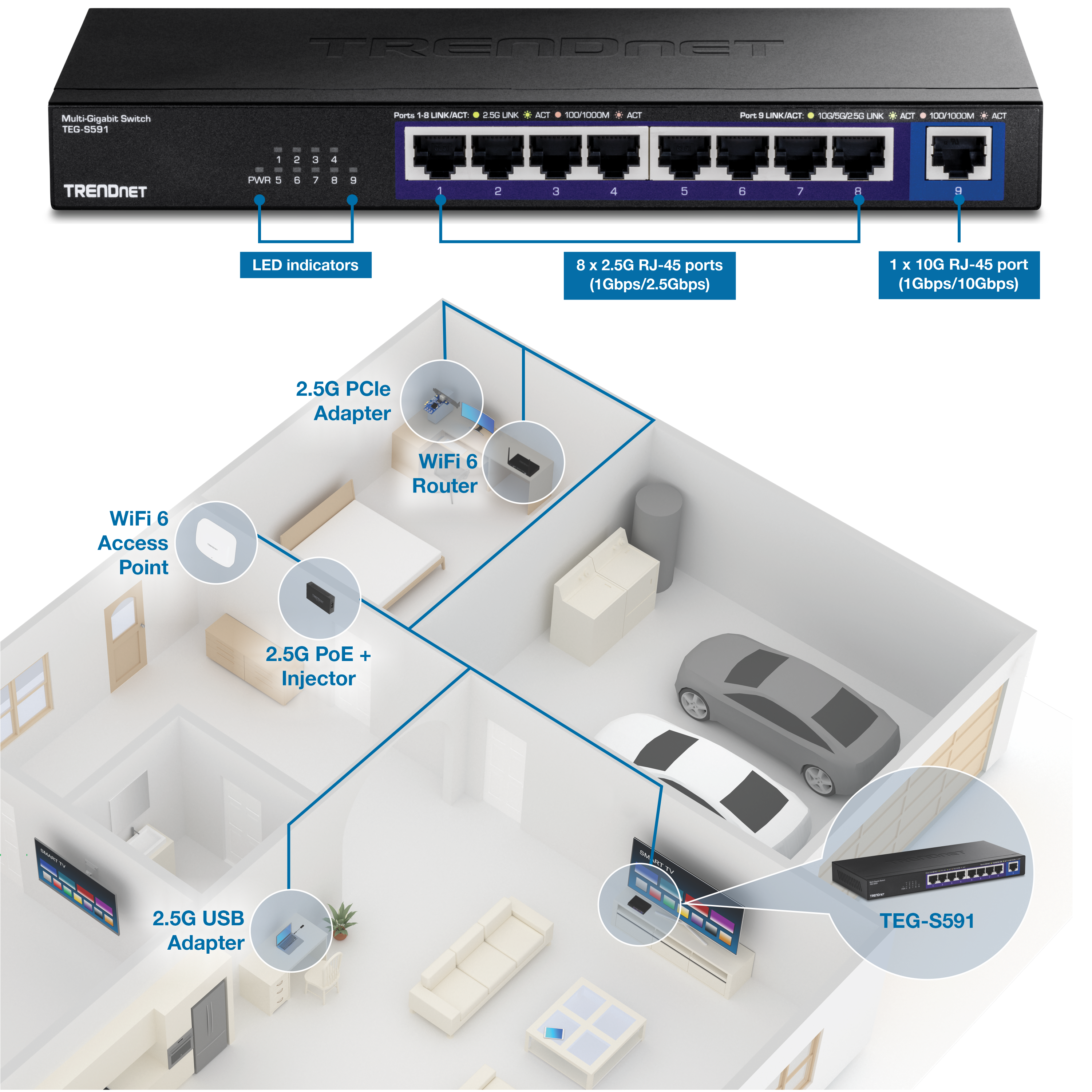

The diagram shows a TRENDnet TEG-S591 switch with eight 2.5G RJ-45 ports and one 10G RJ-45 port. LED indicators show power and port activity. Below the switch is a house layout with connected devices including a WiFi 6 router, 2.5G PCIe adapter, WiFi 6 access point, 2.5G PoE injector, and 2.5G USB adapter.

Easy Installation

No configuration needed, simply connect network devices to this multi-gigabit 2.5G / 10G switch

2.5G Ports

Equipped with 2.5G RJ-45 ports that provide higher gigabit speeds capable of up to 2.5Gbps over existing Cat5e or better cabling

10G Port

Equipped with one 10G port for an ultra-fast network connection providing a cost-effective solution in adding 10G link capability

Fanless

Compact fanless design on the 2.5G / 10G switch lowers energy consumption and eliminates operating noise

Housing Design

The multi-gigabit 2.5G / 10G switch features a sturdy metal housing

Wall Mountable

Features a convenient wall mountable design for greater installation flexibility

Jumbo Frame

The 2.5Gb switch sends larger packets, or Jumbo Frames (up to 12KB), for increased performance

LED Indicators

LED indicators on the multi-gigabit 2.5G / 10G switch conveys port status

Standards	IEEE 802.3ab IEEE 802.3an IEEE 802.3bz IEEE 802.3u IEEE 802.3x
Device Interface	8 x 2.5G RJ-45 ports (1Gbps/2.5Gbps) 1 x 10G RJ-45 port (1Gbps/10Gbps) LED indicators Wall mountable
Data Transfer Rate	Gigabit Ethernet: 2Gbps (full duplex) 2.5G Ethernet: 5Gbps (full duplex) 10G Ethernet: 20Gbps (full duplex)
Performance	Switch fabric: 60Gbps RAM buffer: 1MB MAC address table: 4K entries Jumbo frames: 12KB Forwarding mode: Store and forward Forwarding rate: 44.64Mpps (64-byte packet size)
Power	Input: 90 – 264V AC, 47/63 Hz Output: 12V, 1.5A Max. consumption: 11.9W
MTBF	518,151 hours
Fan / Acoustics	Fanless
Operating Temperature	0° – 40° C (32° – 104° F)
Operating Humidity	Max. 90% non-condensing
Dimensions	240 x 105 x 27mm (9.45 x 4.1 x 1 in.)
Weight	0.72 kg (1.6 lbs.)
Certifications	CE FCC LVD
Warranty	3 year

PACKAGE CONTENTS

TEG-S591
Quick Installation Guide
Power adapter (12V, 1A)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
