10-Port Gigabit PoE++ Switch

TPE-BG102g (Version v2.0R)

8 x Gigabit PoE++ ports
2 x Gigabit SFP ports
240W PoE power budget
20Gbps switching capacity
Fast PoE minimizes wait time for powering up PoE devices
Support VLAN pass through
Internal power supply
Sturdy 1U 19” rack mountable metal housing

TRENDnet’s Unmanaged Gigabit PoE++ Switches provide high-bandwidth performance, ease-of-use, and reliability. These IEEE 802.3bt compliant switches feature a sturdy 1U 19” rack mountable metal housing with mounting brackets included. These high-power PoE++ switches also offer gigabit SFP ports for long-distance fiber networking applications.

Installers and integrators can save on equipment costs and reduce installation time with TRENDnet’s unmanaged high-power PoE++ switches by delivering up to 95W per port of PoE++ power and data over existing Ethernet cables. Fast PoE minimizes wait time for PoE devices by providing power immediately at boot up. Easily network PoE devices such as high-power wireless access points, cameras, digital signage, IPTV decoders, access controls, and more with these high-power PoE++ switches.

Network device facilitating gigabit data transfer between two laptops, with icons representing various data types like email, music, and video.

Gigabit Ports

Gigabit ports provide a full switching capacity to this high power PoE++ switch, with SFP ports for long distance fiber applications.

TRENDnet’s 10-Port Gigabit PoE++ Switch is connected to a PoE camera, providing up to 95Watts of power.

PoE Power

A 240W total PoE power budget on this 802.3bt switch supplies eight PoE++ devices with up to 95W per port.

Server rack with network switch featuring numerous ports.

Hardware Design

With a sturdy metal housing and rackmount brackets included, this high-power PoE++ switch is well-suited for 1U 19” rack installations.

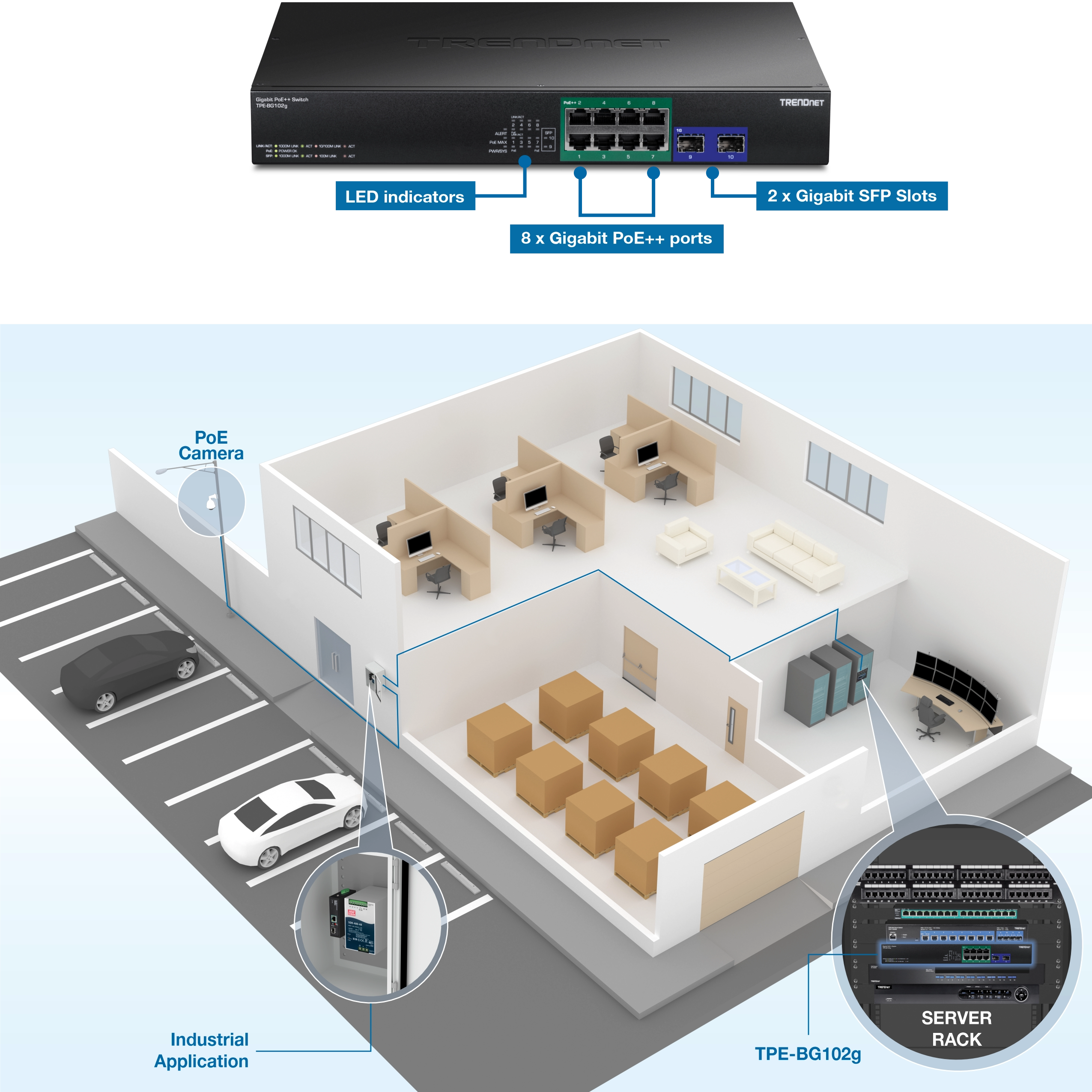

A Trendnet Gigabit PoE++ Switch model TPE-BG102g with LED indicators, eight Gigabit PoE++ ports, and two Gigabit SFP slots. Below the switch, a building diagram illustrates various applications, including a PoE camera outside, an industrial device near the entrance, and a server rack with the switch inside. Office cubicles with computers and a storage room with boxes are also shown, highlighting the switch's ability to connect and power multiple devices within the building.

Hardware Design

With a sturdy metal housing and rackmount brackets included, this high-power PoE++ switch is well-suited for 1U 19” rack installations

PoE Power

A 240W total PoE power budget on this high-power PoE switch supplies eight PoE++ devices with up to 95W per port

Fast PoE

This switch provides power to the PoE device within a few seconds of the switch receiving power. No need to wait for the switch to fully boot up.

Gigabit Ports

Gigabit ports provide a full switching capacity to this high-power PoE++ switch

SFP Ports

SFP ports supports long-distance fiber applications

Jumbo Frame

Sends larger packets, or Jumbo Frames (9KB), for increased performance

Smart Fan

Smart fan saves energy by auto-adjusting the fan speed and use based on cooling needs

Internal Power Supply

100-240VAC, 50/60Hz internal universal switching power supply

LED Indicators

LED indicators conveniently convey port status on the high-power PoE++ switches

Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3ab IEEE 802.3af IEEE 802.3at IEEE 802.3bt
Device Interface	8 x Gigabit PoE++ ports 2 x Gigabit SFP Slots LED indicators
Data Transfer Rate	Ethernet: 10Mbps (half duplex), 20Mbps (full duplex) Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex) Gigabit: 2000Mbps (full duplex) Fiber: 2000Mbps (full duplex)
Performance	Switch Fabric: 20Gbps RAM Buffer: 218KB MAC Address Table: 8K entries Forwarding Rate: 14.88Mpps (64-byte packet size) Jumbo Frames: 9KB
Power	Input: 100-240V AC, 50/60Hz, 2.8A internal power supply Output: 54V DC, 1.76A Max. Consumption: 280W
PoE	PoE++ up to 95W PoE budget: 240W Pin 1, 2, 4, 5 + ; 3, 6, 7, 8 -
Fan/Acoustics	Quantity: 1 Smart Fan Noise Level: 55 dB (max.)
MTBF	427,588 hours
Operating Temperature	0° – 40° C (32° – 104° F)
Operating Humidity	Max. 90% non-condensing
Dimensions	330 x 230 x 44mm (13 x 9.0 x 1.7 in.)
Weight	2.4kg (5.3 lbs.)
Certifications	CE FCC ETL
Warranty	3 year

PACKAGE CONTENTS

TPE-BG102g
Quick Installation Guide
Rackmount kit
Power Cord

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
