10-Port Hardened Industrial Gigabit DIN-Rail Switch

TI-G102 (Version v1.0R)

  • 8 x Gigabit ports
  • 2 x Gigabit RJ-45 / SFP shared ports
  • 20Gbps switching capacity
  • Hardened IP30 rated metal switch
  • Includes DIN-rail and wall mounts
  • Operating temperature range of -40° – 75°C (-40° – 167°F)
  • Redundant power inputs with overload current protection
  • Alarm output triggered by power failure
  • Power supply sold separately (models: TI-M6024 / 48VDC3000)
  • NDAA / TAA compliant
NDAA/TAA Compliant

TRENDnet's 10-Port Hardened Industrial Gigabit DIN-Rail Switch, model TI-G102, has eight dedicated gigabit ports, plus two gigabit RJ-45 / SFP shared ports. Users are able to connect eight devices to the switch, while still providing two gigabit ports for additional network connections. The switch is equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 75°C (-40° – 167°F) for industrial environments.

Full duplex communication illustration of data being transmitted simultaneously in both directions at gigabit speeds. Two arrows pointing in opposite directions, each containing symbols that represent data packets of documents, folders, music, video.

Gigabit Speeds

Ten gigabit ports provide high-speed network connections to devices, and a 20 Gbps switching capacity allows data traffic to flow smoothly, reducing traffic bottlenecks.

TI-G102 connected to two external powers (v1 and v2) and alarm output illustrating power redundancy

Fault Tolerance

Features redundant power inputs with output alarm relay.

Four icons, each representing different features or protections, Device with Vibration Lines: indicates vibration or shock resistance, Thermometer: Signifies temperature resistance. Lightning Bolt: Represents electrical resistance or protection against electrical surges and Text “IP30”: Indicates a specific level of ingress protection (IP) rating against dust and water

Industrial Hardened Design

Equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 75°C (-40° – 167°F) for industrial environments.

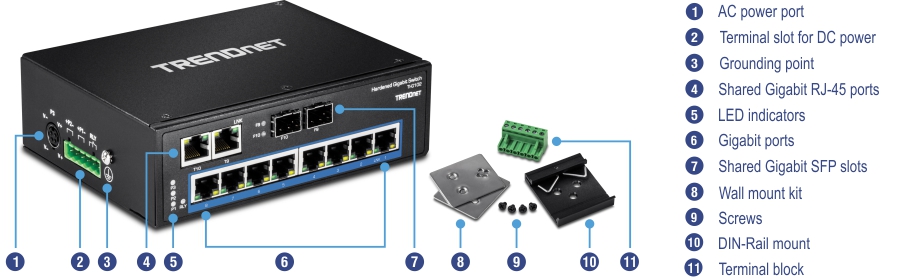

The visual shows the front angle view of the TI-G102 10-Port Hardened Industrial Gigabit DIN-Rail Switch. Numbered labels indicate the AC power port, terminal slot for DC power, grounding point, shared Gigabit RJ-45 ports, LED indicators, Gigabit ports, and shared Gigabit SFP slots. Separate items are labeled as wall mount kit, screws, DIN-Rail mount, and terminal block.

Network Ports

8 Gigabit ports plus 2 Gigabit RJ-45 / SFP shared ports

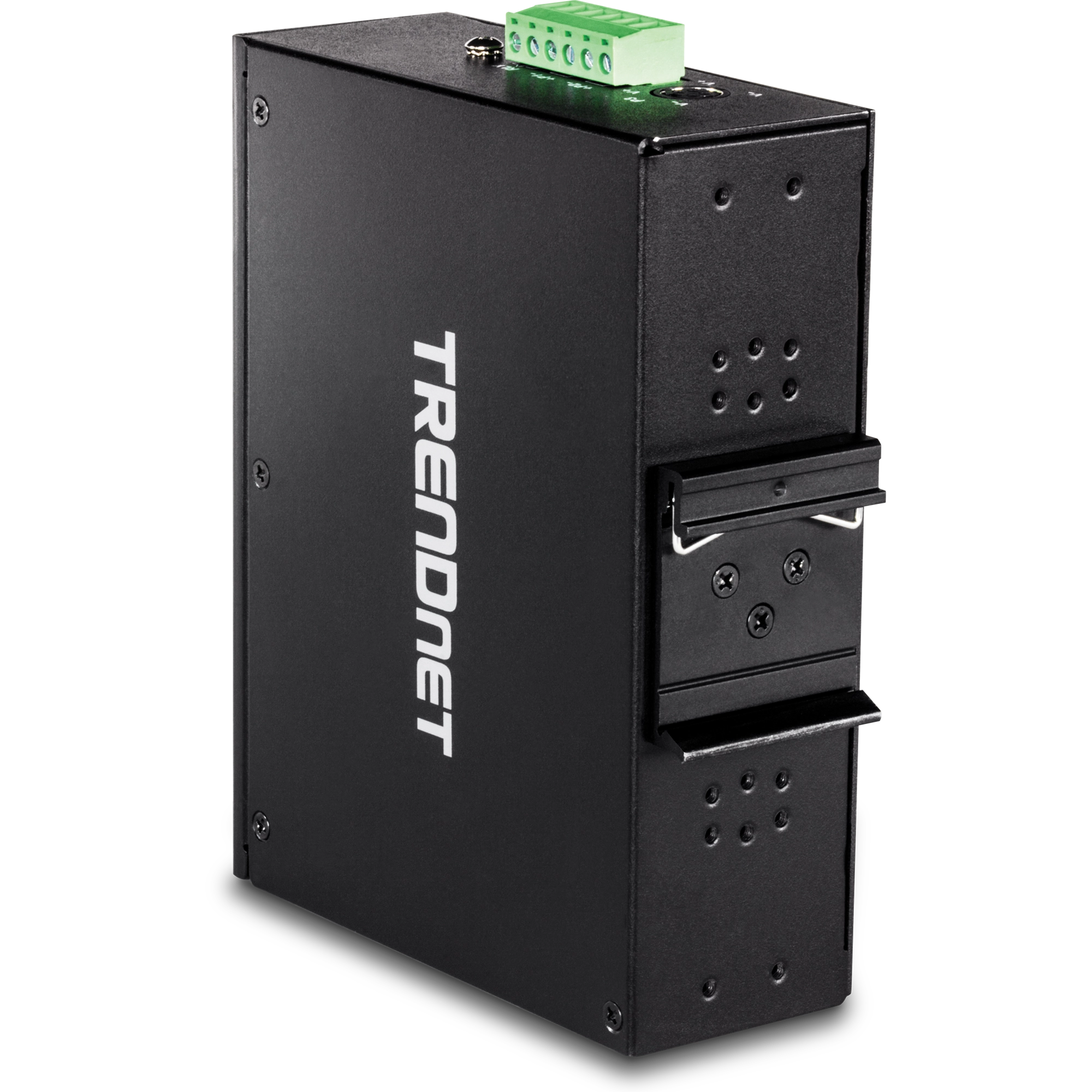

DIN-Rail / Wall Mounts

IP30 rated metal enclosure with included DIN-rail and wall mount hardware

Switching Capacity

20 Gbps switching capacity

Redundant Power

Redundant power inputs with overload current protection (power supply sold separately, models: TI-M6024 / 48VDC3000)

Alarm Relay

Alarm relay triggered by power failure of primary and / or redundant power

Jumbo Frame

Sends larger packets, or Jumbo Frames (up to 10 KB), for increased performance

Extreme Temperatures

Industrial switch is rated for an operating temperature range of -40 – 75°C (-40 – 167°F)

Shock and Vibration Resistant

Rated for shock (EN 60068-2-27), freefall (EN 60068-2-32), and vibration (EN 60068-2-6)

Grounding Point

Grounding point protects equipment from external electrical surges

Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3z
  • IEEE 802.3x

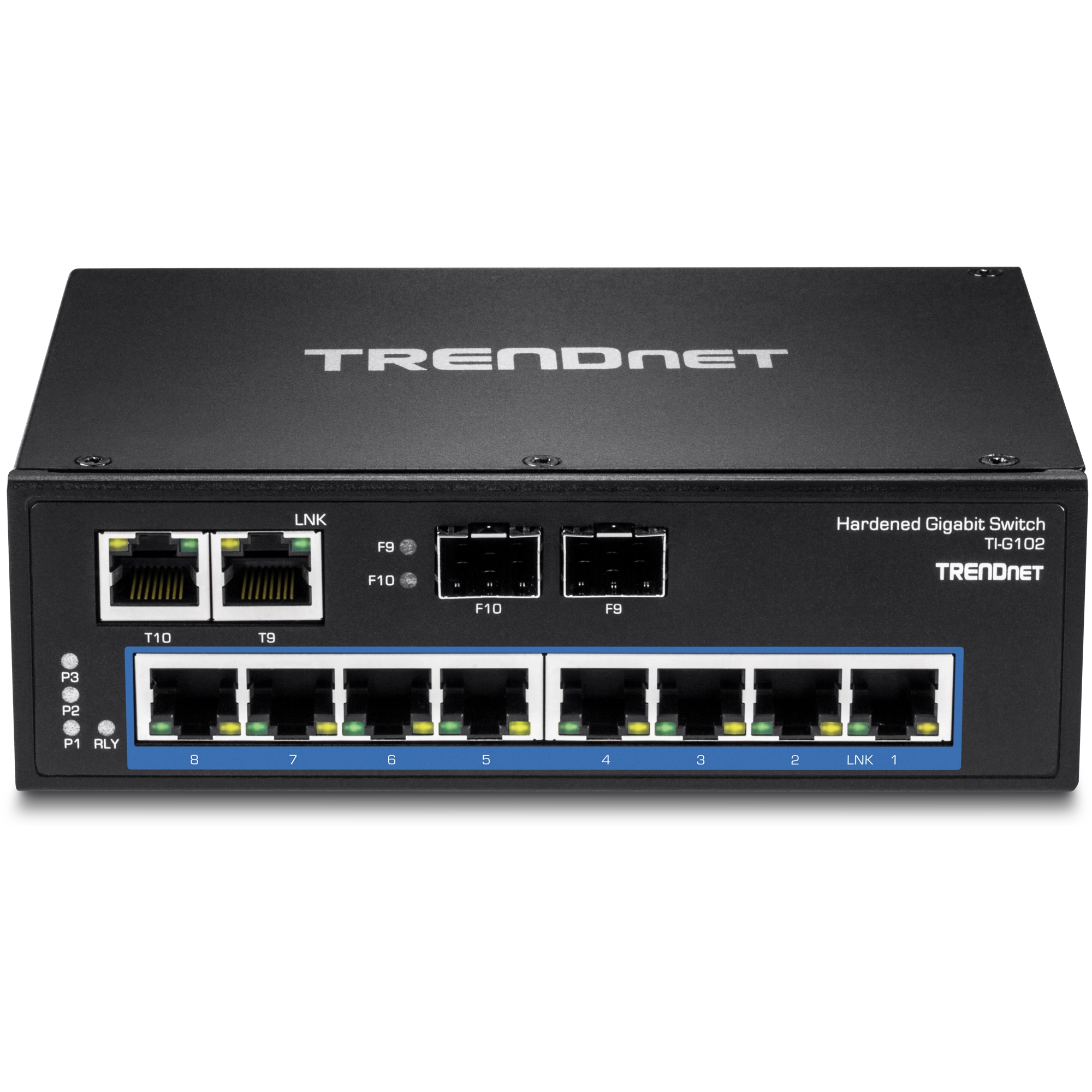

Device Interface
  • 8 x Gigabit ports
  • 2 x Gigabit Ethernet ports
  • 2 x Shared SFP slots
  • 6-pin removable terminal block
  • LED indicators
  • DIN-Rail mount
  • Wall mount
  • Grounding point
Data Transfer Rate
  • Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)
  • Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)
  • Gigabit: 2000 Mbps (full duplex)
Performance
  • Data RAM Buffer: 256 KB
  • Switching Fabric: 20 Gbps
  • MAC Address Table: 16 K entries
  • Jumbo Frame: 10KB
  • Forwarding rate: 14.8 Mpps (64-byte packet size)
Special Features
  • Hardened components rated for extreme temperatures
  • Redundant power inputs
  • Auto-Negotiation
  • Auto store and forward architecture
  • Automatic address learning and address aging
  • ESD 6KV protection
Power
  • Input: 12 - 56 V DC
  • Compatible power supply: TI-M6024 (sold separately)
  • Consumption: 5.76 W max.

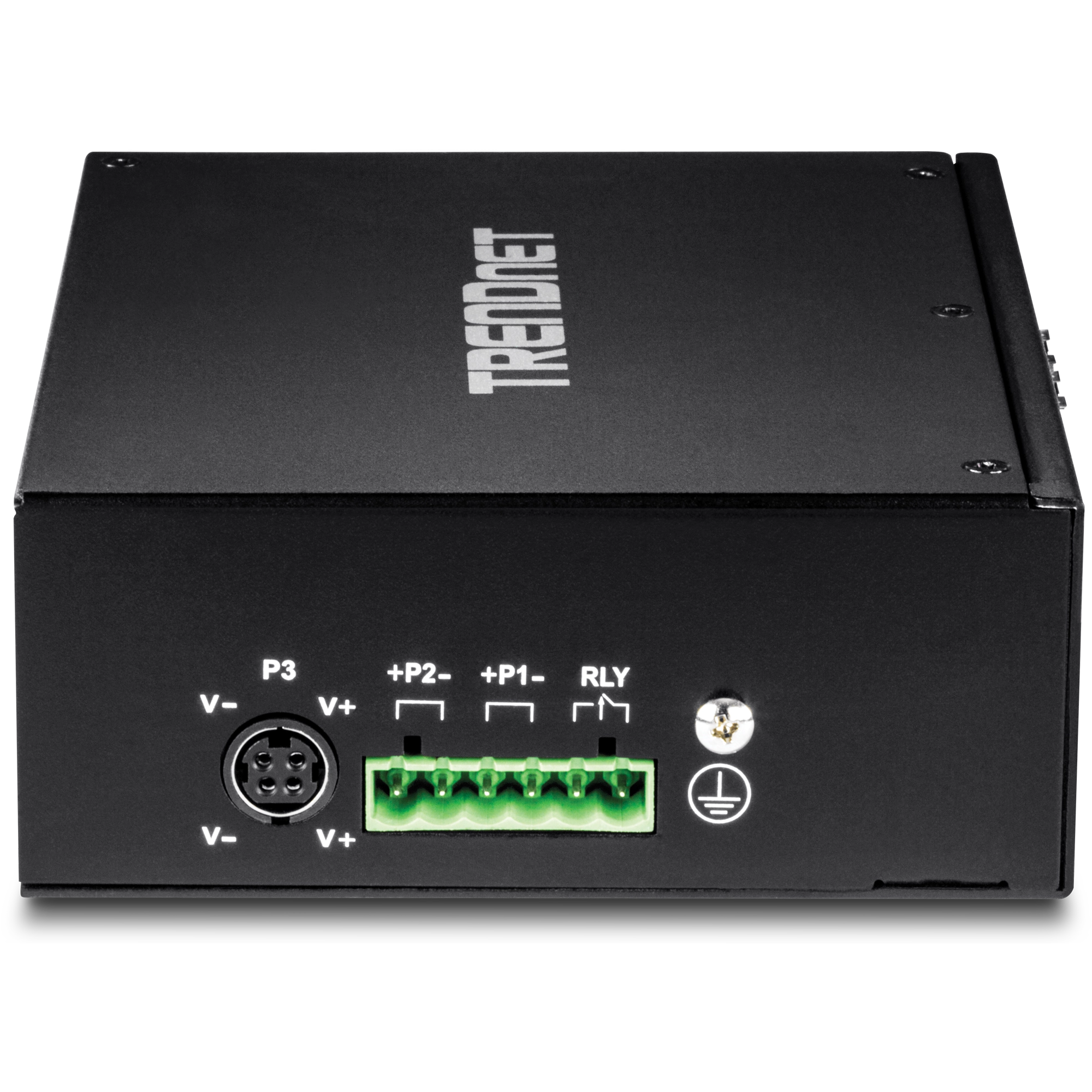

Terminal Block
  • Redundant power inputs, alarm relay contact, 6 pin
  • Wire range: 0.34 mm^2 to 2.5 mm^2
  • Solid wire (AWG): 12-24 / 14-22
  • Stranded wire (AWG): 12-24 / 14-22
  • Torque: 5 lb. – In / 0.5 Nm / 0.56 Nm
  • Wire strip length: 7-8 mm
Alarm Relay Contact
  • Relay outputs with current carrying capacity of 1 A, 24 V DC
  • Open circuit mode when two power sources are connected
  • Short circuit mode when only one power source is connected
MTBF
  • 510,400 hours
Housing
  • IP30 metal case
  • DIN-rail mount
  • Wall mount
  • Grounding point
  • ESD 6 KV protection
Operating Temperature
  • - 40 to 75 °C (-40 to 167 °F)
Operating Humidity
  • Max. 95 % non-condensing
Dimensions
  • 155 x 120 x 48 mm (6.1 x 4.7 x 1.9 in.)
Weight
  • 415 g (1.1 lb)
Certifications
  • CE
  • FCC
  • Shock (EN 60068-2-27)
  • Freefall (EN 60068-2-32)
  • Vibration (EN 60068-2-6)
Warranty
  • 3 year limited

PACKAGE CONTENTS
  • TI-G102
  • Quick Installation Guide
  • Removable terminal block

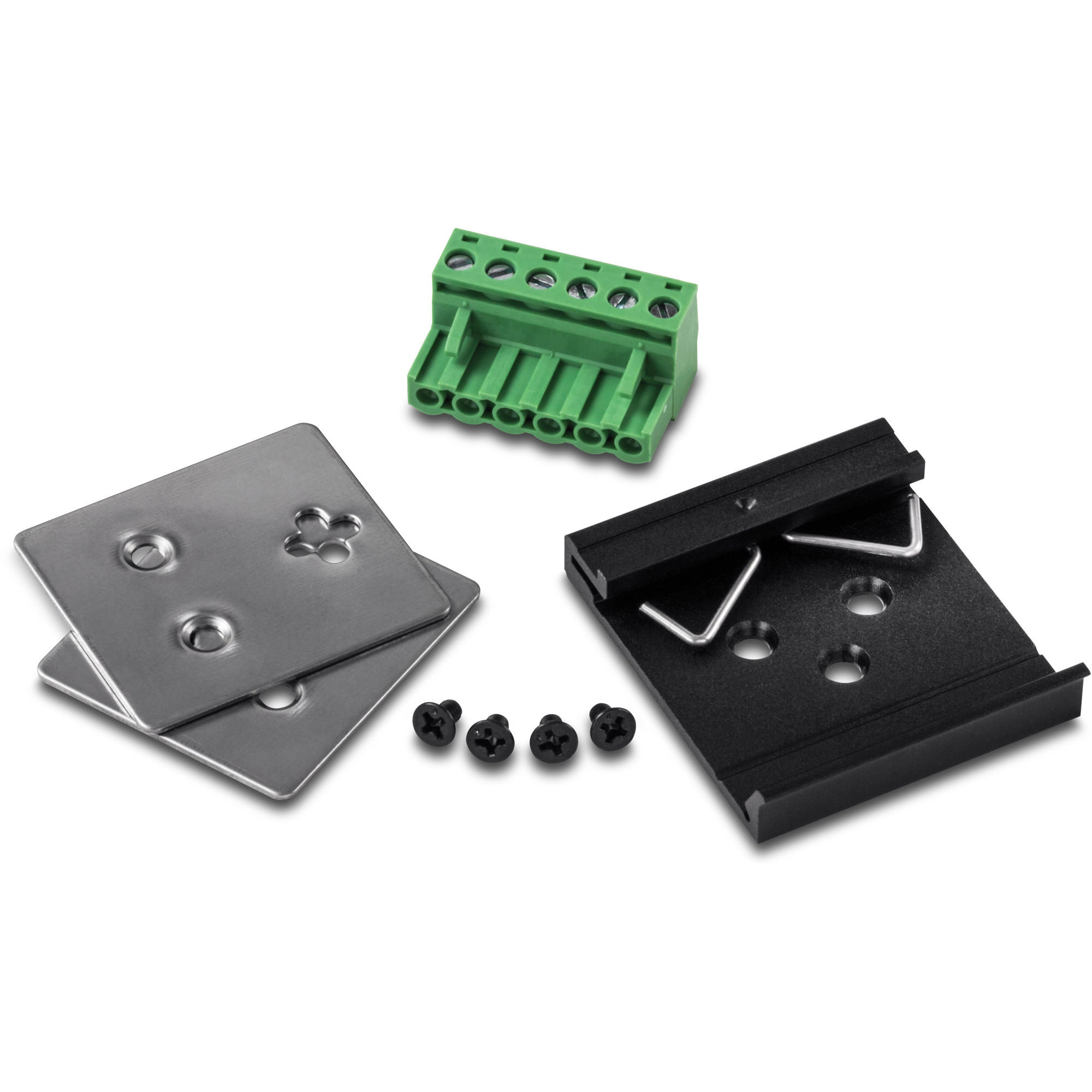

  • DIN-rail and wall mount kit

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
