8-Port Industrial Gigabit Ethernet DIN-Rail Switch

TI-G80 (Version v2.0R)

  • 8 x Gigabit Ethernet ports
  • Hardened IP50 rated metal switch
  • Extreme operating temperature range of -40° – 75° C (-40° – 167° F)
  • Dual power inputs provide redundant power with overload current protection
  • Alarm relay triggered by power failure
  • Fanless design for silent operation
  • 16Gbps switching capacity
  • Includes DIN-Rail mount and wall mount brackets
  • Power supply sold separately (model: TI-M6024)
  • NDAA / TAA compliant (U.S. and Canada only)
NDAA/TAA Compliant

TRENDnet’s 8-Port Industrial Gigabit Ethernet DIN-Rail Switch, model TI-G80, features a rugged IP50 rated metal enclosure. This industrial unmanaged Ethernet switch is designed to withstand high levels of vibration and shock, while operating in both low and high temperatures for industrial environments within a -40° – 75° C (-40° – 167° F) extreme temperature range. Redundant power inputs with overload current protection minimize network downtime.

icons of phone, temperature, lightning & IP50.

Industrial Hardened Design

Equipped with a rugged IP50 rated housing, and designed to withstand a high degree of vibration and shock, while operating within an extreme temperature range of -40° – 75° C (-40° – 167° F).

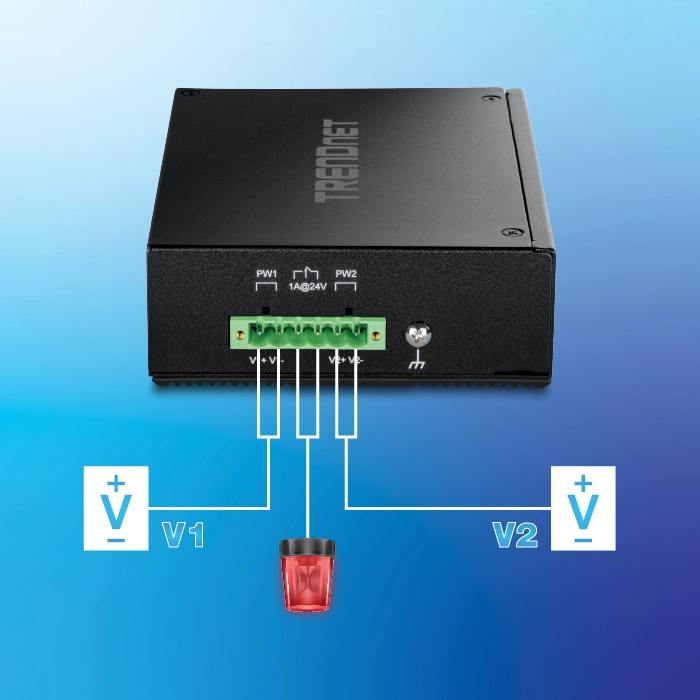

A TRENDnet device with redundant power inputs and an output alarm relay is shown. It has a black rectangular casing with the TRENDnet logo on top. On the front panel, there are two power input ports labeled PW1 and PW2, each rated at 1A@24V. Below these ports, there is a green terminal block with connections labeled V1+, V1-, V2+, and V2-. A red alarm relay indicator is below the terminal block.

Fault Tolerance

Features redundant power inputs from external power sources and an output alarm relay to indicate the event of input power failure.

Three white circles arranged in a triangular formation. The top circle contains the number one in blue, while the bottom left and right circles contain the numbers two and three in blue.

Easy Installation

No configuration needed, simply connect network devices to the industrial Ethernet switch.

A TRENDnet TI-G80 industrial gigabit PoE+ switch mounted on a DIN-Rail with eight gigabit ports, LED indicators, a grounding point, and a six-pin removable terminal block. Below the switch is a warehouse diagram showing a conveyor belt system, boxes, a forklift, and the integration of a PoE camera, PoE injector, and power supply connected to the switch.

Easy Installation

Quick and easy installation process with an intuitive guided setup

IP50 Rated

IP50 rated for ingress dust protection

Fault Tolerance

Features redundant power inputs from external power sources and an output alarm relay to indicate an input power failure – power supply sold separately (model: TI-M6024)

Extreme Temperature Range

An extreme operating temperature range of -40° – 75° C (-40° – 167° F) allows for installations in industrial environments with severe hot or cold conditions

Shock and Vibration Resistant

Rated for shock (EN 60068-2-27), freefall (EN 60068-2-32), and vibration (EN 60068-2-6)

Electro Magnetic Compliance

Complies with industrial EMS certifications ESD (IEC 61000-4-2): Contact: 6kV, Air: 8kV; EFT (IEC 61000-4-4): Power: 2kV, Signal: 2kV; Surge (IEC 61000-4-5): Power: 2kV, Signal: 2kV

DIN-Rail / Wall Mounts

Includes DIN-Rail mount and wall mount hardware

Grounding Point

Grounding point is designed to protect equipment from external electrical surges

Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3x
Device Interface
  • 8 x Gigabit ports
  • 6-pin removable terminal block
  • LED indicators
Data Transfer Rate
  • Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
  • Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
  • Gigabit: 2Gbps (full duplex)
Performance
  • Data RAM Buffer: 512KB
  • Switching Fabric: 16Gbps
  • MAC Address Table: 8K entries
  • Jumbo Frame: 9KB
  • Forwarding rate: 11.9Mpps (64-byte packet size)
Power
  • Input: 12 – 56V DC
  • Compatible power supply: TI-M6024 (sold separately)
  • Max. consumption: 3.36W @ 48V DC
Terminal Block
  • Redundant power inputs, 6-pin
  • Alarm Relay: 1A @ 24V DC
  • Wire range: 0.34mm^2 to 2.5mm^2
  • Solid wire (AWG): 12-24
  • Stranded wire (AWG): 12-24
  • Torque: 5 lb. – In / 0.5Nm / 0.56 Nm
  • Wire strip length: 7-8mm
MTBF
  • 538,297 hours @ 25° C
Enclosure
  • IP50 metal case
  • DIN-Rail mount
  • Wall mount
  • Grounding point
  • 6kV ESD protection
  • 2kV surge protection
Operating Temperature
  • - 40° – 75° C (-40° – 167° F)
Operating Humidity
  • Max. 95% non-condensing
Dimensions
  • 143 x 104 x 36mm (5.6 x 4.1 x 1.4 in.)
Weight
  • 528g (18.6 oz.)
Certifications
  • CE
  • FCC
  • LVD
  • Shock (IEC 60068-2-27)
  • Freefall (IEC 60068-2-32)
  • Vibration (IEC 60068-2-6)
  • IEC 61000-4-2
  • IEC 61000-4-4
  • IEC 61000-4-5
Warranty
  • 3 year

PACKAGE CONTENTS
  • TI-G80
  • Removable terminal block
  • DIN-Rail and wall mount kit

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
