2.5G PoE++ Injector

TPE-219GI (Version v1.0R)

Converts a non-PoE 2.5G port to a PoE++ 2.5G port
Supplies PoE (15.4W), PoE+ (30W), or PoE++ (90W)
Network a PoE device up to 100m (328 ft.)
Integrated power supply
2.5GBASE-T compliant
IEEE 802.3af, 802.3at, and 802.3bt compliant

TRENDnet’s 2.5G PoE++ Injector, model TPE-219GI, combines electrical power with a 2.5GBASE-T network connection to produce an ultra-fast 2.5G PoE++ network signal. Auto-sensing technology conveniently delivers the correct wattage needed to power your PoE++ devices. Connect the TPE-219GI 2.5G PoE++ injector to a non-PoE switch, and run an Ethernet cable with data + power to network a PoE++ device up to 100 meters (328 ft.) away. Network PoE devices such as wireless access points, IP cameras, VoIP phone systems, IPTV decoders, access controls, and more.

Network Diagram of a PoE++ Injector connected into a Non-PoE Switch and Poe + Wireless Access Point with Up to 90W of power.

PoE++

The 2.5G PoE++ injector supplies a PoE device with PoE (15.4W), PoE+ (30W), or PoE++ (90W) power.

Internet speed gauge showing quick data transfer rate.

2.5G Speeds

Equipped with a 2.5GBASE-T RJ-45 port providing network speeds of up to 2.5Gbps over existing Cat5e or better cabling.

Installation Flexibility

Wall-mount design and a sturdy metal enclosure accommodates most installations scenarios.

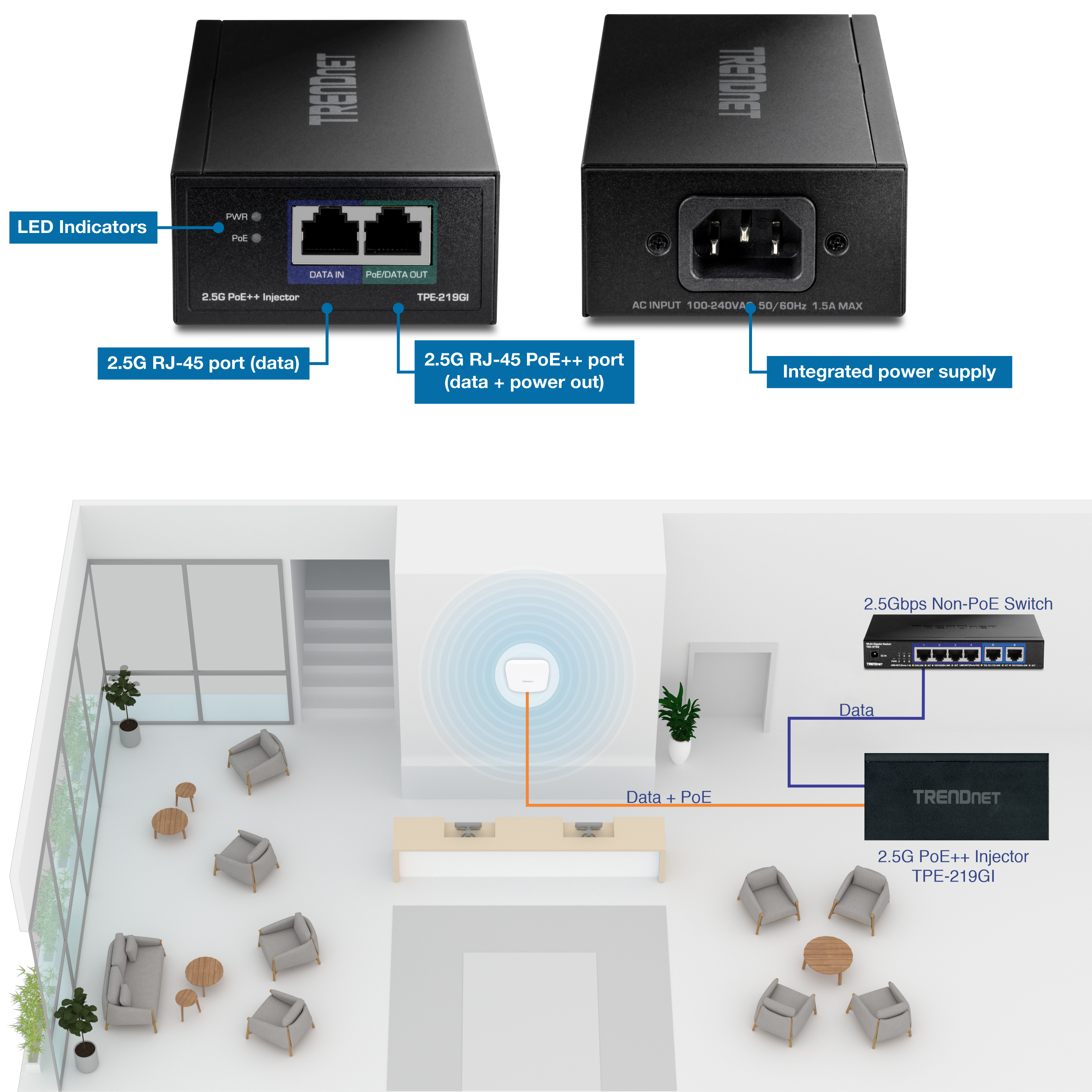

The visual content displays a TRENDnet 2.5G PoE++ injector, model TPE-219GI, with detailed annotations highlighting its features and a diagram illustrating its application in a network setup. The injector has LED indicators for power and PoE status, a 2.5G RJ-45 port for data input, and a 2.5G RJ-45 PoE++ port for data and power output. It also includes an integrated power supply with an AC input of 100-240V, 50/60Hz, 1.5A max. The lower part of the visual content shows a network setup in an office environment, where the injector connects to a 2.5Gbps non-PoE switch via a data cable and provides both data and power to a wireless access point. The setup is depicted with labeled connections, indicating the flow of data and power within the network.

PoE++

Acting as a PoE++ adapter, the 2.5G PoE++ injector supplies a PoE device with PoE (15.4W), PoE+ (30W), or PoE++ (90W) power

Easy Installation

Simply connect the 2.5G PoE++ injector to your switch and PoE device – no configuration needed

Installation Flexibility

Wall-mount design and a sturdy metal housing accommodates most installations scenarios

2.5G Ports

1 x 2.5G port (data) and 1 x 2.5G PoE++ port (data + power out)

PoE Distance

Provides a PoE++ network connection up to 100m (328 ft.)

LED Indicators

LED indicators convey 2.5G PoE++ injector network connectivity

Auto-Sensing Technology

Featuring auto-sensing technology, the 2.5G PoE++ injector conveniently delivers the correct wattage needed to power your PoE, PoE+, or PoE++ devices

Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3af IEEE 802.3at IEEE 802.3bt IEEE 802.3bz
Device Interface	1 x 2.5G RJ-45 port (data) 1 x 2.5G RJ-45 PoE++ port (data + power out)
PoE Budget	Max. 90W
Power Consumption	Max. 1.32W (without PD) Max. 95W (with PD)
Operating Temperature	0° – 40° C (32° – 104° F)
Operating Humidity	Max. 90% non-condensing
Certifications	CE FCC ETL
Dimensions	154 x 73 x 36mm (6 x 2.9 x 1.4 in.)
Weight	386g (0.85 lbs.)
Warranty	3 year

PACKAGE CONTENTS

TPE-219GI
Quick Installation Guide
Power cord

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
