SFP Multi-Mode LC Module (550m)

TEG-MGBSX (Version 3.2R)

  • LC Duplex connector-type
  • Spans distances up to 550 m (1800 ft.)
  • Compatible with standard SFP slots

The TEG-MGBSX Mini-GBIC Multi Mode module works with standard Mini-GBIC slots on most switches. This Multi-Mode LC Type module spans distances up to 550m (1,800ft).

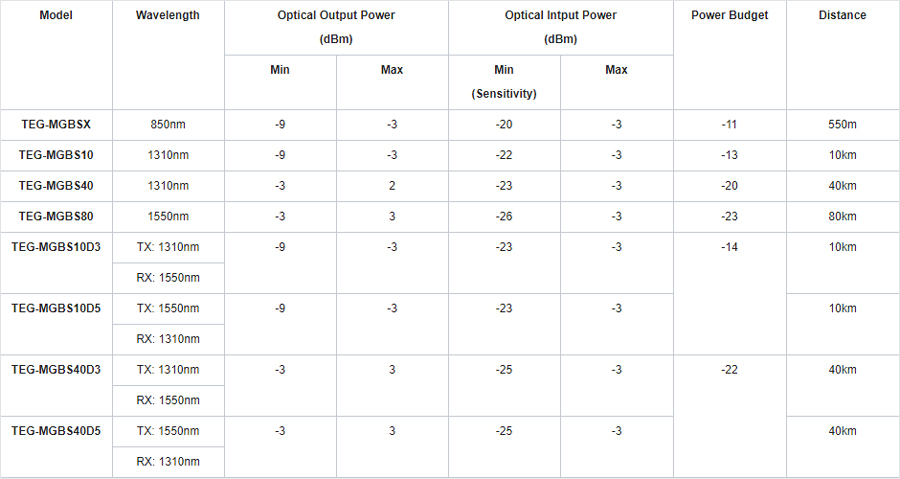

This shows a comparison table for models TEG-MGBSX, TEG-MGBS10, TEG-MGBS40, TEG-MGBS80, TEG-MGBS10D3, TEG-MGBS10D5, TEG-MGBS40D3, and TEG-MGBS40D5, comparing Wavelength, Optical Output Power (dBm), Optical Input Power (dBm), Power Budget, and Distance.
  • Compliant with IEEE 802.3z Gigabit Ethernet
  • ANSI Fiber Channel compliant
  • Compliant with Small Form-Factor Pluggable (SFP) Multi-Source Agreement (MSA) ports
  • Supports data rate of up to 1.25 Gbps
  • Transmission distance of up to 550 m (1800ft.)
  • Metal Enclosure with low Electromagnetic Interference (EMI) design
  • Duplex LC optical interface
  • Hot pluggable
  • Low power consumption
  • 3-year limited warranty
Standards
  • IEEE 802.3z Gigabit Ethernet
  • ANSI Fiber Channel compliant
  • Class 1 Laser
Interface
  • SFP MSA Compliant
  • Duplex LC optical interface
Power Consumption
  • Max. 0.8 Watts
Dimension
  • 57 x 13 x 12 mm (2.2 x 0.5 x 0.5 in.)
  • 18g (0.6 oz.)
Temperature
  • Operating: 0°C ~ 70°C (32°F ~ 158°F)
  • Storage: -40°C ~ 85°C (-40°F ~ 185°F)
Humidity
  • Max. 85% (non-condensing)
Certifications
  • CE, FCC

PACKAGE CONTENTS
  • TEG-MGBSX
  • Quick Installation Guide

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
