8-Port Gigabit Full Power PoE+ Switch

TPE-TG80F (Version v1.1R)

8 x Gigabit PoE+ ports
Internal power supply
240W PoE power budget
Reduces equipment cost by delivering data and power over existing network cables
Fanless design for silent operation
16Gbps switching capacity
Sturdy rack mountable metal housing
NDAA / TAA compliant (U.S. and Canada only)

TRENDnet's 8-Port Gigabit Full Power PoE+ Switch, model TPE-TG80F, reduces equipment and installation costs by delivering data and power over existing Ethernet cables. This full power PoE switch features eight Gigabit PoE+ ports, supplying up to 30W of power per port for devices such as high-power wireless access points, IP cameras, and VoIP phone systems. The full power PoE switch supports both PoE and PoE+ devices with a 240W total PoE power budget. This unmanaged, rack mountable switch features a fanless design that eliminates operating noise and lowers energy consumption.

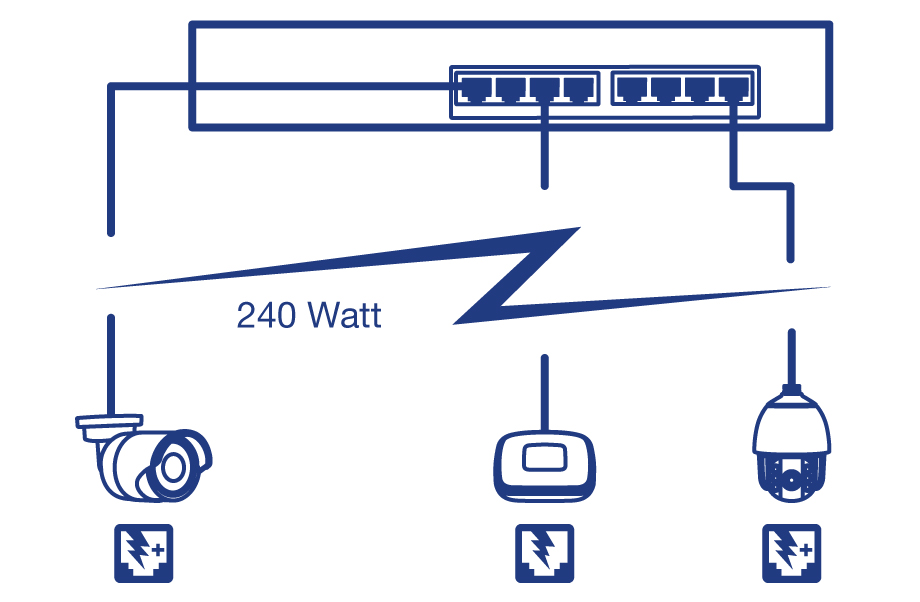

A network diagram of 8-Port Network Switch, connected to PoE Camera and wireless access point device up to 240 Watt.

Full Power PoE

A 240W PoE power budget on this full power PoE switch supplies up to eight Power over Ethernet devices.

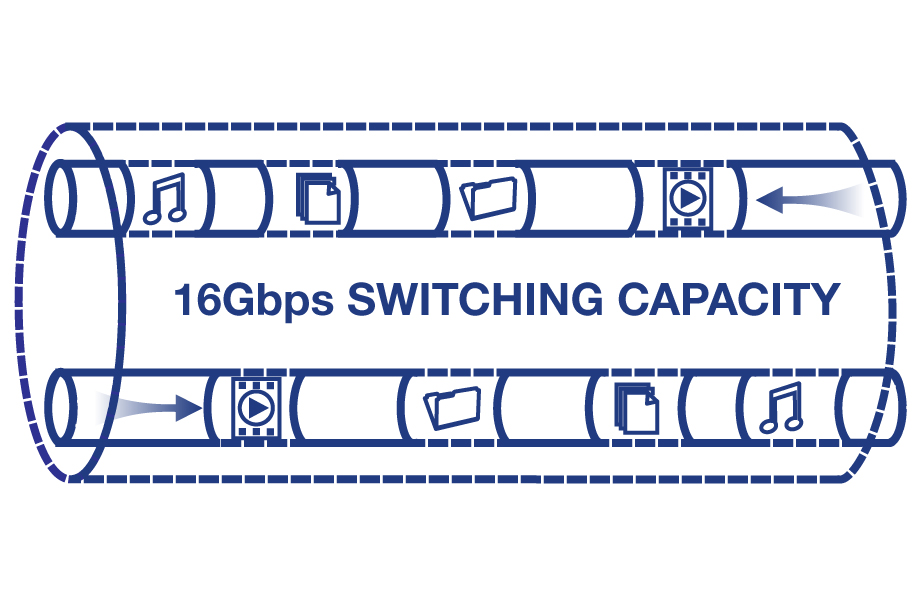

Illustration of a network cable labeled 16Gbps SWITCHING CAPACITY with icons representing music, video, data transfer moving through the network.

Gigabit Ports

Eight gigabit ports provides a 16Gbps switching capacity to support edge network installations.

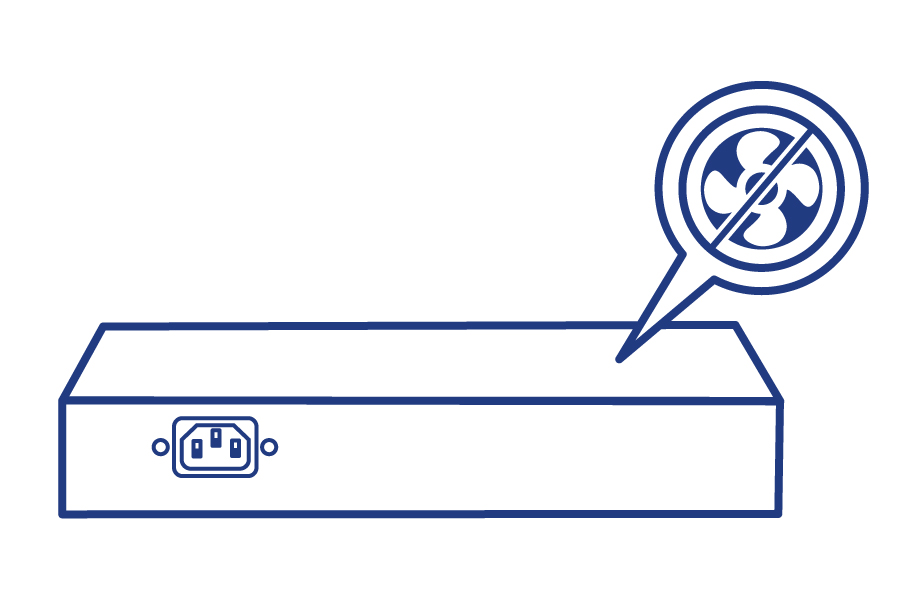

Line art of a Network Switch with a no-fan icon.

Fanless

Fanless design lowers energy consumption and eliminates operating noise.

The image is a diagram of an 8-Port Gigabit Full Power PoE+ Switch (model TPE-TG80F) setup within a building. It illustrates how the switch connects various devices, such as security cameras and network equipment, throughout the building. Blue lines represent network cables linking the switch to these devices. The building includes an office area with desks and computers, a storage area with shelves, and a parking lot with security cameras. The switch is depicted in the bottom right corner, with its ports highlighted.

PoE+

Full power PoE switch supplies up to 30W of PoE+ power per port with a total power budget of 240W

Ports

Eight gigabit PoE+ ports

Switching Capacity

16Gbps switching capacity

Jumbo Frame

Sends larger packets, or Jumbo Frames (up to 9KB), for increased performance

Housing Design

Sturdy rack mountable metal housing with included mounting kit

Fanless

Fanless design lowers energy consumption and eliminates operating noise

LED Indicators

LED indicators convey port status

Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3ab IEEE 802.3af IEEE 802.3at IEEE 802.1p
Device Interface	8 x Gigabit PoE+ ports LED indicators
Data Transfer Rate	Ethernet: 10Mbps (half duplex), 20Mbps (full duplex) Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex) Gigabit: 2000Mbps (full duplex)
Performance	Switch Fabric: 16Gbps RAM Buffer: 192KB MAC Address Table: 4K entries Forwarding Rate: 11.9Mpps (64-byte packet size) Jumbo Frames: 9KB
Power	Input: 110-240V AC, 50/60Hz, internal power supply Max. Consumption: 280W
PoE	PoE budget: 240W Pin 1, 2 for power+ and pin 3, 6 for power- (mode A)
Fan/Acoustics	Fanless design
Operating Temperature	0° – 40° C (32° – 104° F)
Operating Humidity	Max. 90% non-condensing
Dimensions	265 x 184 x 44mm (10.4 x 7.2 x 1.7 in.)
Weight	1.7kg (3.74 lbs.)
Certifications	CE FCC ETL
Warranty	3 year

PACKAGE CONTENTS

TPE-TG80F
Quick Installation Guide
Rackmount kit
Power cord (1.8m/6 ft.)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.

Not Available in the UK
