Outdoor IP66 Steel Enclosure with Lockable Hinged Door

TI-CA2 (Version v1.0R)

  • Wall mount
  • IP66 weather rated
  • Use with TRENDnet's industrial switches, fiber converters, and PoE injectors
  • Rugged steel construction
  • Hinged door with waterproof door lock
  • Removable bottom plate
  • Mounting hardware included
  • NDAA / TAA compliant
NDAA/TAA Compliant

The TRENDnet Outdoor IP66 Steel Enclosure with Lockable Hinged Door, model TI-CA2, is well suited for use with TRENDnet's line of industrial switches, fiber converters, and PoE injectors. The internal mounting plate provides a safe and convenient way to install a DIN-Rail for mounting industrial devices while protecting them from the elements. A wide operating temperature range of -40° – 60° C (-40° – 140° F) allows for installations in extreme hot or cold environments. This durable steel enclosure with lockable hinged door protects devices from exposure to the elements.

Graphic with two symbols and a label indicating IP66 rating. The first symbol represents dust protection, and the second symbol indicates water resistance. Below the symbols, IP66 is displayed in bold, signifying protection from dust particles and water.

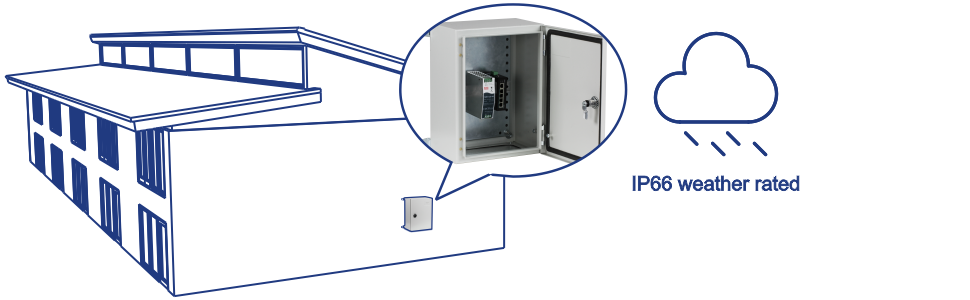

Outdoor Rated

IP66 rated for outdoor use with TRENDnet industrial switches, fiber converters, and PoE injectors.

Line art of an open-front steel enclosure with a mounting plate and an arrow pointing toward the inside of the enclosure, illustrating that the plate can be placed inside.

Internal Mounting Plate

The internal mounting plate provides a safe and convenient way to install a DIN-Rail for mounting industrial devices while protecting them from the elements.

Temperature icon.

Wide Temperature Range

A wide operating temperature range of -40° – 60° C (-40° – 140° F) allows for installations in extreme hot or cold environments.

Outdoor Rated

IP66 rated for outdoor use with TRENDnet industrial switches, fiber converters, and PoE injectors

Wall Mount

Designed to be installed on vertical surfaces with the removable bottom plate facing downward

Internal Mounting Plate

Internal mounting plate provides a safe and convenient way to install a DIN-Rail for mounting industrial devices while protecting them from the elements

Wide Temperature Range

A wide operating temperature range of -40° – 60° C (-40° – 140° F) allows for installations in extreme hot or cold environments

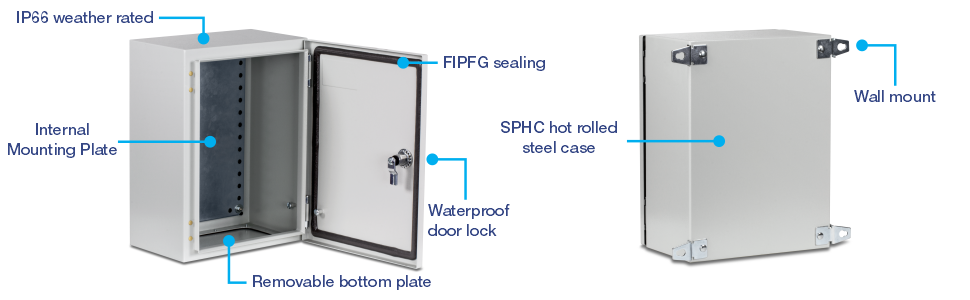

Housing Design

Rugged steel construction with IP66 weather sealed lockable hinged door

Hardware
  • IP66
  • 1.6mm SPHC hot rolled steel case
  • 1.66mm SGCC hot dip steel (mounting plate)
  • FIPFG sealing
  • Waterproof door lock
  • Removable bottom plate
  • Wall mount
Operating Temperature
  • -40° – 60° C (-40° – 140° F)
Operating Humidity
  • Max. 95% non-condensing
Dimensions
  • 400 x 300 x 200mm (15.75 x 11.8 x 7.9 in.)
Weight
  • 9.5kg (21 lb.)
Warranty
  • 3 year
PACKAGE CONTENTS
  • TI-CA2
  • Quick Installation Guide

*Any modifications made to the unit will void the warranty.

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
