10GBASE-SR SFP+ Multi Mode LC Module (300m with DDM)

TEG-10GBSR (Version v3.0R)

Hot-pluggable SFP+ transceiver
SFP+ MSA compliant
Supported throughput up to 10.5Gbps
Multi Mode fiber for distances up to 300m (984 ft.)
850nm wavelength
Duplex LC connector
Digital Diagnostics Monitoring (DDM) support
Operating temperature: 0° – 70° C (32° – 158° F)
Single 3.3 V power supply
NDAA / TAA compliant (U.S. and Canada only)

TRENDnet’s hot-pluggable 10GBASE-SR SFP+ Multi Mode LC Module, model TEG-10GBSR, works with an MSA compliant SFP+ slot. This Multi Mode transceiver spans distances up to 300m (984 ft.), comes with a LC duplex connector, and supports up to 10.5 Gbps networking throughput speeds. Digital Diagnostics Monitoring (DDM) captures critical device parameters, such as transmit/receive power, temperature, and voltage.

Diagram showing two network devices connected to each other, with three computers connected to one of the switches.

Fiber Applications

Short distance fiber networking for industrial, manufacturing, corporate, and government applications.

Illustration of a signal wave with an arrow showing direction, labeled as 300 meters (984 feet).

Fiber Mode/Distance

Multi Mode transceiver spans distances up to 300m (984 ft.) and supports up to 10.5 Gbps throughput speeds.

Illustration of a fiber module with an arrow pointing towards it, indicating placement.

Compatibility

Hot-pluggable with an MSA compliant SFP+ slot and works with fiber cables with LC-type duplex connectors.

A network setup involving switches, a media converter, and TEG-10GBSR 10GBASE-SR SFP+ Multi Mode LC Modules. The setup demonstrates how to connect two switches using multi-mode fiber for distances up to 300 meters (984 feet). The TEG-10GBSR modules are inserted into the switches and the media converter, with the fiber optic cables connecting these modules.

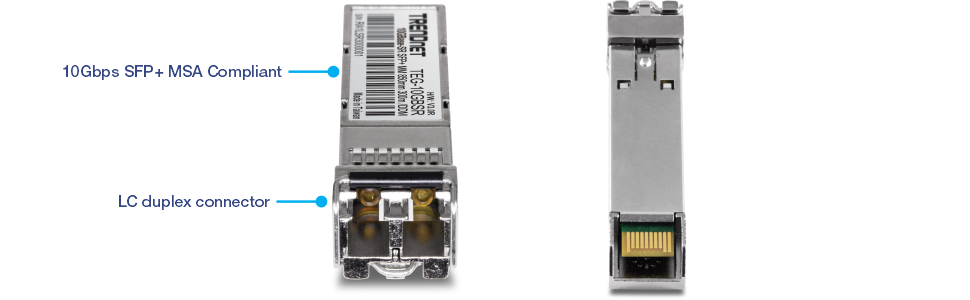

The TRENDnet TEG-10GBSR 10GBASE-SR SFP+ Multi Mode LC Module. The front view highlights the LC duplex connector used for fiber optic connections, while the rear view shows the electrical interface for network equipment connections.

Hot-Pluggable SFP+

Hot-pluggable SFP+ transceiver works with a MSA compliant SFP+ slot

Fiber Wavelength

Compatible with Multi Mode 850nm transmissions

Fiber Distance

Supports networking for distances up to 300m (984 ft.)

Fiber Port

LC-type duplex connector

DDM Support

Digital Diagnostics Monitoring (DDM) captures critical device parameters such as transmit/receive power, temperature, and voltage

Power Supply

Single 3.3 volt power supply

Operating Temperature

Rated for an operating temperature range of 0° – 70° C (32° – 158° F)

Standards

Compliant with SFF-8431, SFF-8432, SFF-8472, FC-PI-4,10G FC, and IEEE802.3ae 10GBASE-SR

Standards	IEEE 802.3ae 10GBASE-SR
Device Interface	10Gbps SFP+ MSA Compliant LC duplex connector
Data Transfer Rate	8.5-10.5Gbps
Wavelength	850nm
Optical Output Power	-1 ~ -7.5dBm
Distance	300m (OM3) 82m (OM2) 33m (OM1)
Special Features	Hot pluggable Metal enclosure DDM support
Sensitivity	-14 dBm
Power	Max. consumption: 439mW
Operating Temperature	0 – 70 °C (32 - 158 °F)
Operating Humidity	Max. 95% non-condensing
Dimensions	14.8 x 56.5 x 11.85mm (0.6 x 2.2 x 0.5 in)
Weight	22g (0.7 oz.)
Certifications	CE FCC
Warranty	3 year

PACKAGE CONTENTS

TEG-10GBSR

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
