28-Port Gigabit Switch with 4 x 10G SFP+Ports

TEG-30262 (Version v2.0R)

  • 24 x Gigabit ports
  • 4 x 10G SFP+ ports
  • 128Gbps switching capacity
  • 1U rack mountable (brackets included)
  • Fanless design
  • NDAA / TAA compliant (U.S. and Canada only)
NDAA/TAA Compliant

TRENDnet’s 28-Port Gigabit Switch with 4 x 10G SFP+Ports, model TEG-30262, provides high bandwidth performance, ease of use, and reliability. This switch offers four dedicated 10G fiber SFP+ ports for high-speed network connections, providing a cost-effective solution in adding 10G link capability to an SMB network. With a sturdy metal housing and included rackmount brackets, this switch is well-suited for 19” 1U rack installations.

10G SFP+ Ports

Offers four dedicated 10G SFP+ ports and 24 gigabit RJ-45 ports for high-speed network connections, providing a cost-effective solution to any network.

Fanless

Fanless design lowers energy consumption and eliminates operating noise.

Rackmount Design

With a sturdy metal housing and included rackmount brackets, this switch is well-suited for 19” 1U rack installations.

Multi-Gig Ports

24 x Gigabit RJ-45 ports and 4 x 10G SFP+ fiber sports for high- speed connections

Switching Capacity

128Gbps switching capacity

Jumbo Frame

Sends larger packets, or jumbo frames (up to 12KB), for increased performance

VLAN Passthrough

Supports VLAN tag passthrough traffic

Housing Design

Sturdy rack mountable metal housing with included mounting kit

Fanless

Fanless design lowers energy consumption and eliminates operating noise

LED Indicators

LEDs convey port status

Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3x
  • IEEE 802.3ae
  • IEEE 802.3az

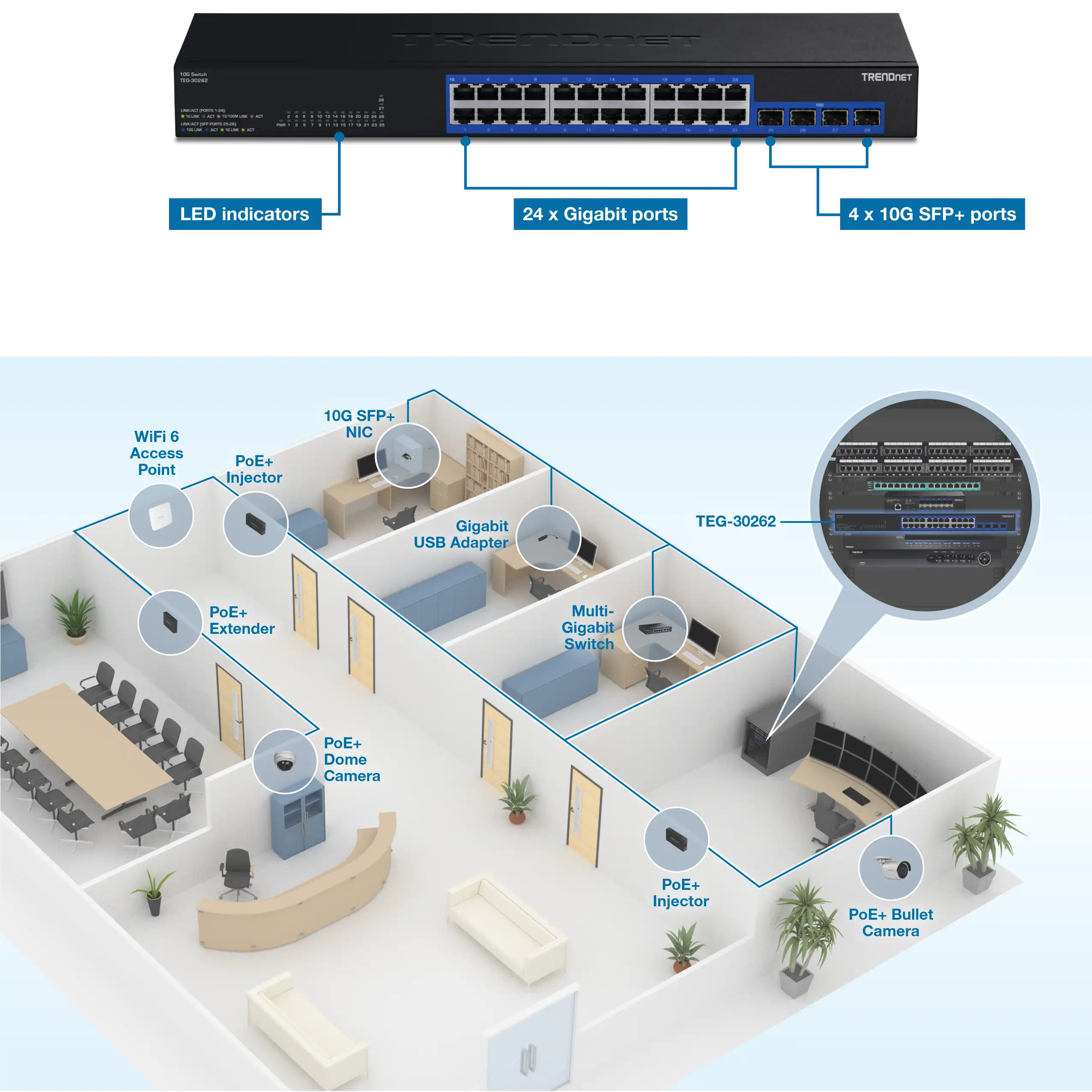

Device Interface
  • 24 x Gigabit ports
  • 4 x 10G SFP+ ports
  • LED indicators
Data Transfer Rate
  • Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
  • Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
  • Gigabit Ethernet: 2Gbps (full duplex)
  • Gigabit SFP: 2Gbps (full duplex)
  • 10G SFP+: 20Gbps (full duplex)
Performance
  • Switching Capacity: 128Gbps
  • RAM Buffer: 1.5MB
  • MAC Address Table: 16K entries
  • Forwarding Rate: 95.2Mpps (64-byte packet size)
  • Jumbo Frames: 12KB
Power
  • Input: 100 – 240V AC, 50/60Hz, internal power supply
  • Max. Consumption: 18.9W
Fan/Acoustics
  • Fanless design
Operating Temperature
  • 0° – 40° C (32° – 104° F)
Operating Humidity
  • Max. 90% non-condensing
Dimensions
  • 441 x 131 x 44mm (17.3 x 5.1 x 1.73 in.)
Weight
  • 1.935kg (4.27 lbs.)
Certifications
  • CE
  • FCC
  • ETL
Warranty
  • 3 year

PACKAGE CONTENTS
  • TEG-30262
  • Rackmount kit
  • Power cord (1.8m/6 ft.)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
