Products  »  Wireless » Wireless Access Points » TEW-755AP

N300 PoE Access Point

TEW-755AP (Version v1.0R)

  • WiFi N300 PoE access point
  • Access Point, Client, WDS AP, WDS Bridge, WDS Station, and Repeater modes
  • Included software utility aides WiFi network management
  • Gigabit PoE LAN port
  • Off-white low profile housing blends into the environment
  • Mounting plate
  • NDAA / TAA compliant (U.S. and Canada only)
NDAA/TAA Compliant

TRENDnet's high performance N300 PoE Access Point, model TEW-755AP, supports Access Point (AP), Client, Wireless Distribution System (WDS) AP, WDS Bridge, WDS Station, and Repeater modes. It generates a 300 Mbps WiFi N network and features a Gigabit PoE port. The included Windows-based software utility manages multiple TEW-755APs and reduces WiFi management/troubleshooting time. A low profile housing blends into most environments and a mounting plate eases installation.

Interior of a contemporary office with green partitioned workstations, individuals working on computers, checkered black and white flooring, Wi-Fi signals represented by colorful curved lines illustrating an access point sending signals in the room, bright lighting, and a person walking down the corridor on the right.

Access Point Flexibility

Proven 300 Mbps WiFi N combined with AP, Client, WDS, and Repeater modes support multiple applications.

Person sitting at a desk in an office, facing a computer monitor with one hand on the mouse and the other near the chin in a contemplative gesture, looking into a dashboard.

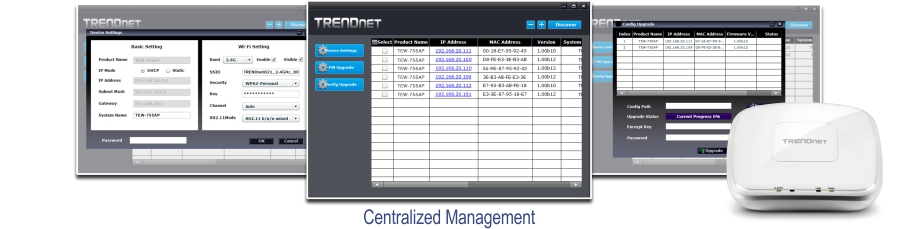

Centralized Management

The included Windows based software utility manages multiple TEW-755APs and reduces WiFi management and troubleshooting time.

A pair of hands installing a white, rectangular access point base with rounded edges on a ceiling. The base has tabs for attaching the access point device.

Easy Installation

Saves remote location installation time and costs with Gigabit Power over Ethernet (PoE) support and a convenient mounting plate.

Multi-Language

Multi-Language Interface: English, Spanish, French, German, and Russian

Power over Ethernet (PoE)

Saves remote location installation time and costs with Gigabit PoE support (Optional power port for non-PoE installations)

WiFi N300

Low profile access point delivers proven WiFi N300

Multi-Mode Support

Supports Access Point (AP), Client, WDS AP, WDS Bridge, WDS Station, and Repeater modes

AP Utility

The included Windows-based utility reduces WiFi configuration and setup time

Gigabit Port

Gigabit PoE LAN port maintains high performance connections to the wired network

Wireless Coverage

Extended wireless coverage with MIMO antenna technology

Encrypted Wireless

Support for wireless encryption of up to WPA2

WiFi Traffic Shaping

Manage traffic allocation per VLAN

Multiple SSIDs

Create up to 8 SSIDs

IPv6

IPv6 network support

Low Profile

Off white low profile housing blends into most environments

LED Control

Further reduce product visibility by turning off LED indicators

Mounting Plate

Mounting plate reduces installation time

Standards
  • IEEE 802.1Q
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3ab
  • IEEE 802.3af
  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.11n (up to 300 Mbps)
Hardware Interface
  • 1 x PoE Gigabit LAN port
  • Power port (optional non-PoE installation)
  • Reset button
  • LED indicators
  • Mounting plate
Special Features
  • IP30 rated housing (with mounting plate installed)
  • WiFi traffic shaping
  • 802.1Q VLAN assignment per SSID
  • IPv6 support (Link-Local, Static IPv6, Auto-Configuration (SLAAC/DHCPv6)
  • Multi-Language interface, English, French, Spanish, German, Russian
  • LEDs on/off
  • Captive Portal (External Coovachilli server authentication)
  • Internal Captive Portal (Local user account authentication and customizable portal page)
  • 802.11k roaming assistance support
  • RSSI Scanner (Client signal strength and tolerance)
  • Airtime Fairness
Operation Modes
  • Access Point
  • Client
  • WDS AP
  • WDS Bridge
  • WDS Station
  • Repeater
Management/Monitoring
  • Web-based management
  • Software utility
  • SNMP v1/v3
  • STP
  • Event logging
  • Ping test
  • Traceroute
  • CLI
Utility OS Compatibility
  • Windows® 10, 8.1, 8, 7, Vista, XP
Access Control
  • Wireless encryption: WEP, WPA/WPA2-PSK, WPA/WPA2-RADIUS
  • MAC filter
  • Maximum client limit
QoS
  • WMM
  • Traffic shaping per SSID
SSID
  • Up to 8 SSIDs
Frequency
  • 2.4 GHz: 2.412 – 2.472 GHz
Wireless Channels
  • 2.4 GHz: FCC: 1-11, ETSI: 1 – 13
Modulation
  • DBPSK/DQPSK/CCK for DSSS technique
  • BPSK/QPSK/16-QAM/64-QAM for OFDM technique
  • 2.4 GHz: 2 x 4 dBi
Wireless Output Power/Receiving Sensitivity
  • 802.11b: FCC: 23 dBm (Max.), CE: 10 dBm (Max.) / -83 dBm (typical) @ 11 Mbps
  • 802.11g: 19 dBm (Max.), CE: 12 dBm (Max.) / -65 dBm (typical) @ 54 Mbps
  • 802.11n: FCC: 19 dBm (Max.), CE: 12 dBm (Max.) / -64 dBm (typical) @ 300 Mbps
Power
  • 12 V / 1 A consumption: 9.6 Watts Max.
Operating Temperature
  • 0 – 40 °C (32 – 104 °F)
Operating Humidity
  • Max. 95 % non-condensing
Certifications
  • CE
  • FCC
Dimensions
  • 187 x 187 x 46 mm (7.3 x 7.3 x 1.8 in.)
Weight
  • 402 g (14.2 oz.)
Warranty
  • 3 year limited
PACKAGE CONTENTS
  • TEW-755AP
  • 5 ft. (1.5 m) network cable
  • CD-ROM (Utility and User's Guide)
  • Quick Installation Guide
  • Power adapter (12 V DC, 1 A)
  • Mounting Plate

*Maximum wireless signal rates are referenced from IEEE 802.11 theoretical specifications. Actual data throughput and coverage will vary depending on interference, network traffic, building materials and other conditions. For maximum performance of up to 300 Mbps, use with a 300 Mbps 802.11n wireless adapter.

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.

Not Available in Europe
