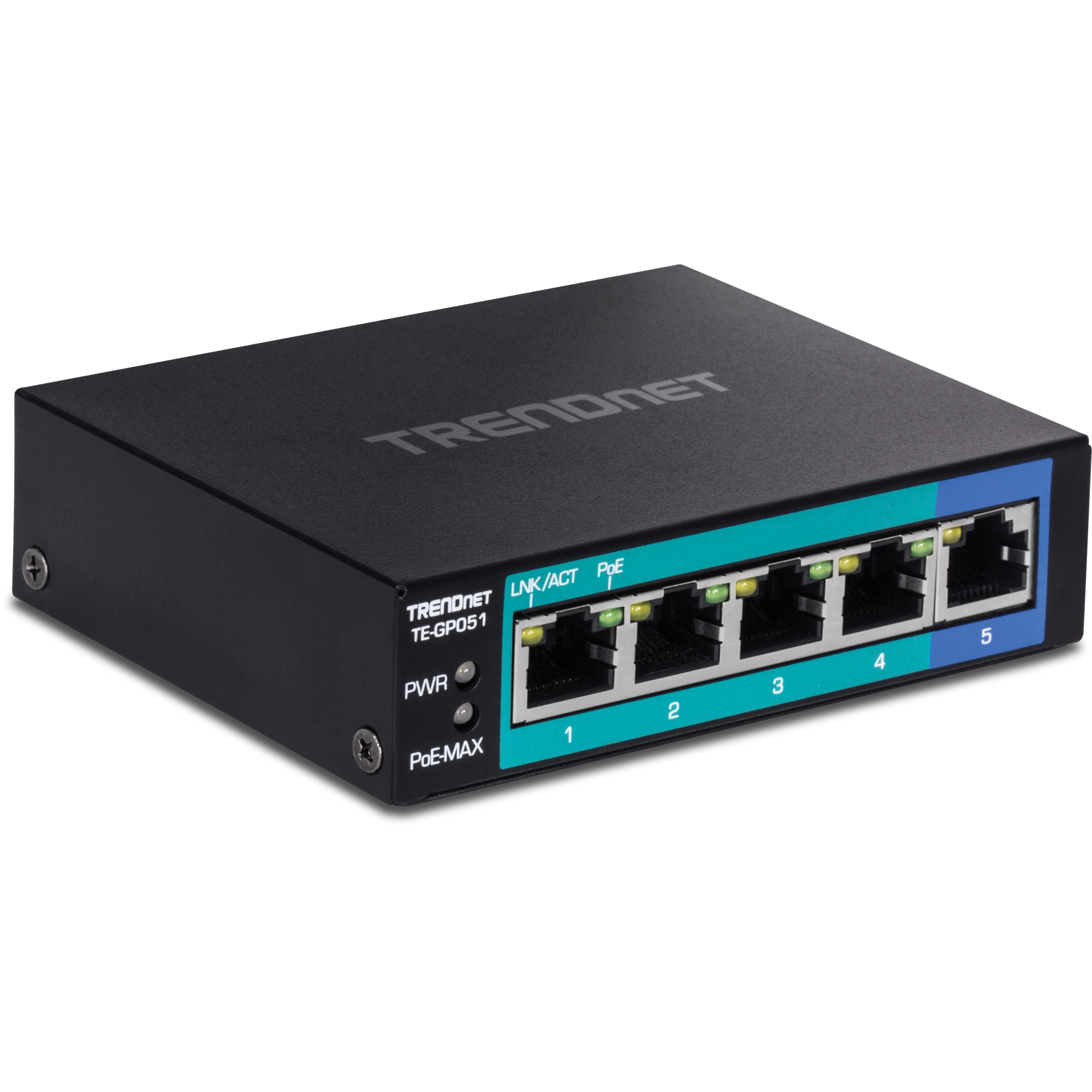

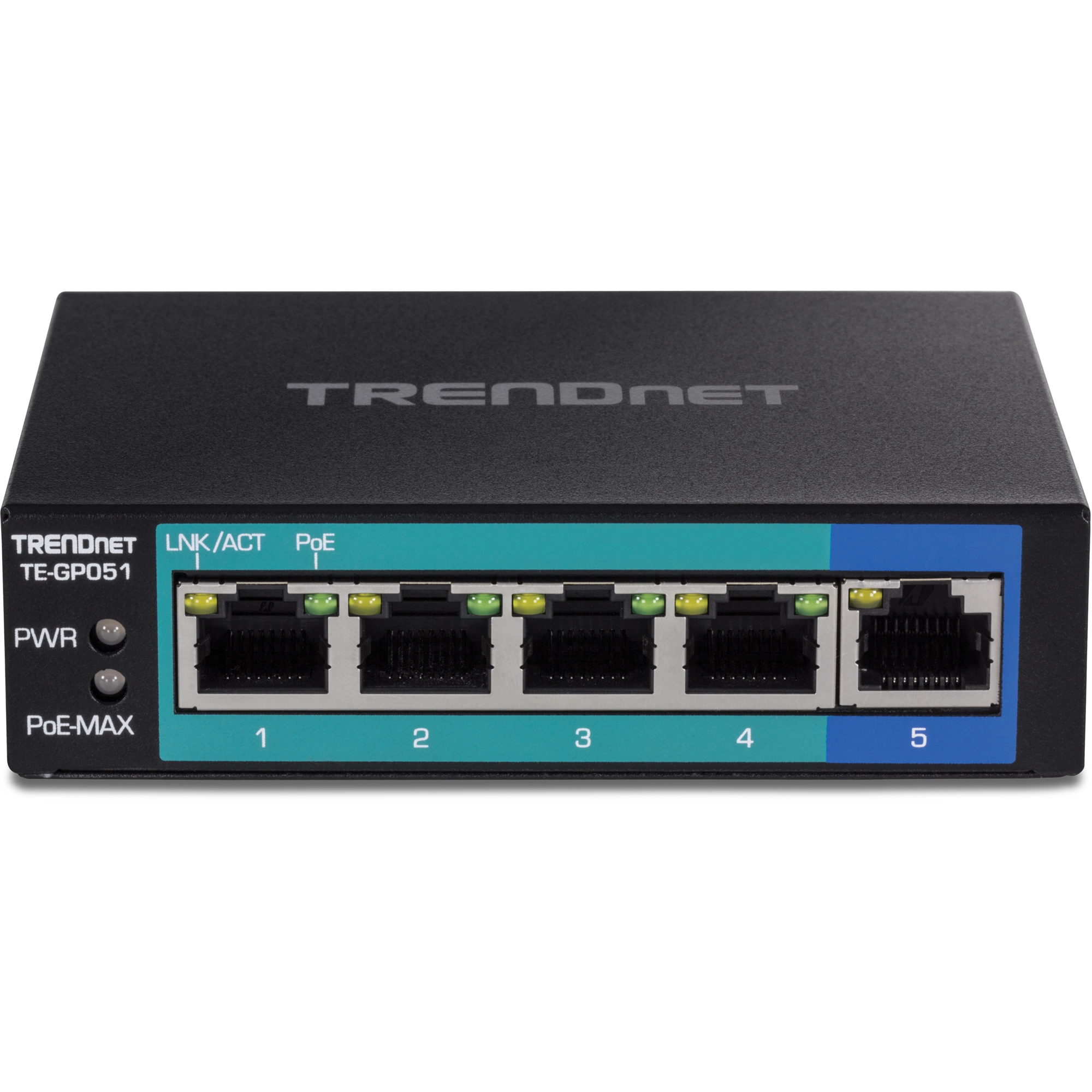

5-Port Unmanaged Gigabit PoE+ Switch

TE-GP051   (Version v1.0R)

   Select Another Version
  • 4 x Gigabit PoE+ ports
  • 1 x Gigabit port
  • 10Gbps switching capacity
  • 35W PoE power budget
  • Reduces equipment cost by delivering data and power over existing network cables

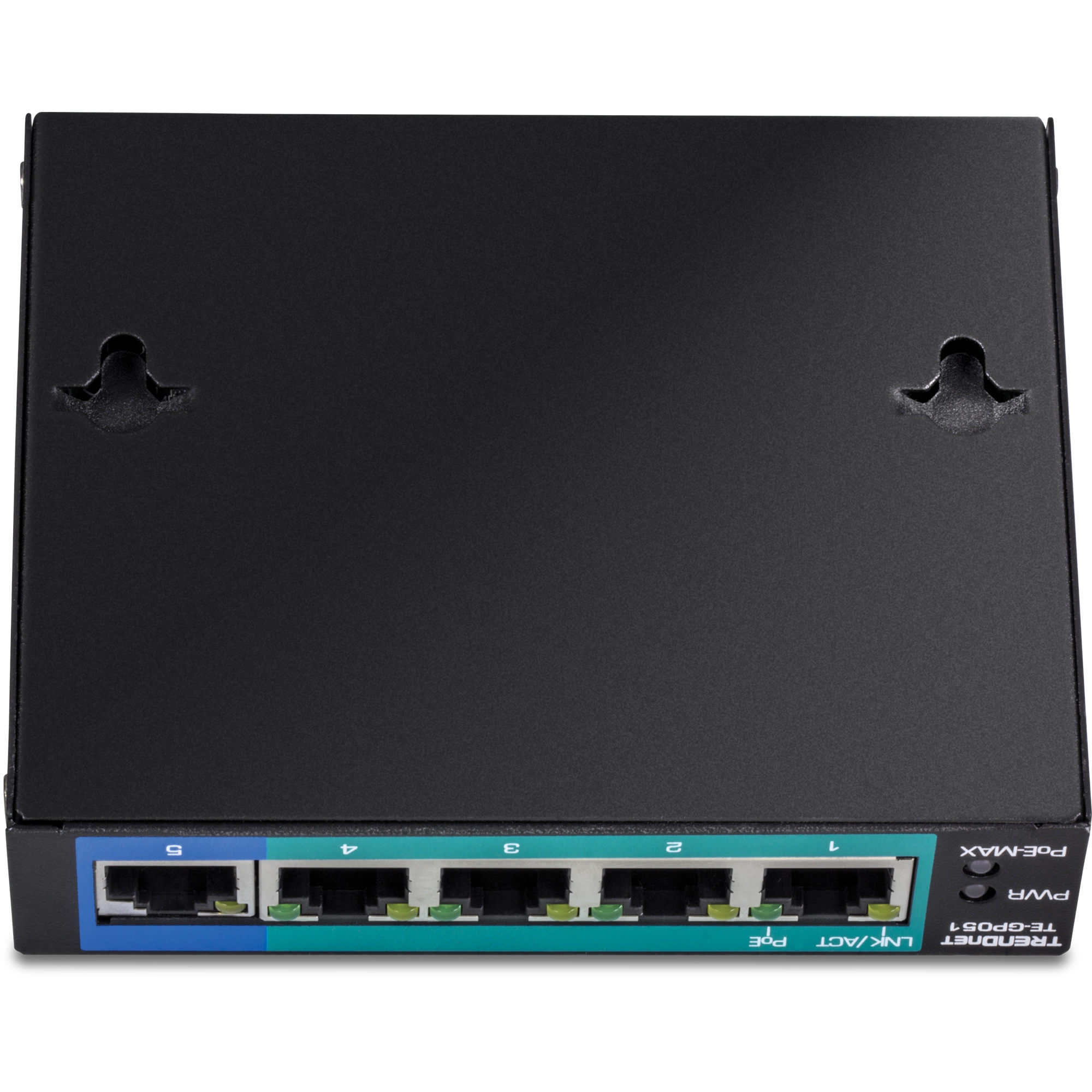

  • Compact wall-mountable metal housing
  • Fanless design

DISCONTINUED PRODUCT

The TE-GP051 (Version v1.0R) has been discontinued. For a list of discontinued products, click here.

Datasheet

Datasheet (English)
Filename: EN_datasheet_TE-GP051_(v1.0R).pdf
Date: 4/12/2021
File Size: 505.21 KB
Download Email
Datasheet (Français)
Filename: FR_datasheet_TE-GP051_(v1.0R).pdf
Date: 4/12/2021
File Size: 544.51 KB
Download Email
Datasheet (Deutsch)
Filename: GE_datasheet_TE-GP051_(v1.0R).pdf
Date: 4/12/2021
File Size: 507.09 KB
Download Email
Datasheet (Português)
Filename: PO_datasheet_TE-GP051_(v1.0R).pdf
Date: 4/12/2021
File Size: 506.04 KB
Download Email
Datasheet (Español)
Filename: SP_datasheet_TE-GP051_(v1.0R).pdf
Date: 4/12/2021
File Size: 505.27 KB
Download Email
Datasheet (Pусский)
Filename: RU_datasheet_TE-GP051_(v1.0R).pdf
Date: 4/12/2021
File Size: 513.17 KB
Download Email
Datasheet (Italiano)
Filename: IT_datasheet_TE-GP051_(v1.0R).pdf
Date: 4/12/2021
File Size: 504.48 KB
Download Email

Quick Installation Guide

Quick Installation Guide (QIG)
Filename: Lineart_TE-GP051_TE-GP102_v1.0R_092520.pdf
Date: 4/12/2021
File Size: 2.61 MB
Download

Product Images

PNG Image
File Size: : 4.72 MB
Date: : 4/13/2021
Download
PNG Image
File Size: : 5.57 MB
Date: : 4/13/2021
Download
PNG Image
File Size: : 5.64 MB
Date: : 4/13/2021
Download
PNG Image
File Size: : 7.29 MB
Date: : 4/13/2021
Download
ROHS compliant WEEE crossed-out bin symbol.
Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3z
  • IEEE 802.3ab
  • IEEE 802.3af
  • IEEE 802.3at
Device Interface
  • 4 x Gigabit PoE+ ports
  • 1 x Gigabit port
  • LED indicators
  • Wall mountable
Data Transfer Rate
  • Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
  • Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
  • Gigabit: 2000Mbps (full duplex)
Performance
  • Data RAM Buffer: 125KB
  • Switch Fabric: 10Gbps
  • MAC Address Table: 2K entries
  • Forwarding rate: 7.44Mpps (64-byte packet size)
  • Jumbo Frame: 9KB
Power

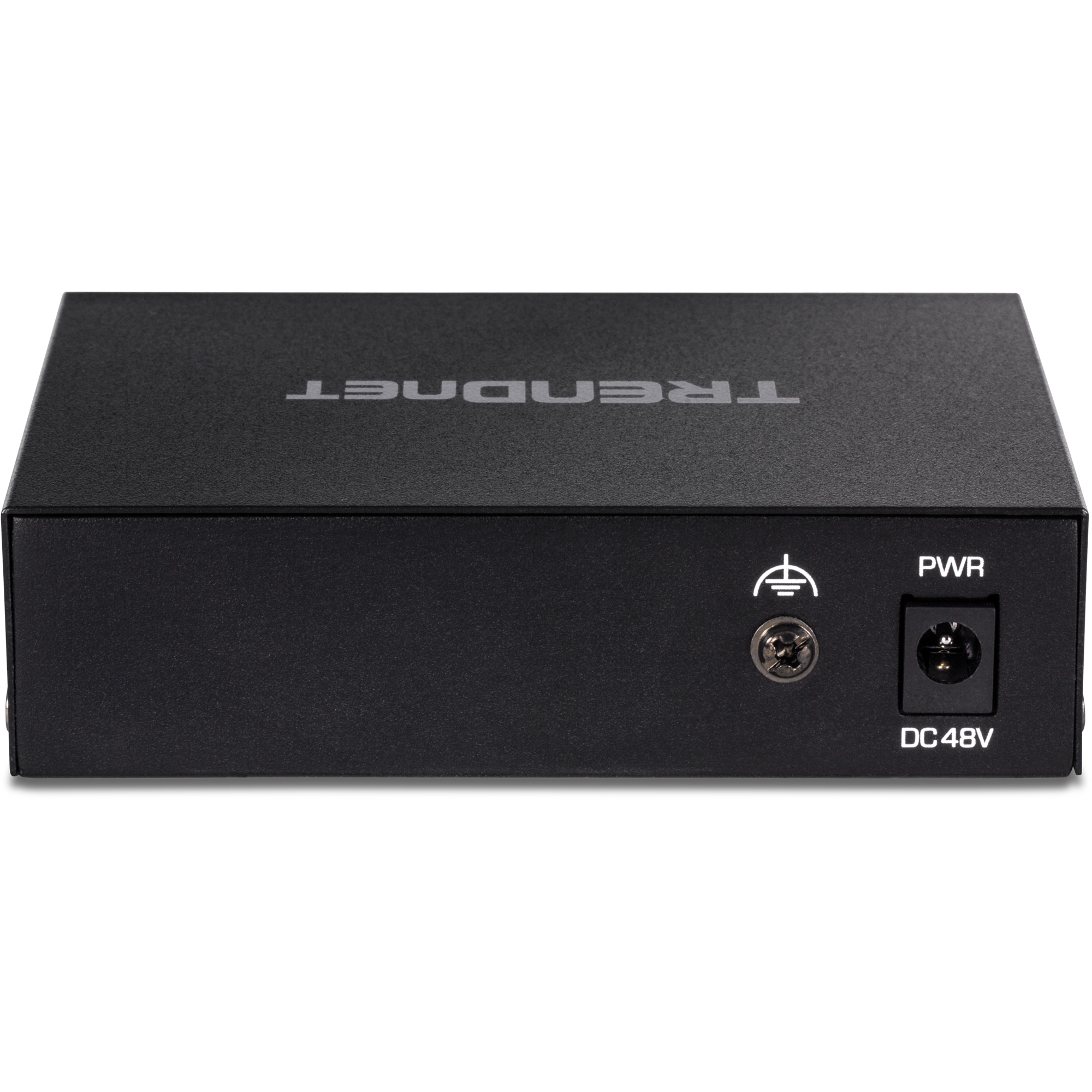

  • Input: 100 – 240V AC, 50/60Hz
  • Output: 48V DC, 0.8A external power adapter
  • Max. consumption: 3W (no PD)
PoE
  • PoE budget: 35W
  • PoE Mode A: Pins 1, 2, 3, and 6 for power
  • Over current protection
  • Short circuit protection
MTBF
  • 612,220 hours
Operating Temperature
  • -10° – 55° C (14° – 131° F)
Operating Humidity
  • Max. 95% non-condensing
Dimensions
  • 105 x 83 x 28mm (4.1 x 3.3 x 1.1 in.)
Weight
  • 0.3kg (0.77 lbs.)
Certifications
  • CE
  • FCC
  • UL
Warranty
  • 3 year

PACKAGE CONTENTS
  • TE-GP051
  • Quick Installation Guide

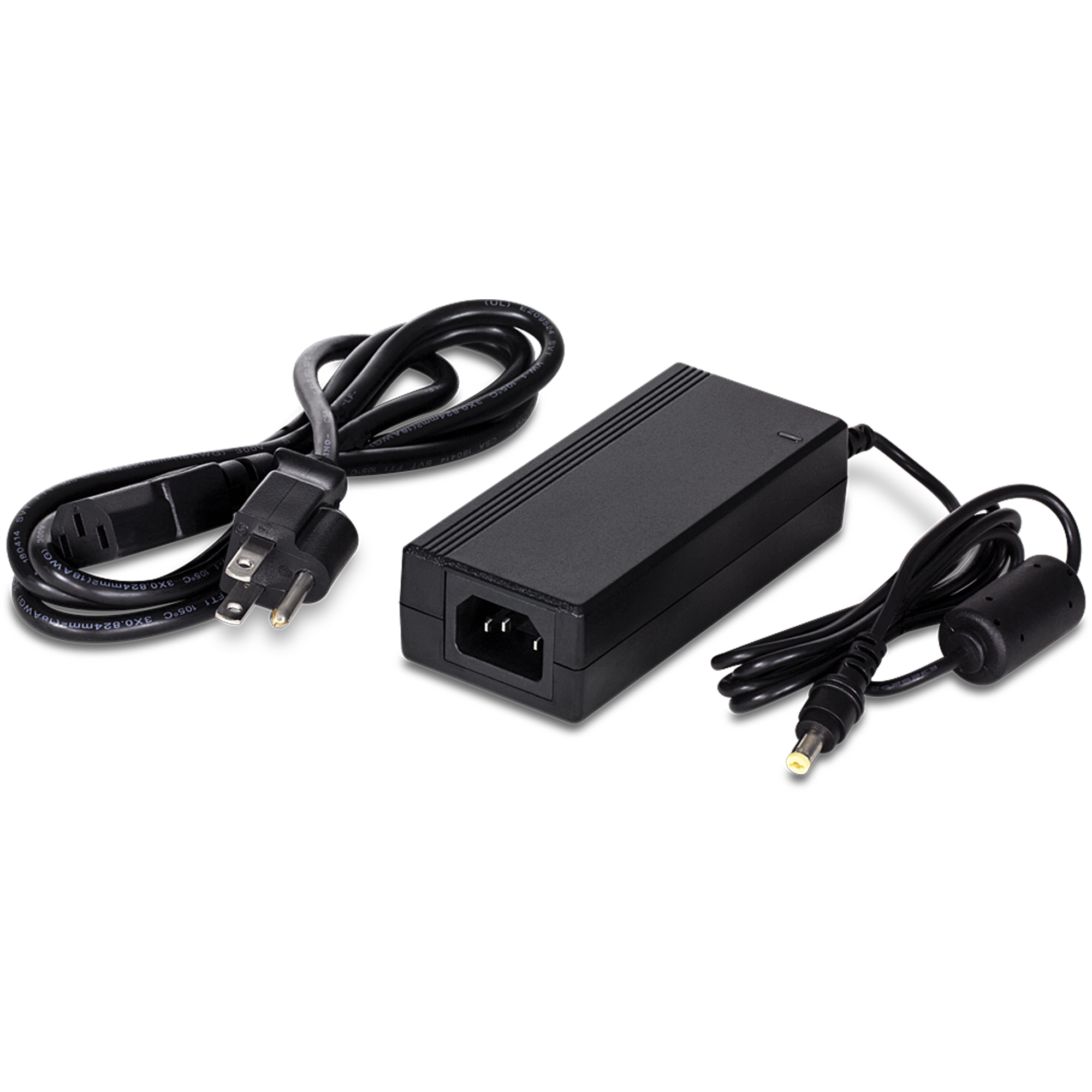

  • Power Adapter (48V DC, 0.8A)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
