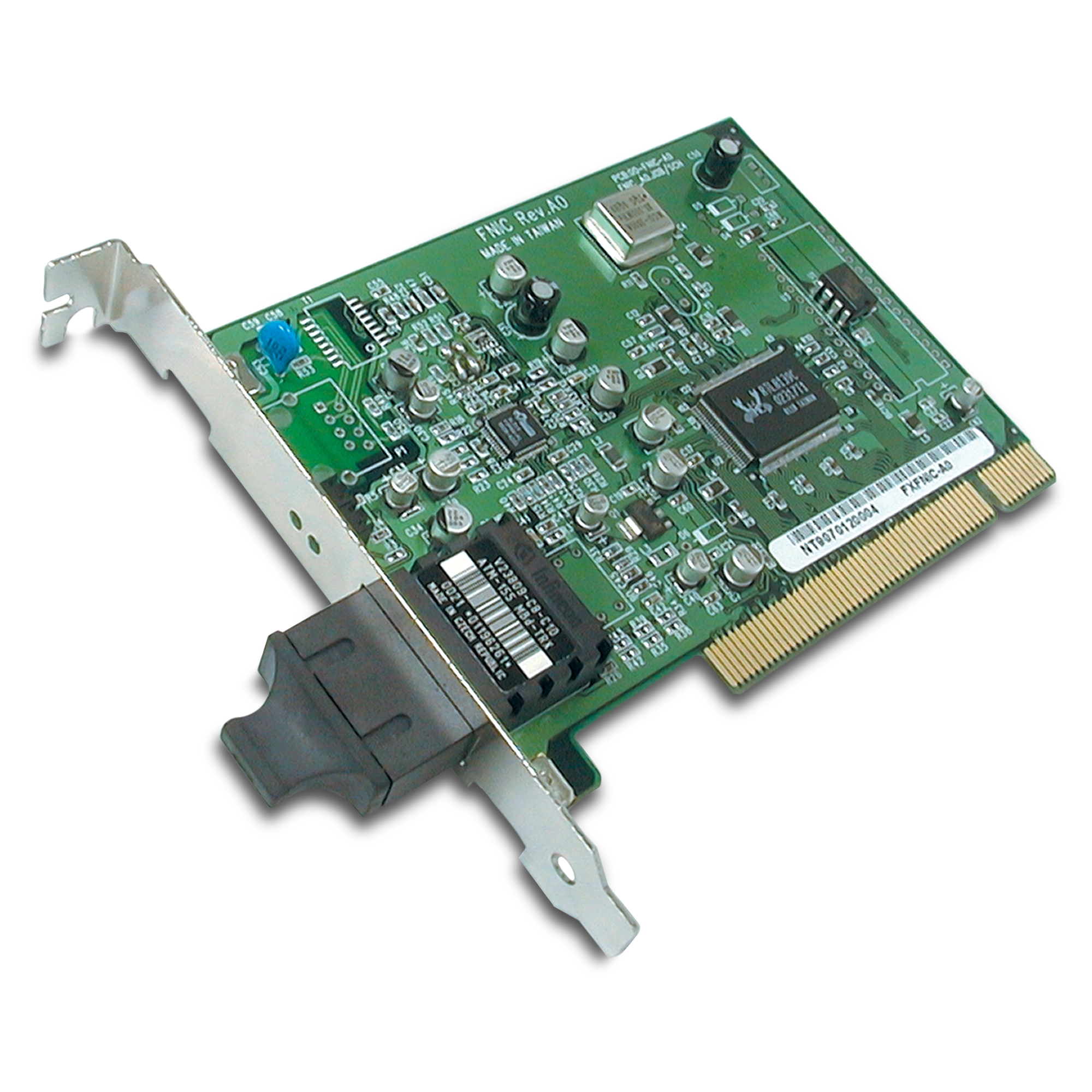

100Base-FX SC Connector PCI Fast Ethernet Fiber Adapter

TE100-PCIFXplus   (Version 1.0)

  • Installs to a computer's PCI slot
  • SC-type multi-mode fiber port connects up to 2km distances
  • 100Mbps port supports Auto-Negotiation, Auto-MDIX and Full-Duplex mode

DISCONTINUED PRODUCT

The TE100-PCIFXplus (Version 1.0) has been discontinued. For a list of discontinued products, click here.

Drivers

Driver
Filename: Driver_TE100-PCIFXplus.zip
SHA-1 Checksum: AF345AABA39A6CC27C570511E09A88CA8CD20C60
Date: 7/25/2017
File Size: 505.11 KB
Download

Datasheet

Datasheet (English)
Filename: EN_Spec_TE100-PCIFXplus.pdf
Date: 1/23/2007
File Size: 257.81 KB
Download Email
Datasheet (Français)
Filename: FR_Spec_TE100-PCIFXplus.pdf
Date: 1/23/2007
File Size: 263.75 KB
Download Email
Datasheet (Deutsch)
Filename: GE_Spec_TE100-PCIFXplus.pdf
Date: 1/23/2007
File Size: 264.66 KB
Download Email
Datasheet (Español)
Filename: SP_Spec_TE100-PCIFXplus.pdf
Date: 1/23/2007
File Size: 260.47 KB
Download Email
Datasheet (Pусский)
Filename: RU_Spec_TE100-PCIFXplus.pdf
Date: 1/23/2007
File Size: 950.85 KB
Download Email

User's Guide

Manual
Filename: UG_TE100-PCIFXplus.pdf
Date: 8/18/2004
File Size: 421.63 KB
Download

Product Images

JPEG Image
File Size: : 513.02 KB
Date: : 12/2/2005
Download
TIFF Image
File Size: : 3.79 MB
Date: : 12/2/2005
Download
ROHS compliant WEEE crossed-out bin symbol.
Hardware
Standards:
  • IEEE 802.3µ 100Base-FX
Data Transfer Rate:
  • 100Mbps (half-duplex) / 200Mbps (full-duplex)
Protocol:
  • CSMA/CD
Connectors:
  • Multimode SC fiber connector
Diagnostic LEDs:
  • Link and Activity
Network Drivers:
  • Novell Netware 3.x/4.x, ODI driver, NetWare Client 32, Windows for Workgroups, Windows 95/98/2000/NT/XP, IBM OS/2 Warp Server, Linux, NDIS driver, and other major network operating systems
Power Consumption:
  • 5 VDC, 700mA Max.
Dimensions:
  • 135 x 121 mm (5.31 x 4.76 inches)
Weight:
  • 85 g (3 oz)
Temperature:
  • Operating: 0° to 40° C (32° F to 104° F)
  • Storage: -25° to 70° C ( -13°F to 158° F)
Humidity:
  • 10 % to 90 % (non-condensing)
Certifications:
  • FCC, CE, VCC1

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
