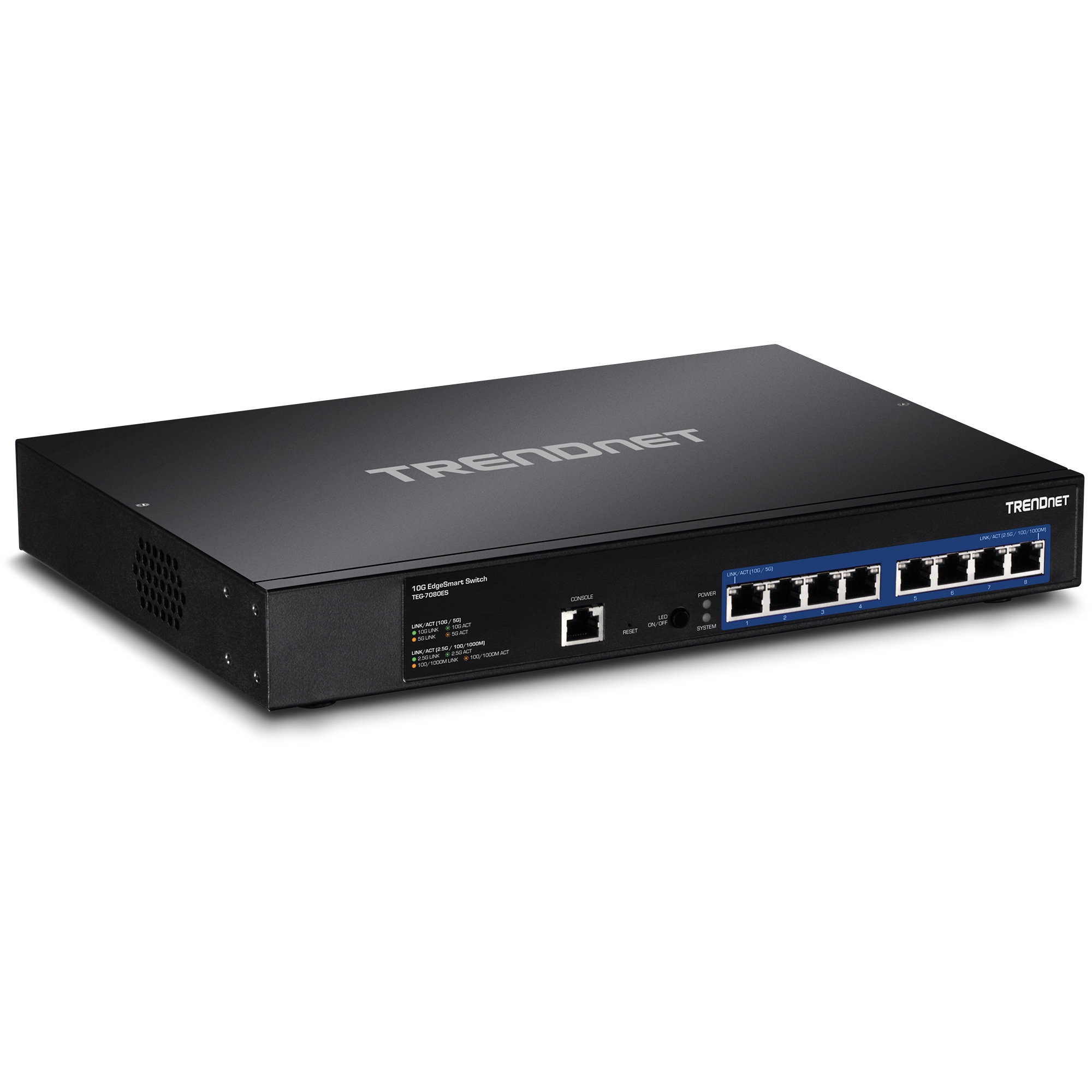

8-Port 10G EdgeSmart Switch

TEG-7080ES   (Version v1.0R)

  • 8 x 10GBASE-T ports
  • Supports 2.5G/5G NBASE-T connection speeds
  • Easy-to-use web-based management interface
  • Supports LACP, VLAN, QoS, and IGMP Snooping
  • Bandwidth control per port
  • 160Gbps switching capacity
  • IEEE 802.1p QoS with queue scheduling support
  • 1U rack mountable (brackets included)

DISCONTINUED PRODUCT

The TEG-7080ES (Version v1.0R) has been discontinued. For a list of discontinued products, click here.

Firmware

Firmware
DO NOT upgrade firmware on any TRENDnet product using wireless connection.
Firmware upgrade over wireless connection may damage the product. Please perform firmware upgrade with "wired" network connection only

Firmware Version: 1.01.06
Release Date:5/2021
Release Note:

  1. Fixed LACP connectivity issues

Filename: FW_TEG-7080ES_v1(1.01.06).zip
SHA-1 Checksum: 5B5A87D4D240F937504A9D2F8613271474EF681E
Date: 5/14/2021
File Size: 1.03 MB
Download

Datasheet

Datasheet (English)
Filename: EN_datasheet_TEG-7080ES(v1.0R).pdf
Date: 4/10/2018
File Size: 727.41 KB
Download Email
Datasheet (Français)
Filename: FR_datasheet_TEG-7080ES(v1.0R).pdf
Date: 4/10/2018
File Size: 743.31 KB
Download Email
Datasheet (Deutsch)
Filename: GE_datasheet_TEG-7080ES(v1.0R).pdf
Date: 12/17/2018
File Size: 705.58 KB
Download Email
Datasheet (Português)
Filename: PO_datasheet_TEG-7080ES(v1.0R).pdf
Date: 2/20/2018
File Size: 749.06 KB
Download Email
Datasheet (Español)
Filename: SP_datasheet_TEG-7080ES(v1.0R).pdf
Date: 4/10/2018
File Size: 743.65 KB
Download Email
Datasheet (Pусский)
Filename: RU_datasheet_TEG-7080ES(v1.0R).pdf
Date: 4/10/2018
File Size: 767.44 KB
Download Email
Datasheet (Italiano)
Filename: IT_datasheet_TEG-7080ES(v1.0R).pdf
Date: 4/10/2018
File Size: 745.35 KB
Download Email

Quick Installation Guide

Quick Installation Guide (English)
Filename: English_TEG-7080ES(V1.0R).pdf
Date: 2/15/2018
File Size: 1.80 MB
Download
Quick Installation Guide (Français)
Filename: French_TEG-7080ES(V1.0R).pdf
Date: 2/15/2018
File Size: 1.86 MB
Download
Quick Installation Guide (Deutsch)
Filename: German_TEG-7080ES(V1.0R).pdf
Date: 2/15/2018
File Size: 1.10 MB
Download
Quick Installation Guide (Português)
Filename: Portuguese_TEG-7080ES(V1.0R).pdf
Date: 2/15/2018
File Size: 1.11 MB
Download
Quick Installation Guide (Español)
Filename: Spanish_TEG-7080ES(V1.0R).pdf
Date: 2/15/2018
File Size: 1.12 MB
Download
Quick Installation Guide (Pусский)
Filename: Russian_TEG-7080ES(V1.0R).pdf
Date: 2/15/2018
File Size: 1.09 MB
Download
Quick Installation Guide (Italiano)
Filename: Italian_TEG-7080ES(V1.0R).pdf
Date: 2/15/2018
File Size: 1.07 MB
Download

User's Guide

User's Guide
Filename: UG_TEG-7080ES(v1).pdf
Date: 1/2/2020
File Size: 1.52 MB
Download

Product Images

PNG Image
File Size: : 1.42 MB
Date: : 2/15/2018
Download
PNG Image
File Size: : 1.12 MB
Date: : 2/15/2018
Download
PNG Image
File Size: : 1.00 MB
Date: : 2/15/2018
Download
ROHS compliant WEEE crossed-out bin symbol.
Standards
  • IEEE 802.1p
  • IEEE 802.1Q
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3ab
  • IEEE 802.3ad
  • IEEE 802.3az
  • IEEE 802.3an
  • IEEE 802.3bz

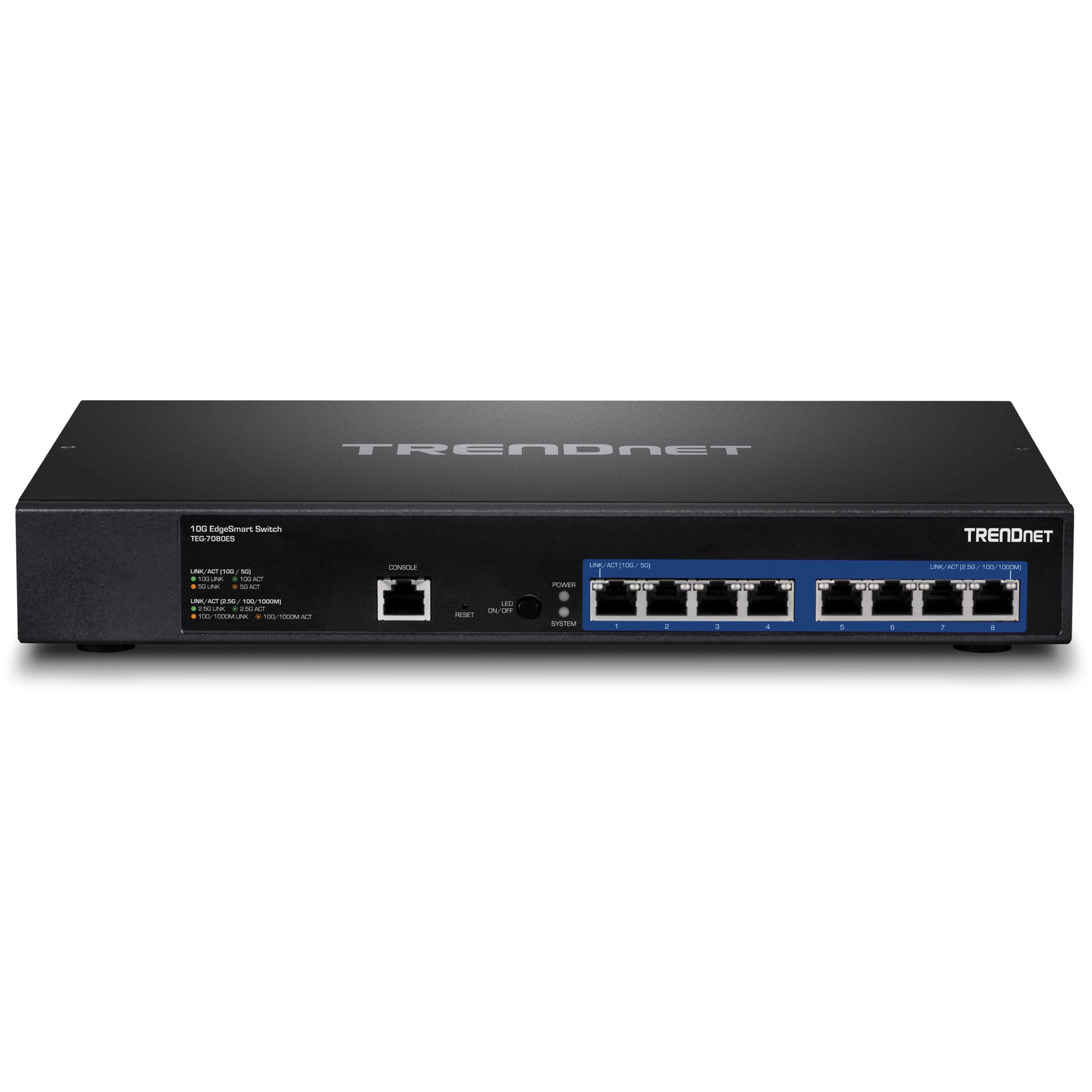

Device Interface
  • 8 x 10GBASE-T (10Gbps, 5Gbps, 2.5Gbps, 1Gbps, 100Mbps)
  • 1 x RJ-45 console port
  • LED indicators
  • LED on/off button
  • Reset button
Data Transfer Rate
  • Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
  • Gigabit Ethernet: 2Gbps (full duplex)
  • 2.5 Gigabit Ethernet: 5Gbps (full duplex)
  • 5 Gigabit Ethernet: 10Gbps (full duplex)
  • 10 Gigabit Ethernet: 20Gbps (full duplex)
Performance
  • Switch fabric: 160Gbps
  • RAM buffer: 2MB
  • MAC Address Table: 16K entries
  • Jumbo Frames: 9KB
  • Forwarding rate: 119Mpps (64-byte packet size)
Management
  • CLI (Console) for IP address settings and password configuration only
  • HTTP / HTTPS (SSL v2/3 TLS 1.2) web based GUI
  • Enable/disable 802.3az Power Saving
  • Cable diagnostic test
  • IPv6: IPv6 Static IP
Link Aggregation
  • Static link aggregation and 802.3ad dynamic LACP (Up to 4 groups)
Quality of Service (QoS)
  • 802.1p Class of Service (CoS)
  • Bandwidth Control per port
  • Queue Scheduling: Strict Priority (All-High-Before-Low), Weighted Round Robin (WRR)
VLAN
  • 802.1Q Tagged VLAN
  • Asymmetric VLAN
  • Up to 16 VLAN groups, ID Range 1-4094
Multicast
  • IGMP Snooping v1, v2
Port Mirror
  • One to one
  • Many to one
Access Control
  • Loopback Detection
  • Trusted Host/IP Access List
Power
  • Input: 100 – 240V AC, 50/60Hz, internal power supply
  • Max. Consumption: 28.5W

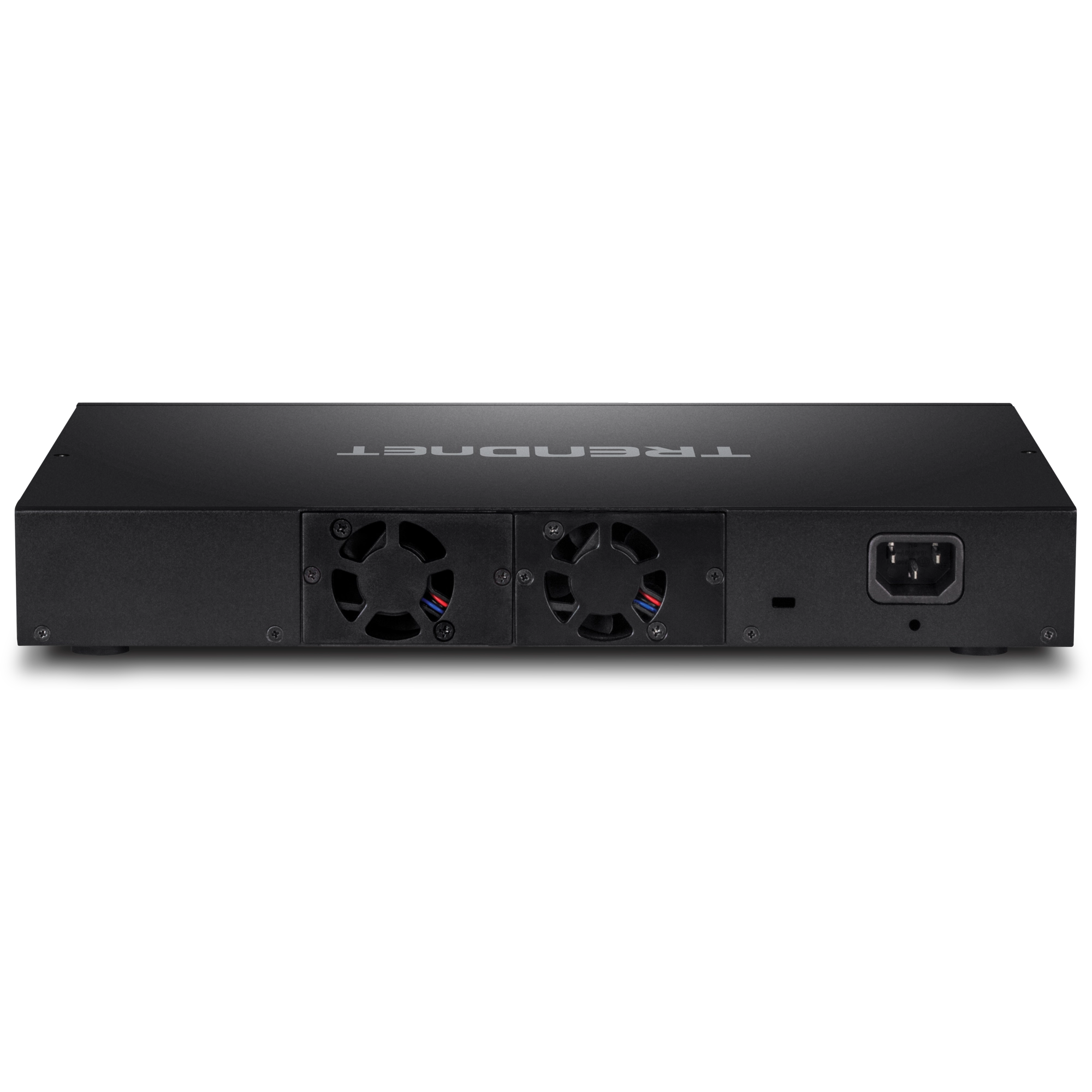

Smart Fan / Acoustics
  • Quantity: 2 (Hot swappable)
  • Noise Level: 39.5 dBA (max.)
MTBF
  • 207,390 hours
Operating Temperature
  • 0° – 50° C (32° – 122° F)
Operating Humidity
  • Max. 90% non-condensing
Dimensions
  • 330 x 230 x 44mm (13 x 9 x 1.73 in.)
  • Rack mountable 1U height
Weight
  • 2.31kg (5.01 lbs.)
Certifications
  • CE
  • FCC
  • UL
Warranty
  • 3 years

PACKAGE CONTENTS
  • TEG-7080ES
  • Quick Installation Guide
  • Power cord
  • RJ-45 to RS-232 console cable (1 m / 3.28 ft.)
  • Rackmount kit

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
