2-Port Video Splitter
TK-V200S
- Instantly repeat your video signal to 2 monitors with no software required
- Excellent for presentations and multiple display applications
- High quality video resolution of 2048x1536 pixels
- Durable metal enclosure
DISCONTINUED PRODUCT
The TK-V200S has been discontinued. It has been replaced by the TK-V201S (Version v1.1R). For a list of discontinued products, click here.Datasheet
Filename: Spec_TK-V200S(English).pdf
Date: 2/18/2005
File Size: 252.34 KB
Filename: Spec_TK-V200S(French).pdf
Date: 2/23/2005
File Size: 255.87 KB
Filename: Spec_TK-V200S(German).pdf
Date: 2/23/2005
File Size: 255.82 KB
Filename: Spec_TK-V200S(Portuguese).pdf
Date: 5/30/2006
File Size: 238.40 KB
Filename: Spec_TK-V200S(Spanish).pdf
Date: 2/22/2005
File Size: 236.06 KB
User's Guide
Filename: QIG_TK-V200S(english).pdf
Date: 5/30/2006
File Size: 450.01 KB
Filename: QIG_TK-V200S(french).pdf
Date: 5/30/2006
File Size: 357.12 KB
Filename: QIG_TK-V200S(German).pdf
Date: 5/30/2006
File Size: 268.85 KB
Filename: QIG_TK-V200S(Spanish).pdf
Date: 5/30/2006
File Size: 179.36 KB

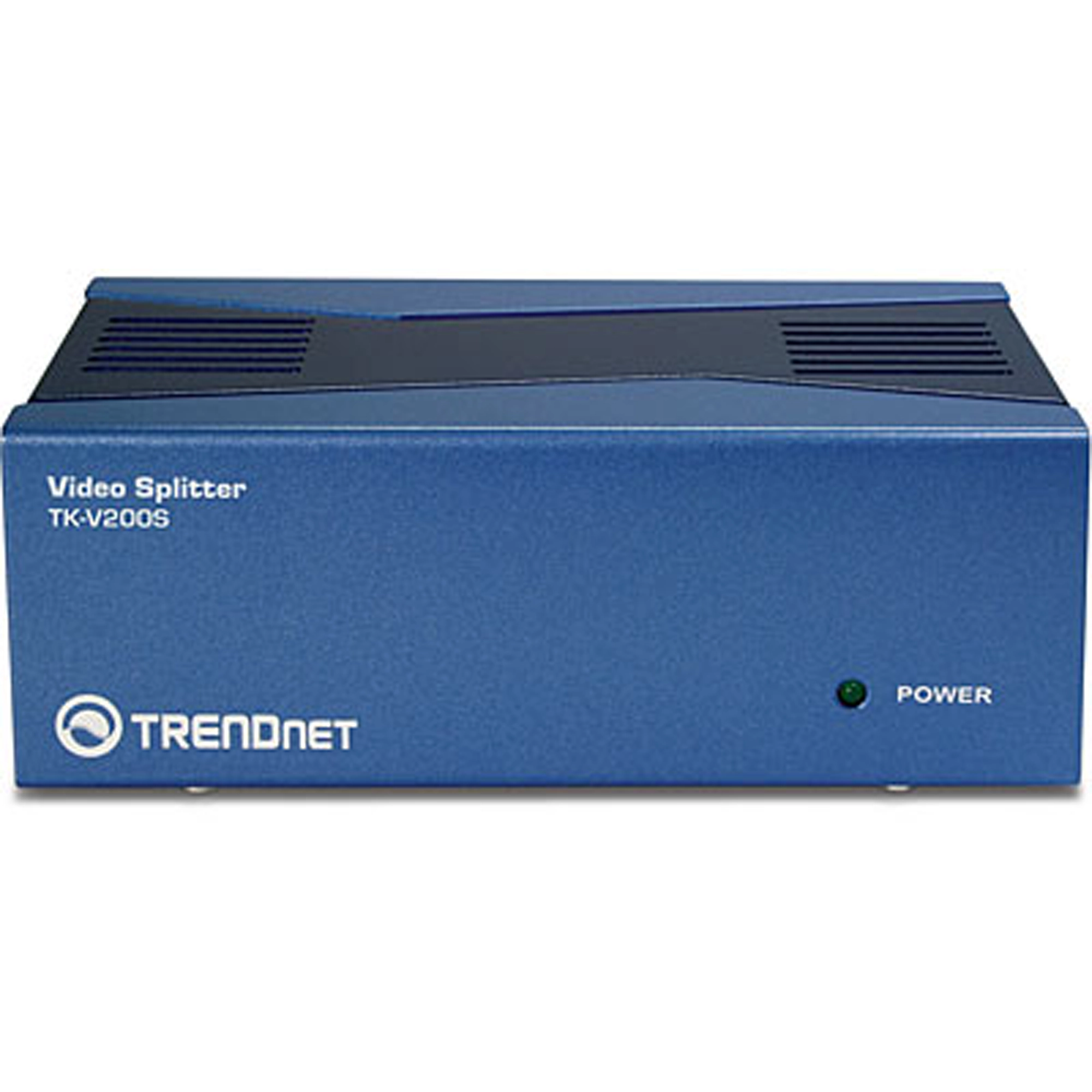

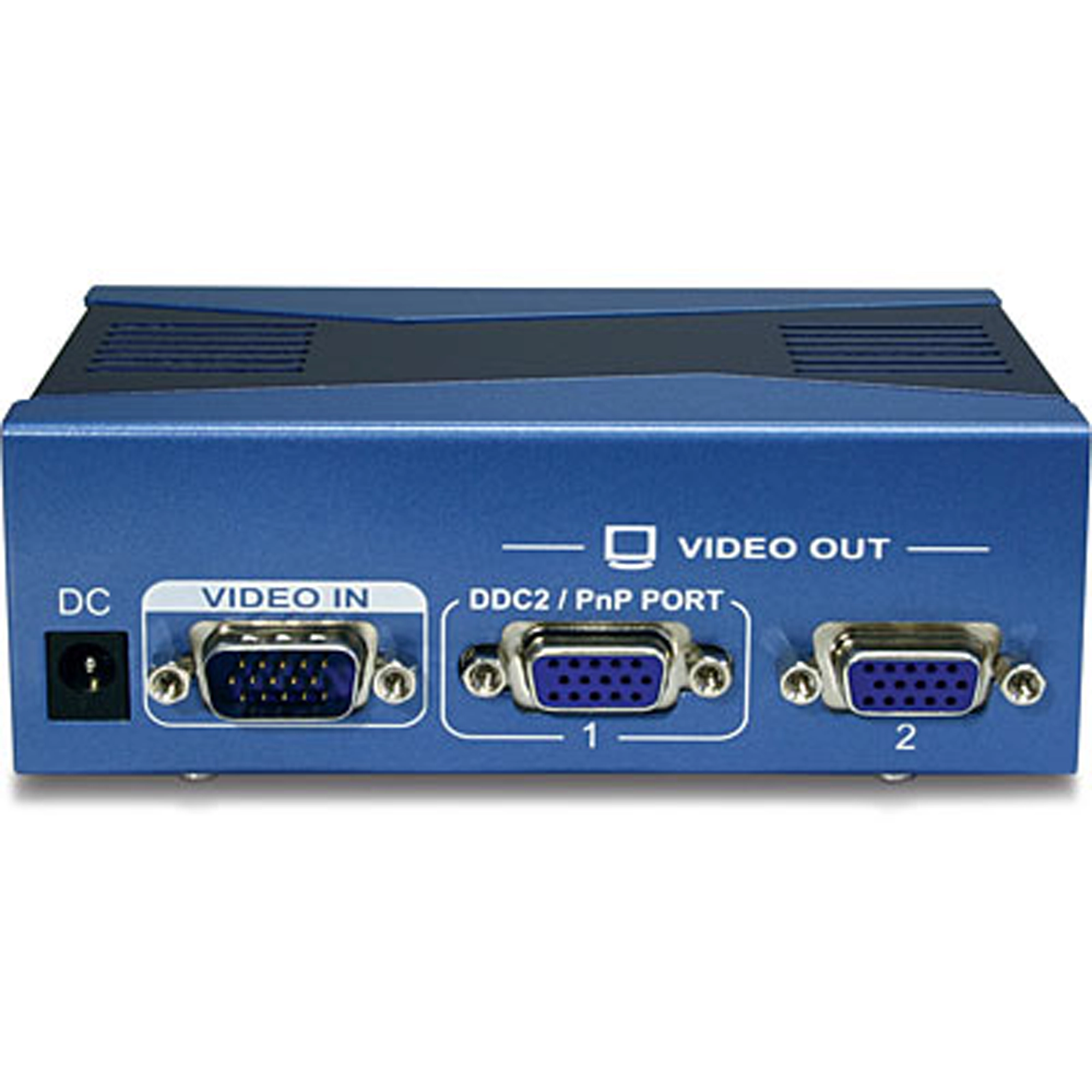

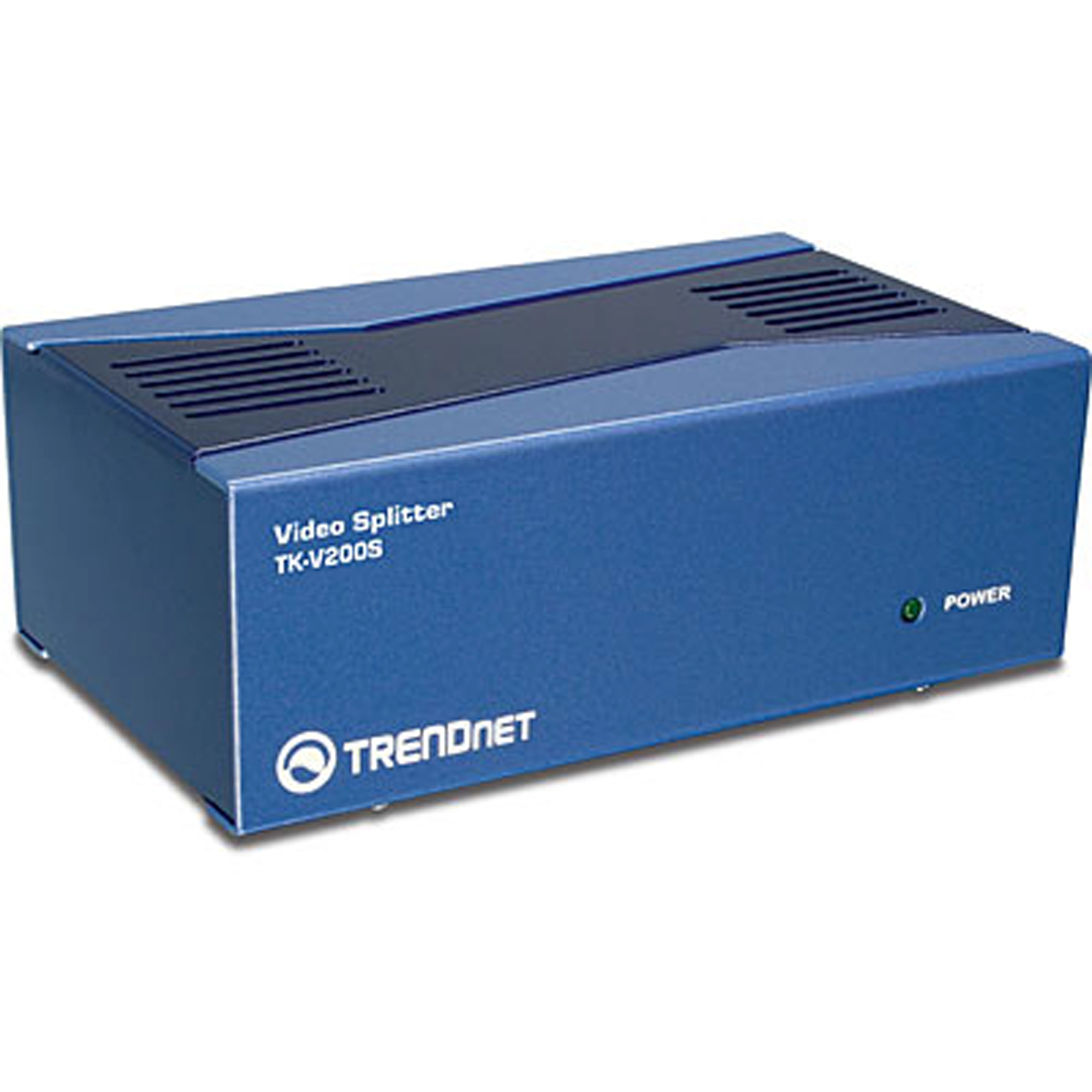

Product Images
| Hardware | |
| Port Interface: |
|
|---|---|
| Signal Types: | VGA, SVGA, XGA, Multi S ynchronization |
| Supported OS: | Windows 98/98SE/ME/2000/XP, Mac 9.0 or higher |
Resolution: | 2048 x 1536 @ 60MHz |
| LEDs: | Power |
| Housing: | Metal |
| Power: | 9VDC 600mA |
| Power Consumption: | 0.85W (Max) |
| Dimensions (L x W x H) : | 121 x 72 x 43 mm (4.76 x 2.83 x 1.69 in) |
| Weight: | 382 g ( 13.5 Oz) |
| Temperature: |
|
| Humidity: | 0 ~ 80% ( Non-condensing) |
| Certifications: | FCC, CE |
PACKAGE CONTENTS |
|
All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
