Gigabit PoE Splitter

TPE-104GS   (Version v1.0R)

   Select Another Version
  • Install a non-PoE device in a remote location
  • Splits a Gigabit PoE signal into separate power and Gigabit data sources
  • Set the output power to either 5 V, 7.5 V, 9 V, or 12 V
  • Use this compact device with TRENDnet PoE switches or injectors
  • Save on installation and equipment costs

DISCONTINUED PRODUCT

The TPE-104GS (Version v1.0R) has been discontinued. It has been replaced by the TPE-104GS (Version v2.0R). For a list of discontinued products, click here.

Datasheet

Datasheet (English)
Filename: EN_spec_TPE-104GS(v1.0R).pdf
Date: 7/16/2014
File Size: 1.23 MB
Download Email
Datasheet (Français)
Filename: FR_spec_TPE-104GS(v1.0R).pdf
Date: 7/16/2014
File Size: 1.22 MB
Download Email
Datasheet (Deutsch)
Filename: GE_spec_TPE-104GS(v1.0R).pdf
Date: 7/16/2014
File Size: 1.22 MB
Download Email
Datasheet (Português)
Filename: PO_spec_TPE-104GS(v1.0R).pdf
Date: 7/16/2014
File Size: 1.21 MB
Download Email
Datasheet (Español)
Filename: SP_spec_TPE-104GS(v1.0R).pdf
Date: 11/28/2017
File Size: 1.23 MB
Download Email
Datasheet (Pусский)
Filename: RU_spec_TPE-104GS(v1.0R).pdf
Date: 7/16/2014
File Size: 1.20 MB
Download Email
Datasheet (Italiano)
Filename: IT_spec_TPE-104GS(v1.0R).pdf
Date: 7/16/2014
File Size: 1.22 MB
Download Email

Quick Installation Guide

Quick Installation Guide (European)
Filename: EUNL_TPE-104GS(V1.0R)_2018.pdf
Date: 2/16/2018
File Size: 1.73 MB
Download
Quick Installation Guide (English)
Filename: QIG_TPE-104GS(V1.0)_021618.pdf
Date: 2/16/2018
File Size: 3.14 MB
Download

Product Images

JPEG Image
File Size: : 417.23 KB
Date: : 5/2/2014
Download
JPEG Image
File Size: : 502.22 KB
Date: : 5/2/2014
Download
JPEG Image
File Size: : 511.52 KB
Date: : 5/2/2014
Download
JPEG Image
File Size: : 394.91 KB
Date: : 5/2/2014
Download
JPEG Image
File Size: : 363.00 KB
Date: : 5/2/2014
Download
ROHS compliant WEEE crossed-out bin symbol.
Hardware
Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3ab
  • IEEE 802.3af
Device Interface

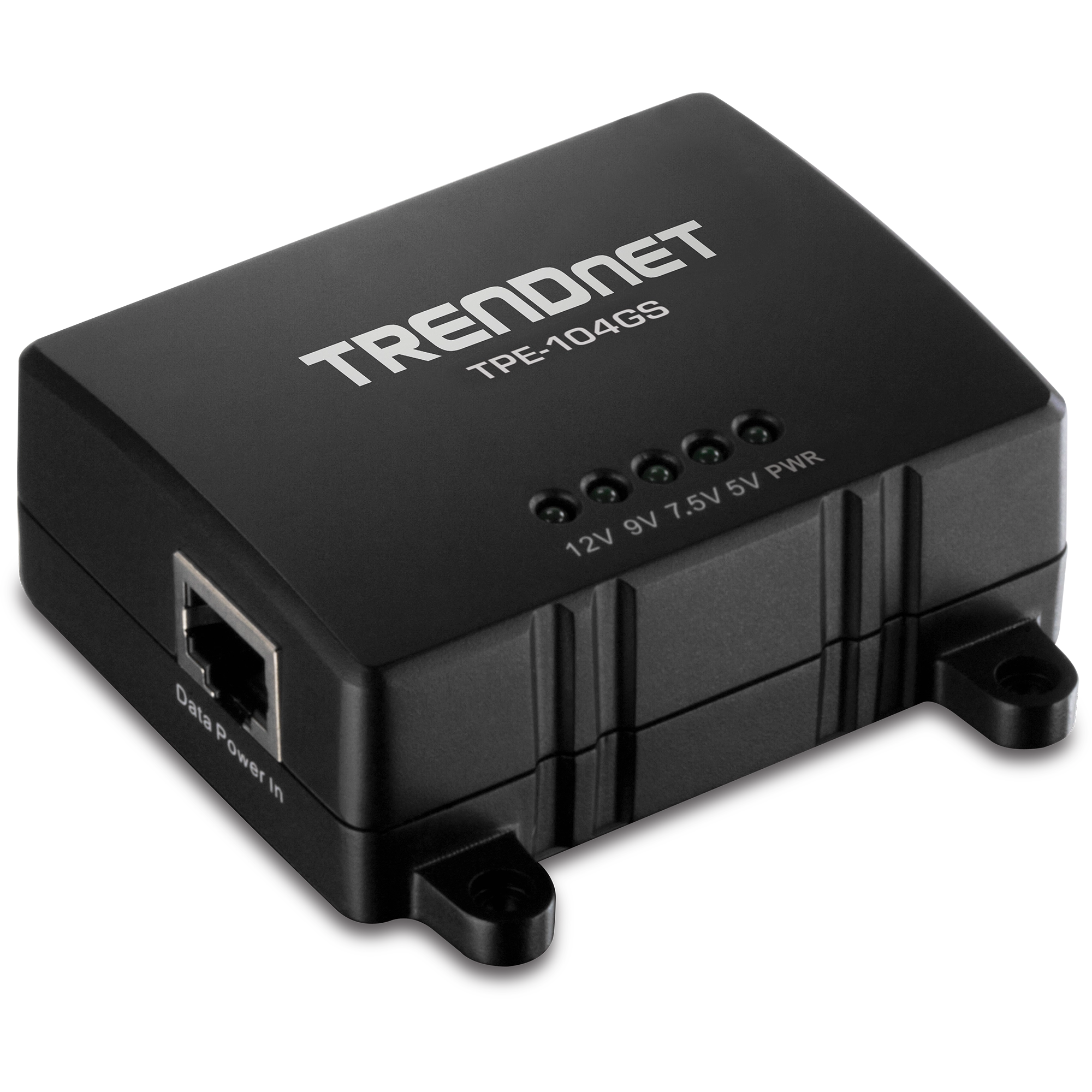

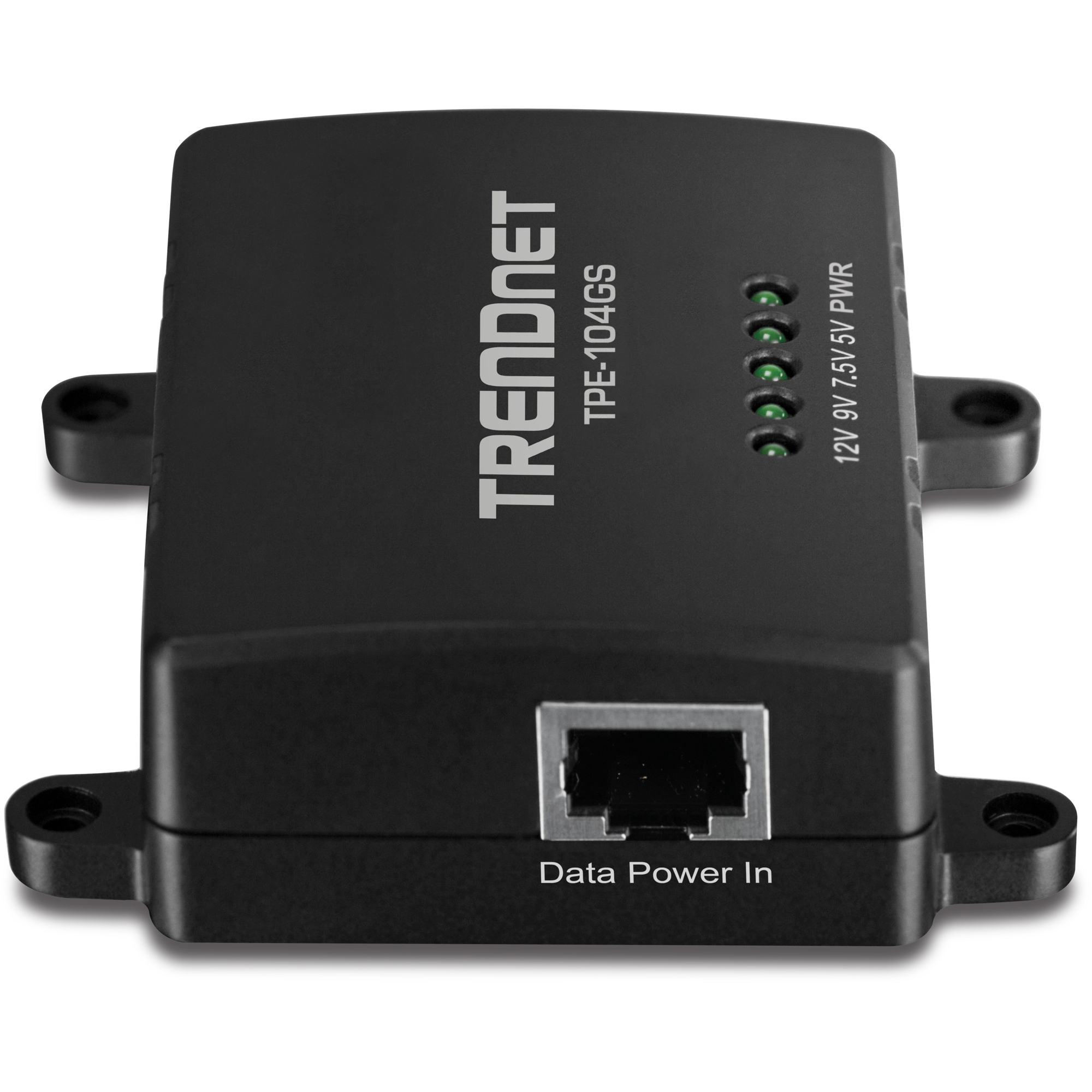

  • 1 x Gigabit data/power in port

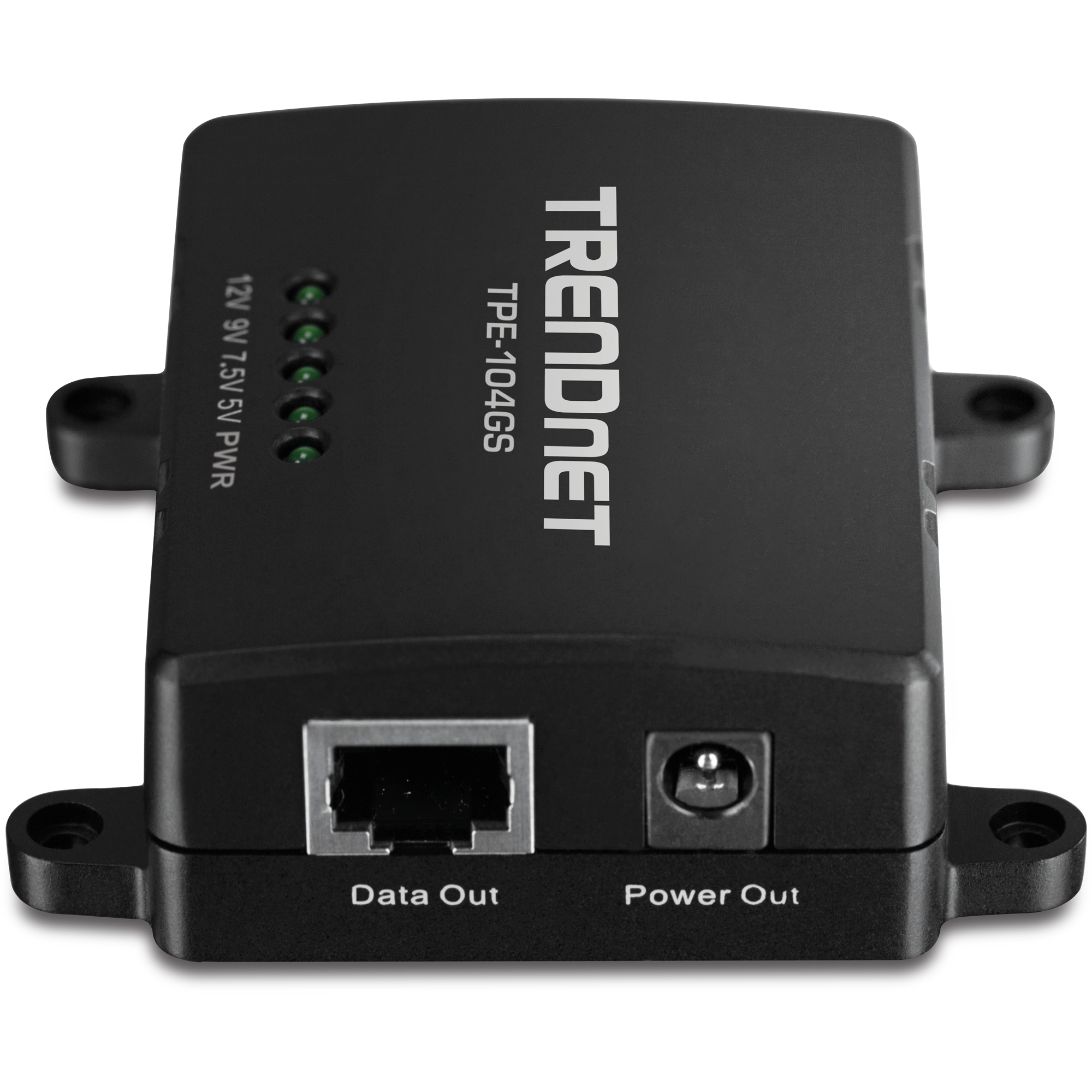

  • 1 x Gigabit data out port
  • 1 x Power out port

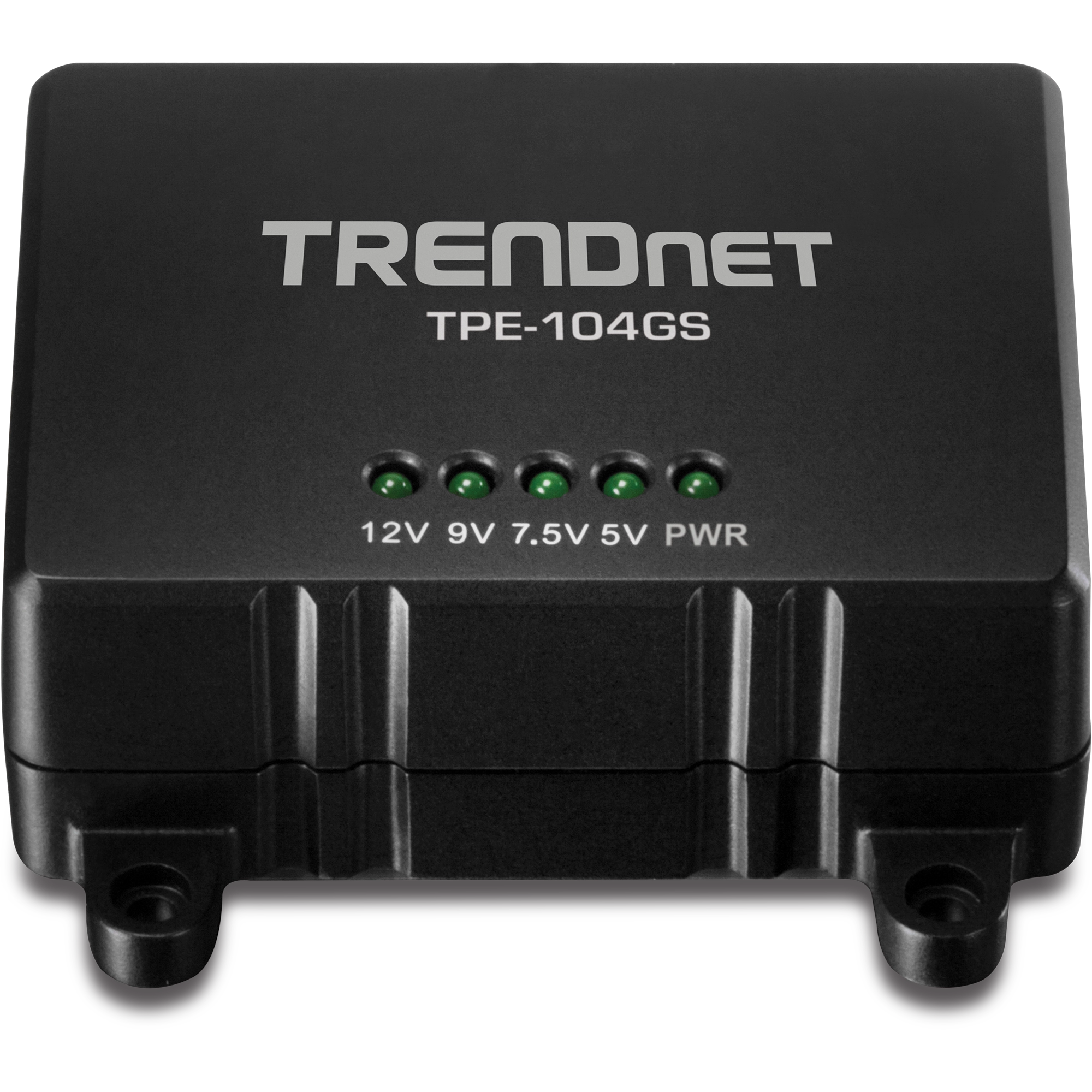

  • LED indicators

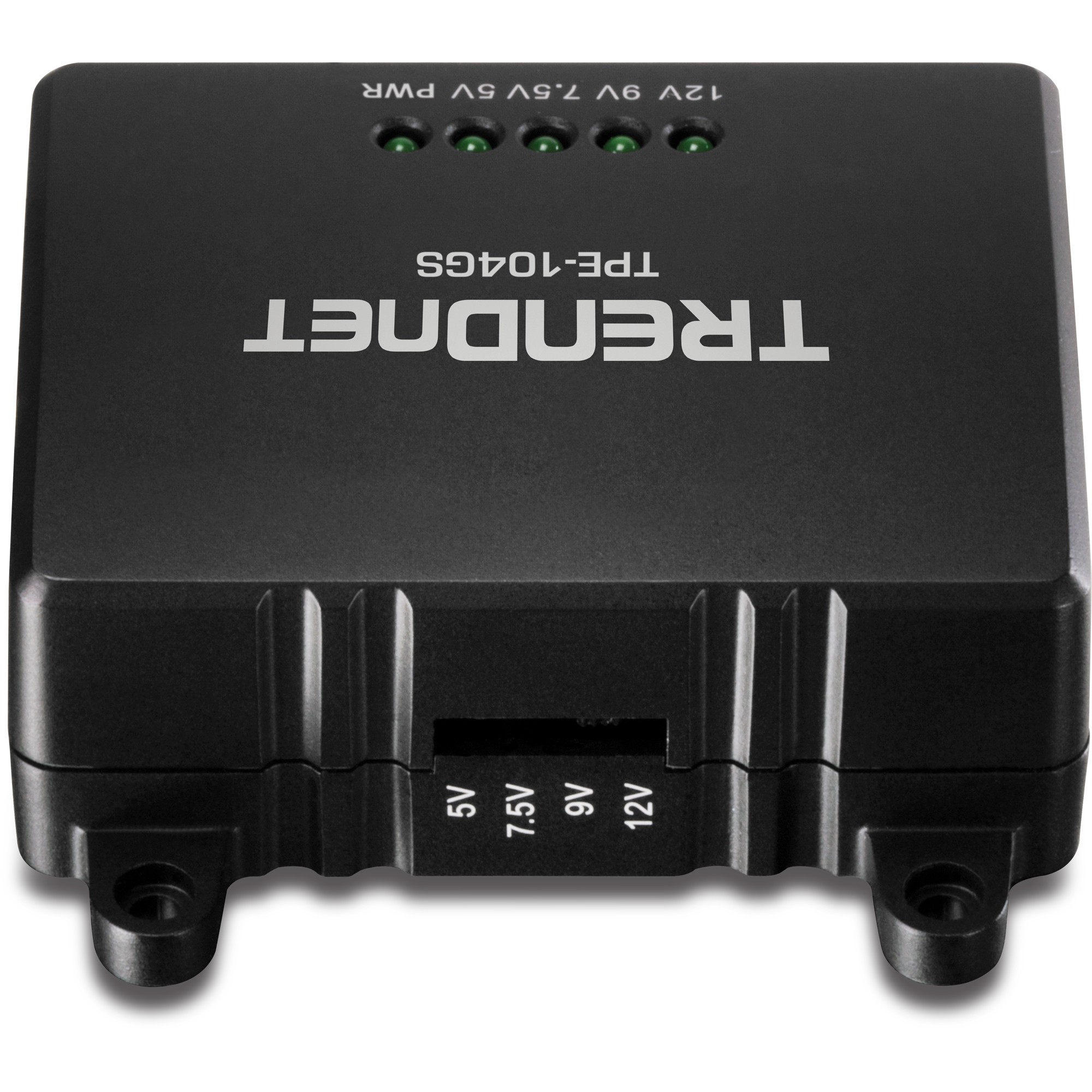

  • Adjustable output power DIP switch (5 V, 7.5 V, 9 V, 12 V)
Data Transfer Rate
  • Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)
  • Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)
  • Gigabit: 2000 Mbps (full duplex)
Jumper Cable
  • 2.0 to 2.0 mm
  • 2.0 to 2.5 mm
Power
  • PoE network cable input: 48 V DC, 0.38 A
  • Output: 5 V (2 A), 7.5 V (2 A), 9 V (1.7 A), 12 V (1.2 A)
  • Consumption: 0.3 Watts (max.)
Operating Temperature
  • 0 – 45 °C (32 - 113 °F)
Operating Humidity
  • Max. 90% non-condensing
Dimensions
  • 70 x 45 x 25 mm (2.8 x 1.8 x 1 in.)
Weight
  • 60 g (2.1 oz.)
Certifications
  • CE
  • FCC
Warranty
  • 3 year limited

PACKAGE CONTENTS
  • TPE-104GS
  • Quick Installation Guide
  • 2 x Jumper cables (2.0 to 2.0 mm, 2.0 to 2.5 mm)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
