ProView Wireless Advanced Pan/Tilt/Zoom Network Camera
TV-IP400W (Version B1.xR)
- No need for an Ethernet connection, video is transmitted over an encrypted wireless signal
- Enjoy an expansive viewing field with remote pan and tilt controls
- View streaming video and record from any Internet connection
- Program motion detection recording, email alerts and more with free software
DISCONTINUED PRODUCT
The TV-IP400W (Version B1.xR) has been discontinued. It has been replaced by the TV-IP420P (Version v1.0R). For a list of discontinued products, click here.Firmware
Date: 7/26/2017
File Size: 1,023.74 KB
DO NOT upgrade firmware on any TRENDnet product using wireless connection. Firmware upgrade over wireless connection may damage the product. Please perform firmware upgrade with "wired" network connection only |
Firmware upgrade failure may permanently damage the unit and causing it not to function. Please check the "Firmware Release Note" on our web site and if the issues in the note do not address the problem you are experiencing, please do not upgrade the firmware. |
Firmware Version: v3.36
Release Date: Feb 2008
Release Note:
1. Add live view only web pages of ActiveX and Java mode, the URL is:
· ActiveX mode: http://{IP ADDRESS}/tvaview.htm (Please install ActiveX before using this link)
· Java mode: http://{IP ADDRESS}/tvjview.htm (Please install JRE before using this link)
Filename: FW_TV-IP400W(v3.36).zip
SHA-1 Checksum: D7206EE987AA3797F61CC715C469D0A3CCE2C4A2
Date: 7/26/2017
File Size: 1.18 MB
Datasheet
Filename: EN_Spec_TV-IP400W.pdf
Date: 12/20/2013
File Size: 1.05 MB
Filename: FR_Spec_TV-IP400W.pdf
Date: 12/20/2013
File Size: 1.06 MB
Filename: GE_Spec_TV-IP400W.pdf
Date: 12/20/2013
File Size: 1.06 MB
Filename: SP_Spec_TV-IP400W.pdf
Date: 12/20/2013
File Size: 1.04 MB
Filename: RU_Spec_TV-IP400W.pdf
Date: 12/20/2013
File Size: 1.94 MB
Quick Installation Guide
Filename: EN_QIG_TV-IP400_400W.pdf
Date: 11/4/2008
File Size: 507.26 KB
Filename: FR_QIG_TV-IP400_400W.pdf
Date: 11/4/2008
File Size: 509.99 KB
Filename: GE_QIG_TV-IP400_400W.pdf
Date: 11/4/2008
File Size: 509.07 KB
Filename: PO_QIG_TV-IP400_400W.pdf
Date: 10/23/2007
File Size: 592.05 KB
Filename: SP_QIG_TV-IP400_400W.pdf
Date: 11/4/2008
File Size: 508.68 KB
Filename: RU_QIG_TV-IP400_400W.pdf
Date: 11/4/2008
File Size: 1,009.70 KB
Filename: CN_QIG_TV-IP400_400W.pdf
Date: 5/16/2013
File Size: 1.31 MB
User's Guide
Filename: UG_TV-IP400_IP400W(B2).pdf
Date: 1/16/2009
File Size: 2.86 MB
Frequently Asked Questions (FAQ)

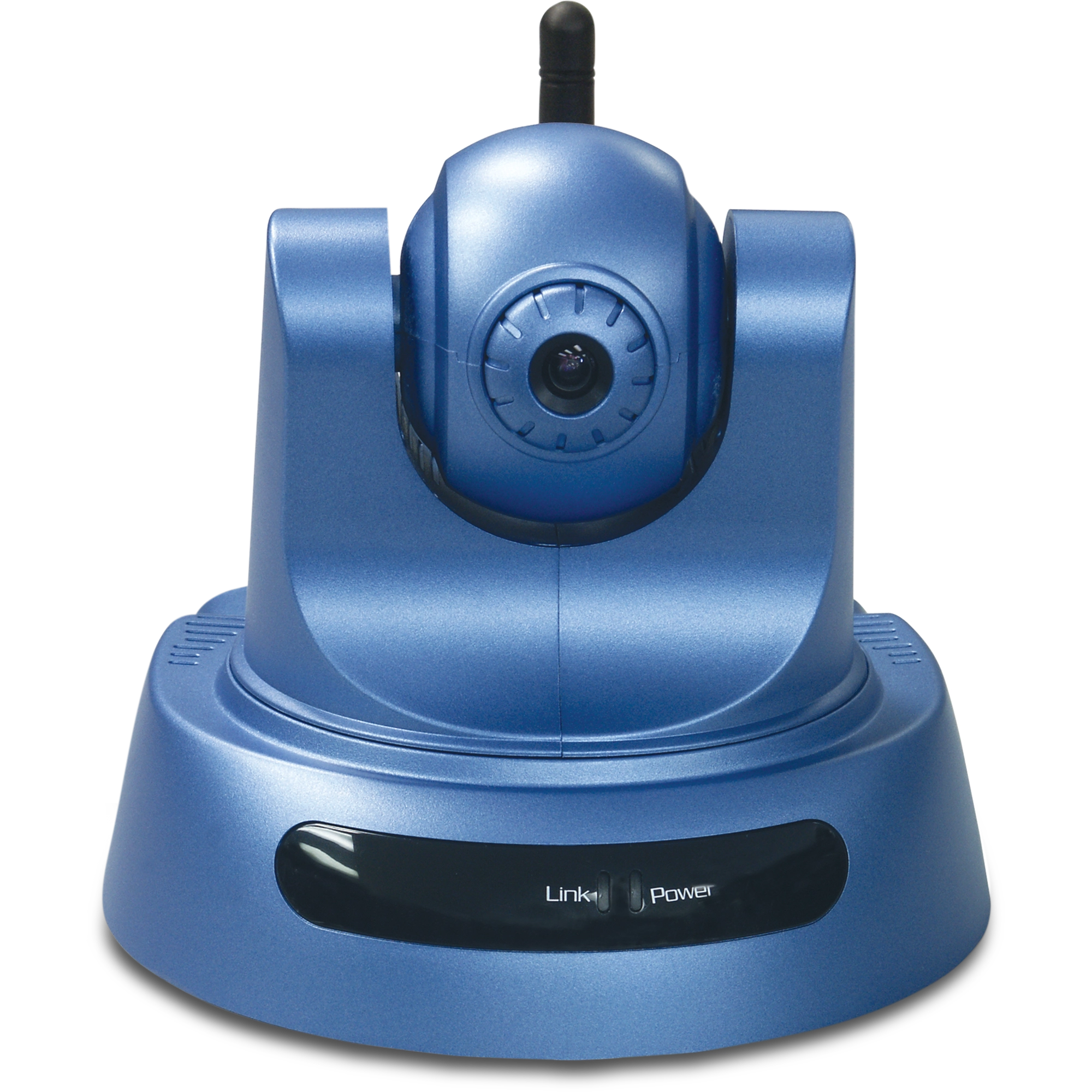

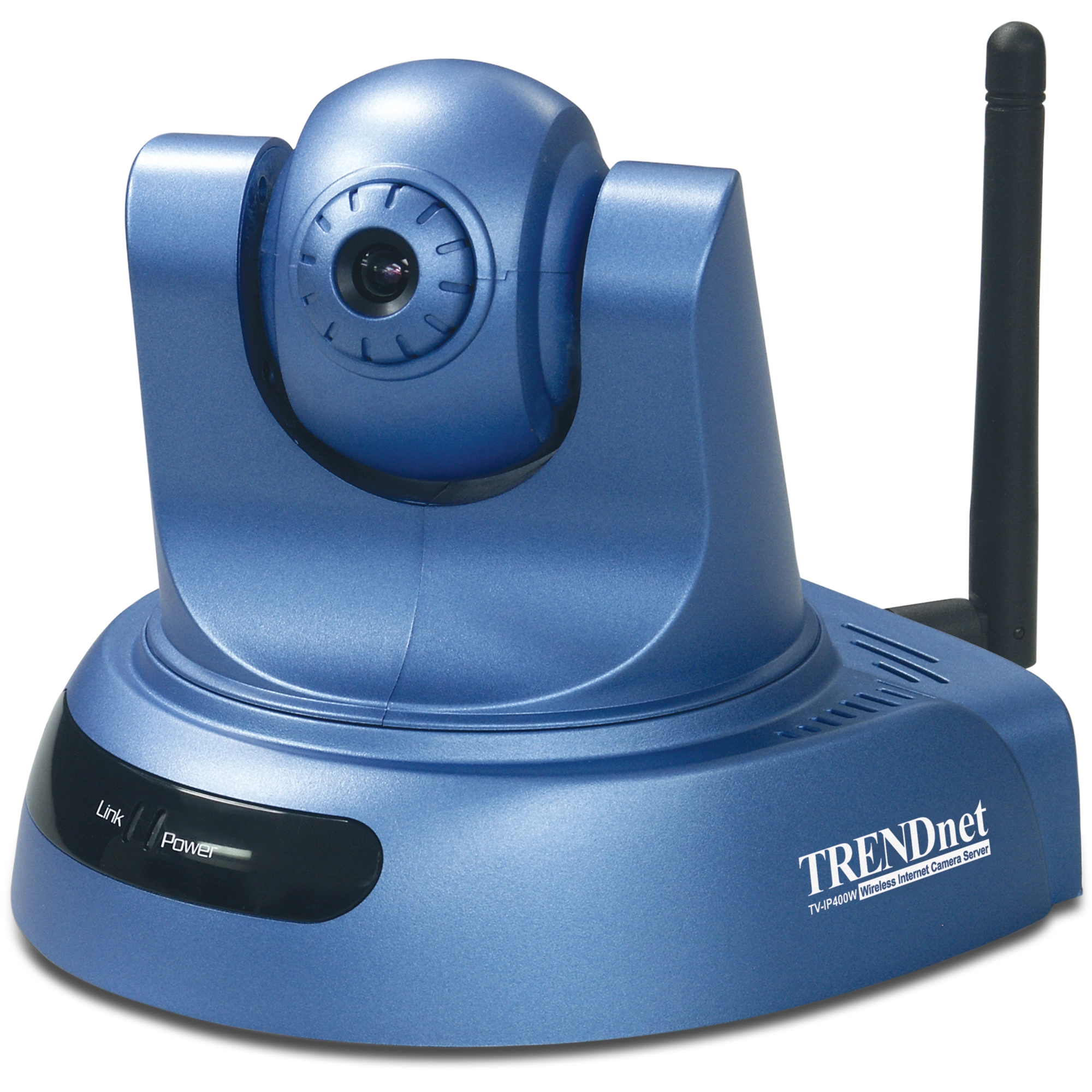

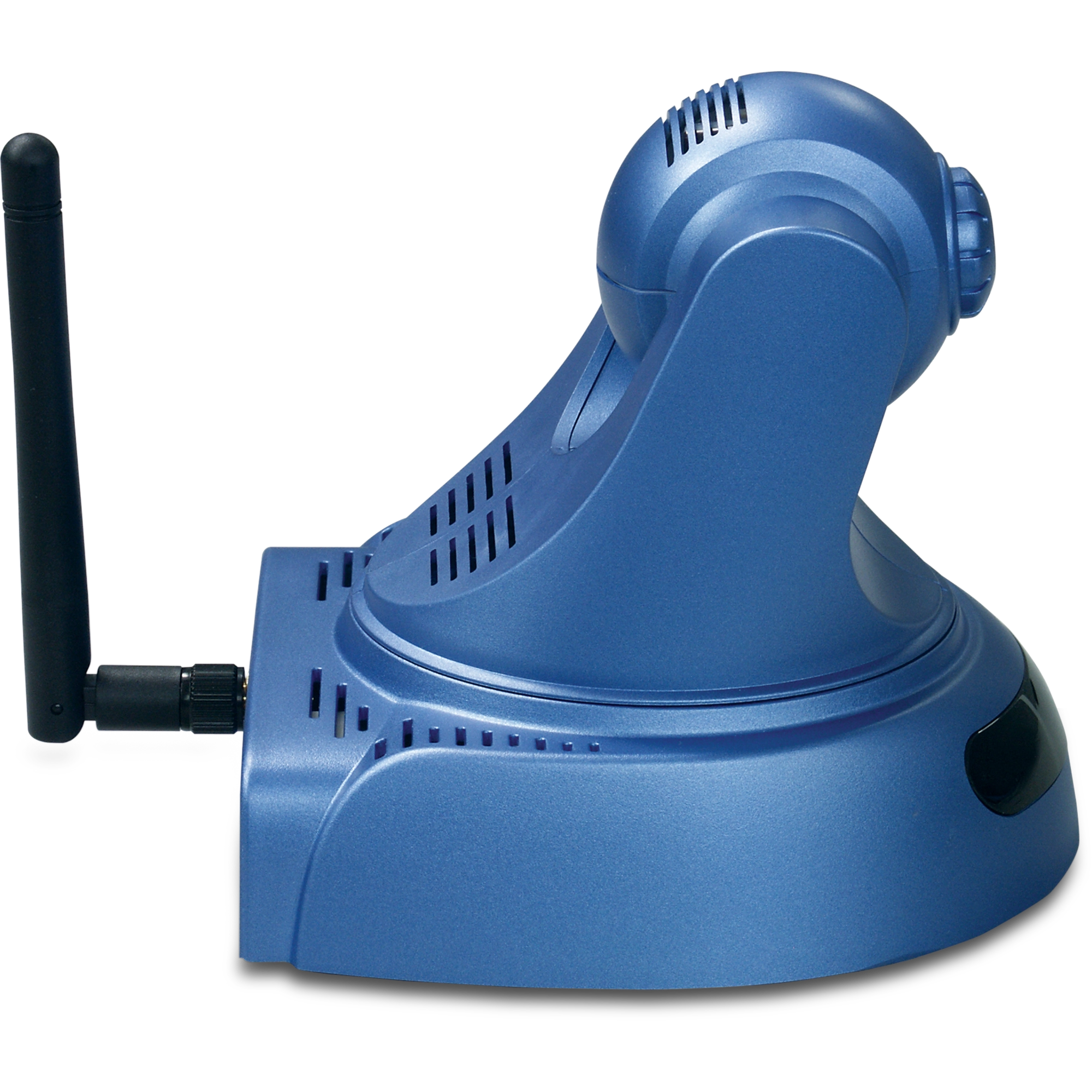

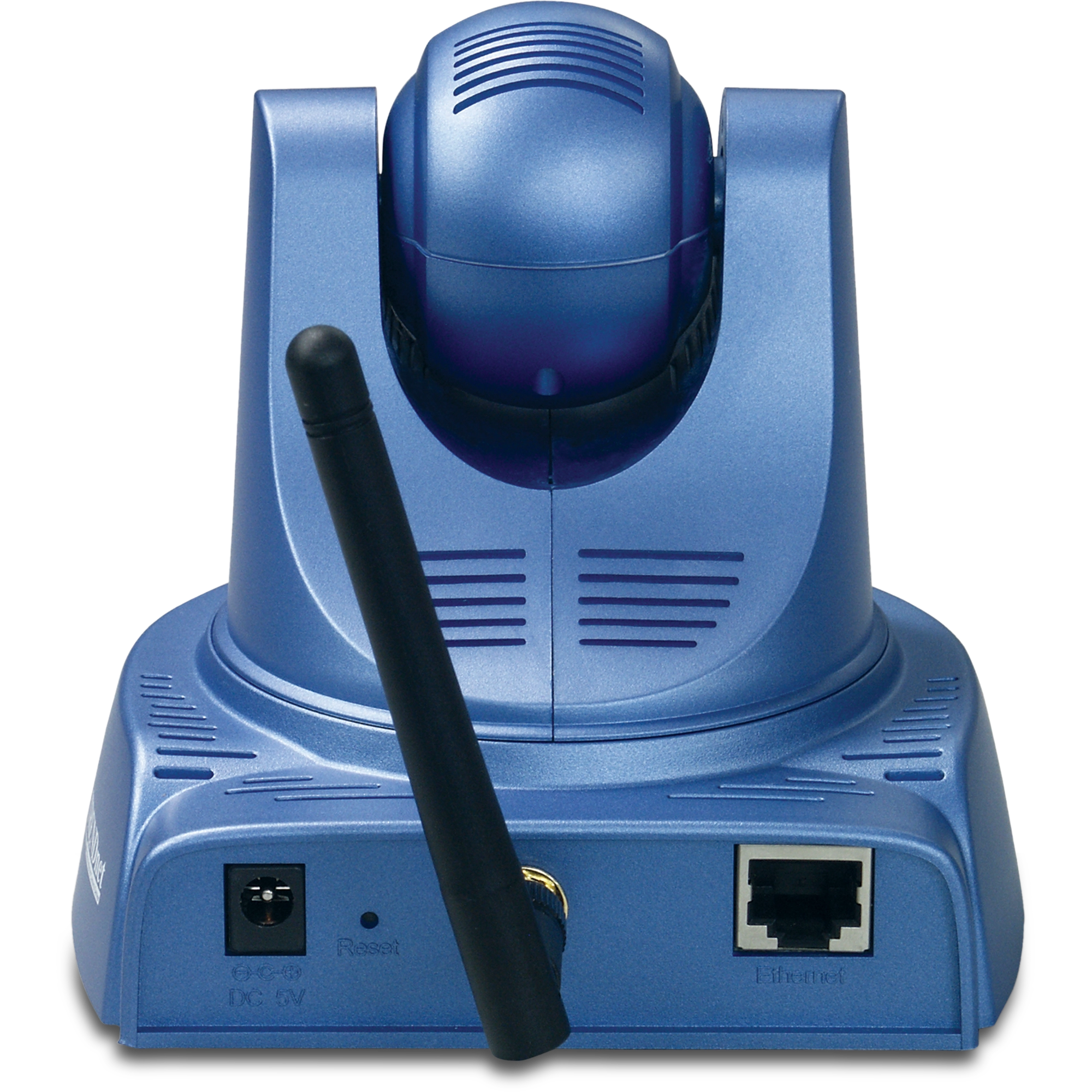

Product Images
| Camera | |
| Image Sensor | |
| Sensor type | 1/4” Color CMOS Sensor |
| Resolution | 640 x 480 |
| Fixed Lens | Built-in f: 6.0mm F: 1.8 |
| Min. Illumination | 2.5lux@f1.4,3000K color |
| Communications | |
| LAN | 10/100Mbps Ethernet, |
| Protocol | HTTP, FTP, TCP/IP, UDP, ARP, ICMP, BOOTP, DHCP, PPPoE, DDNS, UPnP |
| Video / Image | |
| Display Standard | VGA/QVGA/QQVGA |
| Compression / Selection | MJPEG / Yes |
| Resolution / Frame Rate Setting | 160 x 120, 320 x 240, 640 x 480 / 1, 5, 7, 15, 20, auto |
| Left/Right Reversal | Yes |
| Up/Down Reversal | Yes |
| Gain/Exposure/White Balanced Control | Automatic |
| Digital Zoom | 4x |
| Compression Rate | 5 Levels |
| Light Frequency | 50Hz / 60Hz |
| Wireless | |
| Standard | IEEE 802.11b/g |
| Data Rate | 11g: 54, 48, 36, 24, 12, 9 & 6Mbps 11b: 11, 5.5, 2 & 1Mbps |
| Module Technique | DSSS |
| Frequency | 2.4 ~ 2.4835Ghz (ISMB) |
| Antenna | Detachable 2dBi Diversity Antenna (Reverse SMA Connector) |
| Encryption | Disable/64/128-bit WEP, WPA-PSK |
| Hardware | |
| System | |
| CPU | RDC R2880 |
| RAM/Flash | 8Mbytes/2Mbytes |
| OS | RTOS |

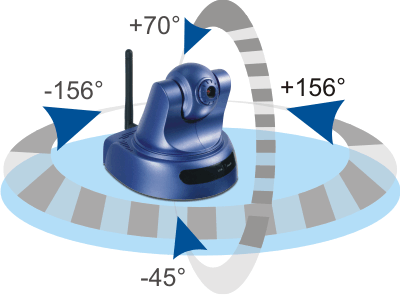

| Pan & Tilt | |
| Pan | -156° ~ +156° |
| Tilt | -45° ~+70° |
| Control | Up, Down, Right, Left, Center |
| Requirements | |
| Memory Size | 128M (256 Recommended) |
| Pentium III, 450 MHz or above VGA card resolution: 800 x 600 or above | |
| Physical/Environmental | |
| Dimension | 117x115x105 mm (4.6”x4.5”x4”) |
| Weight | 0.3kg (0.75lb) |
| Consumption | 8 watt ( 1600mA x 5V), max |
| Power | 5V DC, 2.5A External Adapter |
| Humidity | 5% ~ 95% Non-Condensing |
| Temperature | Operating: 5°C ~ 40°C (41°F ~ 104°F) Storage: -25°C ~ 50°C (-13°F ~ 122°F) |

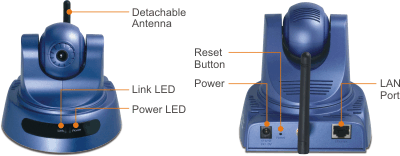

| LED | Power: Green Link/Active: Orange |
| Emissions | FCC. CE |
| Software | |
| Browser | Internet Explorer (5.0 or above) or Netscape Navigator (6.0 or above) |
| Application | IPView Software |
| OS Support | Windows 98SE, ME, NT4, 2000,XP, Vista |
PACKAGE CONTENTS |
|
All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
