4-Port Firewall Router
TW100-BRF114 (Version B1.xR)
- Enjoy Fast Ethernet networking speeds
- Easy Universal Plug and Play setup
- Advanced firewall protection (NAT, NAPT & SPI)
- Secure remote management
DISCONTINUED PRODUCT
The TW100-BRF114 (Version B1.xR) has been discontinued. It has been replaced by the TW100-S4W1CA (Version v2.1R). For a list of discontinued products, click here.Firmware
Date: April, 2009
Notes:
TW100-BRF114 F/W Version 2005
- Fixed when adds more than 100 clients to "PC database", the router could not delete the PCs from database or generate database report.
Filename: TW100-BRF114_B1.xR(2005).zip
SHA-1 Checksum: 68CBFBD99CA365282D9AD3934F31C18097B11DAD
Date: 7/28/2017
File Size: 562.31 KB
Datasheet
Filename: EN_Spec_TW100-BRF114(v1.1R).pdf
Date: 4/26/2011
File Size: 1.42 MB
Filename: FR_Spec_TW100-BRF114(v1.1R).pdf
Date: 1/12/2008
File Size: 355.00 KB
Filename: GE_Spec_TW100-BRF114(v1.1R).pdf
Date: 1/12/2008
File Size: 354.15 KB
Filename: SP_Spec_TW100-BRF114(v1.1R).pdf
Date: 1/12/2008
File Size: 354.36 KB
Filename: RU_Spec_TW100-BRF114(v1.1R).pdf
Date: 1/12/2008
File Size: 1.12 MB
Filename: ITA_Spec_TW100-BRF114(v1.1R).pdf
Date: 10/8/2008
File Size: 300.83 KB
Quick Installation Guide
Filename: EN_QIG_TW100-BRF114.pdf
Date: 12/19/2007
File Size: 508.40 KB
Filename: FR_QIG_TW100-BRF114.pdf
Date: 12/19/2007
File Size: 510.16 KB
Filename: GE_QIG_TW100-BRF114.pdf
Date: 12/19/2007
File Size: 508.40 KB
Filename: SP_QIG_TW100-BRF114.pdf
Date: 12/19/2007
File Size: 513.57 KB
Filename: RU_QIG_TW100-BRF114.pdf
Date: 12/19/2007
File Size: 980.77 KB
User's Guide
Open your web browser and type the IP address of the TW100-BRF114 in the
address bar. The default IP address is 192.168.0.1. At the login, enter your
username (blank) and password (blank). NOTE: If the Setup Wizard starts, click
on Cancel.
Put a check mark in the Enable box. Rename the se...
The MAC Address can be found on a label on the bottom of the router. You
can alternately find it by doing the following:
Open your web browser and type the IP address of the TW100-BRF114 in the
address bar. The default IP address is 192.168.0.1. At the login, enter your
username (blank) ...
Click Start then click on the Control Panel.
For Windows 2000 click on Start, highlight settings then click
on the Control Panel
1. Double-Click on the Network Connection icon.
2. Right-Click
on the Local Area Connection icon then click
on Properties.
3. Highlight the Internet Pr...
Open your web browser and type the IP address of the TW100-BRF114 in the
address bar. The default IP address is 192.168.0.1. At the login, enter your
username (blank) and password (blank). NOTE: If the Setup Wizard starts,
click on Cancel.
Click on LAN on the left hand side.
Change ...
The default username & password for the TW100-BRF114 are both (blank). There is no username and password set by default....
The default IP address for the TW100-BRF114 is 192.168.0.1.

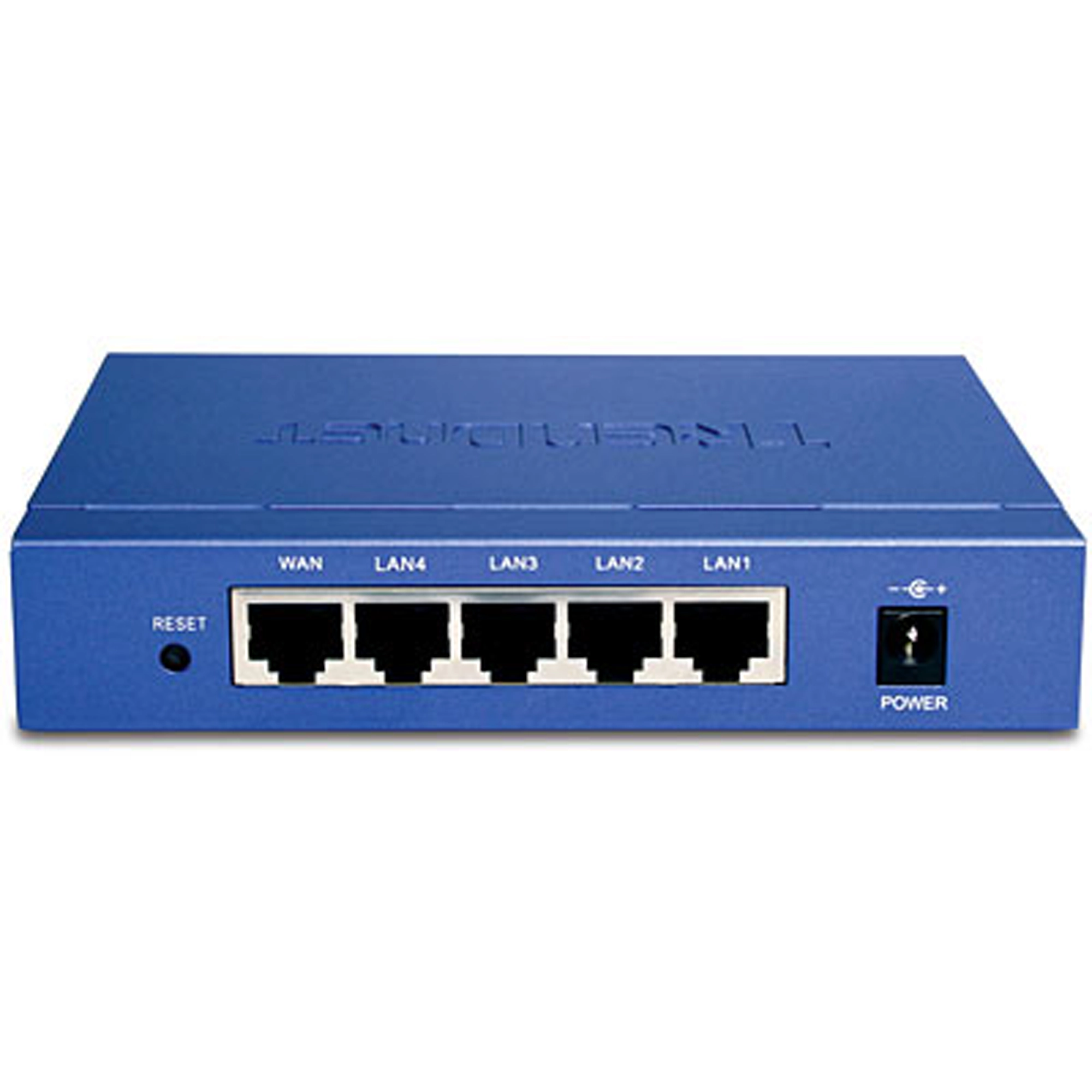

Locate the reset button on the back of the TW100-BRF114.
Press and hold in the reset button for approximately 15 seconds. This will
reset the unit back to its default configuration.
...
Open your web browser and type the IP address of the TW100-BRF114 in the address
bar. The default IP address is 192.168.0.1. At the login, enter your username
(blank) and password (blank). NOTE: If the Setup Wizard starts, click on Cancel.
1) Click on Password on the left hand side.
2...
Note: The default setting of the router is configured for a Cable connection
using a Dynamic IP Address.
Open your web browser and type the IP address of the TW100-BRF114 in the
address bar. The default IP address is 192.168.0.1. At the login, enter your
username (blank) and password (b...
Open your web browser and type the IP address of the TW100-BRF114 in the address
bar. The default IP address is 192.168.0.1. At the login, enter your username
(blank) and password (blank). NOTE: If the Setup Wizard starts, click on Cancel.
Click on Advanced then WAN Port on the left
hand si...
| Hardware | |
| Standards | IEEE 802.3, 802.3u |
| Protocols | NAT, PPPoE, HTTP, DHCP, TCP/IP, UDP, PAP, CHAP, RIP1, DDNS |
| Firewall | NAT firewall, attack alert (email) and log, Stateful Packet Inspection firewall for DoS (Denial of Service) attacks |
| Security | URL Filter, access control, local password |
| Local Port | 4x 10/100Mbps Ethernet port (RJ45), Auto-MDIX |
| Internet Port | 1x 10/100Mbps Ethernet port (RJ45) |

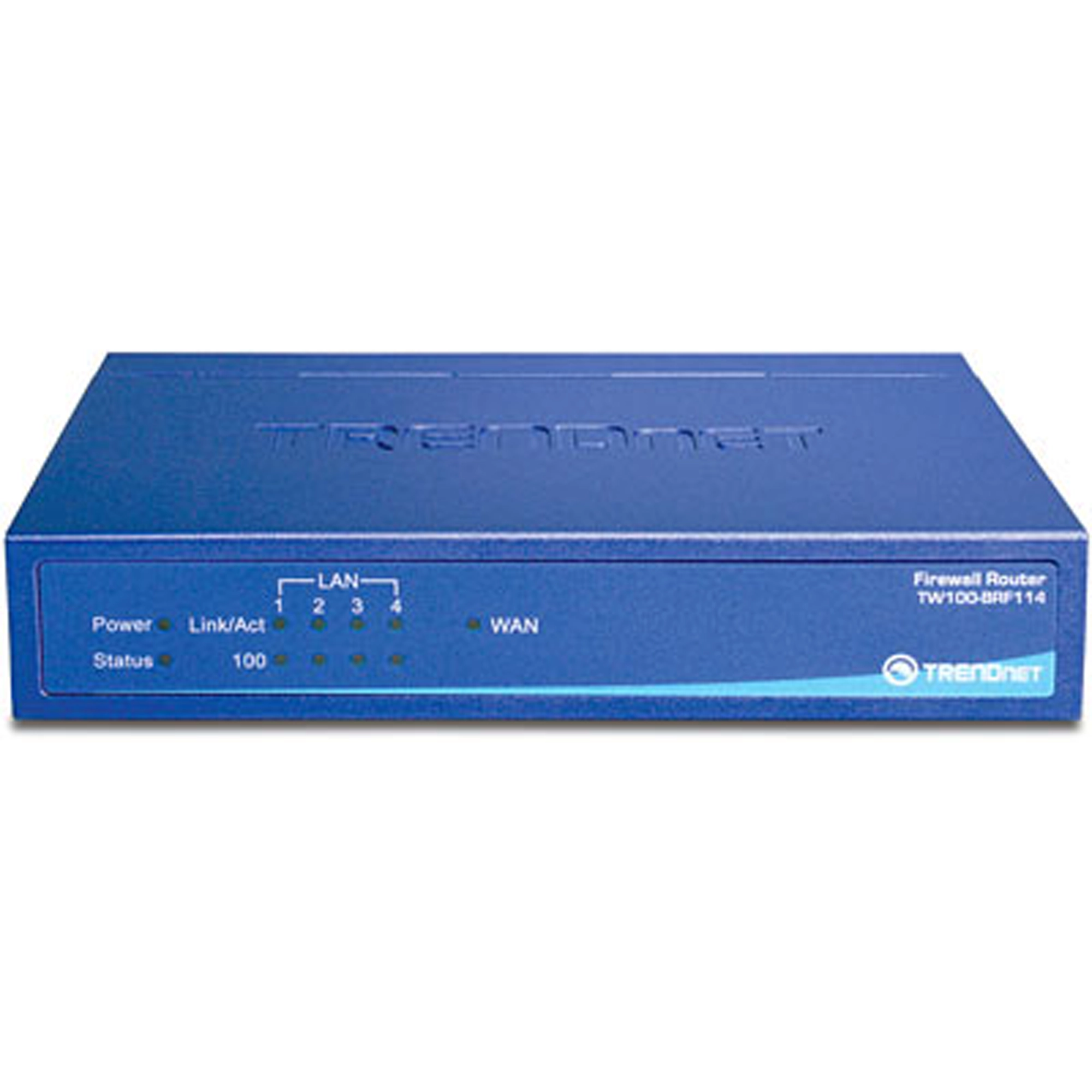

| LED | Power, status, link/act and 100 (LAN 1~4), WAN |
| Power | 12V DC, 1A external power adapter |
| Dimensions (LxWxH) | 141 x 100 x 27 mm (5.5x 3.9 x 1.06 inches) |
| Weight | Approximately. 363g (12.8 oz.) |
| Temperature | Operating: 0° to 40° C (32° to 104° F); Storage: -10° to 70° C (14° to 158° F) |
| Humidity | Operating: 0 % ~ 80 % (non-condensing); Storage: 0% ~ 95% (non-condensing) |
| Certifications | FCC, CE |
PACKAGE CONTENTS |
|
All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
