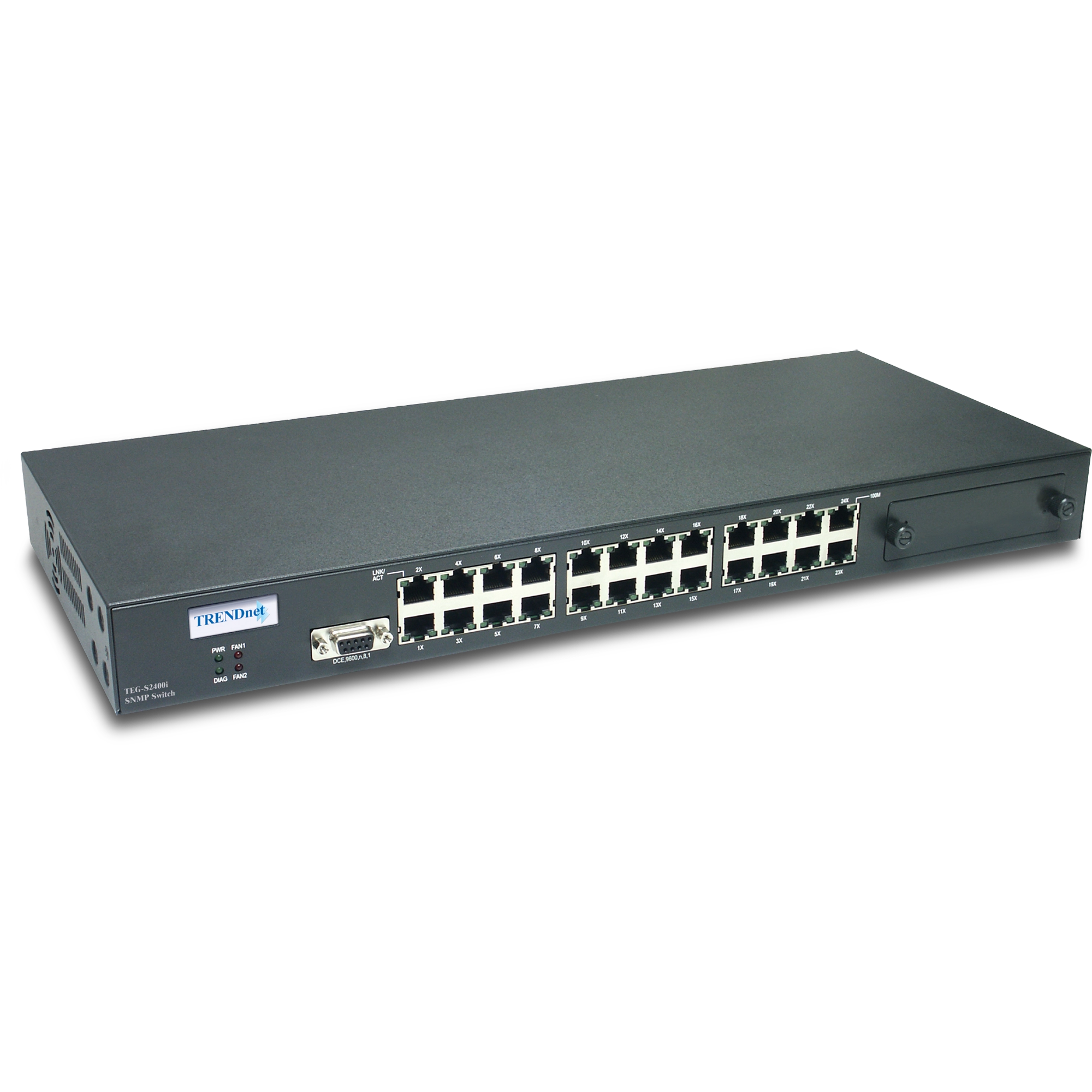

24-Port 10/100Mbps SNMP Switch with Gigabit Module Slot

TEG-S2400i

   Select Another Version

DISCONTINUED PRODUCT

The TEG-S2400i  has been discontinued. It has been replaced by the TL2-G244 (Version v2.0R). For a list of discontinued products, click here.

Firmware

Firmware (Version 10.06.01)
DO NOT upgrade firmware on any TRENDnet product using wireless connection.
Firmware upgrade over wireless connection may damage the product. Please perform firmware upgrade with "wired" network connection only


Note: DO NOT upload this firmware to units with 3.03.## or earlier firmware.

Firmware version 10.06.01 is for units with firmware 10.03.## or later.

File name: Firmware _TEG-S2400i_100601.zip.

Release Note:
Please download the file and unzip it to local hard drive. Firmware History is in the "TEG-S2400i_Firmware _History.TXT".

Firmware Upgrade Procedures:
please follow the instructions in "TEG-S2400i_FW_Upgrade.doc"
Filename: Firmware_TEG-S2400i_100601.zip
SHA-1 Checksum: 64D253C0AB42C95B5AEFD779B116596DC27335D1
Date: 7/25/2017
File Size: 598.69 KB
Download
Firmware (Version 03.03.06)
DO NOT upgrade firmware on any TRENDnet product using wireless connection.
Firmware upgrade over wireless connection may damage the product. Please perform firmware upgrade with "wired" network connection only


Firmware 03.03.06: for units with firmware 3.03.## or earlier.
Note: DO NOT upload this firmware to units with 10.##.## firmware.
Filename: Firmware_TEGS2400i_v30306.zip
SHA-1 Checksum: B48C7F477B22DF960DED49CF5BE5840040382715
Date: 7/25/2017
File Size: 740.44 KB
Download

Datasheet

Datasheet (English)
Filename: EN_Spec_TEG-S2400i.pdf
Date: 7/20/2006
File Size: 287.71 KB
Download Email
Datasheet (Français)
Filename: FR_Spec_TEG-S2400i.pdf
Date: 7/20/2006
File Size: 488.57 KB
Download Email
Datasheet (Deutsch)
Filename: GE_Spec_TEG-S2400i.pdf
Date: 7/20/2006
File Size: 282.03 KB
Download Email
Datasheet (Español)
Filename: SP_Spec_TEG-S2400i.pdf
Date: 7/20/2006
File Size: 290.45 KB
Download Email
Datasheet (Pусский)
Filename: RU_Spec_TEG-S2400i.pdf
Date: 7/20/2006
File Size: 1.70 MB
Download Email

Quick Installation Guide

Quick Installation Guide (English)
Filename: EN_QIG_TEG-2400i_2600i.pdf
Date: 10/3/2006
File Size: 530.73 KB
Download
Quick Installation Guide (Français)
Filename: FR_QIG_TEG-2400i_2600i.pdf
Date: 10/3/2006
File Size: 537.92 KB
Download
Quick Installation Guide (Deutsch)
Filename: GE_QIG_TEG-2400i_2600i.pdf
Date: 10/3/2006
File Size: 536.58 KB
Download
Quick Installation Guide (Español)
Filename: SP_QIG_TEG-2400i_2600i.pdf
Date: 10/3/2006
File Size: 536.53 KB
Download
Quick Installation Guide (Pусский)
Filename: RU_QIG_TEG-2400i_2600i.pdf
Date: 10/3/2006
File Size: 1.06 MB
Download

User's Guide

User's Guide (for FW Version 10.04.02)
TEG-S2400i User's Guide for Firmware Version 100401 and Firmware Version 100402
Filename: UG_TEG-S2400i_(10.03.01).pdf
Date: 10/16/2006
File Size: 1.90 MB
Download

Product Images

JPEG Image
File Size: : 242.84 KB
Date: : 9/1/2004
Download
TIFF Image
File Size: : 2.47 MB
Date: : 9/1/2004
Download
ROHS compliant WEEE crossed-out bin symbol.
Hardware
Standards:
  • IEEE 802.3 10Base-T Ethernet
  • IEEE 802.3u 100Base-TX/100Base-FX Fast Ethernet
  • IEEE 802.3ab 1000Base-T/1000Base-SX Gigabit Ethernet
  • ANSI/IEEE 802.3 Auto-Negotiation
  • IEEE 802.3z 1000BaseSX/LX Gigabit Ethernet
  • IEEE 802.3x Full-Duplex Flow Control
  • IEEE 802.1D Spanning Tree
  • IEEE 802.1P QoS
  • IEEE 802.1Q VLAN
  • IEEE 802.1v port-based VLAN
Data Transfer Rate:
  • Ethernet: 14,880 pps
  • Fast Ethernet: 148,800 pps
  • Gigabit Ethernet: 1,488,000 pps
Cabling:
  • Ethernet:
  • UTP/STP Cat. 3,4,5, EIA/ITA-568 100-ohm, 100 meters max.
  • Fast Ethernet:
  • UTP/STP Cat. 5, EIA/TIA-568 100-ohm, 100 meters max.
  • 62.5/125um Multimode Fiber with SC-type connector, 2Km max.
  • Gigabit Ethernet:
  • UTP/STP Cat. 5, EIA/TIA-568 100-ohm, 100 meters max.
  • 62.5/125µm Multimode Fiber with SC-type connector, 220 meters max.
  • 50/125µm Multimode Fiber with SC-type connector, 550 meters max.
Console Port:
  • RS-232, female 9-Pin Serial Port (DB-9 male-to-female serial cable included)
Protocol:
  • CSMA/CD
Topology:
  • Star
Data RAM Buffers:
  • 3MB Packet Buffer and 1MB Controller Buffer
Filtering Address Table:
  • 14K entries per device
Diagnostic LEDs:
  • Per Device: Power, Diagnostic, FAN1, FAN2
  • Per Port: 100M, Link/Act
Power Consumption:
  • 100 ~ 240 VAC, 50 ~ 60Hz, Internal Universal Power Supply
Dimensions:
  • 440 x 184 x 44mm (17.3 x 7.3 x 1.8 inch) (W x H x D)
Weight:
  • 2.3 Kg. (5.1 lb.)
Temperature:
  • Operating: 5° ~ 45° C (41° ~ 113° F)
  • Storage: -20° ~ 70° C (-4° ~ 158° F)
Humidity:
  • Operating: 10% ~ 90% non-condensing
Certifications:
  • CE, FCC

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
