Dual-Band 11a/g 7/5 dBi Indoor Omni Directional Antenna
TEW-AI75O (Version v1.0R)
- Boost the range of your existing wireless network
- Compatible with wireless a and g standards
- Connects directly to most TRENDnet wireless devices
DISCONTINUED PRODUCT
The TEW-AI75O (Version v1.0R) has been discontinued. It has been replaced by the TEW-AI07OB (Version 1.0R). For a list of discontinued products, click here.Datasheet
Filename: EN_Spec_TEW-AI75O.pdf
Date: 2/10/2006
File Size: 641.26 KB
Filename: FR_Spec_TEW-AI75O.pdf
Date: 2/10/2006
File Size: 608.65 KB
Filename: GE_Spec_TEW-AI75O.pdf
Date: 2/10/2006
File Size: 644.39 KB
Filename: SP_Spec_TEW-AI75O.pdf
Date: 2/10/2006
File Size: 641.34 KB
Filename: RU_Spec_TEW-AI75O.pdf
Date: 2/10/2006
File Size: 1.16 MB
User's Guide
Filename: UG_TEW-AI75O(small)(english).pdf
Date: 4/4/2006
File Size: 1.58 MB
Filename: UG_TEW-AI75O(small)(french).pdf
Date: 4/4/2006
File Size: 1.58 MB
Filename: UG_TEW-AI75O(small)(german).pdf
Date: 4/4/2006
File Size: 1.58 MB
Filename: UG_TEW-AI75O(small)(Spanish).pdf
Date: 4/4/2006
File Size: 1.58 MB
Filename: UG_TEW-AI75O(small)(russian).pdf
Date: 4/4/2006
File Size: 2.61 MB
Filename: CN_UG_TEW-AI75O_AI75OB.pdf
Date: 5/16/2013
File Size: 1.71 MB
Product Images
| Hardware | |
| Frequency Range | 802.11a: 4.9 ~ 5.875GHz 802.11b/g: 2.4 ~ 2.5GHz |
|---|---|
| Gain | 802.11a:7dBi 802.11b/g:5dBi |
| VSWR | 2.0:1 |
| Polarization | Linear, vertical |
| HPBW/ Horizontal | 360° |
| HPBW/ Vertical | 802.11a:25° 802.11b/g: 35° |
| Power Handling | 2W (cw) |
| Impedance | 50 Ohms |
| Connector | Reverse SMA Female |
| Dimension | 217 x 28 x14mm (8.5 x 1.1 x 0.55in.) |
| Weight | 41g (1.4oz.) |
| Temperature | -10°C ~ 55°C (14°F ~ 131°F) |
| Humidity | 95% at 25°C |

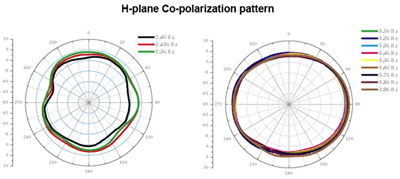

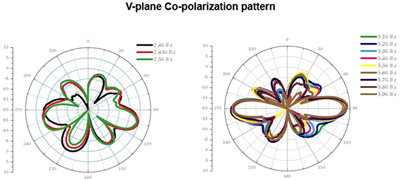

| Radiation Patterns | |
| |
PACKAGE CONTENTS |
|
All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
