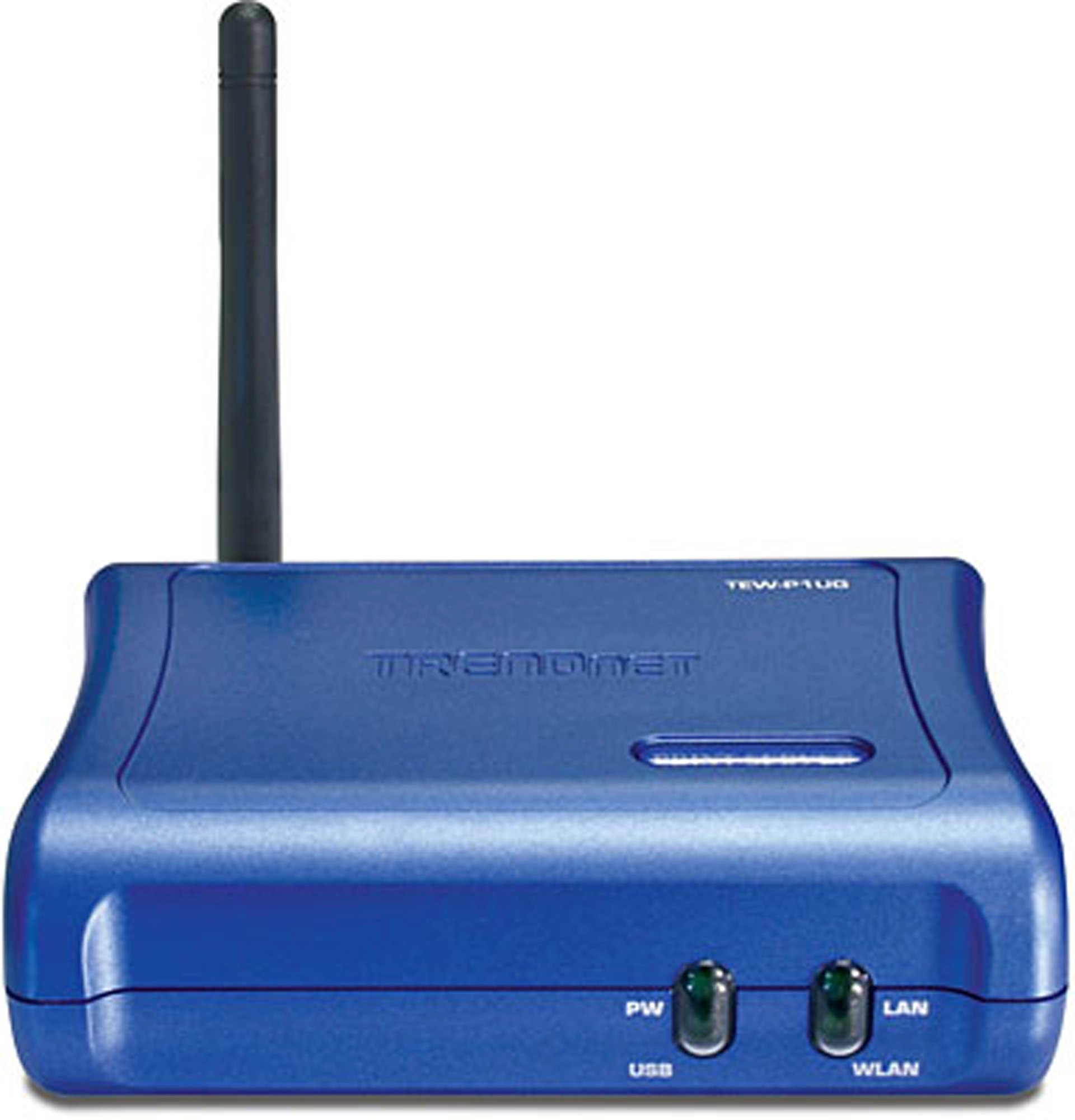

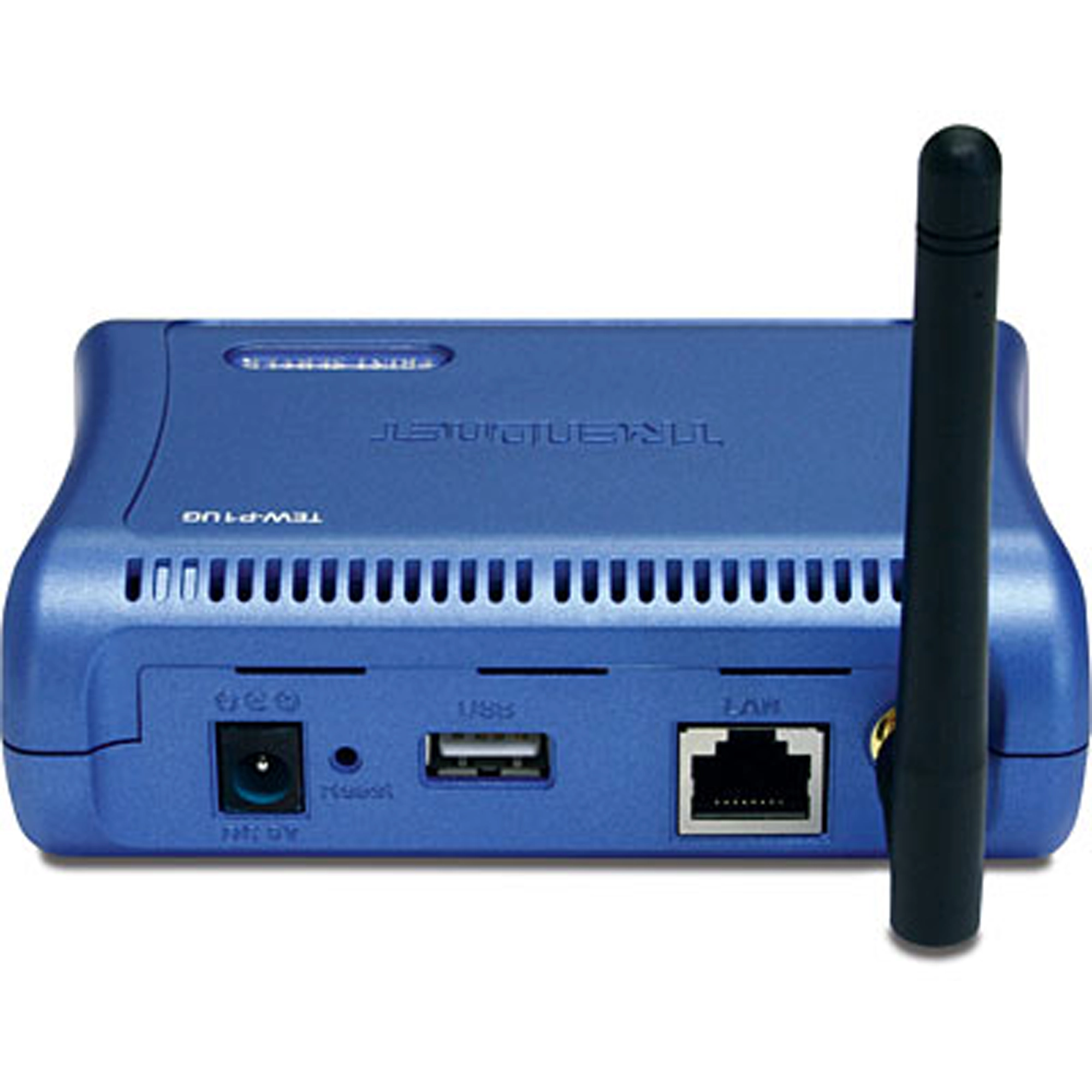

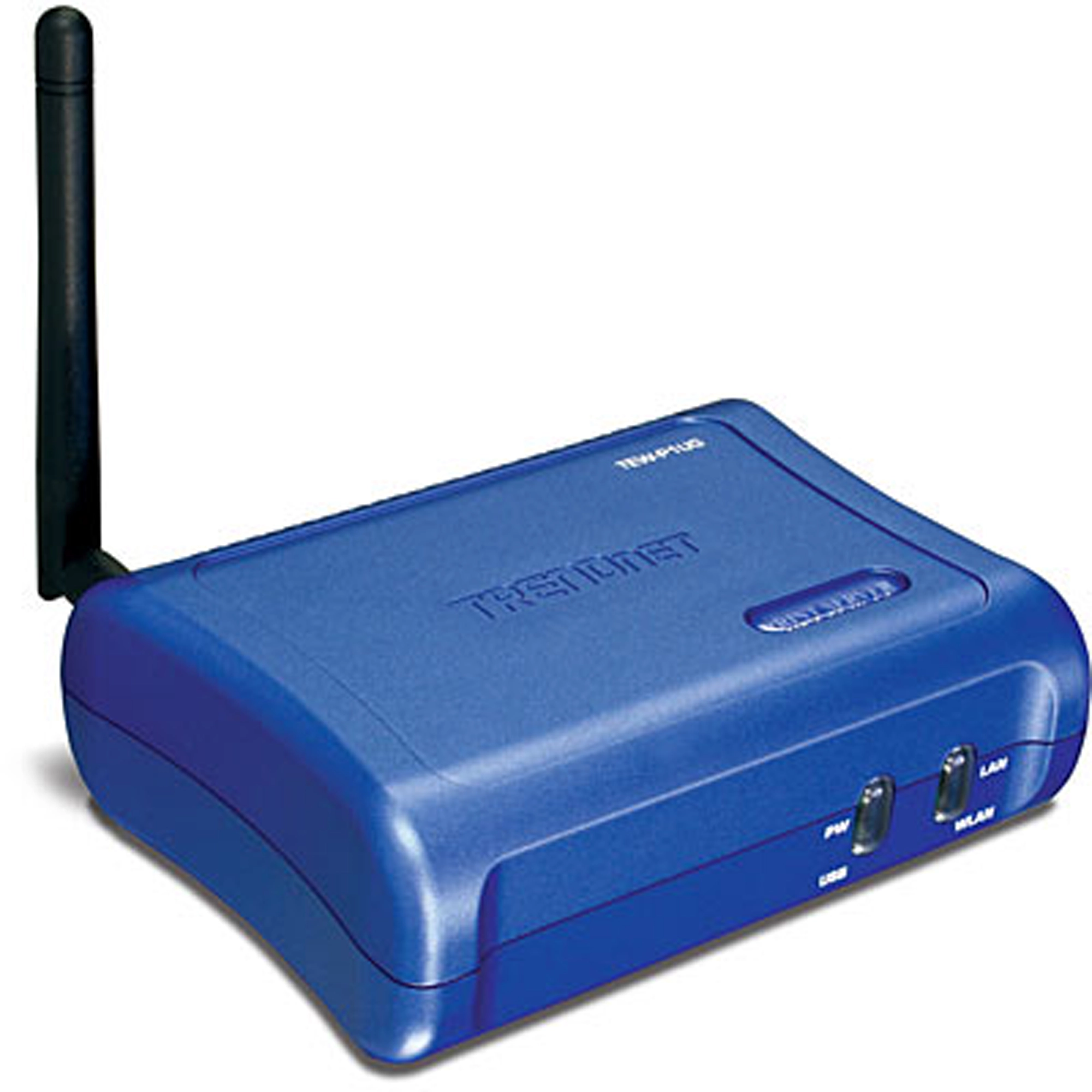

Wireless 1-Port Print Server

TEW-P1UG   (Version B1.xR)

  • Turns a standalone USB printer into a shared wireless resource
  • Use this wireless print server to place your printer in the most accessible location
  • Provides high speed USB 2.0 printing
  • Manages print server through web browser or utility

DISCONTINUED PRODUCT

The TEW-P1UG (Version B1.xR) has been discontinued. For a list of discontinued products, click here.

Utility

Utility
Filename: Utility_PSWizard(2.20)_PSUtility(3.13).zip
SHA-1 Checksum: 656EC84732B88297BD23D014FCD115D42B811E8F
Date: 7/28/2017
File Size: 2.24 MB
Download

Firmware

Firmware
DO NOT upgrade firmware on any TRENDnet product using wireless connection.
Firmware upgrade over wireless connection may damage the product. Please perform firmware upgrade with "wired" network connection only


Firmware Version: 3.43
Release Date: 7/2013
Release Note:

  1. Improved Security

Filename: FW_TEW-P1UG_(v3.43).zip
SHA-1 Checksum: 6920396440649953171DF5878EDFD824AFCC2CB8
Date: 7/28/2017
File Size: 927.71 KB
Download

Datasheet

Datasheet (English)
Filename: EN_Spec_TEW-P1UG(b1.1R).pdf
Date: 2/9/2012
File Size: 1.03 MB
Download Email
Datasheet (Français)
Filename: FR_Spec_TEW-P1UG(b1.1R).pdf
Date: 2/9/2012
File Size: 389.95 KB
Download Email
Datasheet (Deutsch)
Filename: GE_Spec_TEW-P1UG(b1.1R).pdf
Date: 2/9/2012
File Size: 1.04 MB
Download Email
Datasheet (Español)
Filename: SP_Spec_TEW-P1UG(b1.1R).pdf
Date: 2/9/2012
File Size: 389.31 KB
Download Email
Datasheet (Pусский)
Filename: RU_Spec_TEW-P1UG(b1.1R).pdf
Date: 2/9/2012
File Size: 1.68 MB
Download Email

Quick Installation Guide

Quick Installation Guide (English)
Filename: EN_QIG_TEW-P1UG.pdf
Date: 9/22/2006
File Size: 614.69 KB
Download
Quick Installation Guide (Français)
Filename: FR_QIG_TEW-P1UG.pdf
Date: 9/22/2006
File Size: 615.04 KB
Download
Quick Installation Guide (Deutsch)
Filename: GE_QIG_TEW-P1UG.pdf
Date: 9/22/2006
File Size: 612.55 KB
Download
Quick Installation Guide (Português)
Filename: PO_QIG_TEW-P1UG.pdf
Date: 12/18/2006
File Size: 605.45 KB
Download
Quick Installation Guide (Español)
Filename: SP_QIG_TEW-P1UG.pdf
Date: 9/22/2006
File Size: 615.58 KB
Download
Quick Installation Guide (Pусский)
Filename: RU_QIG_TEW-P1UG.pdf
Date: 9/22/2006
File Size: 672.04 KB
Download

User's Guide

User's Guide (English)
Filename: UG_TEW-P1UG(B1.1R).pdf
Date: 9/22/2006
File Size: 5.18 MB
Download

Product Images

JPEG Image
File Size: : 531.05 KB
Date: : 1/31/2007
Download
JPEG Image
File Size: : 536.74 KB
Date: : 1/31/2007
Download
JPEG Image
File Size: : 562.60 KB
Date: : 1/31/2007
Download
TIFF Image
File Size: : 3.92 MB
Date: : 1/31/2007
Download
TIFF Image
File Size: : 3.82 MB
Date: : 1/31/2007
Download
TIFF Image
File Size: : 4.71 MB
Date: : 1/31/2007
Download
ROHS compliant WEEE crossed-out bin symbol.
HARDWARE
Standards
  • Wired: IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX
  • Wireless: IEEE 802.11g
Printer Interface
  • USB 2.0, 1.1 Compliant USB Type A Port
LAN Port
  • 10/100Mbps Auto-MDIX UTP/STP RJ-45 Port
CPU/ SDRAM / Flash ROM
  • RDC R2886 150MHz / 2MByte / 512KByte
LED
  • Power, Link/Act, WLAN, USB
Transport Protocol
  • TCP/IP, SMB, NetBEUI, AppleTalk
OS Support
  • Windows 7(32/64-bit)/Vista(32/64-bit)/2003 Server/XP(32/64-bit)/2000/ME/98SE
  • Netware 5.x NDPS LPR Remote Printing (TCP/IP)
  • HP-UX Unix, Sun OS, Solaris, SCO Unix, AIX
  • Unixware, Linux & Mac OS 10.1~10.6
Management
  • Windows Utility or Web-Browser Configuration
Power
  • 5V DC 2.5A External Power Adapter
Dimensions/Weight
  • 115 x 85 x 38mm (4.5 x 3.4 x 1.5 inches) /160 g (5.6oz.)
Temperature
  • Operating: 0°~50°C (32°~122°F)
  • Storage: -25°~55°C (-13°~131°F)
Humidity
  • Max. 90% (non-condensing)
Certifications
  • CE, FCC
Wireless:
Frequency
  • 2.4 ~ 2.4835 GHz (Industrial Scientific Medical Band)
Encryption
  • 64/128-Bit WEP (HEX/ASCII), WPA-PSK(TKIP)
Antenna
  • 2dBi Detached Reverse-SMA (Female) Diversity Antenna
Data Rate (Auto Fallback)
  • IEEE 802.11g: 54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps, 12Mbps, 9Mbps and 6Mbps
  • IEEE 802.11b: 11Mbps, 5.5Mbps, 2Mbps and 1Mbps (Auto Fallback)

PACKAGE CONTENTS
  • TEW-P1UG
  • Quick Installation Guide
  • Utility CD-ROM
  • Power Adapter (5V DC, 2.5A)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
