Cable/DSL 4-Port Firewall Router w/ USB Print Server
TW100-BRF114U
DISCONTINUED PRODUCT
The TW100-BRF114U has been discontinued. It has been replaced by the TW100-S4W1CA (Version v2.1R). For a list of discontinued products, click here.Utility
Filename: Driver_Utility_TW100BRF114U.zip
Date: 9/21/2004
File Size: 876.23 KB
Firmware
Description:
Firmware Version: 1.1.1.0
Release Date: 12.2006
Firmware Filename: “TW100-BFR114U_FW1110.img”
TW100-BRF114U Cable/DSL 4-Port Firewall Router w/ USB Print Server
Filename: Firmware_TW100-BRF114U(1110).zip
SHA-1 Checksum: 2EA27E05725082716281E73660CA80525ED51FF2
Date: 7/28/2017
File Size: 496.48 KB
Datasheet
Filename: EN_Spec_TW100-BRF114U.pdf
Date: 7/20/2006
File Size: 293.12 KB
Filename: FR_Spec_TW100-BRF114U.pdf
Date: 7/20/2006
File Size: 298.00 KB
Filename: GE_Spec_TW100-BRF114U.pdf
Date: 7/20/2006
File Size: 298.47 KB
Filename: SP_Spec_TW100-BRF114U.pdf
Date: 7/20/2006
File Size: 295.76 KB
Filename: RU_Spec_TW100-BRF114U.pdf
Date: 7/20/2006
File Size: 1.23 MB
Quick Installation Guide
Filename: QIG_TW100-BRF114U_EN.pdf
Date: 10/27/2004
File Size: 3.97 MB
Filename: QIG_TW100-BRF114U_FR.pdf
Date: 10/27/2004
File Size: 4.12 MB
German Quick Installation Guide
Filename: QIG_TW100-BRF114U_GE.pdf
Date: 10/27/2004
File Size: 1.12 MB
Spqnish Quick Installation Guide
Filename: QIG_TW100-BRF114U_SP.pdf
Date: 10/27/2004
File Size: 4.23 MB
Filename: QIG_TW100-BRF114U(estonian).pdf
Date: 12/2/2005
File Size: 2.24 MB
User's Guide
Frequently Asked Questions (FAQ)

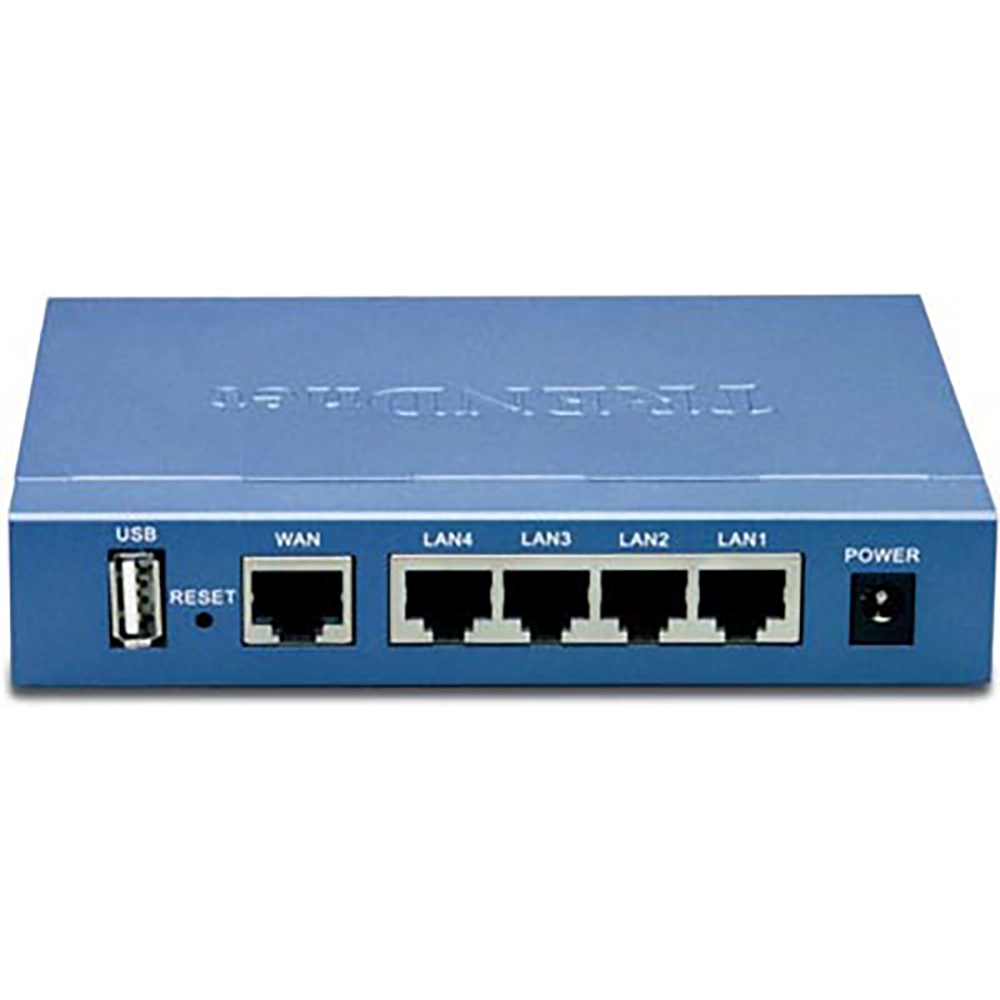

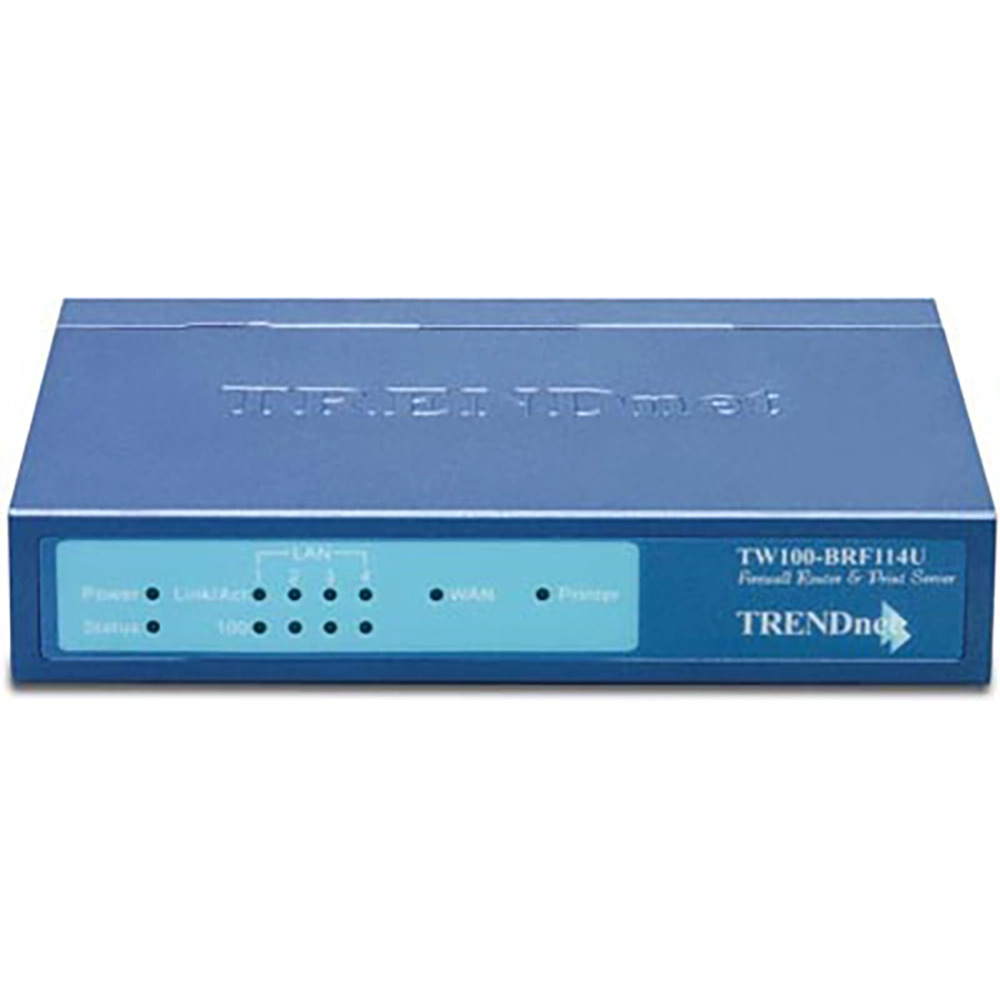

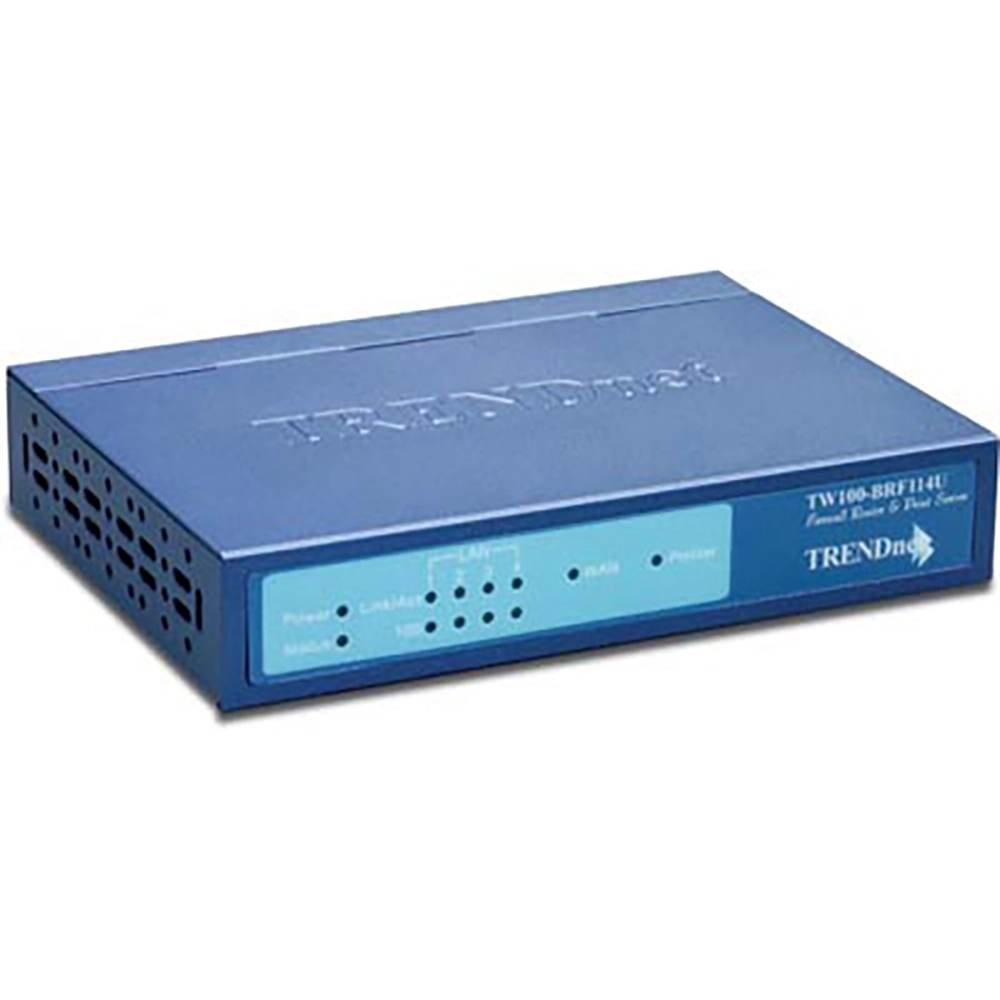

Product Images
Step 1 Go to Start>Settings>Printers>Add
New Printer (WinXP - Start>Printers and Faxes>Add
a Printer).
Step 2 Select Local Printer. Make sure to uncheck Automatically
detect and install my plug and play printer. Click Next.
Step 3 Select Create a New Port and select S...
In Windows 98/Me you will need to install the LPR client.
For Windows 98/ME you will also need to know the port name that you are printing
to (The Port Name is L1.
Installing LPR:
Step 1 Once the file is downloaded and extracted, Go to Start > Settings > Control
Panel > doubl...
The port name is "L1", without the quotes and it is case sensitive.
Open your web browser and type the IP address of the TW100-BRF114U in the
address bar. The default IP address is 192.168.0.1. At the login, enter your
username (blank) and password (blank). NOTE: If the Setup Wizard starts, click
on Cancel.
Put a check mark in the Enable box. Rename the serv...
The MAC Address can be found on a label on the bottom of the router. You
can alternately find it by doing the following:
1. Open your web browser and type
the IP address of the TW100-BRF114U in the address bar. The default IP address
is 192.168.0.1. At the login, enter your username (bla...
Click Start then click on the Control Panel.
For Windows 2000 click on Start, highlight settings then click
on the Control Panel.
1. Double-Click on the Network Connection icon.
2. Right-Click
on the Local Area Connection icon then click
on Properties.
3. Highlight the Internet P...
1. Open your web browser and type the IP address of the TW100-BRF114U in
the address bar. The default IP address is 192.168.0.1. At the login, enter
your username (blank) and password (blank). NOTE: If the Setup Wizard starts,
click on Cancel.
2. Click on LAN on the left hand side.
3...
The default username & password for the TW100-BRF114U are both (blank). There is no username and password set by default....
The default IP address for the TW100-BRF114U is 192.168.0.1.
1. Locate the reset button on the back of the TW100-BRF114U.
2. Press and hold in
the reset button for approximately 15 seconds. This will reset the unit back
to its default configuration.
...
A: Open your web browser and type the IP address of the TW100-BRF114U in the
address bar. The default IP address is 192.168.0.1. At the login, enter your
username (blank) and password (blank). NOTE: If the Setup Wizard starts, click
on Cancel.
1. Click on Password on the left hand side.
...
A: Note: The default setting of the router is configured for a Cable connection
using a Dynamic IP Address.
1. Open your web browser and type the IP address
of the TW100-BRF114U in the address bar. The default IP address is 192.168.0.1.
At the login, enter your username (blank) and pass...
Open your web browser and type the IP address of the TW100-BRF114U in the
address bar. The default IP address is 192.168.0.1. At the login, enter your
username (blank) and password (blank). NOTE: If the Setup Wizard starts, click
on Cancel.
Click on Advanced then WAN Port on the left
hand...
First, verify that the Printer LED on the TW100-BRF114U is lit. If it isn't, ensure that both your printer and the TW100-BRF114U are turned on and that the USB cable is securely connected to the connectors on both devices. Then, try bro...
Option 1: Click the Status button on the TW100-BRF114U's main configuration page. On the Status page, click the Connection Detail button. Click the Release/Renew button to allow the router to refresh the connection to your ISP. Then, try browsing a website such as https://www.TRENDnet.com again with...
You can simply contact your Internet Service Provider's (ISP) Customer Service or Technical Support Department for the correct information. ...
Please verify your hardware and TCP/IP settings again by following the instructions in sections 2-3, and make sure the Power, WAN, and the LAN lights on the AP/Router's front panel are on. Then, try accessing 192.168.0.1 again using your web browser. ...
| Hardware | |
| Standards: | IEEE 802.3 (10-Base T), 802.3u (100-Base TX) |
|---|---|
| Protocols: | NAT, PPPoE, HTTP, DHCP, TCP/IP, UDP, PAP, CHAP, RIP1, RIP2, DDNS |
| WAN: | 1 x 10/100Mbps Port (Internet) |
| LAN: | 4 x 10/100Mbps Auto-MDIX Ports |
| Printer Port: | 1 x USB 1.1 Port |
| LED Indicators: | Unit: Power, Status, WAN |
| LAN Ports: | Link/Act, 100 |
| Power Adapter: | 12V DC, 800mA |
| Dimensions (L x W x H) : | 141 x 100 x 27 mm (5.5x 3.9 x 1.06 inches) |
| Weight: | 0.36 kg (12.8 oz.) |
| Temperature: |
|
| Humidity: |
|
| Certifications: | CE, VCCI |
| Router | |
| Firewall: | NAT Firewall, SPI Firewall |
| Security: | URL Filter, Access Control, Password Protection, Email Alert and Logs |
| VPN Pass-Through: | IPSec, PPTP, L2TP (100 Sessions) |
| Print Server | |
| Protocol: | TCP/IP |
| Printing Method: | PTP (Peer-to-Peer) over TCP/IP, LPD |
All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
