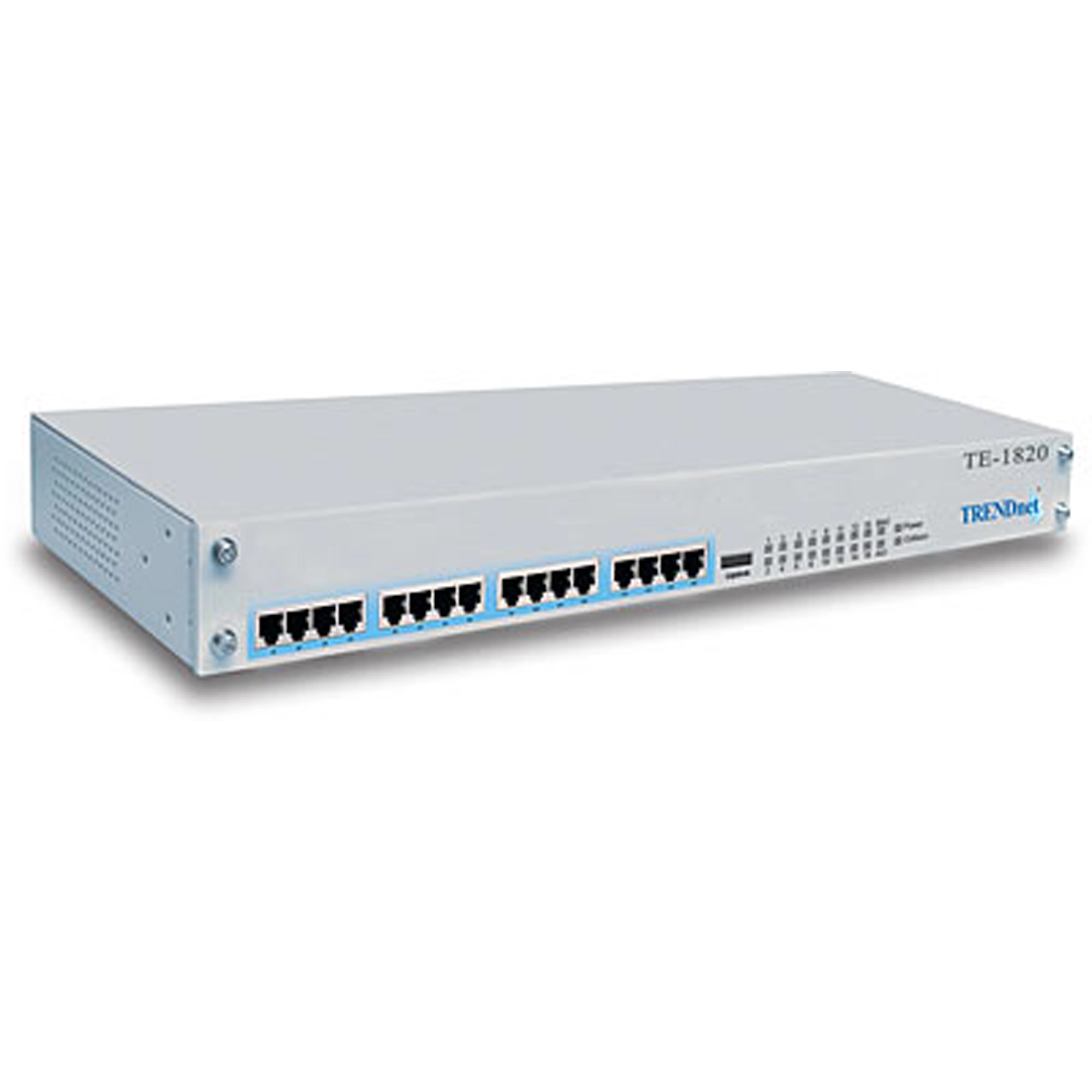

16-Port 10Base-T Ethernet Hub

TE-1820   (Version 1.0)

  • High performance 16 port Ethernet hub
  • Data rates up to 10Mbps
  • Enjoy a 5-year user warranty

DISCONTINUED PRODUCT

The TE-1820 (Version 1.0) has been discontinued. For a list of discontinued products, click here.

Datasheet

Datasheet
Filename: Spec_TE-1820.pdf
Date: 5/2/2013
File Size: 135.41 KB
Download Email

User's Guide

Manual
Filename: UG_TE-1820_2620.zip
Date: 12/9/2005
File Size: 110.59 KB
Download
Hardware
Standards:
  • IEEE 802.3 10Base-T, 10Base-2, and 10Base-5
Ports:
  • 16 RJ-45, 1 BNC, and 1 AUI
Input Power:
  • AC 100V to 250V 50/60Hz, auto-selecting
Power Consumption:
  • 18W
Dimensions:
  • 483mm x 44mm x 125mm (including mounting brackets)
Weight:
  • 2.0kg
Operating Temperature:
  • 0° to 55° C
Operating Humidity:
  • 10% to 90% non-condensing
Emissions:
  • FCC class A
Certifications:
  • UL, CSA

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
