AC1750 Dual Band Wireless Router

TEW-823DRU   (Version v1.0R)

  • AC1750: 1300 Mbps Wireless AC + 450 Mbps Wireless N bands*
  • Pre-encrypted for your convenience
  • Create an isolated guest network
  • One touch network connection with the WPS button
  • All Gigabit wired ports
  • USB share port
  • High power amplifiers extend wireless coverage
  • Energy saving GREENnet technology

DISCONTINUED PRODUCT

The TEW-823DRU (Version v1.0R) has been discontinued. It has been replaced by the TEW-829DRU (Version v1.0R). For a list of discontinued products, click here.

Firmware

Firmware (Open Source)

Important note: The provided OpenSource firmware has no affiliation with, nor was it produced by TRENDnet. Using this firmware requires advanced knowledge and experience with OpenSource code. TRENDnet does not provide support for this firmware. Use of this firmware voids the product warranty. This firmware may damage your product, use at your own risk.


Filename: OpenWrtFW_TEW-823DRU_v1(bb1_23_2-r76177).zip
SHA-1 Checksum: 3264B36A607484DAC02BA0577AD11BE1E07E269C
Date: 7/28/2017
File Size: 13.19 MB
Download
Firmware
DO NOT upgrade firmware on any TRENDnet product using wireless connection.
Firmware upgrade over wireless connection may damage the product. Please perform firmware upgrade with "wired" network connection only

Version:1.02B01
Date: 07/2015
Note:

  1. NetUSB Security Updates

Filename: FW_TEW-823DRU_v1(1.02b01).zip
SHA-1 Checksum: 92E19AED19CBFD35355E168CA5C0B17CB31DA0A5
Date: 7/28/2017
File Size: 10.10 MB
Download

Datasheet

Datasheet (English)
Filename: EN_spec_TEW-823DRU(v1.0R).pdf
Date: 12/1/2014
File Size: 904.42 KB
Download Email
Datasheet (Français)
Filename: FR_spec_TEW-823DRU(v1.0R).pdf
Date: 12/1/2014
File Size: 910.35 KB
Download Email
Datasheet (Deutsch)
Filename: GE_spec_TEW-823DRU(v1.0R).pdf
Date: 12/1/2014
File Size: 907.17 KB
Download Email
Datasheet (Português)
Filename: PO_spec_TEW-823DRU(v1.0R).pdf
Date: 12/1/2014
File Size: 918.92 KB
Download Email
Datasheet (Español)
Filename: SP_spec_TEW-823DRU(v1.0R).pdf
Date: 12/1/2014
File Size: 925.44 KB
Download Email
Datasheet (Pусский)
Filename: RU_spec_TEW-823DRU(v1.0R).pdf
Date: 12/1/2014
File Size: 919.53 KB
Download Email
Datasheet (Italiano)
Filename: IT_spec_TEW-823DRU(v1.0R).pdf
Date: 12/1/2014
File Size: 909.46 KB
Download Email

Quick Installation Guide

Quick Installation Guide (English)
Filename: EN_Web_TEW-823DRU(V1.0R).pdf
Date: 10/10/2014
File Size: 3.02 MB
Download
Quick Installation Guide (Français)
Filename: FR_Web_TEW-823DRU(V1.0R).pdf
Date: 10/10/2014
File Size: 3.05 MB
Download
Quick Installation Guide (Deutsch)
Filename: GE_Web_TEW-823DRU(V1.0R).pdf
Date: 10/10/2014
File Size: 2.51 MB
Download
Quick Installation Guide (Português)
Filename: PO_Web_TEW-823DRU(V1.0R).pdf
Date: 10/10/2014
File Size: 1.15 MB
Download
Quick Installation Guide (Español)
Filename: SP_Web_TEW-823DRU(V1.0R).pdf
Date: 10/10/2014
File Size: 2.50 MB
Download
Quick Installation Guide (Pусский)
Filename: RU_Web_TEW-823DRU(V1.0R).pdf
Date: 10/10/2014
File Size: 3.06 MB
Download
Quick Installation Guide (Italiano)
Filename: ITA_Web_TEW-823DRU(V1.0R).pdf
Date: 10/10/2014
File Size: 1.19 MB
Download
Quick Installation Guide (Eesti)
Filename: EST_Web_TEW-823DRU(V1.0R).pdf
Date: 10/10/2014
File Size: 1.15 MB
Download
Quick Installation Guide (Polski)
Filename: POL_Web_TEW-823DRU(V1.0R).pdf
Date: 10/10/2014
File Size: 1.27 MB
Download
Quick Installation Guide (Român)
Filename: RO_Web_TEW-823DRU(V1.0R).pdf
Date: 10/10/2014
File Size: 1.27 MB
Download
Quick Installation Guide (Nederlands)
Filename: NL_Web_TEW-823DRU(V1.0R).pdf
Date: 10/10/2014
File Size: 1.19 MB
Download
Quick Installation Guide (Magyar)
Filename: HUN_Web_TEW-823DRU(V1.0R).pdf
Date: 10/10/2014
File Size: 1.18 MB
Download

User's Guide

User's Guide
Filename: UG_TEW-823DRU(v1).pdf
Date: 10/10/2014
File Size: 1.65 MB
Download

Product Images

JPEG Image
File Size: : 163.21 KB
Date: : 5/21/2015
Download
JPEG Image
File Size: : 187.58 KB
Date: : 5/21/2015
Download
JPEG Image
File Size: : 188.29 KB
Date: : 5/21/2015
Download
JPEG Image
File Size: : 1.11 MB
Date: : 10/14/2015
Download
ROHS compliant WEEE crossed-out bin symbol.
How do I setup a Guest network on the TEW-823DRU?
Log in to the TEW-823DRU by entering https://TEW-823DRUor https://192.168.10.1into the address line of your browser. For added security, the router is preconfigured with a unique password. You can find the password on a sticker on the front of the router and on the label on the bottom of the...
How do I configure my wireless settings, change my Wi-Fi key or turn off a wireless radio?
Log in to the TEW-823DRU by entering https://TEW-823DRUor https://192.168.10.1into the address line of your browser. For added security, the router is preconfigured with a unique password. You can find the password on a sticker on the front of the router and on the label on the bottom of the...
How do I log into the router and configure the TEW-823DRU?
Log in to the TEW-823DRU by entering https://TEW-823DRUor https://192.168.10.1into the address line of your browser. For added security, the router is preconfigured with a unique password. You can find the password on a sticker on the front of the router and on the label on the bottom of the...
How do I forward ports in the TEW-823DRU?
Log in to the TEW-823DRU by entering https://TEW-823DRUor https://192.168.10.1into the address line of your browser. For added security, the router is preconfigured with a unique password. You can find the password on a sticker on the front of the router and on the label on the bottom of the...
What are the default settings on the TEW-823DRU?
For added security, the router is preconfigured with unique management and wireless passwords. The default settings are located on a sticker on the side of the router and on the bottom label.  ...
How do I reset the TEW-823DRU?
The reset button is a pin sized recessed button located on the Bottom of the TEW-823DRU. Press and hold in the reset button for 10 seconds to reset your router to default settings.  ...
When I attempt to connect to the router I am prompted for a PIN. Where is this located?
Connect a computer to one of the LAN ports on the TEW-823DRU. Log in to it by entering https://TEW-823DRUor https://192.168.10.1 into the address line of your browser. The username is admin.  For added security, the router is preconfigured with a unique password. You can find the password on...
How do I connect to the TEW-823DRU at 802.11ac speeds?
  To connect at 802.11ac performance you must have an 802.11ac adapter, for example the TEW-805UB. https://www.TRENDnet.com/products/product-detail.asp?prod=100_TEW-805UB Please also ensure the router is secured using WPA2 AES encryption levels.   By default the TEW-823DRU is preconfigured with W...
Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3ab
  • IEEE 802.3az
  • IEEE 802.11a
  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.11n (2.4 GHz 450 Mbps, 5 GHz up to 450 Mbps)
  • IEEE 802.11ac (draft 2.0, up to 1300 Mbps)

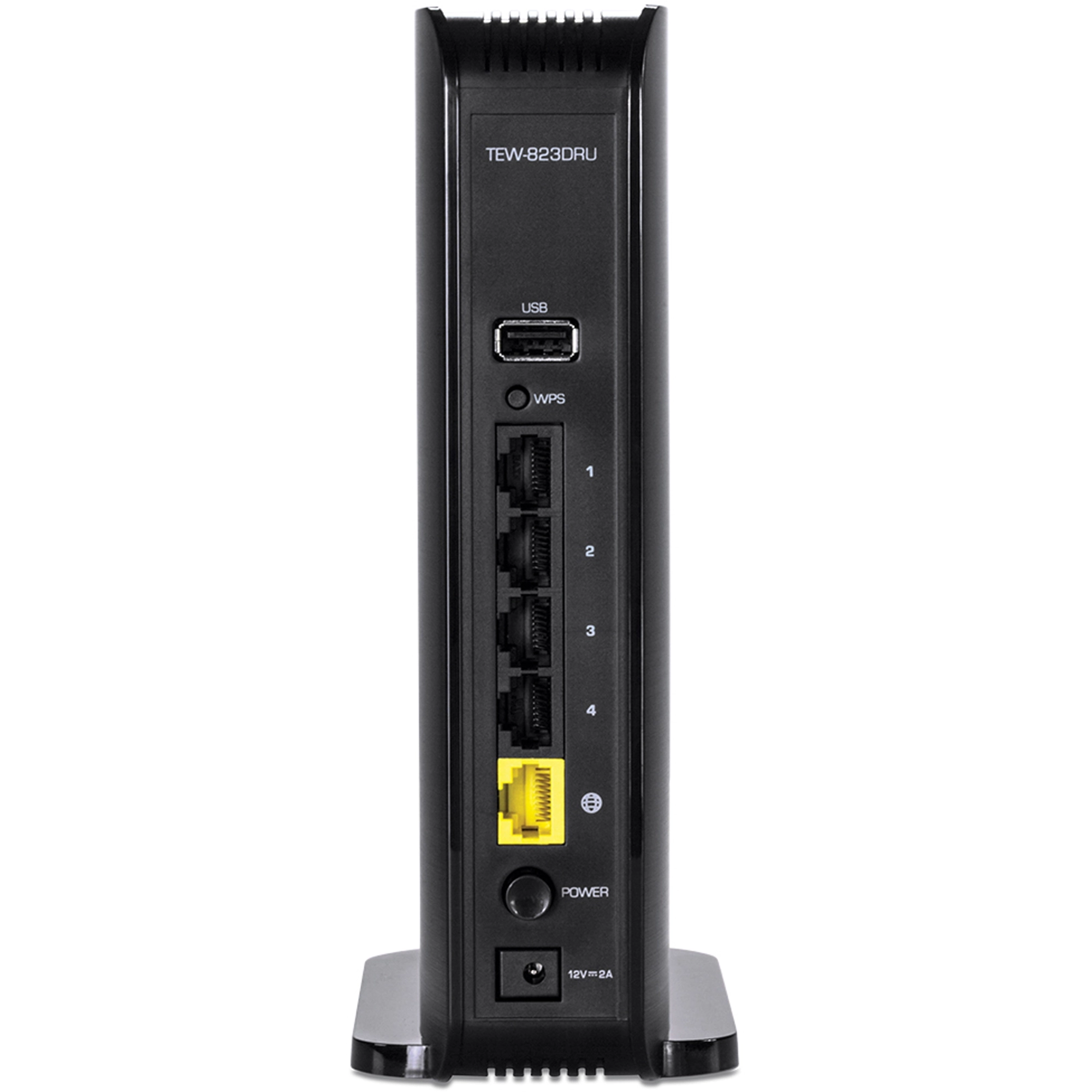

Hardware Interface
  • 4 x Gigabit LAN ports
  • 1 x Gigabit WAN port
  • 1 x USB 2.0 (Storage FTP, Samba)
  • Power switch
  • WPS button
  • Reset button
  • LED indicators
Special Features
  • Multi-Language interface: English, French, Spanish, German, Russian
  • Pre-encrypted wireless network
  • IPv6 support
  • 1 guest network per band with option for internet access only
  • Up to 2 additional SSIDs per band
  • Dynamic DNS support for dyn.com, no-ip.com, and easydns.com
  • Samba/FTP server support
  • Implicit and Explicit Beamforming
Access Control
  • Wireless encryption up to WEP, WPA/WPA2-PSK, WPA/WPA2-RADIUS
  • Firewall: NAT, SPI, Virtual Server, Special Applications, Gaming, DMZ Host, allow/deny ping request from internet
  • ALG: PPTP/L2TP/IPsec VPN Passthrough, TFTP/FTP/RTSP/SIP/H.323 Passthrough
  • Parental (Access) Controls: MAC, URL, IP Filter
  • WMM
  • Inbound/outbound 5 priority queues
Internet Connection Types
  • Dynamic IP (DHCP)
  • Static IP (Fixed)
  • PPPoE (Dynamic IP/Static IP)
  • PPTP (Dynamic IP/Static IP)
  • L2TP(Dynamic IP/Static IP)
  • Russia PPPoE (Dynamic IP/Static IP)
  • Russia PPTP (Dynamic IP/Static IP)
  • Russia L2TP (Dynamic IP/Static IP)
  • IPv6 (Static, Auto-configuration (SLAAC/DHCPv6), Link-Local, PPPoE, 6to4)
Management/Monitoring
  • Local/remote web based management
  • Upgrade firmware
  • Backup/restore configuration
  • Internal logging
  • Reboot
  • Restore to factory defaults
  • Ping test
Routing
  • Static
  • Dynamic (RIP v1/2)
Frequency
  • 2.412 - 2.472 GHz
  • 5.180 – 5.825 GHz
Modulation
  • 802.11b: CCK, DQPSK, DBPSK
  • 802.11a/g: OFDM with BPSK, QPSK and 16/64-QAM
  • 802.11n: BPSK, QPSK, 16-QAM, 64-QAM with OFDM
  • 802.11ac: OFDM with BPSK, QPSK and 16/64/256-QAM
Media Access Protocol
  • CSMA/CA with ACK
Antenna Gain
  • 2.4 GHz: 3 x 2 dBi (max.) internal/5 GHz: 3 x 3 dBi (max.) internal
Wireless Output Power/Receiving Sensitivity
  • 802.11a: 20 dBm (max.)/-65 dBm (typical) @ 54 Mbps
  • 802.11b: 23 dBm (max.)/-83 dBm (typical) @ 11 Mbps
  • 802.11g: 23 dBm (max.)/-65 dBm (typical) @ 54 Mbps
  • 802.11n (2.4 GHz): 22 dBm (max.)/-61 dBm (typical) @ 450 Mbps
  • 802.11n (5 GHz): 20 dBm (max.)/-61 dBm (typical) @ 450 Mbps
  • 802.11ac: 20 dBm (max.)/-51 dBm (typical) @ 1300 Mbps
Wireless Channels
  • 2.4 GHz: FCC: 1-11; ETSI: 1-13
  • 5 GHz: FCC: 36, 40, 44, 48, 149, 153, 157, 161, 165; ETSI: 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140
Power
  • Input: 100 – 240 V AC, 50 - 60 Hz, 0.8 A
  • Output: 12 V DC, 2 A external power adapter
  • Consumption: 18 Watts max.
Operating Temperature
  • 0 – 40 °C (32 – 104 °F)
Operating Humidity
  • Max. 95% non-condensing
Certifications
  • CE
  • FCC
Dimensions
  • 72 x 151 x 191 mm (2.8 x 6 x 7.5 in.)
Weight
  • 408 g (14.4 oz.)
Warranty
  • 3 year limited

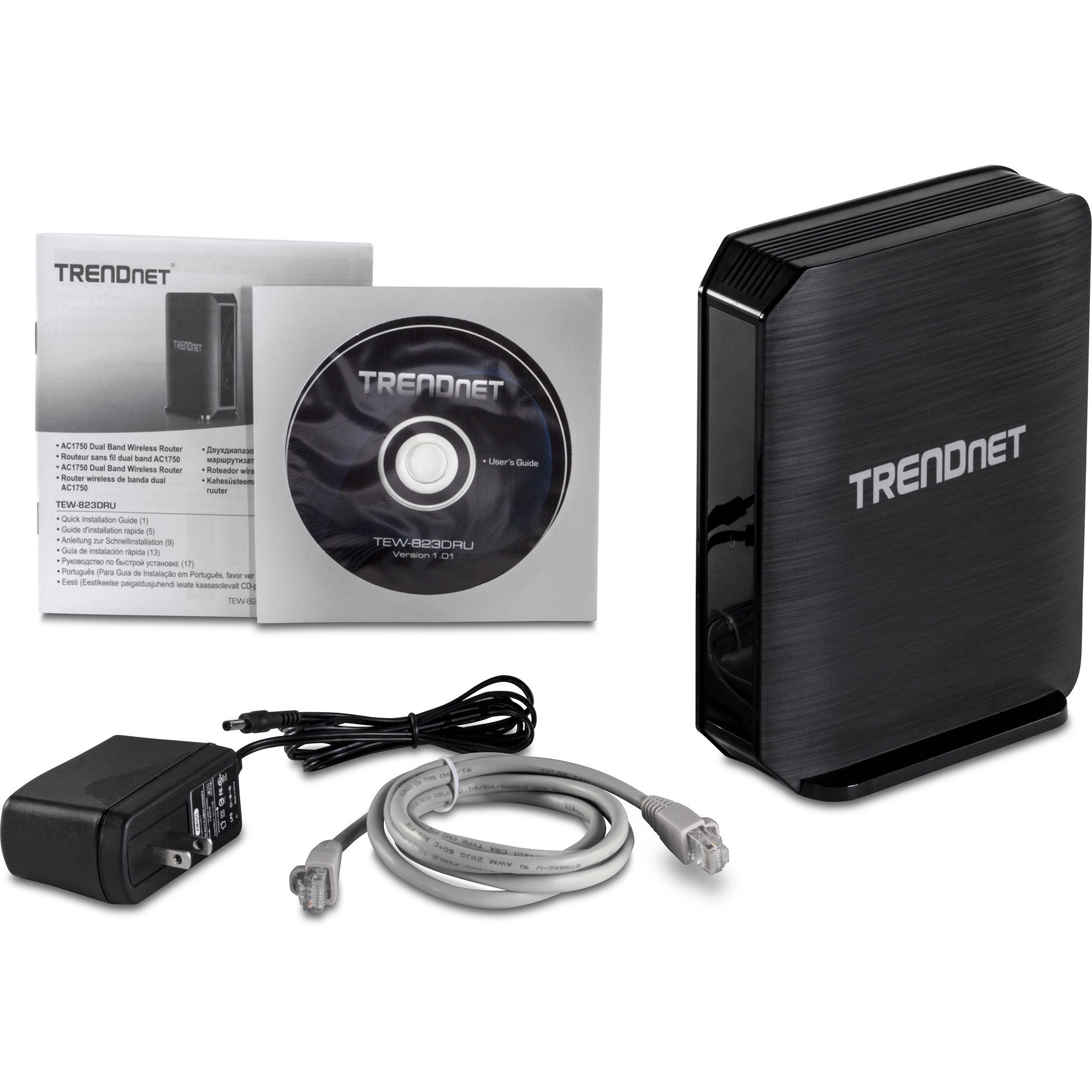

PACKAGE CONTENTS
  • TEW-823DRU
  • Multi-Language Quick Installation Guide
  • CD-ROM (User's Guide)
  • Network cable (1.5 m/5 ft.)
  • Power adapter (12 V DC, 2 A)

*Maximum wireless signal rates are referenced from IEEE 802.11 theoretical specifications. Actual data throughput and cover-age will vary depending on interference, network traffic, building materials and other conditions. For maximum performance of up to 1.3 Gbps use with a 1.3 Gbps 802.11ac wireless adapter.

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
