Intelligent 1000Base-T to SFP Media Converter
TFC-1000MGB
- Mini-GBIC port accommodates Multi or Single modes and up to 80km distances with TEG-MGBS80 at Gigabit speed
- 1000Base-T Gigabit copper port supports Full-Duplex mode
- Supports port level SNMP management
- Functions as a stand alone converter or with the TFC-1600 fiber chassis
DISCONTINUED PRODUCT
The TFC-1000MGB has been discontinued. It has been replaced by the TFC-1000MGA (Version v1.0R). For a list of discontinued products, click here.Datasheet
Filename: EN_Spec_TFC-1000MGB(A3.3R).pdf
Date: 8/24/2011
File Size: 900.13 KB
Filename: FR_Spec_TFC-1000MGB(A3.3R).pdf
Date: 8/24/2011
File Size: 930.72 KB
Filename: GE_Spec_TFC-1000MGB(A3.3R).pdf
Date: 8/24/2011
File Size: 931.14 KB
Filename: PO_Spec_TFC-1000MGB(A3.3R).pdf
Date: 11/9/2015
File Size: 1.09 MB
Filename: SP_Spec_TFC-1000MGB(A3.3R).pdf
Date: 8/24/2011
File Size: 928.92 KB
Filename: RU_Spec_TFC-1000MGB(A3.3R).pdf
Date: 8/24/2011
File Size: 1.46 MB
Filename: IT_Spec_TFC-1000MGB(A3.3R).pdf
Date: 8/24/2011
File Size: 895.38 KB
Quick Installation Guide
Filename: EN_Web_TFC-1000_Series.pdf
Date: 8/9/2011
File Size: 1.70 MB
Filename: FR_Web_TFC-1000_Series.pdf
Date: 8/9/2011
File Size: 1.70 MB
Filename: GE_Web_TFC-1000_Series.pdf
Date: 8/9/2011
File Size: 1.71 MB
Filename: PO_Web_TFC-1000_Series.pdf
Date: 8/9/2011
File Size: 1.67 MB
Filename: SP_Web_TFC-1000_Series.pdf
Date: 8/9/2011
File Size: 1.71 MB
Filename: RU_Web_TFC-1000_Series.pdf
Date: 8/9/2011
File Size: 2.35 MB
Filename: EST_Web_TFC-1000_Series.pdf
Date: 8/9/2011
File Size: 1.68 MB
Filename: POL_Fiber_Converter_100Mpbs_102012.pdf
Date: 12/27/2012
File Size: 3.74 MB
Filename: RO_Fiber_Converter_100Mpbs_102012.pdf
Date: 12/27/2012
File Size: 4.50 MB
Filename: NL_Fiber_Converter_100Mpbs_102012.pdf
Date: 12/27/2012
File Size: 3.69 MB
Filename: HG_Fiber_Converter_100Mpbs_102012.pdf
Date: 12/27/2012
File Size: 3.69 MB
Filename: BL_Fiber_Converter_100Mpbs_102012.pdf
Date: 12/27/2012
File Size: 3.74 MB
User's Guide

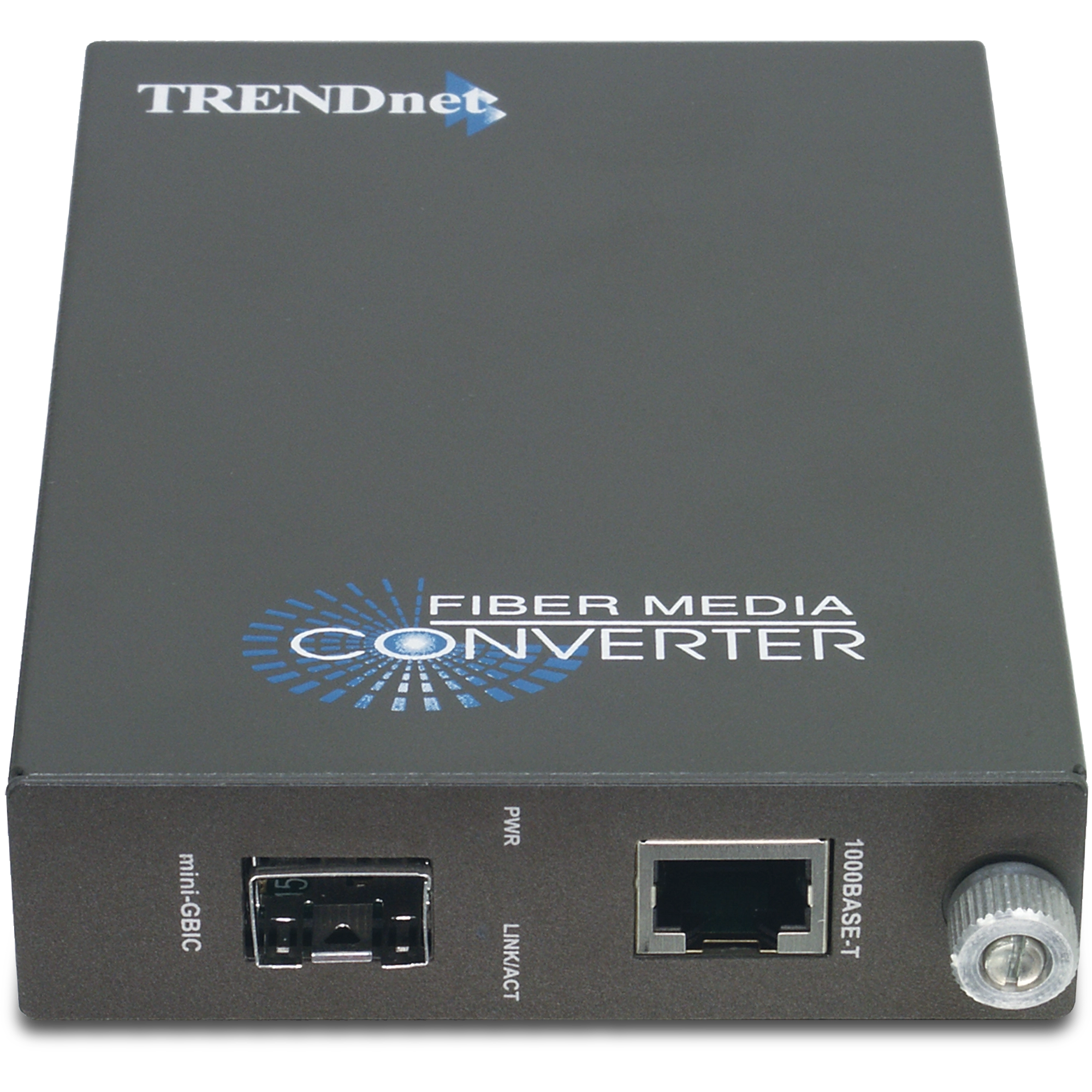

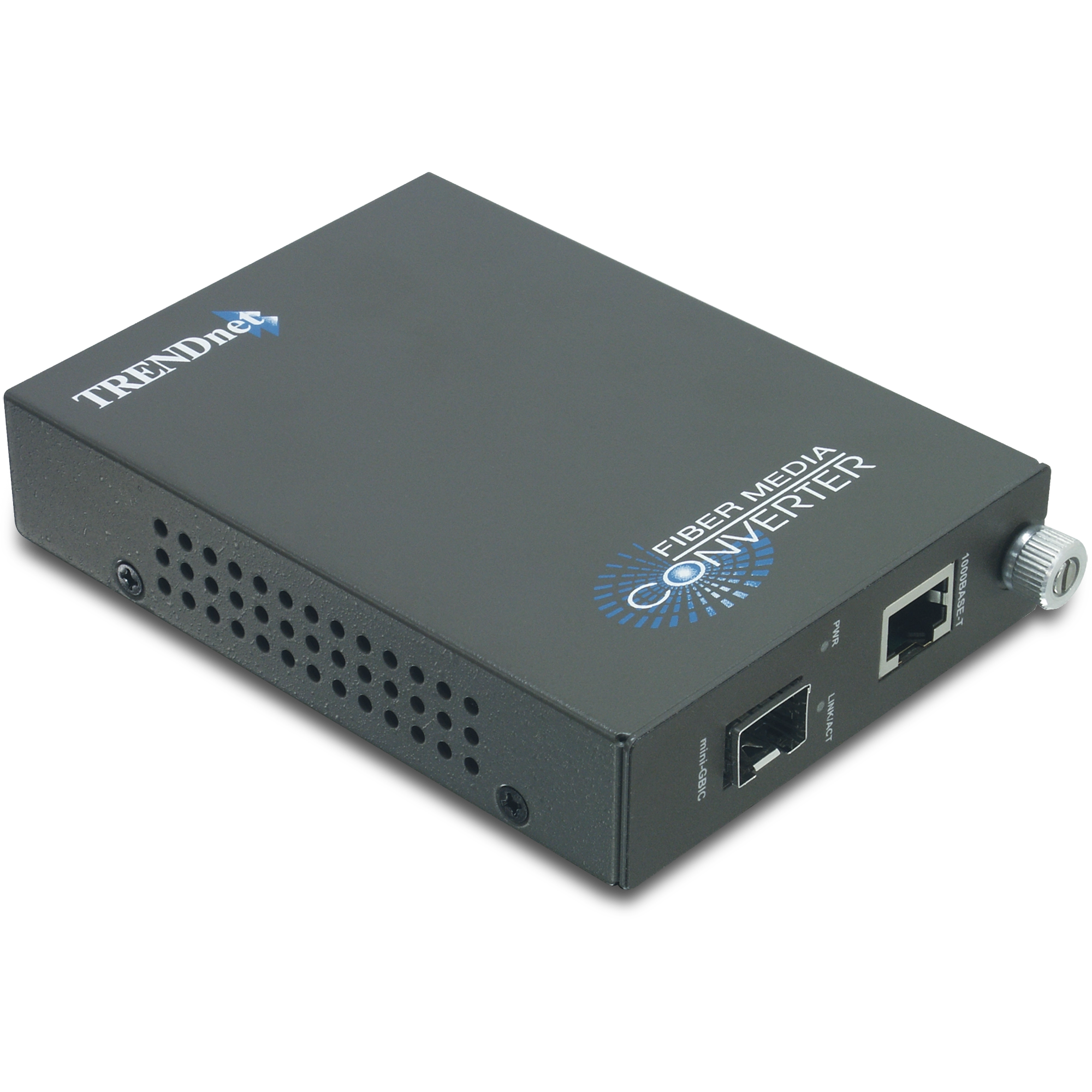

Product Images
| Hardware | |
| Standards | IEEE 802.3ab 100Base-T IEEE 802.3z 1000Base-SX IEEE 802.3z 1000Base-LX |
| Network Media | 1000Base-TX: UTP Cat. 5, 5E, 6 EIA/TIA-568 100-ohm STP 1000Base-SX: 50/125ìm Multi-Mode Fiber Optic Cable, Up to 550m, 62.5/125ìm Multi-Mode Fiber Optic Cable, Up to 220m 1000Base-LX: 9/125μm Single-Mode Fiber Optic Cable |
| Protocol | CSMA/CD |
| Ports | 1 x 1000Base-T with RJ45 Connector 1 x 1000Base-SX/LX Mini-GBIC Slot for optional Mini-GBIC module |
| Transfer Rate | 2000Mbps (Full Duplex) |
| DIP Switch | Auto Negotiation or Manual for SX/LX LLR Enable or Disable for SX/LX |
| Diagnostic LED | Power, Link/Activity |
| Power Adapter | 7.5V DC, 1.5A External Power Adapter |
| Power Consumption | 5.5 watts (max) |
| Dimensions | 120 x 88 x 25mm (4.7 x 3.46 x 0.98 inches) |
| Weight | 354g (12.5oz) |
| Temperature | Operating : 0° ~ 40° C (32° ~ 104° F) Storage : -25° ~ 70° C (-13° ~ 158° F) |
| Humidity | 5% ~ 90% RH |
| Certification | FCC,CE |
All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
