5-Port Gigabit PoE+ Switch

TPE-TG50g   (Version v2.0R)

   Select Another Version
  • 4 x Gigabit PoE+ ports
  • 1 x Gigabit port
  • 31W PoE power budget
  • 10Gbps switching capacity
  • Compact metal switch
  • NDAA / TAA compliant (U.S. and Canada only)
NDAA/TAA Compliant

DISCONTINUED PRODUCT

The TPE-TG50g (Version v2.0R) has been discontinued. It has been replaced by the TPE-TG50g (Version v2.4R). For a list of discontinued products, click here.

Datasheet

Datasheet (English)
Filename: EN_datasheet_TPE-TG50g_(v2.0R).pdf
Date: 8/2/2017
File Size: 1.26 MB
Download Email
Datasheet (Français)
Filename: FR_datasheet_TPE-TG50g_(v2.0R).pdf
Date: 8/2/2017
File Size: 1.26 MB
Download Email
Datasheet (Deutsch)
Filename: GE_datasheet_TPE-TG50g_(v2.0R).pdf
Date: 8/2/2017
File Size: 1.26 MB
Download Email
Datasheet (Português)
Filename: PO_datasheet_TPE-TG50g_(v2.0R).pdf
Date: 8/2/2017
File Size: 1.26 MB
Download Email
Datasheet (Español)
Filename: SP_datasheet_TPE-TG50g_(v2.0R).pdf
Date: 8/2/2017
File Size: 1.26 MB
Download Email
Datasheet (Italiano)
Filename: IT_datasheet_TPE-TG50g_(v2.0R).pdf
Date: 8/2/2017
File Size: 1.26 MB
Download Email

Quick Installation Guide

Quick Installation Guide
Filename: TPE-TG50g_(V2).pdf
Date: 7/26/2017
File Size: 2.46 MB
Download
Quick Installation Guide (Pусский)
Filename: RU_TPE-TG50g(V2.0R).pdf
Date: 4/5/2018
File Size: 2.47 MB
Download

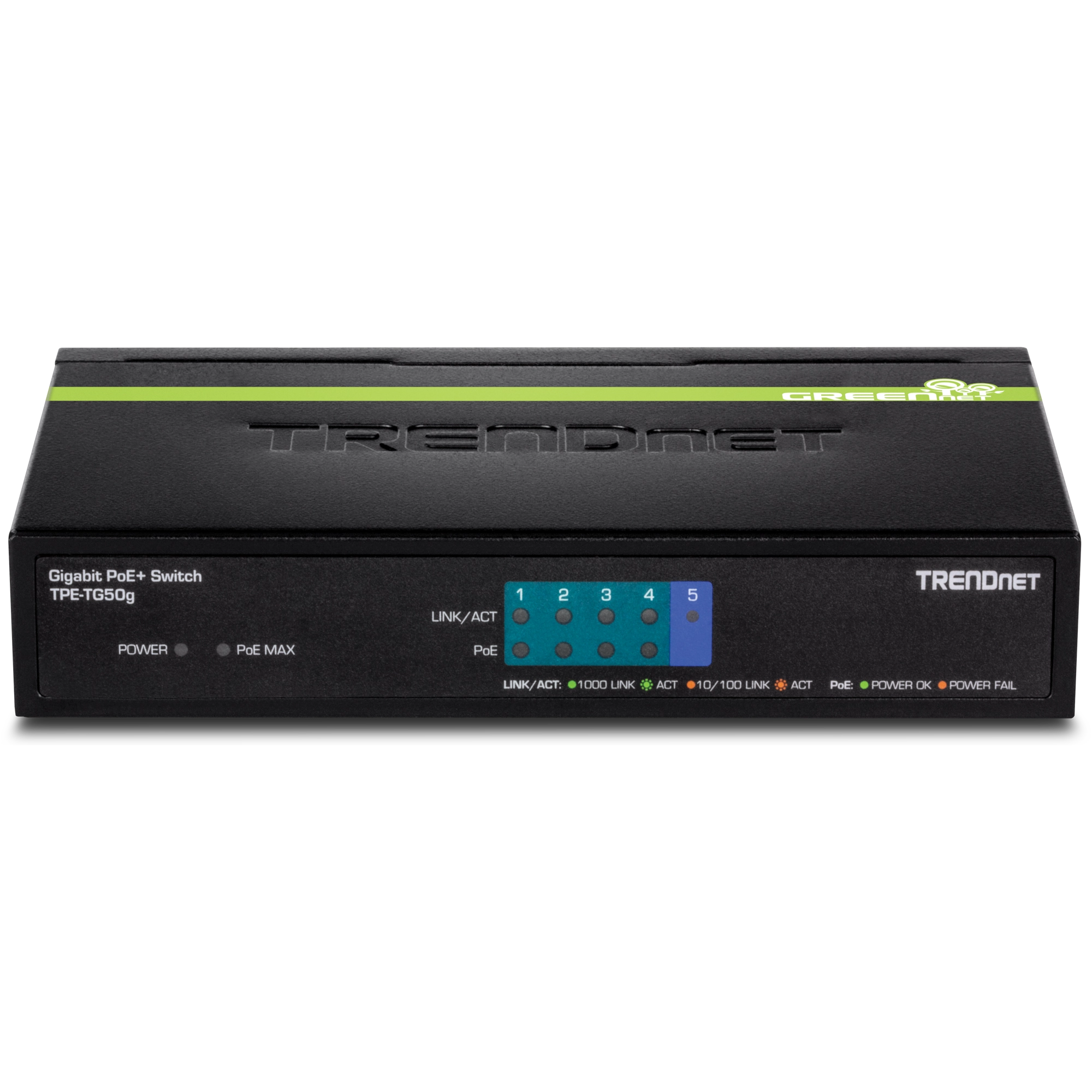

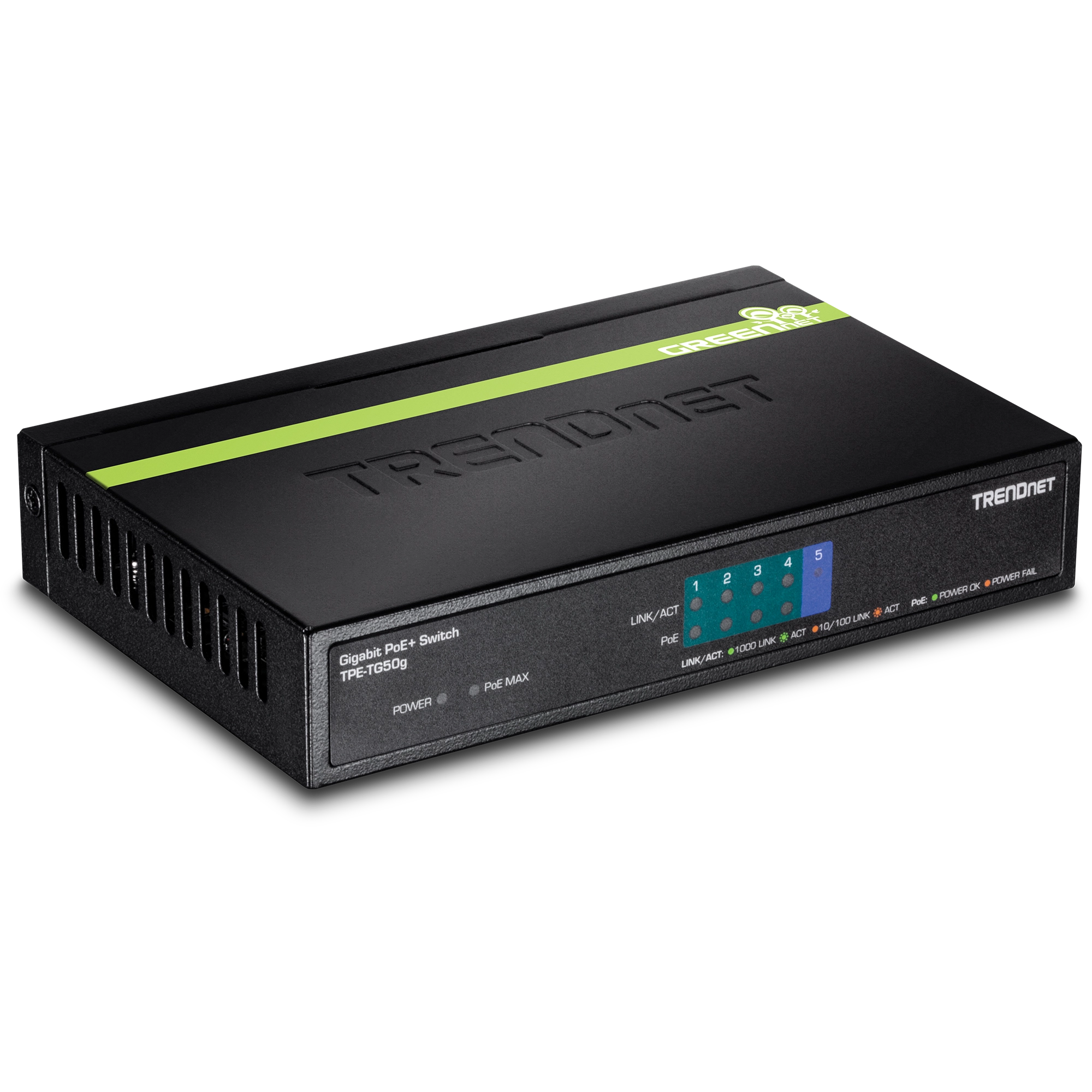

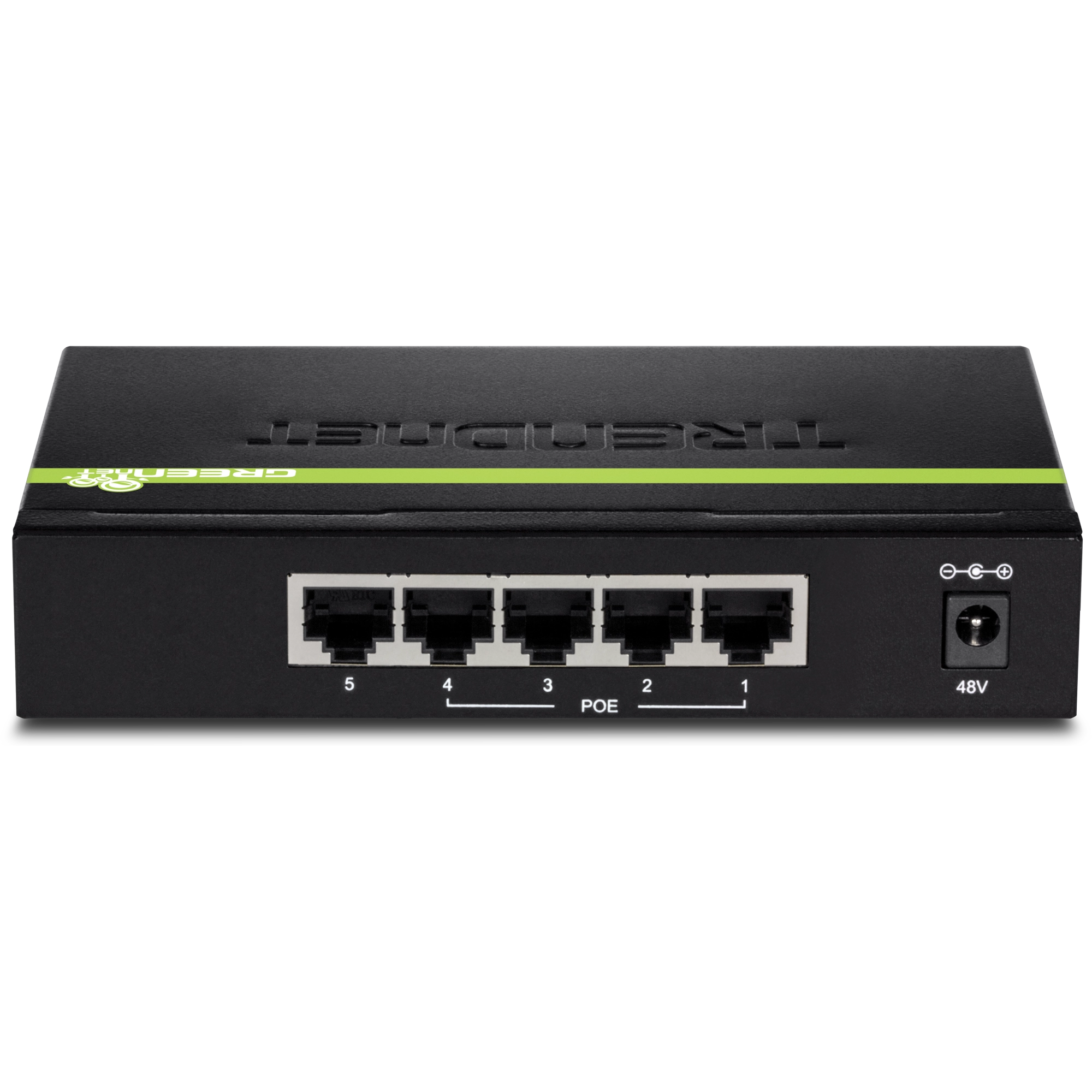

Product Images

PNG Image
File Size: : 2.14 MB
Date: : 7/26/2017
Download
PNG Image
File Size: : 1.79 MB
Date: : 7/26/2017
Download
PNG Image
File Size: : 1.63 MB
Date: : 7/26/2017
Download
PNG Image
File Size: : 2.95 MB
Date: : 7/26/2017
Download
ROHS compliant WEEE crossed-out bin symbol.
Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3ab
  • IEEE 802.3af
  • IEEE 802.3at
  • IEEE 802.3az
Device Interface
  • 4 x Gigabit PoE/PoE+ ports
  • 1 x Gigabit port
  • LED indicators
Data Transfer Rate
  • Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
  • Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
  • Gigabit: 2000Mbps (full duplex)
Performance
  • Packet Buffer: 128KB
  • Switch Fabric: 10Gbps
  • MAC Address Table: 8K entries
  • Forwarding rate: 7.44Mpps (64-byte packet size)
  • Jumbo Frame: 9K
Power
  • Input: 110-240V AC, 50/60Hz, 0.75A
  • Output: 48V DC, 0.8A
  • Consumption: Max. 34W
PoE
  • PoE budget: 31 Watts
  • Pin 1,2 for power+ and pin 3,6 for power- (mode A)
Operating Temperature
  • 0 – 40°C (32 - 104°F)
Operating Humidity
  • Max. 90% non-condensing
Dimensions
  • 148 x 95 x 26mm (5.8 x 3.7 x 1 in.)
Weight
  • 366g (12.9 oz.)
Certifications
  • CE
  • FCC
Warranty
  • 3 year warranty

PACKAGE CONTENTS
  • TPE-TG50g
  • Quick Installation Guide

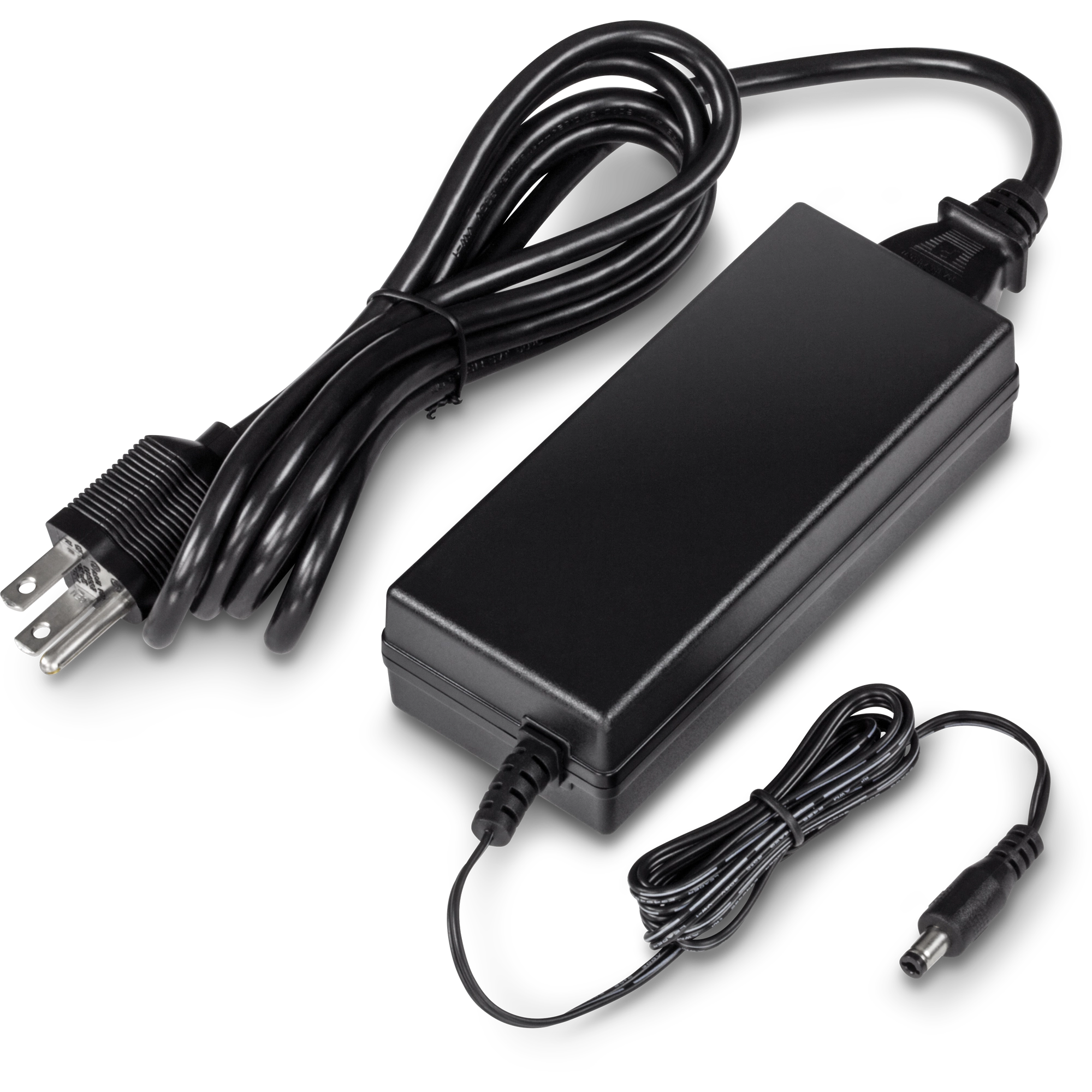

  • Power adapter (48V DC, 0.8A)
  • Power Cord

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
