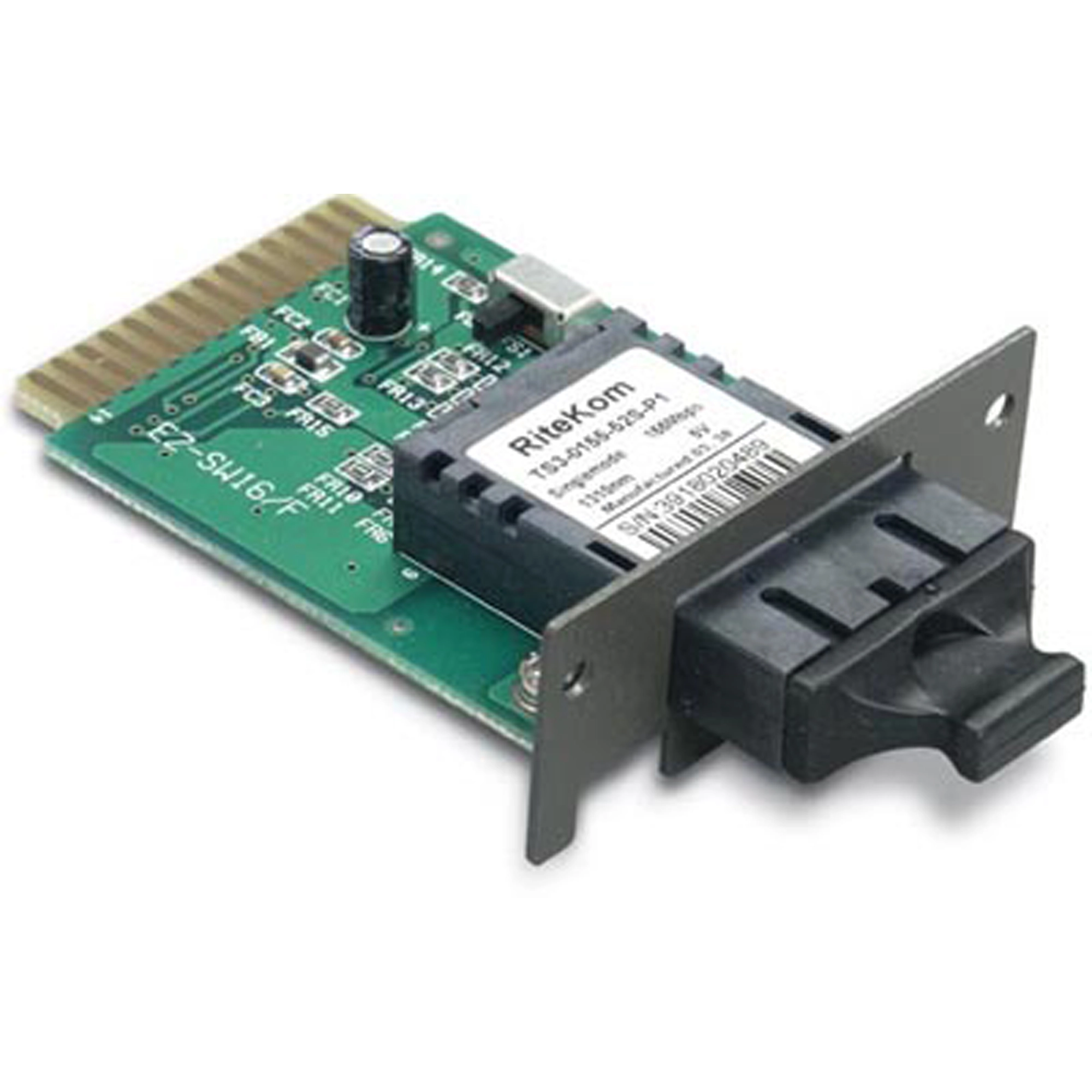

SC-Type Single-Mode (15Km) Slide-in Fiber module for TE100-S32+/SxxV

TE100-S15M   (Version 1.0)

  • Use this slide-in Fiber module for the 32 port fast Ethernet switch (TE100-S32+)
  • Utilizes a common SC connector
  • Plug and Play installation

DISCONTINUED PRODUCT

The TE100-S15M (Version 1.0) has been discontinued. For a list of discontinued products, click here.

Datasheet

Datasheet (English)
Filename: Spec_TE100-S15M(English).pdf
Date: 1/10/2005
File Size: 90.86 KB
Download Email
Datasheet (Français)
Filename: Spec_TE100-S15M(French).pdf
Date: 1/10/2005
File Size: 319.96 KB
Download Email
Datasheet (Deutsch)
Filename: Spec_TE100-S15M(German).pdf
Date: 2/7/2005
File Size: 85.13 KB
Download Email
Datasheet (Español)
Filename: Spec_TE100-S15M(Spanish).pdf
Date: 2/18/2005
File Size: 83.32 KB
Download Email
Hardware
Wavelength:
  • 1310 nm
Output Power:
  • -20 DB (9, 10/125 µM)
Sensitivity:
  • -31 DB
Distance:
  • 15Km (9, 10/125 µM)
Connector Type:
  • Single-Mode SC-Type

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
