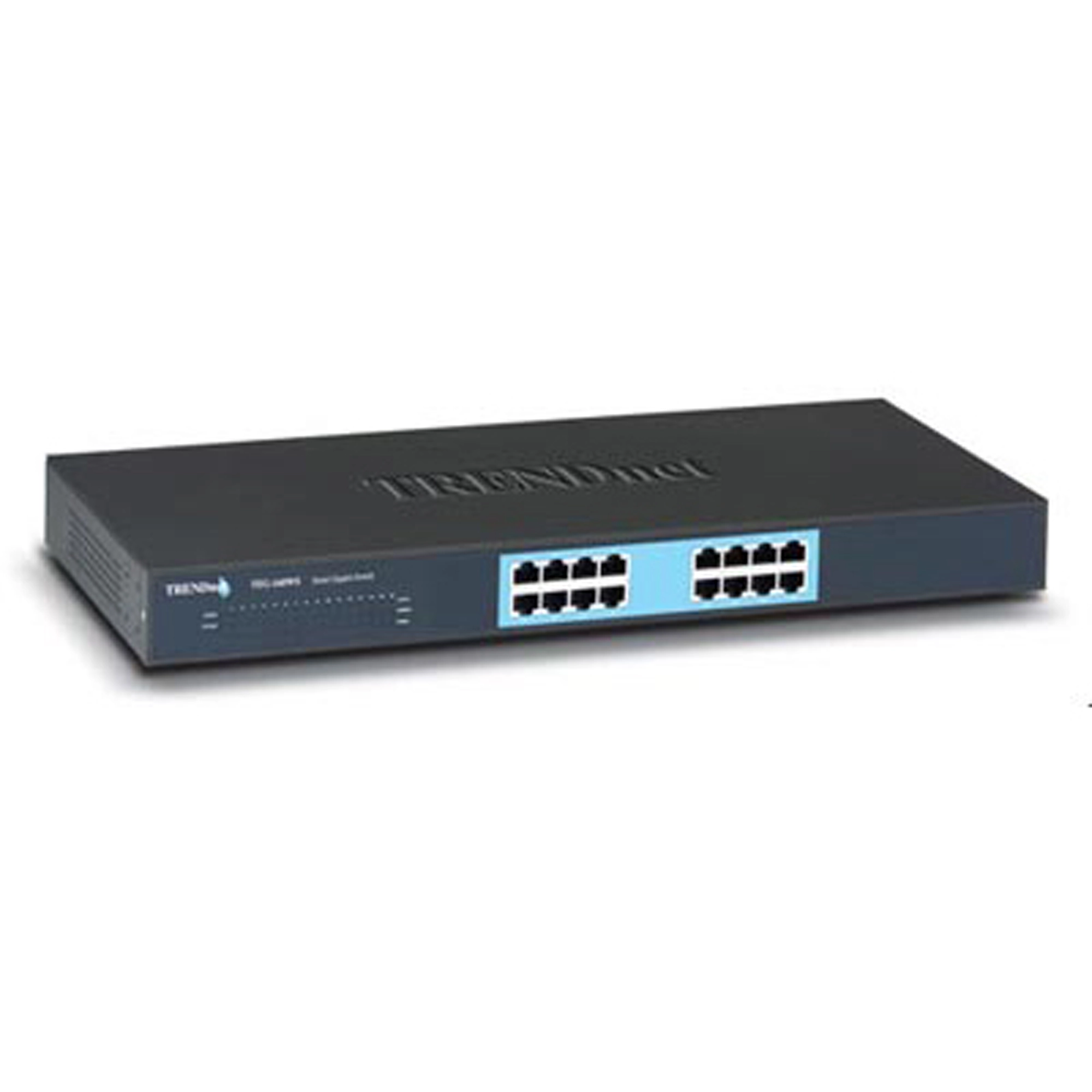

16-port 10/100/1000Mbps Gigabit Web-Based Smart Switch

TEG-160WS   (Version A)

   Select Another Version

DISCONTINUED PRODUCT

The TEG-160WS (Version A) has been discontinued. It has been replaced by the TEG-204WS (Version v1.1R). For a list of discontinued products, click here.

Utility

Utility
Filename: Management_Utility.zip
SHA-1 Checksum: 43C887F69C87D01B12EB48DBF78CFC6E0F1D169D
Date: 7/25/2017
File Size: 529.98 KB
Download

Datasheet

Datasheet (English)
Filename: EN_Spec_TEG-160WS.pdf
Date: 7/20/2006
File Size: 319.50 KB
Download Email
Datasheet (Français)
Filename: FR_Spec_TEG-160WS.pdf
Date: 7/20/2006
File Size: 323.34 KB
Download Email
Datasheet (Deutsch)
Filename: GE_Spec_TEG-160WS.pdf
Date: 7/20/2006
File Size: 324.50 KB
Download Email
Datasheet (Español)
Filename: SP_Spec_TEG-160WS.pdf
Date: 7/20/2006
File Size: 297.40 KB
Download Email
Datasheet (Pусский)
Filename: RU_Spec_TEG-160WS.pdf
Date: 7/20/2006
File Size: 834.78 KB
Download Email

Quick Installation Guide

Quick Installation Guide (English)
Filename: QIG_TEG-160WS(English).pdf
Date: 2/18/2005
File Size: 696.67 KB
Download
Quick Installation Guide (Français)
Filename: QIG_TEG-160WS(French).pdf
Date: 2/18/2005
File Size: 704.18 KB
Download
Quick Installation Guide (Deutsch)
Filename: QIG_TEG-160WS(German).pdf
Date: 2/18/2005
File Size: 701.27 KB
Download
Quick Installation Guide (Español)
Filename: QIG_TEG-160WS(Spanish).pdf
Date: 2/18/2005
File Size: 706.47 KB
Download

User's Guide

User's Guide
Filename: UG_TEG-160WS.pdf
Date: 8/18/2004
File Size: 277.08 KB
Download

Product Images

JPEG Image
File Size: : 146.77 KB
Date: : 9/1/2004
Download
TIFF Image
File Size: : 1.65 MB
Date: : 9/1/2004
Download
ROHS compliant WEEE crossed-out bin symbol.
Hardware
LAN Standards:
  • IEEE 802.3 10Base-T; IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, 100Base-FX
Network Media:
  • Ethernet: UTP/STP Cat. 3, 4, 5
  • Fast Ethernet: UTP/STP Cat. 5
  • Gigabit: UTP/STP Cat. 5/5E
Protocol:
  • CSMA/CD
Topology:
  • Star
LAN Port:
  • 16 x 10/100/1000Mbps Auto Negotiation, Auto-MDIX ports
Address Table:
  • 4K entries per device
Data Transfer Rate:
  • Ethernet: 10/20Mbps (Half/Full-Duplex)
  • Fast Ethernet: 100/200Mbps (Half/Full-Duplex)
  • Gigabit Ethernet: 2000Mbps (Full-Duplex)
Data RAM Buffer:
  • 272 Kbytes
Bandwidth:
  • 32Gbps
Diagnostic LEDs:
  • Per Unit: Power, System
  • Per Port (RJ-45): Link/Activity, 100Mbps.
Power:
  • 110 ~ 240V AC, 50/60Hz, internal universal power supply, 25 Watts. Max.
Dimensions (WxHxD):
  • 440 x 210 x 44 mm (17.32 x 8.3 x 1.73 inches)
Weight:
  • 2Kg. (4.48 lb)
Temperature:
  • Operating: 0° ~ 40° C (32° ~ 104° F)
  • Storage: -10° ~ 70° C (14° ~ 158° F)
Humidity:
  • 10% ~ 90% (no-condensing)
  • FCC Class A, CE Mark A, VCCI-A

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
