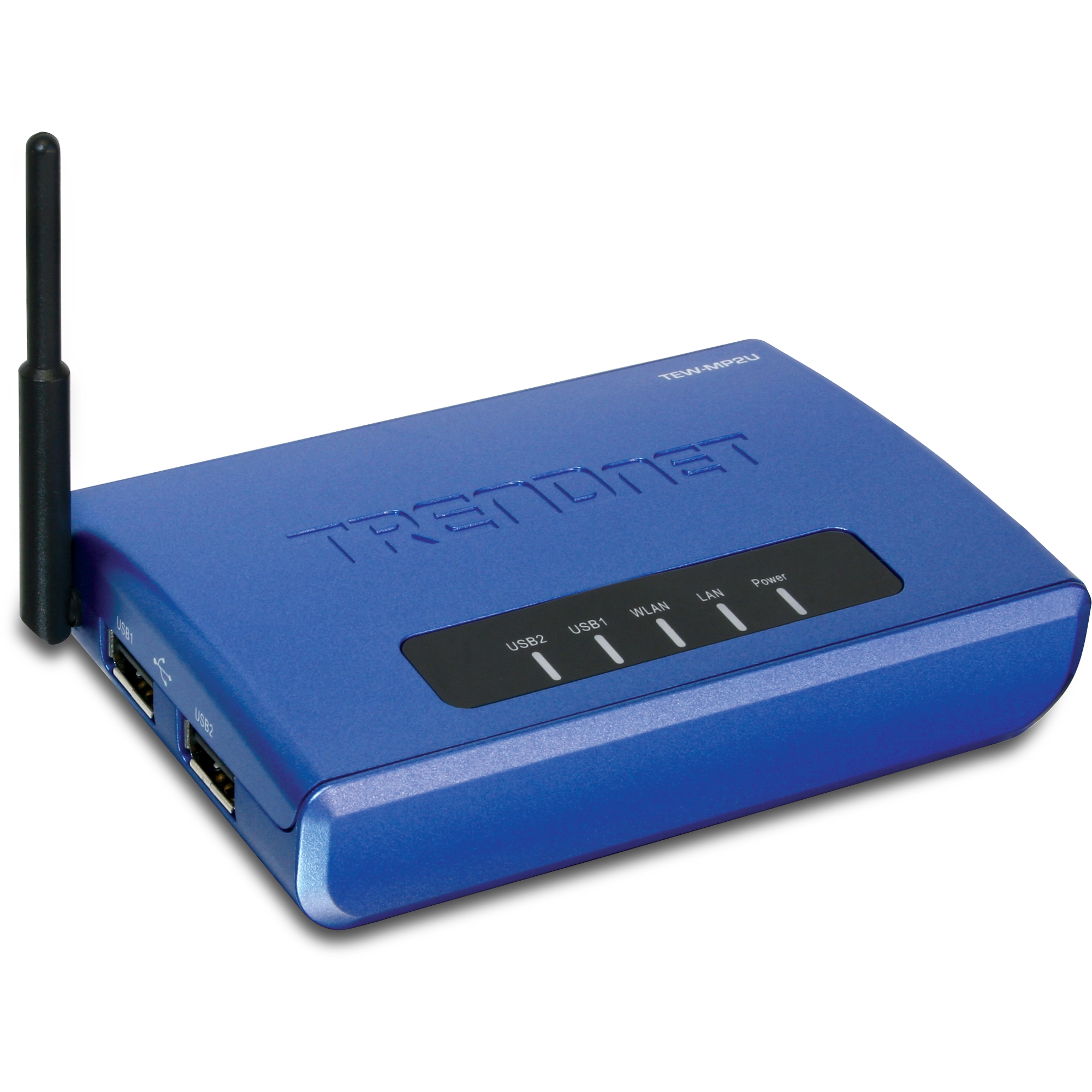

Wireless 2-Port Multi-Function Print Server

TEW-MP2U   (Version 1.0R)

  • Turns a standalone multi-function printer/fax/scanner into a shared wireless resource
  • Use this wireless print server to place your printer in the most accessible location
  • Connect 2 multi-function printers and supports additional USB storage device
  • Provides high speed USB 2.0 printing
  • Manages print server through web browser or utility

DISCONTINUED PRODUCT

The TEW-MP2U (Version 1.0R) has been discontinued. For a list of discontinued products, click here.

Utility

Driver/Utility
Utility Version: v2.60
Release Notes:
  • Resolves Windows 7 compatibility issues.

Filename: Utility_TE100-MP1U_2U_TEW-MP2U(v2.60).zip
SHA-1 Checksum: 77366A7A5C441B68FF1C01160EFD9A2A9416CA5E
Date: 1/2/2018
File Size: 7.03 MB
Download

Firmware

Firmware
DO NOT upgrade firmware on any TRENDnet product using wireless connection.
Firmware upgrade over wireless connection may damage the product. Please perform firmware upgrade with "wired" network connection only

Firmware Version: v2.60
Release Date: 2/11/2011
Resolved the following items:

  1. Resolves Windows 7 compatibility issues.
  2. Fixes SMB security bug.

Filename: TEW-MP2U_v2.60.zip
SHA-1 Checksum: B657A816B931370485621928201E52D3C5FB77CF
Date: 1/2/2018
File Size: 1.06 MB
Download

Datasheet

Datasheet (English)
Filename: EN_Spec_TEW-MP2U.pdf
Date: 11/14/2008
File Size: 359.40 KB
Download Email
Datasheet (Français)
Filename: FR_Spec_TEW-MP2U.pdf
Date: 11/14/2008
File Size: 362.85 KB
Download Email
Datasheet (Deutsch)
Filename: GE_Spec_TEW-MP2U.pdf
Date: 11/14/2008
File Size: 366.07 KB
Download Email
Datasheet (Español)
Filename: SP_Spec_TEW-MP2U.pdf
Date: 11/14/2008
File Size: 362.65 KB
Download Email
Datasheet (Pусский)
Filename: RU_Spec_TEW-MP2U.pdf
Date: 11/14/2008
File Size: 1.29 MB
Download Email

Quick Installation Guide

Quick Installation Guide (English)
Filename: EN_QIG_TE100-MP1U_MP2U_TEW-MP2U.pdf
Date: 2/19/2009
File Size: 1.25 MB
Download
Quick Installation Guide (Français)
Filename: FR_QIG_TE100-MP1U_MP2U_TEW-MP2U.pdf
Date: 2/19/2009
File Size: 1.27 MB
Download
Quick Installation Guide (Deutsch)
Filename: GE_QIG_TE100-MP1U_MP2U_TEW-MP2U.pdf
Date: 2/19/2009
File Size: 1.25 MB
Download
Quick Installation Guide (Português)
Filename: PO_QIG_TE100-MP1U_MP2U_TEW-MP2U.pdf
Date: 2/19/2009
File Size: 1.26 MB
Download
Quick Installation Guide (Español)
Filename: SP_QIG_TE100-MP1U_MP2U_TEW-MP2U.pdf
Date: 2/19/2009
File Size: 1.25 MB
Download
Quick Installation Guide (Pусский)
Filename: RU_QIG_TE100-MP1U_MP2U_TEW-MP2U.pdf
Date: 2/19/2009
File Size: 2.82 MB
Download
Quick Installation Guide (Eesti)
Filename: EST_QIG_TE100-MP1U_MP2U_TEW-MP2U.pdf
Date: 2/19/2009
File Size: 1.25 MB
Download

User's Guide

User's Guide
Filename: UG_TE100-MP1U_MP2U_TEW-MP2U_Update.pdf
Date: 3/28/2008
File Size: 3.68 MB
Download

Product Images

JPEG Image
File Size: : 384.78 KB
Date: : 7/6/2007
Download
JPEG Image
File Size: : 404.71 KB
Date: : 7/6/2007
Download
JPEG Image
File Size: : 594.54 KB
Date: : 7/6/2007
Download
TIFF Image
File Size: : 3.02 MB
Date: : 7/6/2007
Download
TIFF Image
File Size: : 3.72 MB
Date: : 7/6/2007
Download
TIFF Image
File Size: : 6.62 MB
Date: : 7/6/2007
Download
JPEG Image
File Size: : 436.87 KB
Date: : 7/6/2007
Download
TIFF Image
File Size: : 3.96 MB
Date: : 7/6/2007
Download
ROHS compliant WEEE crossed-out bin symbol.
Hardware
Standards
  • Wired: IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX
  • Wireless: IEEE 802.11b/g
Printer Interface

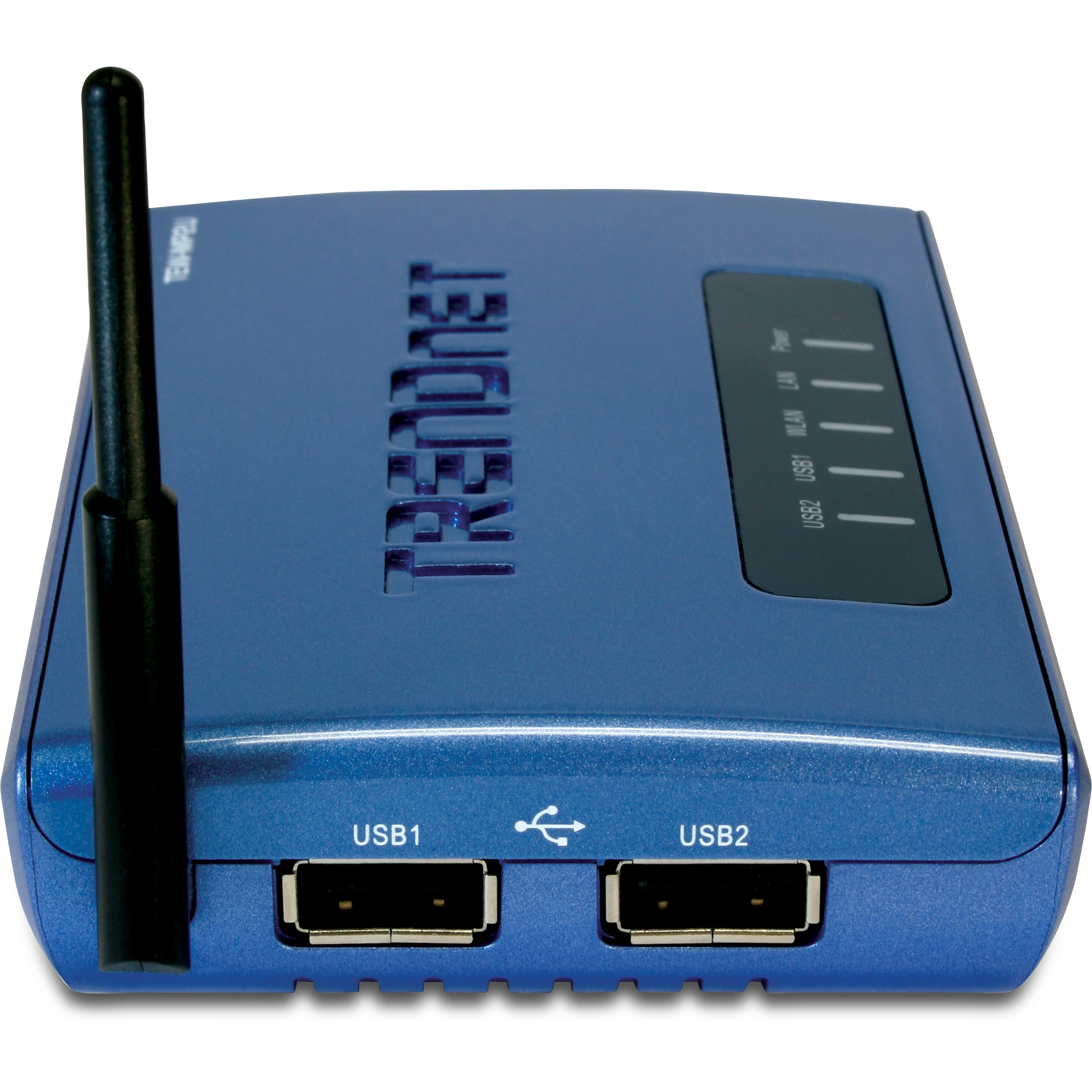

  • USB 2.0, 1.1 compliant USB type A port

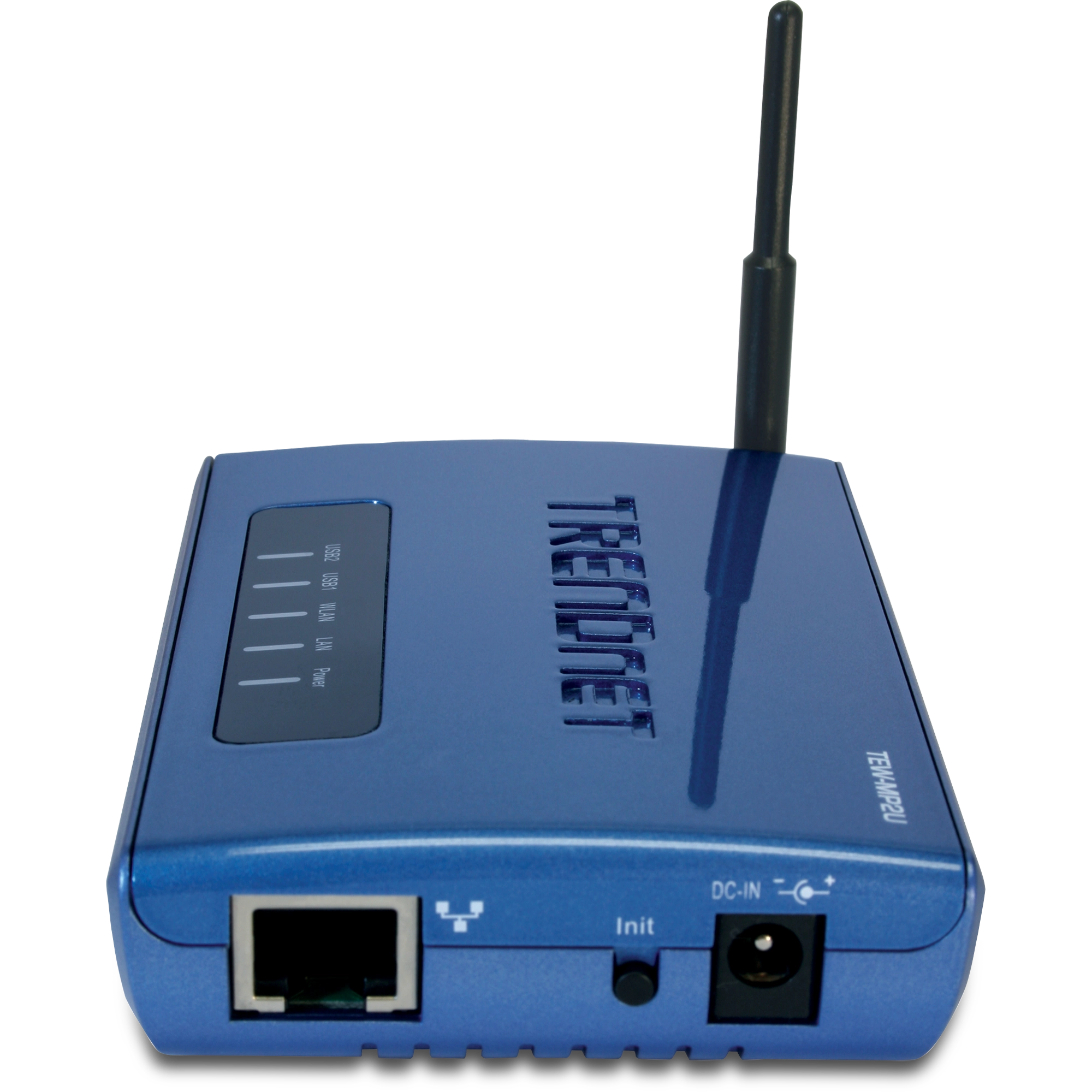

LAN Port
  • 10/100Mbps auto-negotiation UTP/STP Ethernet port
CPU/ SDRAM / Flash ROM
  • RDC R3210-G 150MHz / 8MB /2MB
USB Storage
  • NetUSB Mode:
  • Single-user access, FAT12/16/32(read/write) and NTFS (read/write)
  • Server Mode (FTP/SMB server):
  • Multi-user access. FAT12/16/32(read/write) and NTFS (read)

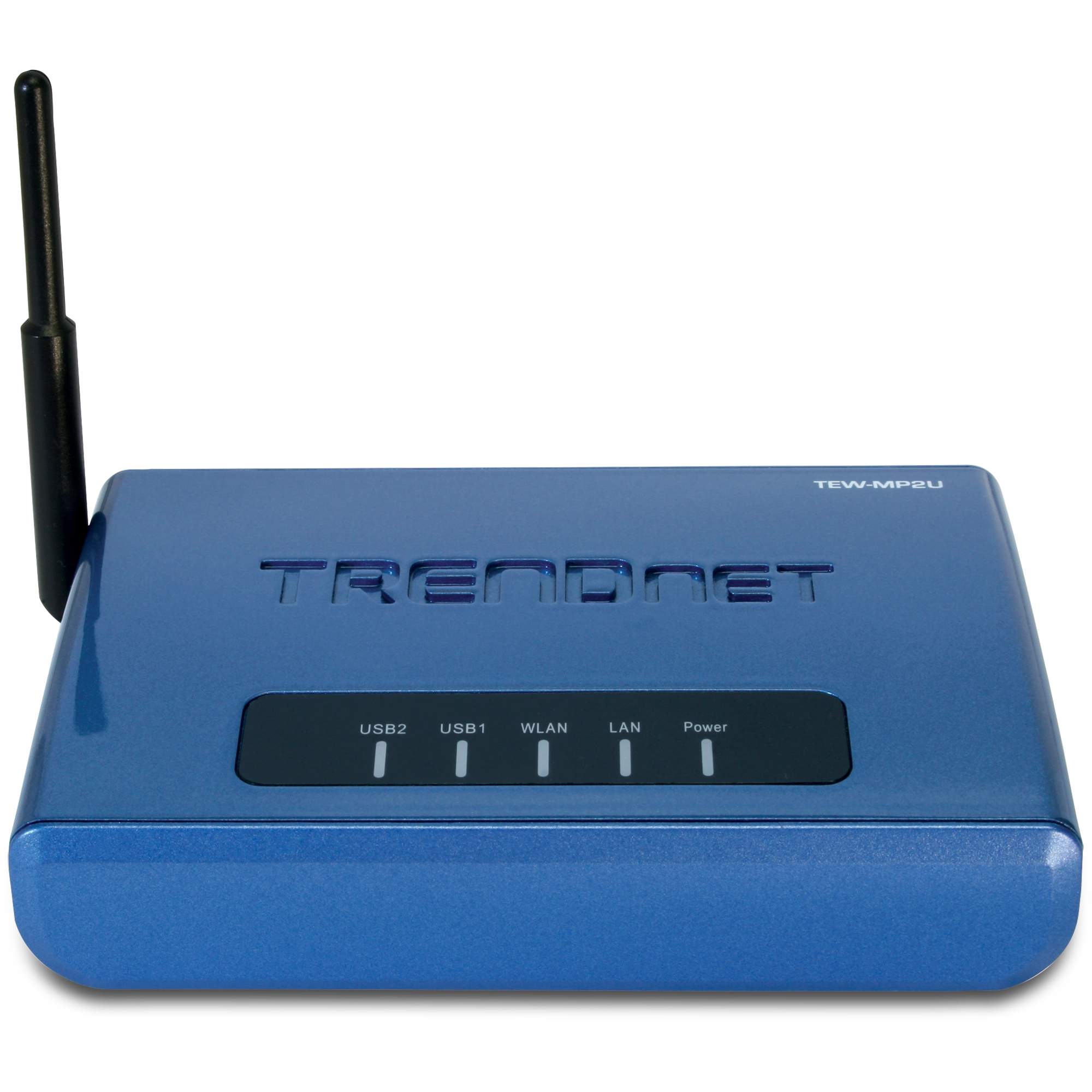

Diagnostic LEDs
  • Power, link, WLAN, USB1, USB2
Transport Protocol
  • TCP/IP
TCP/IP Protocol Supported
  • DHCP, SNMP, UPnP, FTP
Supported OS
  • Windows 2000/XP (32/64-bit)/2003 Server/Vista (32/64-Bit)
Management
  • Windows based utility or Web based configuration
Power
  • 12V DC 1A external switching power adapter
Power Consumption
  • Max 2.5W (without a peripheral)
Dimensions
  • 101 x 70 x 26mm (3.98 x 2.76 x 1.02 in.)
Weight
  • 110g (3.88oz.)
Temperature
  • Operating: 0°~50°C (32°~122°F)
  • Storage: -25°~55°C (-13°~131°F)
Humidity
  • 10%~90% (non-condensing)
Wireless
Frequency
  • 2.4 ~ 2.4835GHz
Encryption
  • 64/128-Bit WEP, WPA-PSK(TKIP)
Antenna
  • Built-in fixed 2dBi antenna
Data Rate
  • 802.11b: 11Mbps, 5.5Mbps, 2Mbps, and 1Mbps
  • 802.11g: 54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps, 12Mbps, 9Mbps and 6Mbps

PACKAGE CONTENTS
  • TEW-MP2U
  • Multi-Language QIG
  • CD-ROM (User's Guide)
  • Switching power adapter (12V DC, 1A)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
