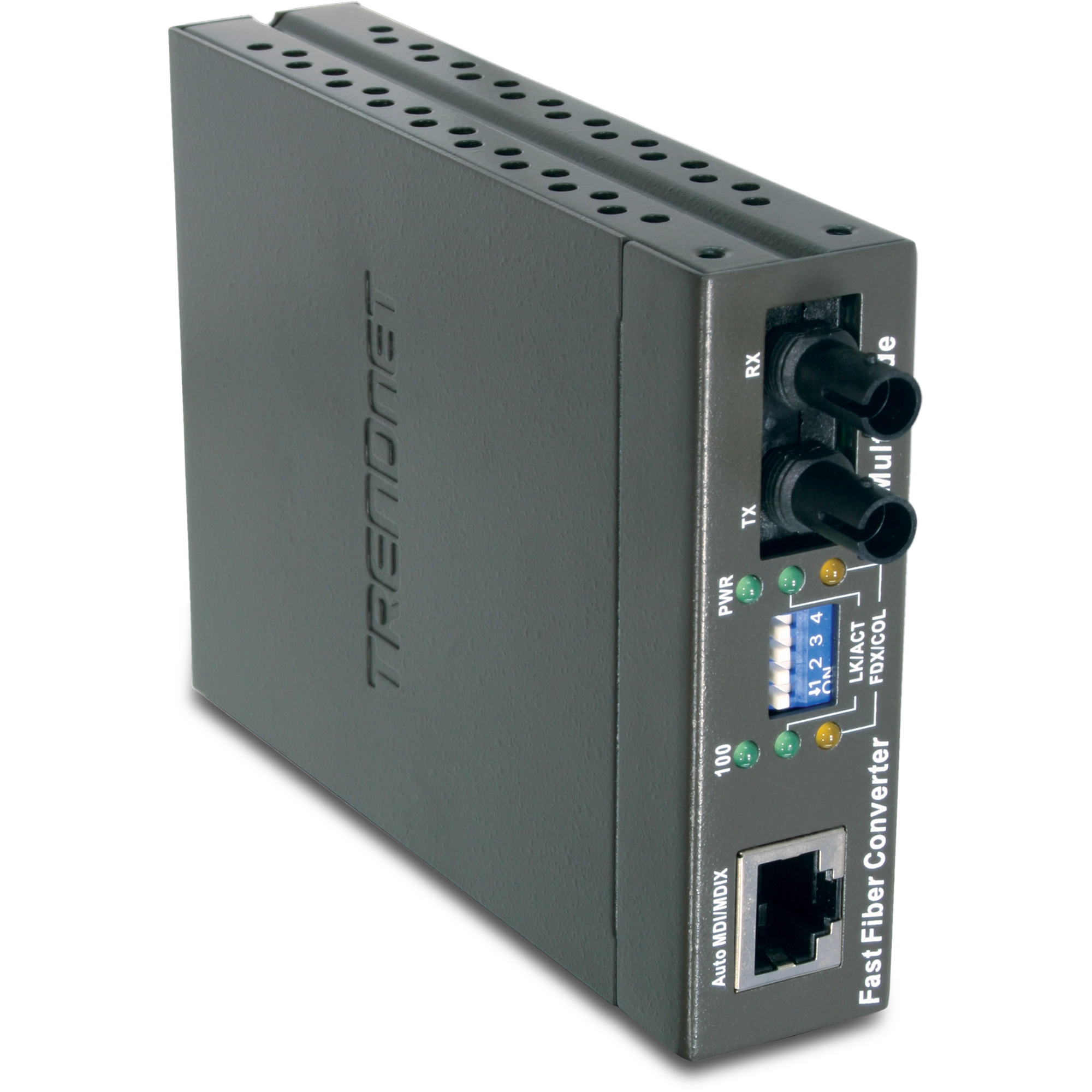

100Base-TX to 100Base-FX Multi-Mode ST Fiber Converter

TFC-210MST   (Version 1.0R)

  • ST-type multi-mode fiber port connects over distances of up to 2km
  • 10/100Base-TX port supports Auto-Negotiation, Auto-MDIX and Full-Duplex mode
  • Functions as a stand alone converter or with the TFC-1000 fiber chassis

DISCONTINUED PRODUCT

The TFC-210MST (Version 1.0R) has been discontinued. For a list of discontinued products, click here.

Datasheet

Datasheet (English)
Filename: EN_Spec_TFC-210MST(v1.0R).pdf
Date: 4/9/2009
File Size: 268.00 KB
Download Email
Datasheet (Français)
Filename: FR_Spec_TFC-210MST(v1.0R).pdf
Date: 4/9/2009
File Size: 173.53 KB
Download Email
Datasheet (Deutsch)
Filename: GE_Spec_TFC-210MST(v1.0R).pdf
Date: 4/9/2009
File Size: 178.27 KB
Download Email
Datasheet (Español)
Filename: SP_Spec_TFC-210MST(v1.0R).pdf
Date: 4/9/2009
File Size: 171.95 KB
Download Email
Datasheet (Pусский)
Filename: RU_Spec_TFC-210MST(v1.0R).pdf
Date: 4/9/2009
File Size: 897.70 KB
Download Email

Quick Installation Guide

Quick Installation Guide (English)
Filename: EN_QIG_TFC-210_2000.pdf
Date: 5/9/2007
File Size: 357.13 KB
Download
Quick Installation Guide (Français)
Filename: FR_QIG_TFC-210_2000.pdf
Date: 5/9/2007
File Size: 353.35 KB
Download
Quick Installation Guide (Deutsch)
Filename: GE_QIG_TFC-210_2000.pdf
Date: 5/9/2007
File Size: 345.73 KB
Download
Quick Installation Guide (Español)
Filename: SP_QIG_TFC-210_2000.pdf
Date: 5/9/2007
File Size: 352.40 KB
Download
Quick Installation Guide (Pусский)
Filename: RU_QIG_TFC-210_2000.pdf
Date: 5/9/2007
File Size: 1.49 MB
Download

Product Images

JPEG Image
File Size: : 397.70 KB
Date: : 5/9/2007
Download
TIFF Image
File Size: : 4.47 MB
Date: : 5/9/2007
Download
ROHS compliant WEEE crossed-out bin symbol.
Hardware
Standard
  • IEEE 802.3 10Base-T
  • IEEE 802.3u 100Base-TX, 100Base-FX
Network Media
  • 10Base-T: UTP/STP Cat. 3, 4, 5, EIA/TIA-568 100-ohm
  • 100Base-TX: UTP/STP Cat. 5, EIA/TIA-568 100-ohm
  • 100Base-FX: 50/125μm or 62.5/125μm Multi-Mode Duplex ST-Type Fiber Cable, up to 2km
Protocol
  • CSMA/CD
Frame Packet Size
  • 64 ~ 1600 Bytes
Ports
  • 1 x 10/100Base-TX RJ-45 Port
  • 1 x 100Base-FX Multi-Mode ST-Type Fiber Port

Dip Switch

  • Dip Switch 1
    • ON: TX Port Fully Duplex
    • OFF: TX Port Auto- Negotiation

  • Dip Switch 2
    • ON: FX Port Half Duplex
    • OFF: FX Port Full Duplex

  • Dip Switch 3
    • ON: LLCF Enable
    • OFF: LLCF Disable

  • Dip Switch 4
    • ON: Pure Converter Mode
    • OFF: Switch Converter Mode

      * After changing the DIP Switch settings, power cycle the Fiber Converter.
Transfer Rate
  • 100Mbps (Half/Full Duplex)
Diagnostic LED
  • Per Device: Power
  • Per Port:
    • (TX): 100Mbps, Link/Activity, Full Duplex/Collision
    • (FX): Link/Activity, Full Duplex/Collision
Power Adapter
  • 9V DC, 700mA External Power Adapter
Power Consumption
  • 2.7 Watts (max)
Dimensions
  • 85 x 125 x 25mm (3.35 x 4.92 x 0.98in.)
Weight
  • 295g (10.4oz.)
Temperature
  • Operating : 0° C ~ 45° C (32° F ~ 113° F)
  • Storage : -40° C ~ 70° C (-40°F ~ 158° F)
Humidity
  • 5% ~ 90% RH
Certification
  • CE, FCC

PACKAGE CONTENTS
  • TFC-210MST
  • Multi-Language Quick Installation Guide
  • Power Adapter
