WiFi Everywhere™ Powerline 1200 AV2 Wireless Kit

TPL-430APK   (Version v2.0R)

   Select Another Version
  • Powerline 1200 networking over existing electrical lines
  • Powerline kit includes TPL-423E and TPL-430AP
  • TPL-430AP features a dual-band wireless AC1200 access point with three gigabit ports
  • Enhanced Powerline performance and range from MIMO with Beamforming technology
  • Easy installation – TRENDnet adapters auto-connect out of the box
  • Pre-encrypted for your convenience
  • Powerline range of up to 300m (984 ft.) over existing electrical lines
  • WiFi Clone button copies your existing wireless network settings to the TPL-430AP for faster network integration
  • NDAA compliant
NDAA Compliant

Firmware

Firmware
DO NOT upgrade firmware on any TRENDnet product using wireless connection.
Firmware upgrade over wireless connection may damage the product. Please perform firmware upgrade with "wired" network connection only

Version: 1.0.1
Date: 4/2021
Note:

  • Add Static IP Address
  • Add Enable/Disable SSID

Filename: TPL-430AP_FW1.0.1.zip
SHA-1 Checksum: 323C928E698004B96E91EAE3C33CC78023CAE909
Date: 4/1/2021
File Size: 7.73 MB
Download

Datasheet

Datasheet (English)
Filename: EN_datasheet_TPL-430APK_(v2.0R).pdf
Date: 10/18/2022
File Size: 480.11 KB
Download Email
Datasheet (Français)
Filename: FR_datasheet_TPL-430APK_(v2.0R).pdf
Date: 1/17/2020
File Size: 460.56 KB
Download Email
Datasheet (Español)
Filename: SP_datasheet_TPL-430APK_(v2.0R).pdf
Date: 1/17/2020
File Size: 461.12 KB
Download Email

Quick Installation Guide

Quick Installation Guide (English)
Filename: qig_lineart QIG_TPL-430APK(V2)_(CD15-curved)_081919.pdf
Date: 1/17/2020
File Size: 1.16 MB
Download

User's Guide

User's Guide
Filename: UG_TPL-430AP(v1.0R)_TPL-430APK(v2.0R).pdf
Date: 1/20/2021
File Size: 1.65 MB
Download

Product Images

PNG Image
File Size: : 3.21 MB
Date: : 7/20/2021
Download
PNG Image
File Size: : 2.92 MB
Date: : 7/20/2021
Download
PNG Image
File Size: : 2.14 MB
Date: : 7/20/2021
Download
PNG Image
File Size: : 1.93 MB
Date: : 7/20/2021
Download
PNG Image
File Size: : 1.93 MB
Date: : 7/20/2021
Download
PNG Image
File Size: : 1.86 MB
Date: : 7/20/2021
Download
PNG Image
File Size: : 1.66 MB
Date: : 7/20/2021
Download
PNG Image
File Size: : 3.43 MB
Date: : 7/20/2021
Download
PNG Image
File Size: : 1.45 MB
Date: : 7/20/2021
Download
PNG Image
File Size: : 1.60 MB
Date: : 7/20/2021
Download
ROHS compliant WEEE crossed-out bin symbol.

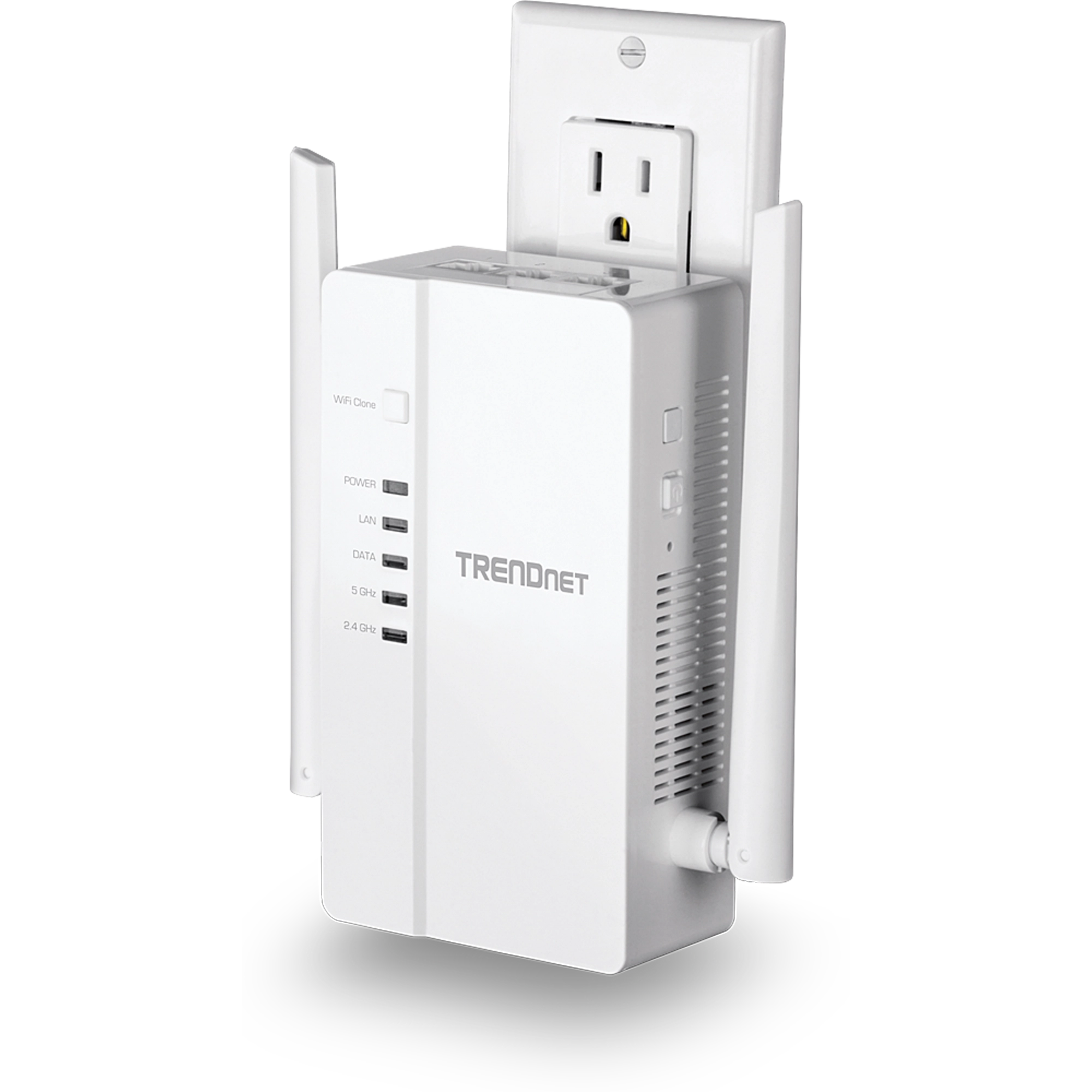

TPL-430AP
Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3ab
  • IEEE 802.11a
  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.11n (up to 300Mbps)
  • IEEE 802.11ac (up to 867Mbps)
  • IEEE 1901
Device Interfaces
  • 3 x Gigabit LAN ports
  • WiFi Clone button
  • Reset button
  • Sync button
  • Power switch
  • LED indicators
  • Power plug
  • Type B (NEMA 5–15)
Frequency Band
  • 2–67MHz
Modulation/Protocol
  • OFDM Symbol Modulation on link synchronization, 4096/1024/256/64/8 - QAM, QPSK, BPSK, ROBO Carrier
  • CSMA/CA
Networking Distance
  • Powerline: Up to 300m (984 ft.) linear distance over electrical power lines***
Encryption
  • Wireless: WPA2-PSK
  • Powerline: 128-bit AES (Advanced Encryption Standard)
Powerline Nodes
  • Up to 8 (max.)
Overlapping Powerline Networks
  • Up to 4 (per electrical system)
Special Features
  • Auto-connects to other TRENDnet Powerline adapters
  • Additional Ethernet ports for wired connectivity
  • Automatically clones the SSID and password of your WiFi network
  • IPv6 support
  • QoS Management
  • IGMP / MLDv2 Streams
Antenna Gain
  • 2.4GHz: 2 x 3.31dBi
  • 5GHz: 2 x 4.51dBi
Wireless Output Power/Receiving Sensitivity
  • 802.11a: 16dBm (typical) / -65dBm (typical) @ 54Mbps
  • 802.11b: 20dBm (typical) / -88dBm (typical) @ 11Mbps
  • 802.11g: 15dBm (typical) / -76dBm (typical) @ 54Mbps
  • 802.11n (2.4GHz): 13dBm (typical) / -73dBm (typical) @ 300Mbps
  • 802.11n (5GHz): 16dBm (typical) / -70dBm (typical) @ 300Mbps
  • 802.11ac: 15dBm (typical) / -60dBm (typical) @ 867Mbps
Power
  • Input: 100 – 240V AC, 50/60Hz, 0.2A
  • Max. consumption 12W
Operating Temperature
  • 0° – 40° C (32° – 104° F)
Operating Humidity
  • Max. 90% non-condensing
Certifications
  • FCC
  • IC
Dimensions
  • 255 x 130 x 75mm (10.04 x 5.11 x 2.95in.)
Weight
  • 332g (11.7 oz.)
Warranty
  • 3 year
TPL-423E
Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3ab
  • IEEE 1901
Device Interfaces
  • 1 x Gigabit LAN ports
  • Sync button
  • Reset button
  • LED indicators
  • Power plug
  • Type B (NEMA 5–15) (10A max. @ 120V AC)
Frequency Band
  • 2 – 67.5MHz
Data PHY Rate
  • Up to 1200Mbps
Networking Distance
  • Powerline: Up to 300m (984 ft.) linear distance over electrical power lines***
Encryption
  • Powerline: 128-bit AES (Advanced Encryption Standard)
Powerline Nodes
  • Up to 8 (max.)
Overlapping Powerline Networks
  • Up to 4 (per electrical system)
Special Features
  • Built-in power socket
  • Auto-connects to other TRENDnet Powerline adapters
  • IPv6 support
  • IGMP / MLDv2 Streams
Power
  • Input: 100 – 240V AC, 50/60Hz, 0.2A
  • Max. consumption: Active mode: 4W; Standby mode: 0.5W
Operating Temperature
  • 0° – 50° C (32° – 122° F)
Operating Humidity
  • Max. 90% non-condensing
Certifications
  • FCC
  • IC
Dimensions
  • 120 x 60 x 65mm (4.73 x 2.4 x 2.6 in.)
Weight
  • 176g (6.2 oz.)
Warranty
  • 3 year

PACKAGE CONTENTS
  • TPL-430AP
  • TPL-423E
  • Quick Installation Guide
  • 2 x Network cable (1.5m / 5 ft.)

Do not use this unit with a power strip that is powering other devices. Max voltage cannot exceed 120V AC, 10A.

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.

Not Available in Europe
