Advanced Day/Night Network Camera Server
TV-IP300 (Version A1)
- Excellent night recording with infrared lens technology
- Superb image quality from MPEG-4 compression and CCD sensor
- View streaming video, hear sounds and record from any Internet connection
- Built-in input/output ports to trigger alarm and email notification
DISCONTINUED PRODUCT
The TV-IP300 (Version A1) has been discontinued. It has been replaced by the TV-IP1313PI (Version v1.0R). For a list of discontinued products, click here.Utility
Filename: IPWatch_Lite_2.0.28.zip
SHA-1 Checksum: 3C09C57561E260CC76450CF21C2B84B722398450
Date: 7/25/2017
File Size: 19.09 MB
Firmware
DO NOT upgrade firmware on any TRENDnet product using wireless connection. Firmware upgrade over wireless connection may damage the product. Please perform firmware upgrade with "wired" network connection only |
Firmware Version: 1.05
Release Date: 7/18/05
Update:
- Fix DHCP
Filename: Firmware_TV-IP300_1.05.zip
SHA-1 Checksum: A1A4FA98CBCE503ACE00990F2A651B2961A6E8D4
Date: 7/25/2017
File Size: 1.04 MB
Datasheet
Filename: EN_Spec_TV-IP300.pdf
Date: 9/19/2007
File Size: 333.75 KB
Filename: FR_Spec_TV-IP300.pdf
Date: 9/19/2007
File Size: 321.00 KB
Filename: GE_Spec_TV-IP300.pdf
Date: 9/19/2007
File Size: 342.83 KB
Filename: SP_Spec_TV-IP300.pdf
Date: 9/19/2007
File Size: 321.94 KB
Filename: RU_Spec_TV-IP300.pdf
Date: 9/19/2007
File Size: 1.28 MB
Quick Installation Guide
Filename: QIG_TV-IP300(English).pdf
Date: 2/16/2005
File Size: 432.76 KB
Filename: QIG_TV-IP300(French).pdf
Date: 2/16/2005
File Size: 434.82 KB
Filename: QIG_TV-IP300(German).pdf
Date: 2/16/2005
File Size: 434.48 KB
Filename: QIG_TV-IP300(Spanish).pdf
Date: 2/16/2005
File Size: 434.21 KB
Frequently Asked Questions (FAQ)

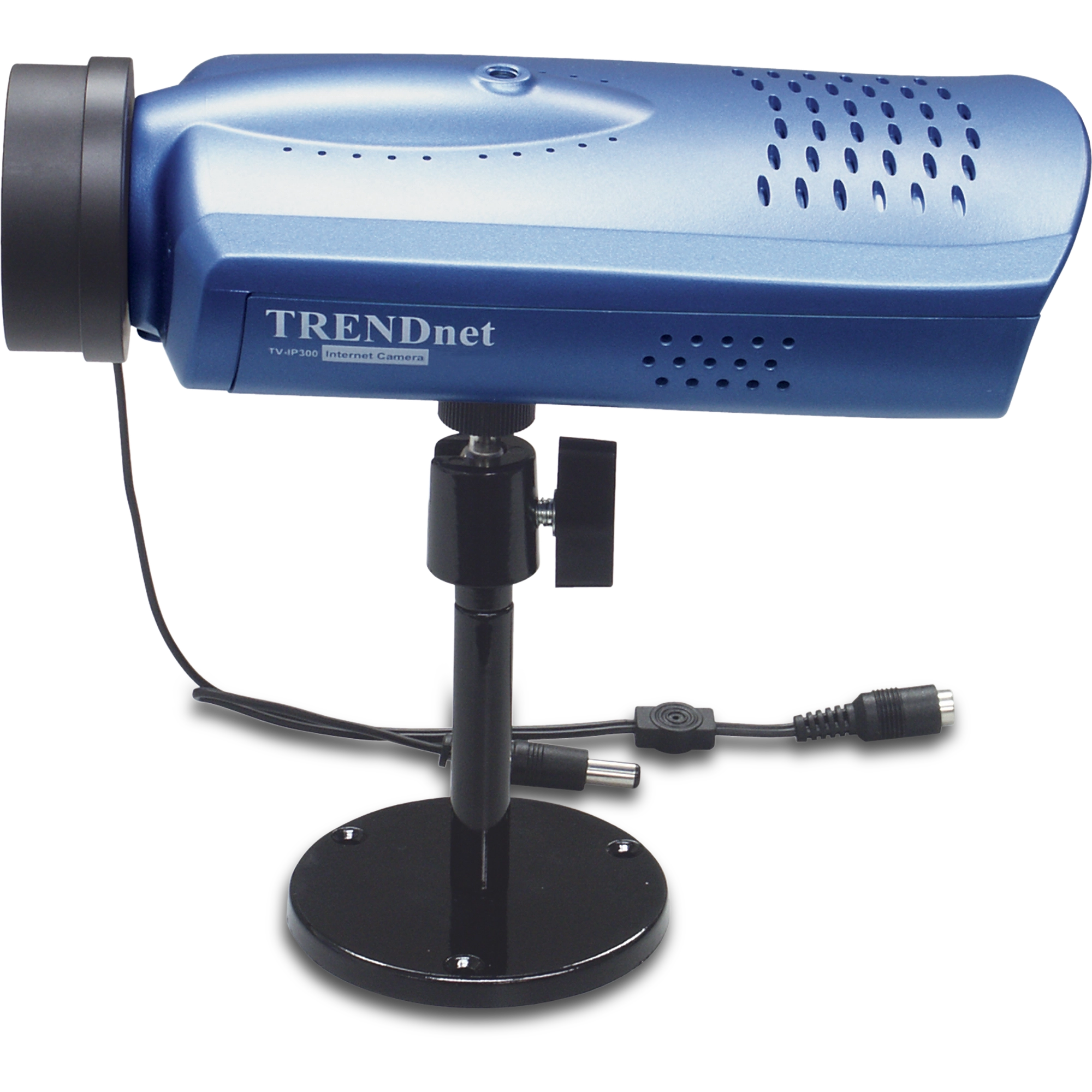

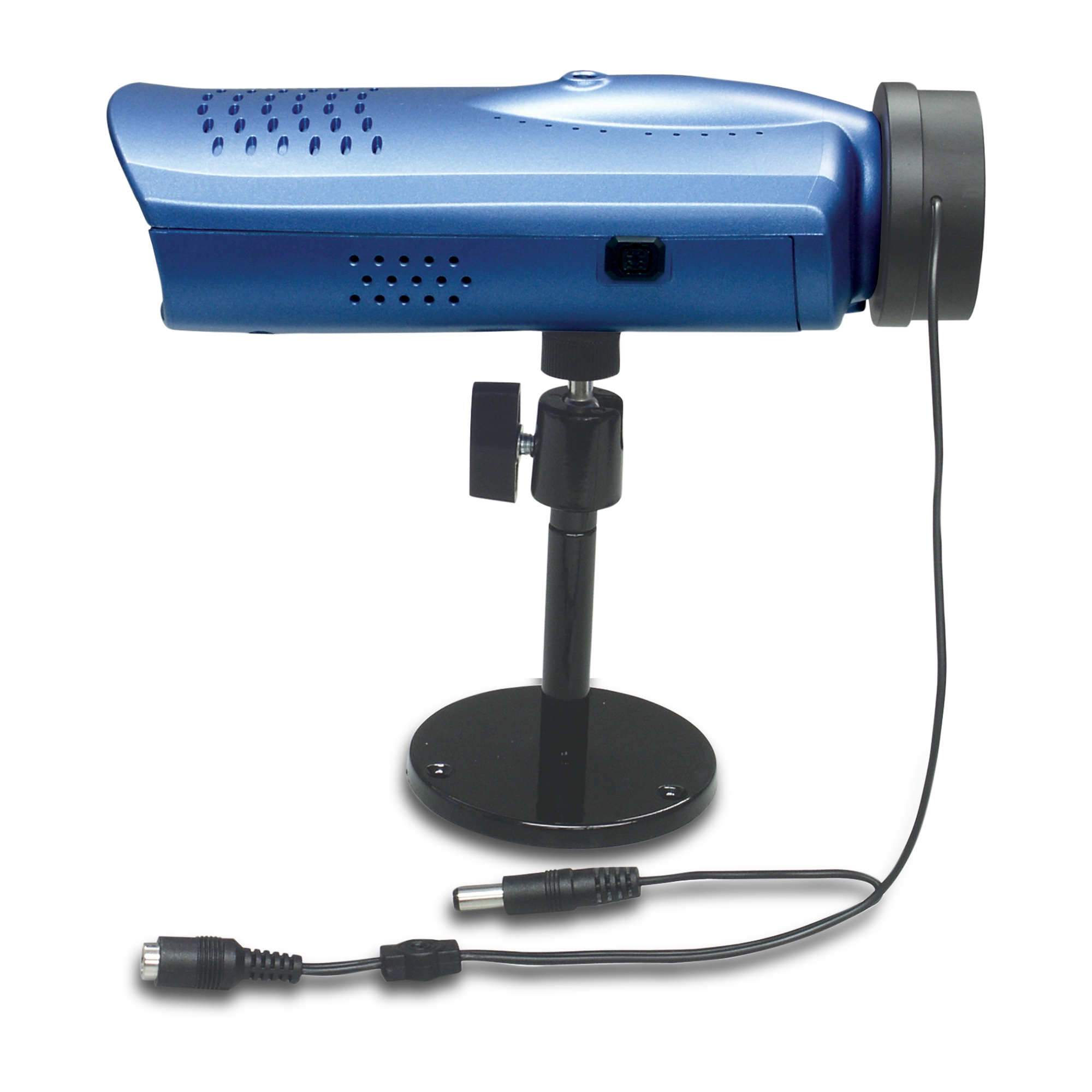

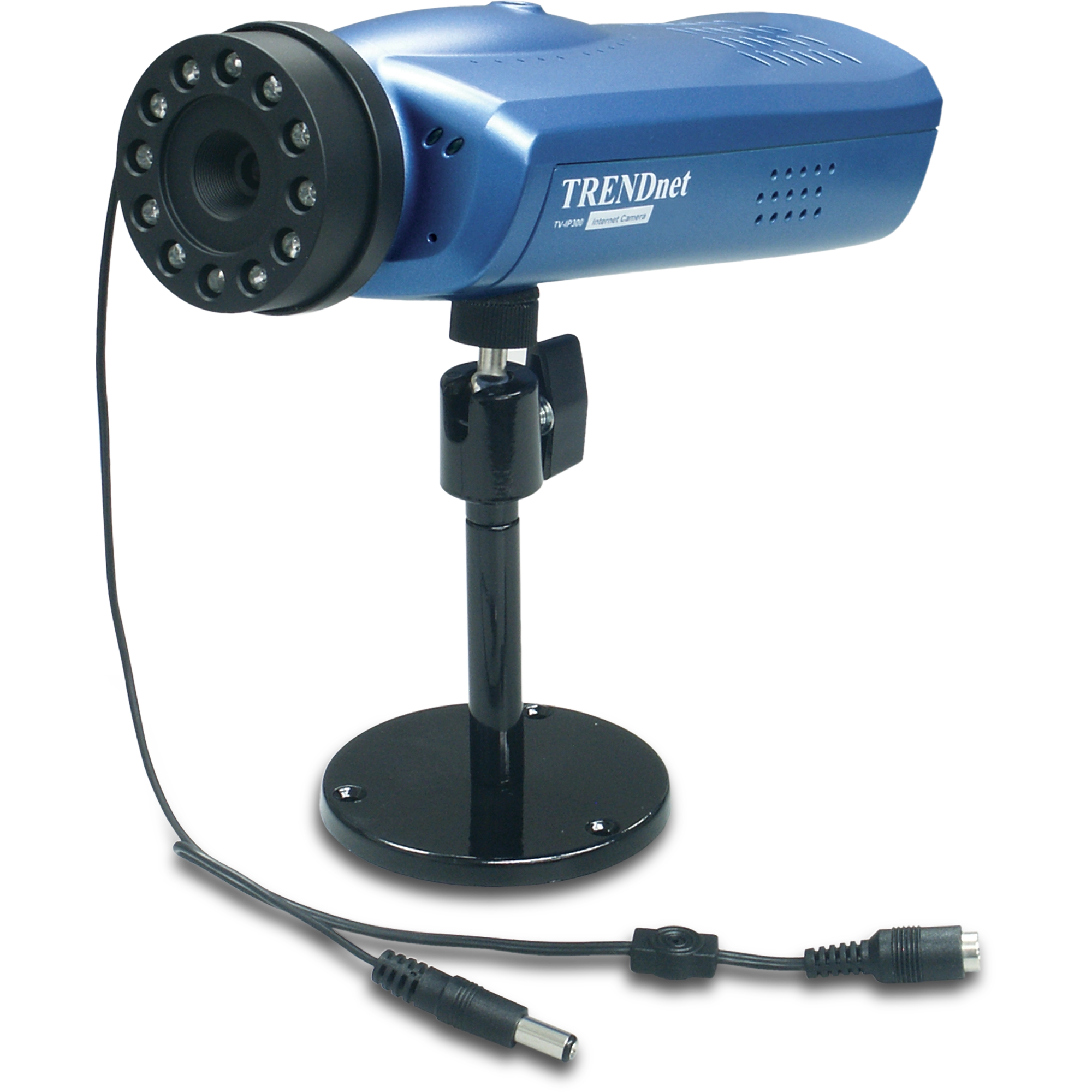

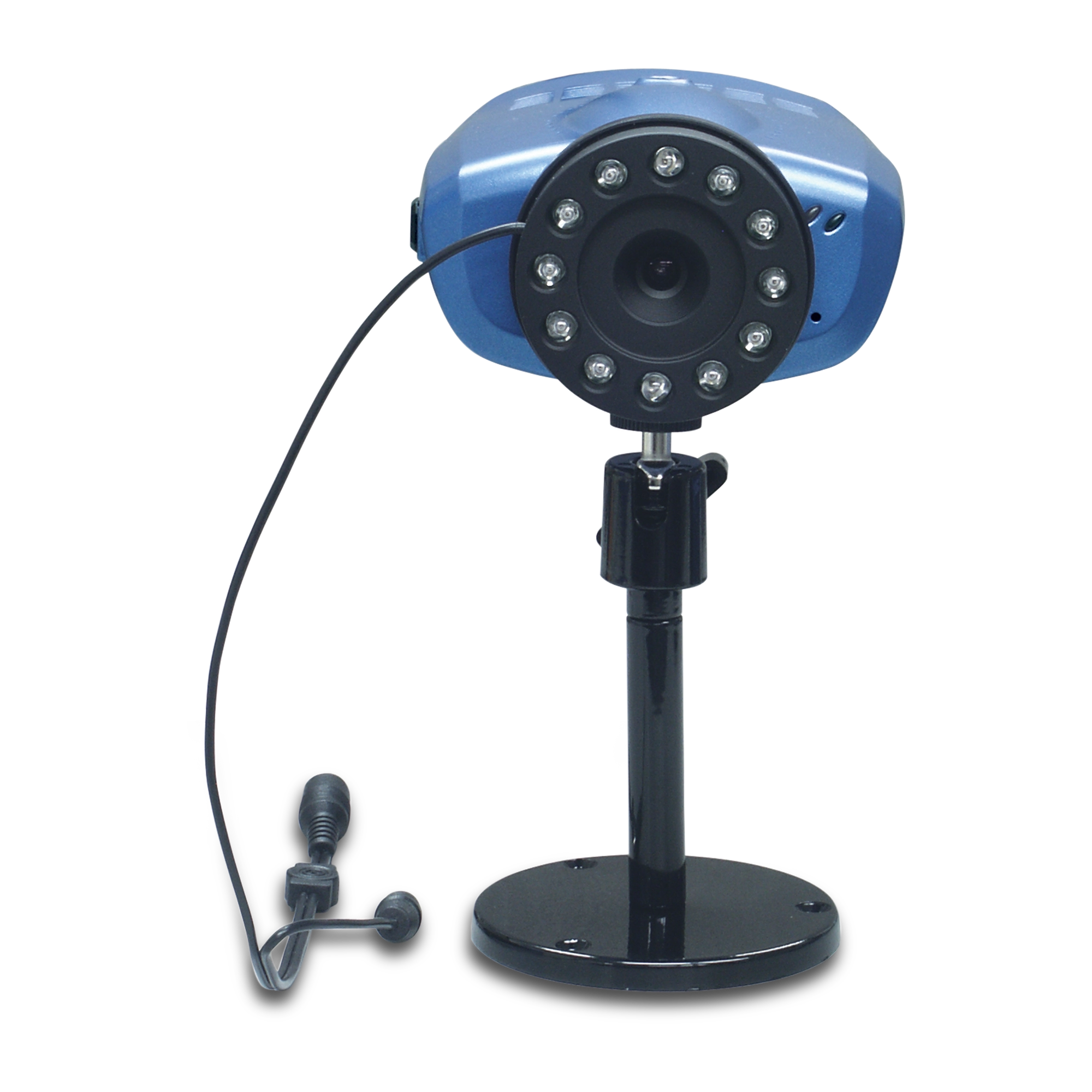

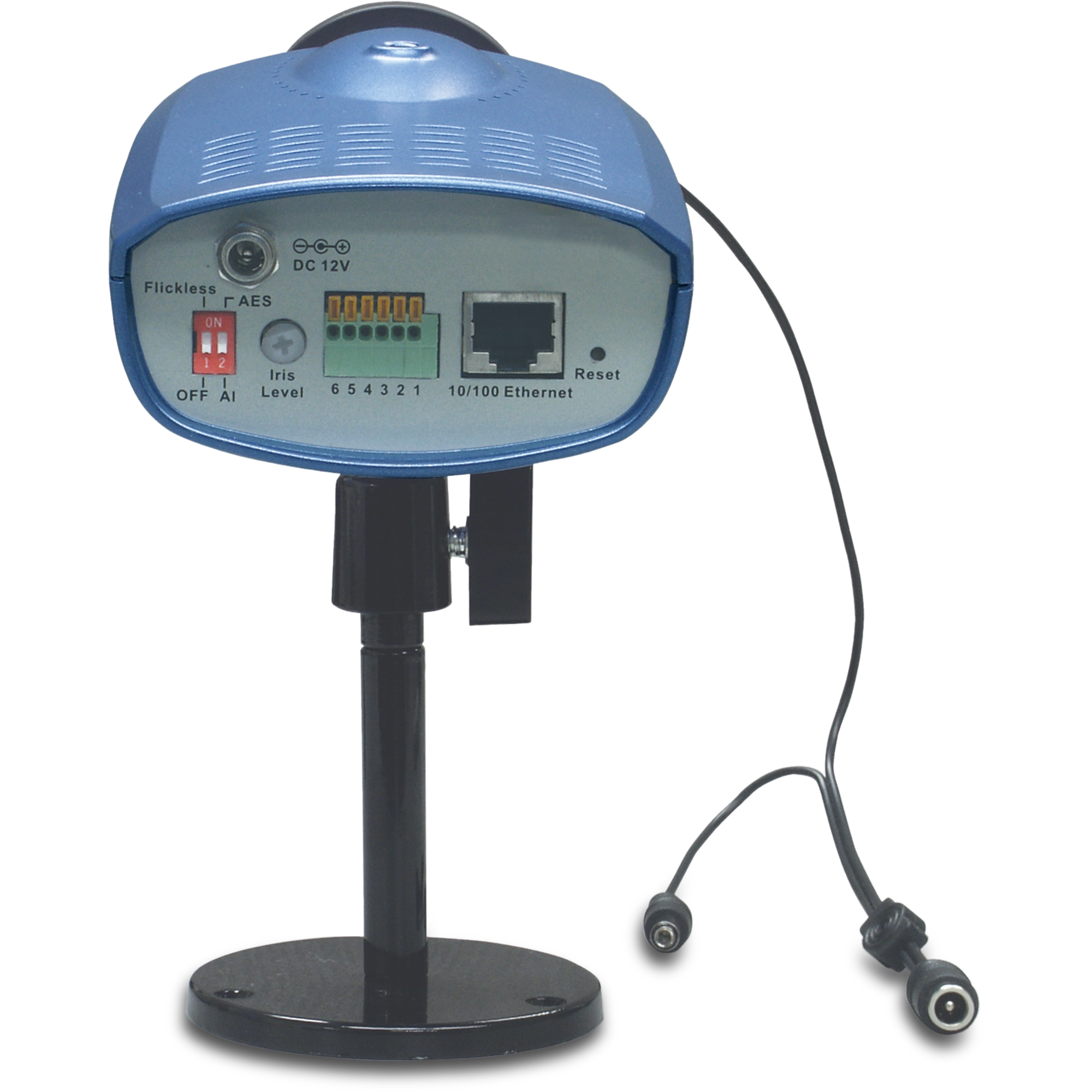

Product Images
| Specifications | |
| Image Sensor | |
| Sensor: | Sharp 1/4” type CCD |
|---|---|
| Resolution : | 512 x 480(NTSC), 512 x 576(PAL) |
| Lens: | Built-in f 6.0mm F1.8 IR Lens (CS-Mount Standard, Replaceable) |
| Audio | |
| MIC Input | Internal MIC (mono) S/N ratio: More than 60dB Frequency: 50 ~ 16000Hz |
| Speed | 24Kbps bit Rate 8K Sampling Rate |
| Video | |
| Frame Rate: | 30fps@CIF(NTSC), 25fps@CIF(PAL) |
| Compression: | MPEG4 short header mode compression |
| Resolution: | CIF(350x240NTSC, 352x288PAL) QCIF(176x120NTSC, 176x144PAL) |
| Up/Down Reversal: | Yes |
| Left/Right Reversal: | Yes |
| Bit Rate Selection: | 8 Levels |
| Quality Selection: | 5 Levels |
| Max Frame Rate Selection: | 9 Levels |
| Brightness Control: | Yes |
| Contrast Control: | Yes |
| Flicker Reduction: | Yes |
| Saturation Control: | Yes |
| Hue Control: | Yes |
| Gain/Exposure/White Balanced Control: | Automatic |
| Iris Level: | Adjustable VR for Iris Control Adjustment |
| Motion Detection: | Yes |
| Lux | IR on : 0 lux ; IR Off: 1 lux |
| System | |
| CPU: | Philips Trimedia PNX1300 VLIW DSP |
| RAM/Flash ROM: | 16Mbytes/2Mbytes |
| OS: | Linux |
| I/O & Control | |
| Generic Input: | 1 set, 2 pin (photo coupler, 12V DC 50mA max) |
| Generic Output: | 1 set, 2 pin (relay, 24V DC 1A/125V AC 0.5A) |
| RS-485: | 2 pin (Half Duplex) |
| Requirements | |
| Memory Size | 128M (256 Recommended) |
| Pentium III, 450 MHz or above VGA card resolution: 800 x 600 or above | |
| Physical Environment | |
| Dimensions: | 195x90x50 mm (7.7x3.5x2 inches) |
| Weight: | 270 grams (9.5 oz) |
| Stand Height: | 120 mm (4.7 inches) |
| Power: | 12V DC, 1.5A External Adapter |
| Consumption: | 7 watt ( 580mA x 12V), max |
| Temperature: |
|
| Humidity: | 5% ~ 95% non-condensing |
| LED: |
|
| Humidity | 5% ~ 95% Non-Condensing |
| Certifications: | FCC. CE, VCCI Class B |
| Communication Protocols | |
| LAN: | 10/100Mbps Ethernet, Auto-Sensing |
| Protocol: | HTTP, SMTP, FTP, Telnet, NTP, |
| Software Requirements | |
| Browser: | IE 5.0 or above |
| Application: | IPView SP Software |
| OS: | Windows 98SE, ME, NT4, 2000,XP |
All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
