Cable/DSL VPN Firewall Router
TW100-BRV204
DISCONTINUED PRODUCT
The TW100-BRV204 has been discontinued. For a list of discontinued products, click here.Firmware
DO NOT upgrade firmware on any TRENDnet product using wireless connection. Firmware upgrade over wireless connection may damage the product. Please perform firmware upgrade with "wired" network connection only |
Date: 10-03-2005
Filename: Firmware _TW100-BRV204_1025.zip
TW100-BRV204 Firmware version 1.0. Release 25
Firmware file: "BRV204_1025.img"
Release Note:
This firmware is for TW100-BRV204 Version 1.00. To check the version number, please look for the serial number sticker on the bottom of the unit, the version number is printed on the sticker.
History
Update from firmware version 1.0.24
- Fixes Router could not upload VPN self certificate.
Firmware Upgrade Instruction:
Please download and unzip the firmware file, then follow the instructions in the "readme.txt" to update the firmware.
Filename: Firmware_TW100-BRV204_1025.zip
SHA-1 Checksum: F166C6B3EBB6C94E692FC65204E24458EE430223
Date: 7/28/2017
File Size: 1.13 MB
Datasheet
Quick Installation Guide
Filename: QIG_TW100-BRV204_EN.pdf
Date: 3/29/2005
File Size: 3.61 MB
Filename: QIG_TW100-BRV204_FR.pdf
Date: 3/29/2005
File Size: 3.58 MB
Filename: QIG_TW100-BRV204_GE.pdf
Date: 3/29/2005
File Size: 3.71 MB
Filename: PO_QIG_TW100-BRV204(old).pdf
Date: 10/4/2007
File Size: 1.25 MB
Filename: QIG_TW100-BRV204_SP.pdf
Date: 3/29/2005
File Size: 3.64 MB
Filename: POL_QIG_TW100-BRV204.pdf
Date: 7/23/2007
File Size: 1.40 MB
User's Guide

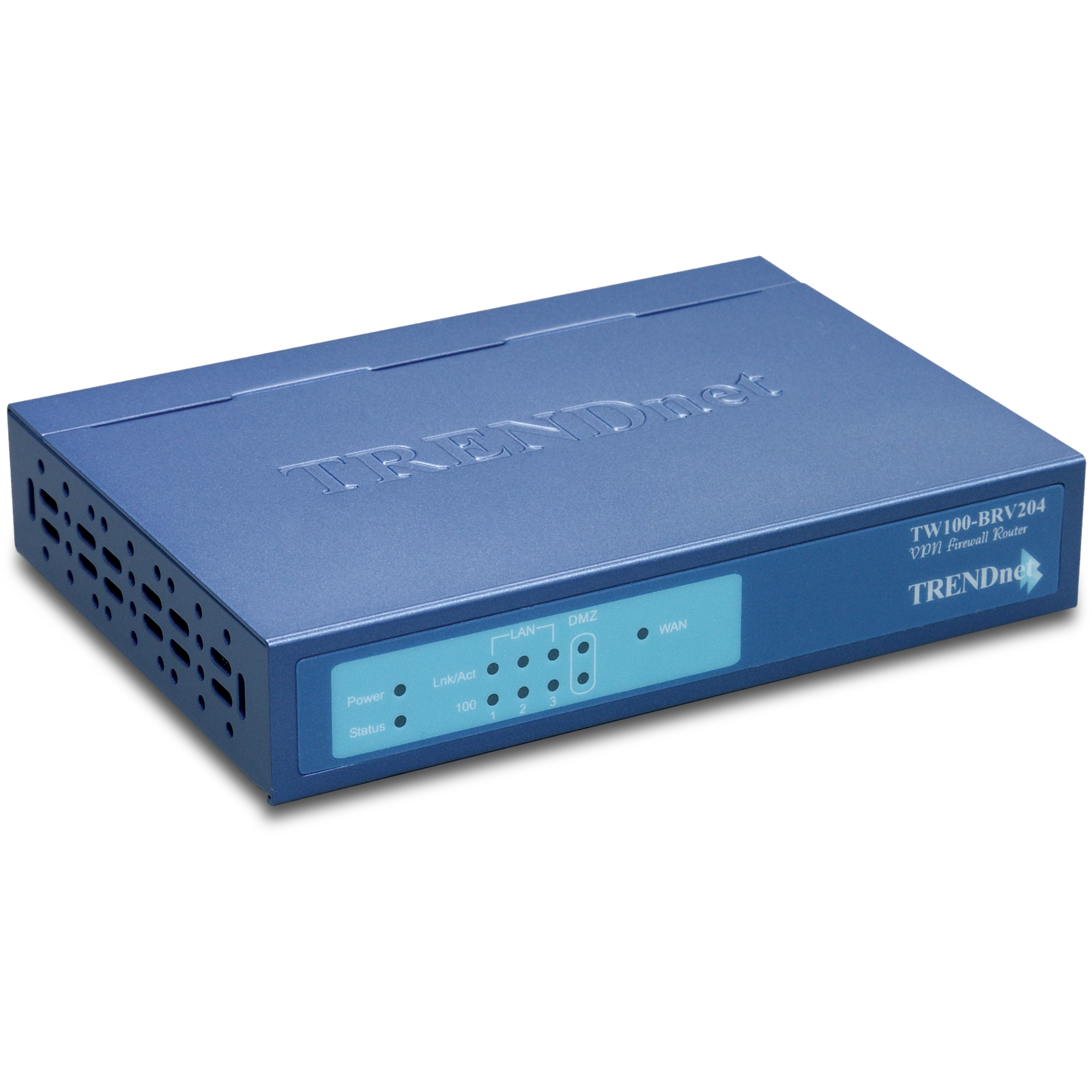

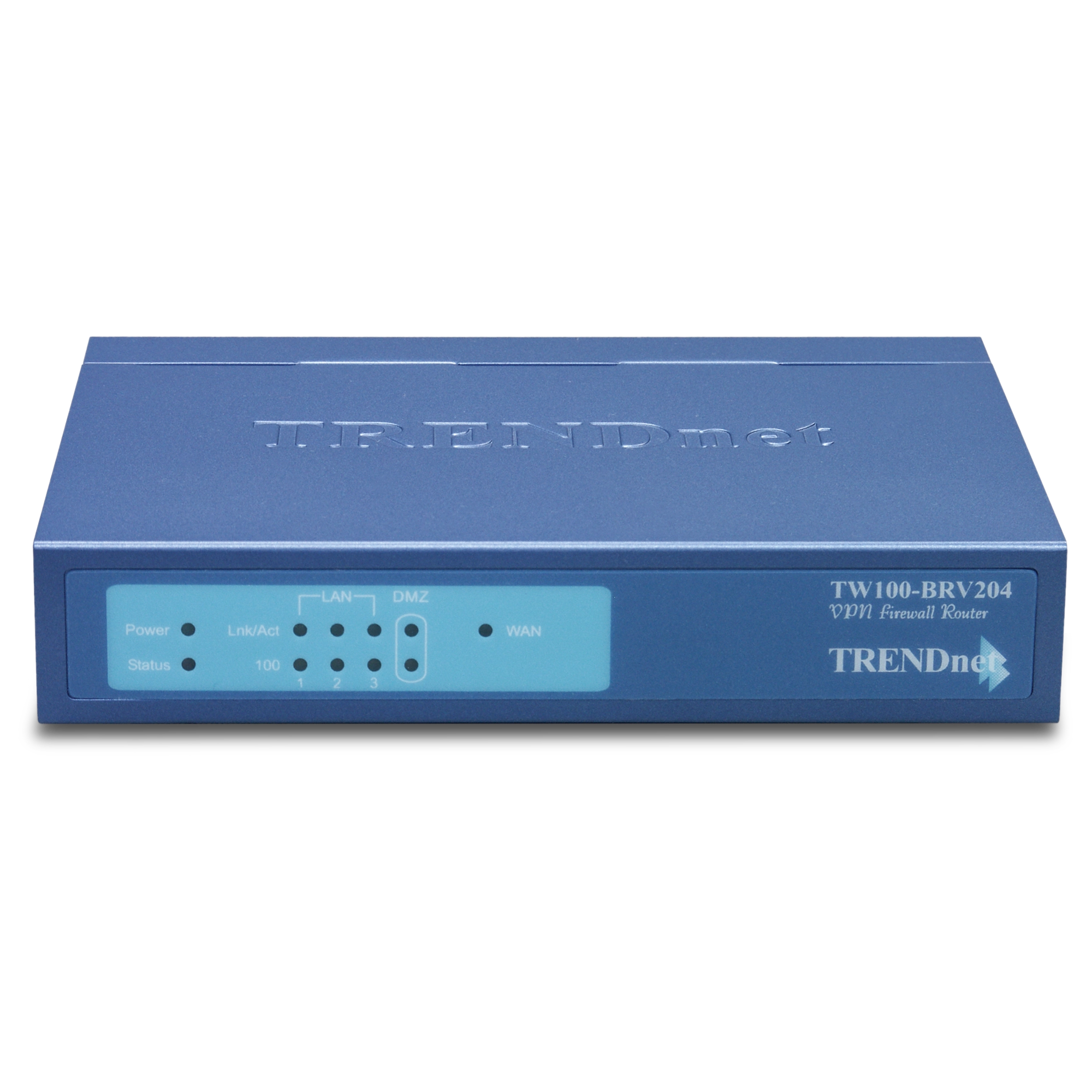

Product Images
Well Known Ports
1) Open your web browser and type the IP address of the TW100-BRV204/304
in the address bar. The default IP address is 192.168.0.1. At the login,
enter your username (blank) and password (blank).
2) Click Security then
Firewall Rules on the left hand side.
3) Sele...
1) Open your web browser and type the IP address of the TW100-BRV204/304 in the
address bar. The default IP address is 192.168.0.1. At the login, enter your
username (blank) and password (blank).
2) Click Microsoft VPN then Server on
the left hand side. Place a check mark in Enable PPTP (VP...
Use the following screenshots as a guide.
Scenario
PC1 (192.168.1.x)-BRV204 (66.135.11.92) ~ BRV304 (64.11.212.22)–PC
2 (192.168.2.x) Simply match both ends information. After the connections are
created, 192.168.1.x should be able to ping 192.168.2.x.
Settings on BRV204
Settings on BR...
Use the following screenshots as a guide
Scenario
PC1 (192.168.1.x)-BRV204 (dynamic) ~ BRV304 (64.11.212.22)–PC 2 (192.168.2.x)
Simply match both ends information. After the connections are created, 192.168.1.x
should be able to ping 192.168.2.x.
Important Note:
1. Please match Local/Remo...
The MAC Address can be found on a label on the bottom of the router. You can
alternately find it by doing the following:
1) Open your web browser and type
the IP address of the TW100-BRV204/304 in the address bar. The default IP address
is 192.168.0.1. At the login, enter your username (...
1) Click Start then click on the Control Panel. For Windows 2000 click on Start,
highlight settings then click on the Control Panel.
2) Double-Click on the Network
Connection icon.
3) Right-Click on the Local Area Connection icon then click
on Properties.
4) Highlight the Interne...
1) Open your web browser and type the IP address of the TW100-BRV204/304 in the
address bar. The default IP address is 192.168.0.1. At the login, enter your
username (blank) and password (blank).
2) Click on LAN on the left hand side.
3) Change the IP address in the IP Address fiel...
The default username & password for the TW100-BRV204/304 are both (blank). There is no username and password set by default....
The default IP address for the TW100-BRV204/304 is 192.168.0.1.

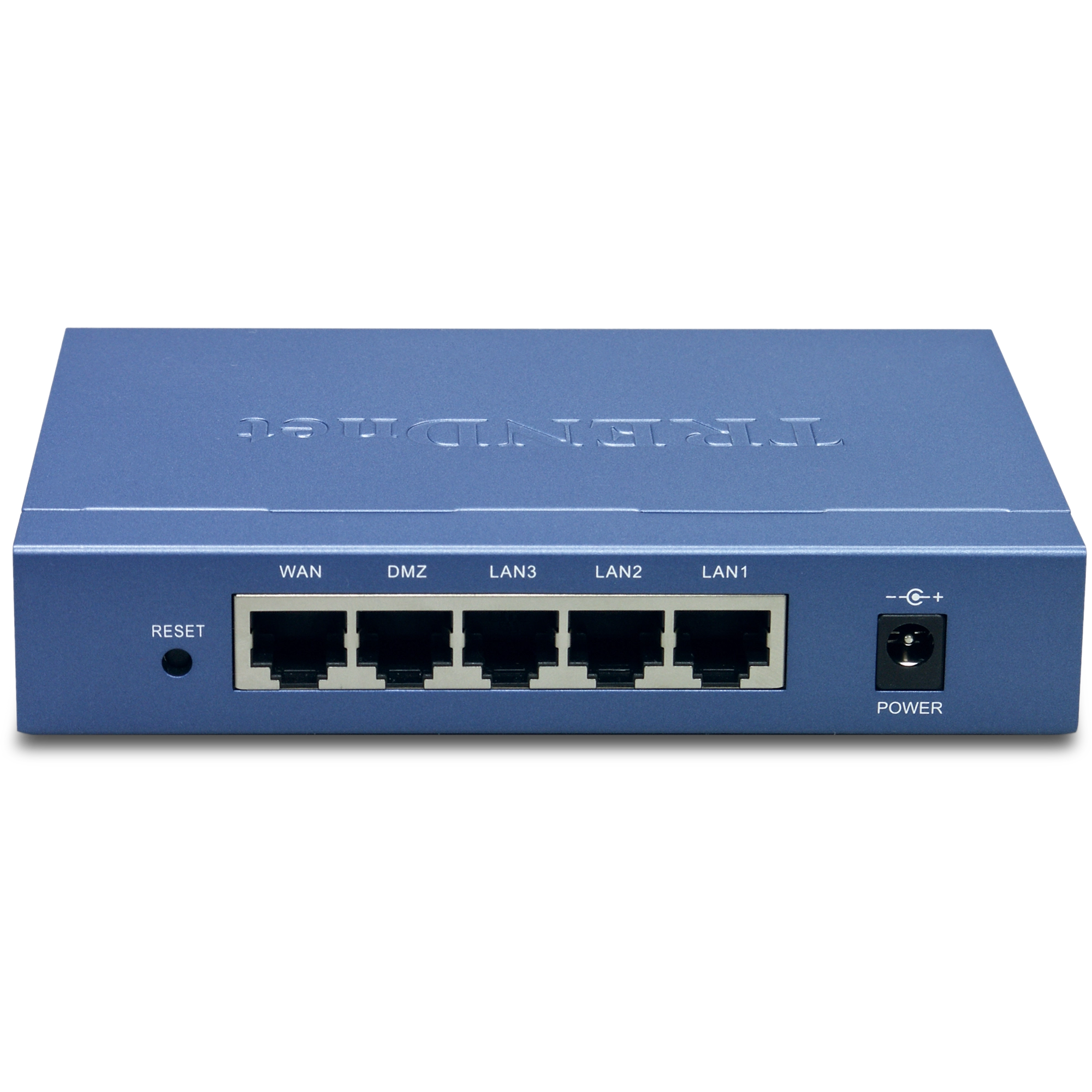

1) Locate the reset button on the back of the TW100-BRV204/304.
2) Press and
hold in the reset button for approximately 15 seconds.
This will reset the
unit back to its default configuration.
...
1) Open your web browser and type the IP address of the TW100-BRV204/304 in the
address bar. The default IP address is 192.168.0.1. At the login, enter your
username (blank) and password (blank).
2) Click on Security then Admin Login
on the left hand side.
3) Enter in the desired...
1) Open your web browser and type the IP address of the TW100-BRV204/304 in the
address bar. The default IP address is 192.168.0.1. At the login, enter your
username (blank) and password (blank).
2) Click on Internet then WAN Port on
the left hand side.
3) Choose None (Direct Con...
Note: The default setting of the router is configured for a Cable connection
using a Dynamic IP Address.
1) Open your web browser and type the IP address
of the TW100-BRV204/304 in the address bar. The default IP address is 192.168.0.1.
At the login, enter your username (blank) and passwor...
1) Open your web browser and type the IP address of the TW100-BRV204/304 in the
address bar. The default IP address is 192.168.0.1. At the login, enter your
username (blank) and password (blank).
2) Click on Internet then WAN Port on
the left hand side.
3) Choose PPPoE for the Logi...
Option 1: Please go to Status section from the configuration page, click on Connection Detail button. Click on Release/Renew button to allow the router to regain fresh connection from your ISP. Then try browsing a website such as https://www.TRENDnet.com again with your Internet browser. Option 2: ...
You can simply contact your Internet Service Provider (ISP)'s Customer Service or Technical Support Department for the correct information. ...
Please check your hardware and TCP/IP settings again by checking through section 1-3, make sure the Power, WAN, and on the LAN lights on the Router's front panel are on and the TCP/IP configurations are done properly. Then try browsing to the 192.168.0.1 again using your Internet browser. ...
| Hardware | |
| Standards: | IEEE 802.3, 802.3u |
|---|---|
| Protocols: | NAT, PPPoE, HTTP, DHCP, TCP/IP, UDP, PAP, CHAP, RIP1, DDNS |
| Firewall: | NAT firewall, Attack Alert (email) and log, Stateful Packet Inspection firewall for DoS (Denial of Service) attacks |
| VPN (IPSec): | MD5-HMAC/SHA1-HMAC authentication, DES-CBC, 3DES-CBC encryption, Internet Key Exchange, Manual Key Negotiation |
| Security: | URL Filter, Access Control, Local Password |
| Local Port: | 4x 10/100Mbps Ethernet port (RJ45), Auto-MDIX |
| Internet Port: | 1x 10/100Mbps Ethernet port (RJ45) |
| LEDs: | Power, Status, Lnk/Act and 100 (LAN 1~4), WAN |
| Power: | 9V DC 700mA External Power Adapter |
| Dimensions (LxWxH): | 141 x 100 x 27 mm (5.5x 3.9 x 1.06 inches) |
| Weight: | Appr. 363g (12.8 oz.) |
| Temperature: |
|
| Humidity: |
|
| Certifications: | FCC, CE, VCCI |
All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
