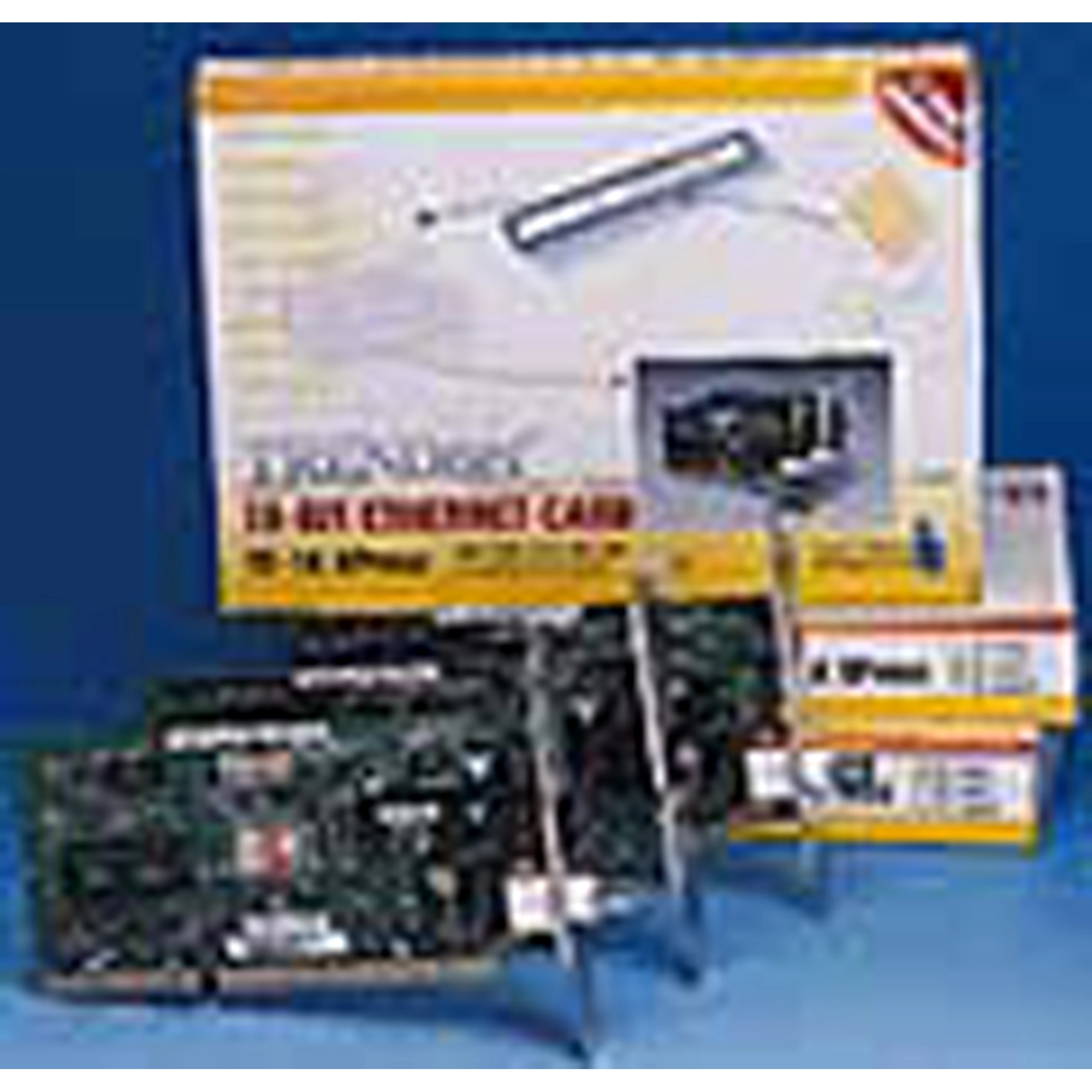

High Performance Ethernet Adapters

TE-16XP   (Version 1.0)

  • High performance Universal Plug and Play Ethernet adapters for desktop PCs
  • The PnP and full-duplex functions increase the channel bandwidth from 10Mbps to 20Mbps
  • Enjoy a 5-year user warranty

DISCONTINUED PRODUCT

The TE-16XP (Version 1.0) has been discontinued. For a list of discontinued products, click here.

Drivers

Driver
Filename: Driver_TE-16XP.zip
SHA-1 Checksum: 964E45ABD527D164F377CB00BC6B51A2A29196B8
Date: 7/25/2017
File Size: 566.07 KB
Download

Datasheet

Datasheet
Filename: Spec_TE-16XP.pdf
Date: 5/2/2013
File Size: 134.38 KB
Download Email
Hardware
Standards:
  • IEEE 802.3 10Base-2 & 10Base-T
IRQ's Supported:
  • 3*, 4, 5, 9, 10, 11, 14
I/O Base Address:
  • 200, 220, 240, 260, 300*, 320, 340, 360
Boot ROM Size:
  • 8K*, 16K
Boot ROM Address:
  • C0000h, C4000h, C8000h, CC000h, D0000h*, D4000h, D8000h, DC000h

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
