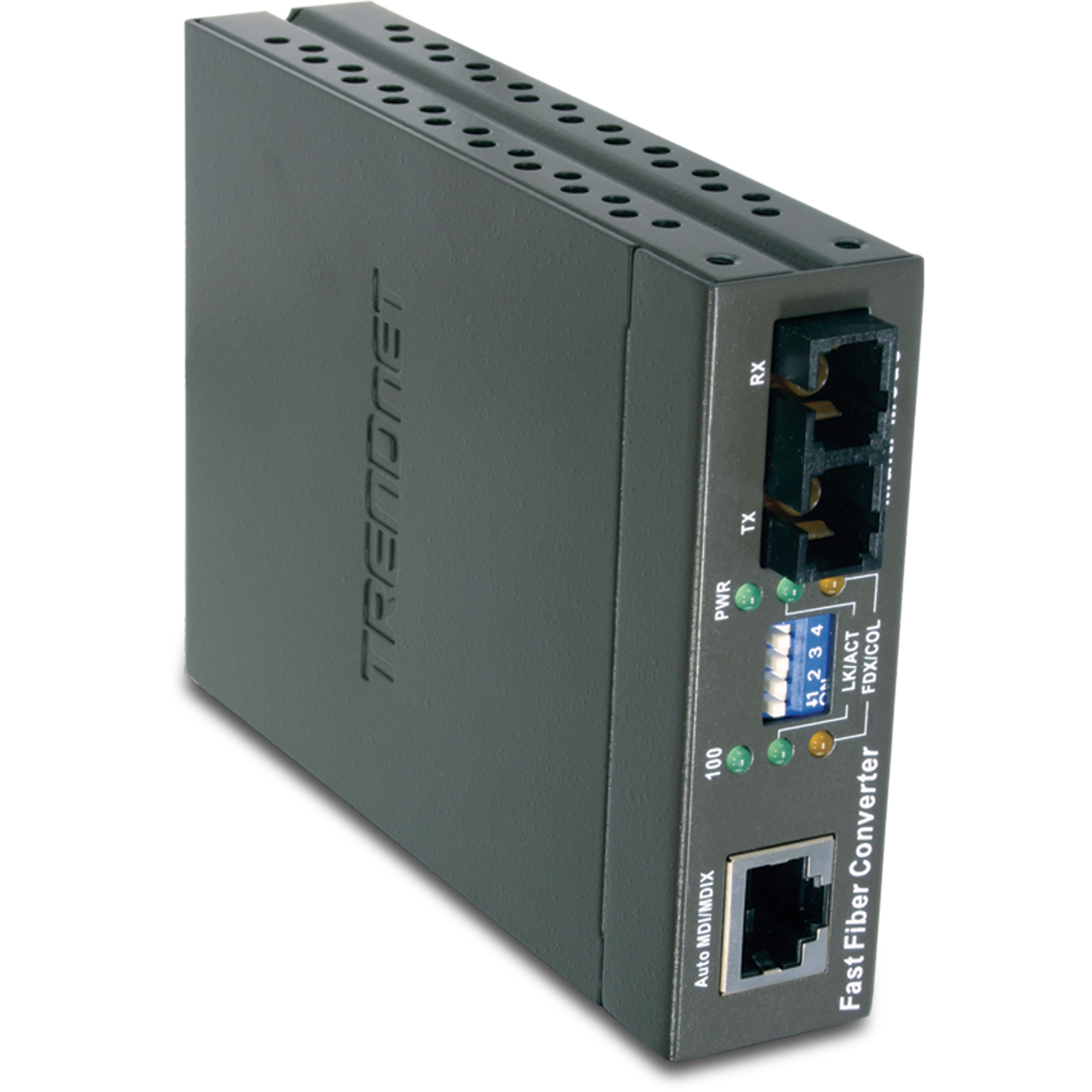

100Base-TX to 100Base-FX Single Mode SC Fiber Converter

TFC-210S30   (Version 1.0R)

  • SC-type single-mode fiber port connects over distances of up to 30km
  • 10/100Base-TX port supports Auto-Negotiation, Auto-MDIX and Full-Duplex mode
  • Functions as a stand alone converter or with the TFC-1000 fiber chassis

DISCONTINUED PRODUCT

The TFC-210S30 (Version 1.0R) has been discontinued. For a list of discontinued products, click here.

Datasheet

Datasheet (English)
Filename: EN_Spec_TFC-210S30(v1.0R).pdf
Date: 5/9/2007
File Size: 168.90 KB
Download Email
Datasheet (Français)
Filename: FR_Spec_TFC-210S30(v1.0R).pdf
Date: 5/9/2007
File Size: 172.72 KB
Download Email
Datasheet (Deutsch)
Filename: GE_Spec_TFC-210S30(v1.0R).pdf
Date: 5/9/2007
File Size: 174.32 KB
Download Email
Datasheet (Español)
Filename: SP_Spec_TFC-210S30(v1.0R).pdf
Date: 5/9/2007
File Size: 168.34 KB
Download Email
Datasheet (Pусский)
Filename: RU_Spec_TFC-210S30(v1.0R).pdf
Date: 5/9/2007
File Size: 932.69 KB
Download Email

Quick Installation Guide

Quick Installation Guide (English)
Filename: EN_QIG_TFC-210_2000.pdf
Date: 5/9/2007
File Size: 357.13 KB
Download
Quick Installation Guide (Français)
Filename: FR_QIG_TFC-210_2000.pdf
Date: 5/9/2007
File Size: 353.35 KB
Download
Quick Installation Guide (Deutsch)
Filename: GE_QIG_TFC-210_2000.pdf
Date: 5/9/2007
File Size: 345.73 KB
Download
Quick Installation Guide (Español)
Filename: SP_QIG_TFC-210_2000.pdf
Date: 5/9/2007
File Size: 352.40 KB
Download
Quick Installation Guide (Pусский)
Filename: RU_QIG_TFC-210_2000.pdf
Date: 5/9/2007
File Size: 1.49 MB
Download

Product Images

JPEG Image
File Size: : 301.43 KB
Date: : 5/11/2007
Download
TIFF Image
File Size: : 1.63 MB
Date: : 5/11/2007
Download
ROHS compliant WEEE crossed-out bin symbol.
Hardware
Standard
  • IEEE 802.3 10Base-T
  • IEEE 802.3u 100Base-TX, 100Base-FX
Network Media
  • 10Base-T: UTP/STP Cat. 3, 4, 5, EIA/TIA-568 100-ohm
  • 100Base-TX: UTP/STP Cat. 5, EIA/TIA-568 100-ohm
  • 100Base-FX: 9/125um Single Mode Simplex SC-Type Cable, up to 30km
Minimum Cable Length
  • 2KM (A third party attenuator is required if the cable length is less than 2KM)
Protocol
  • CSMA/CD
Frame Packet Size
  • 64 to 1600 Bytes
Ports
  • 1 x 10/100Base-TX : RJ-45 Port
  • 1 x 100Base-FX : Single-Mode SC-Type Fiber Port
Dip Switch
  • Dip Switch 1:
    • ON: TX Port Fully Duplex
    • OFF: TX Port Auto- Negotiation

  • Dip Switch 2:
    • ON: FX Port Half Duplex
    • OFF: FX Port Full Duplex

  • Dip Switch 3:
    • ON: LLCF Enable
    • OFF: LLCF Disable

  • Dip Switch 4:
    • ON: Pure Converter Mode
    • OFF: Switch Converter Mode

* After changing the DIP Switch settings, power cycle the Fiber Converter.

Transfer Rate
  • 100Mbps (Half/Full Duplex)
Diagnostic LED
  • Per Device: Power
  • Per Port (TX): 100Mbps, Link/Activity, FullDuplex/Collision
    (FX): Link/Activity, Full Duplex/Collision
Power Adapter
  • 9V DC, 700mA External Power Adapter
Power Consumption
  • 2.7 Watts (max)
Dimensions
  • 85 x 125 x 25mm (3.35 x 4.92 x 0.98in.)
Weight
  • 300g (10.6oz.)
Temperature
  • Operating : 0° C ~ 45° C (32° F ~ 113° F)
  • Storage : -40° C ~ 70° C (-40°F ~ 158° F)
Humidity
  • 5% ~ 90% RH
Certification
  • CE, FCC

PACKAGE CONTENTS
  • TFC-210S30
  • Multi-Language Quick Installation Guide
  • Power Adapter

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
