Power over Ethernet (PoE) Splitter
TPE-102S (Version B1.xR)
- Splits power and data from a single Ethernet cable into two separate sources
- Use this with a TRENDnet PoE switch to power and network a non Power over Ethernet device
- Save on installation and equipment costs
DISCONTINUED PRODUCT
The TPE-102S (Version B1.xR) has been discontinued. It has been replaced by the TPE-104GS (Version v2.0R). For a list of discontinued products, click here.Datasheet
Filename: EN_Spec_TPE-102S.pdf
Date: 12/13/2005
File Size: 333.21 KB
Filename: FR_Spec_TPE-102S.pdf
Date: 12/13/2005
File Size: 334.93 KB
Filename: GE_Spec_TPE-102S.pdf
Date: 12/13/2005
File Size: 334.63 KB
Filename: SP_Spec_TPE-102S.pdf
Date: 12/13/2005
File Size: 334.90 KB
Filename: RU_Spec_TPE-102S.pdf
Date: 12/13/2005
File Size: 331.53 KB
Quick Installation Guide
Filename: EN_QIG_TPE-101I_102S.pdf
Date: 8/25/2006
File Size: 335.99 KB
Filename: FR_QIG_TPE-101I_102S.pdf
Date: 8/25/2006
File Size: 331.89 KB
Filename: GE_QIG_TPE-101I_102S.pdf
Date: 8/25/2006
File Size: 331.80 KB
Filename: SP_QIG_TPE-101I_102S.pdf
Date: 8/25/2006
File Size: 331.56 KB
Frequently Asked Questions (FAQ)

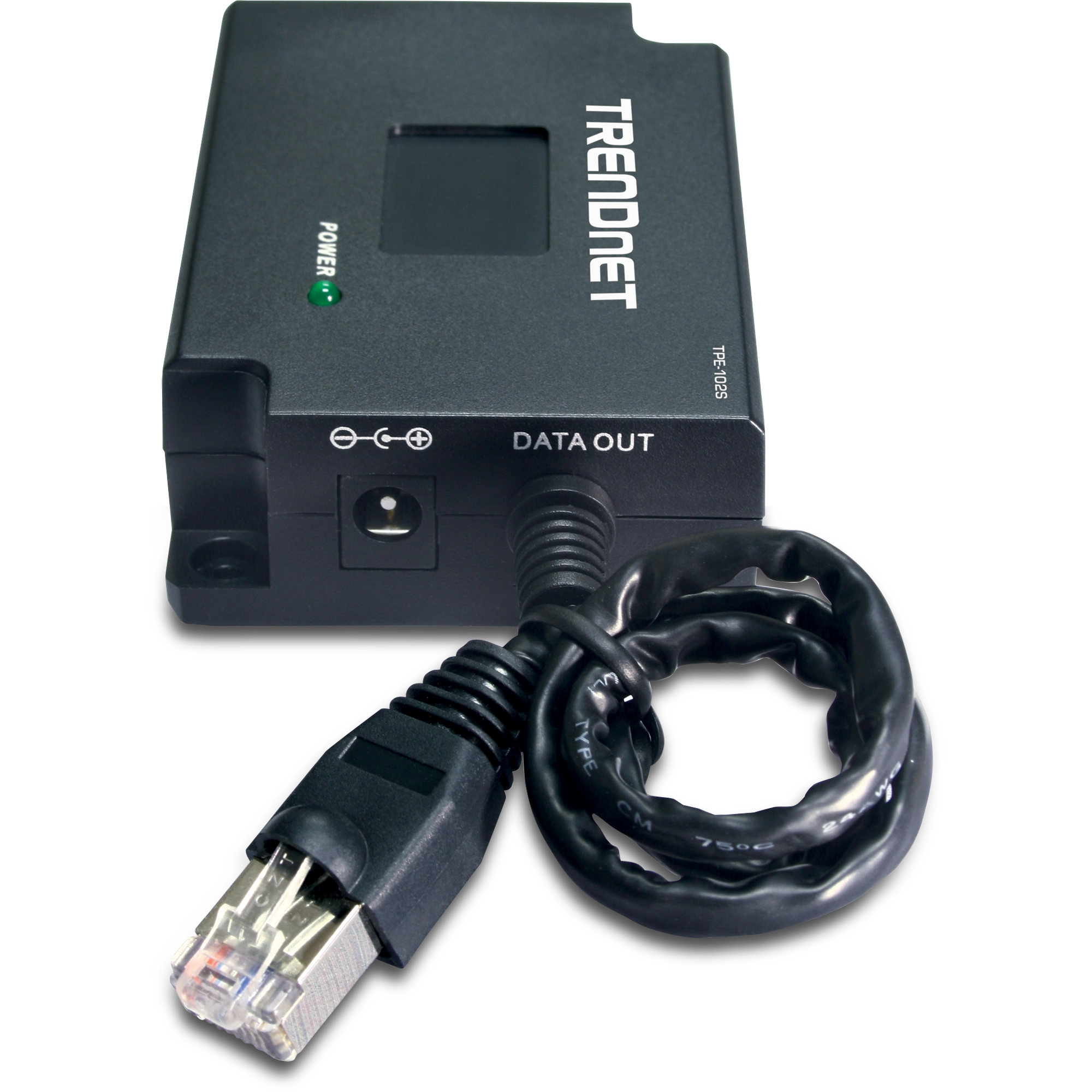

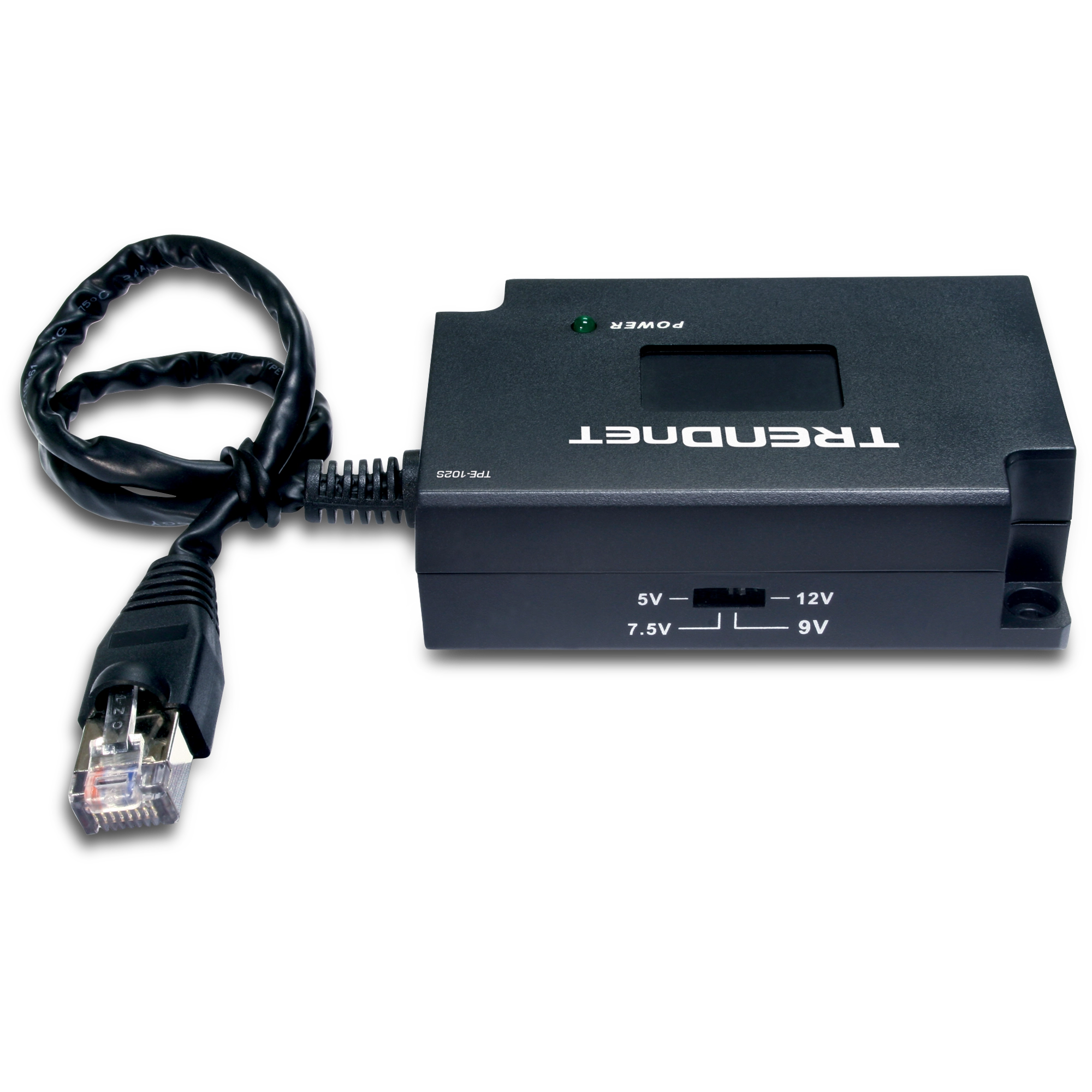

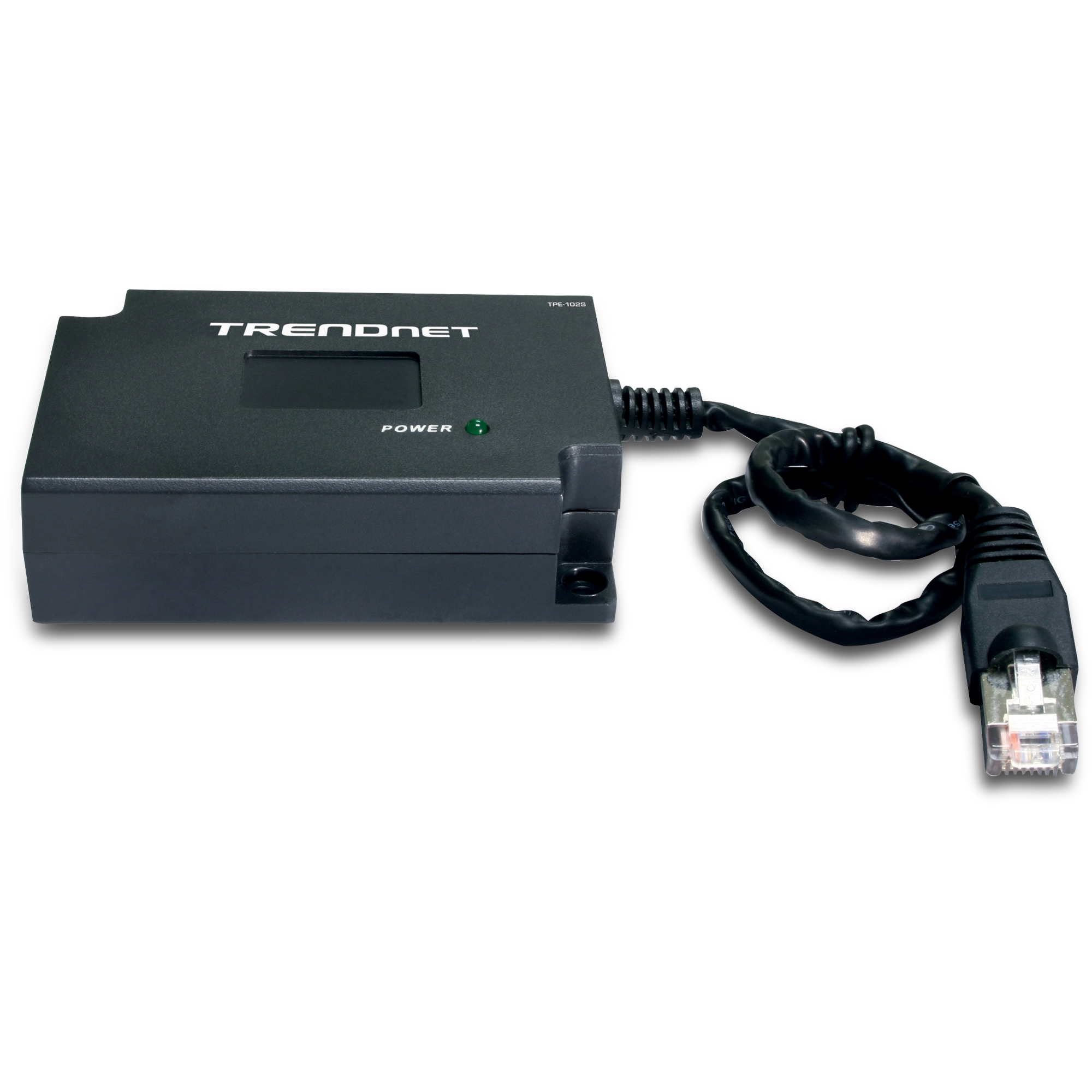

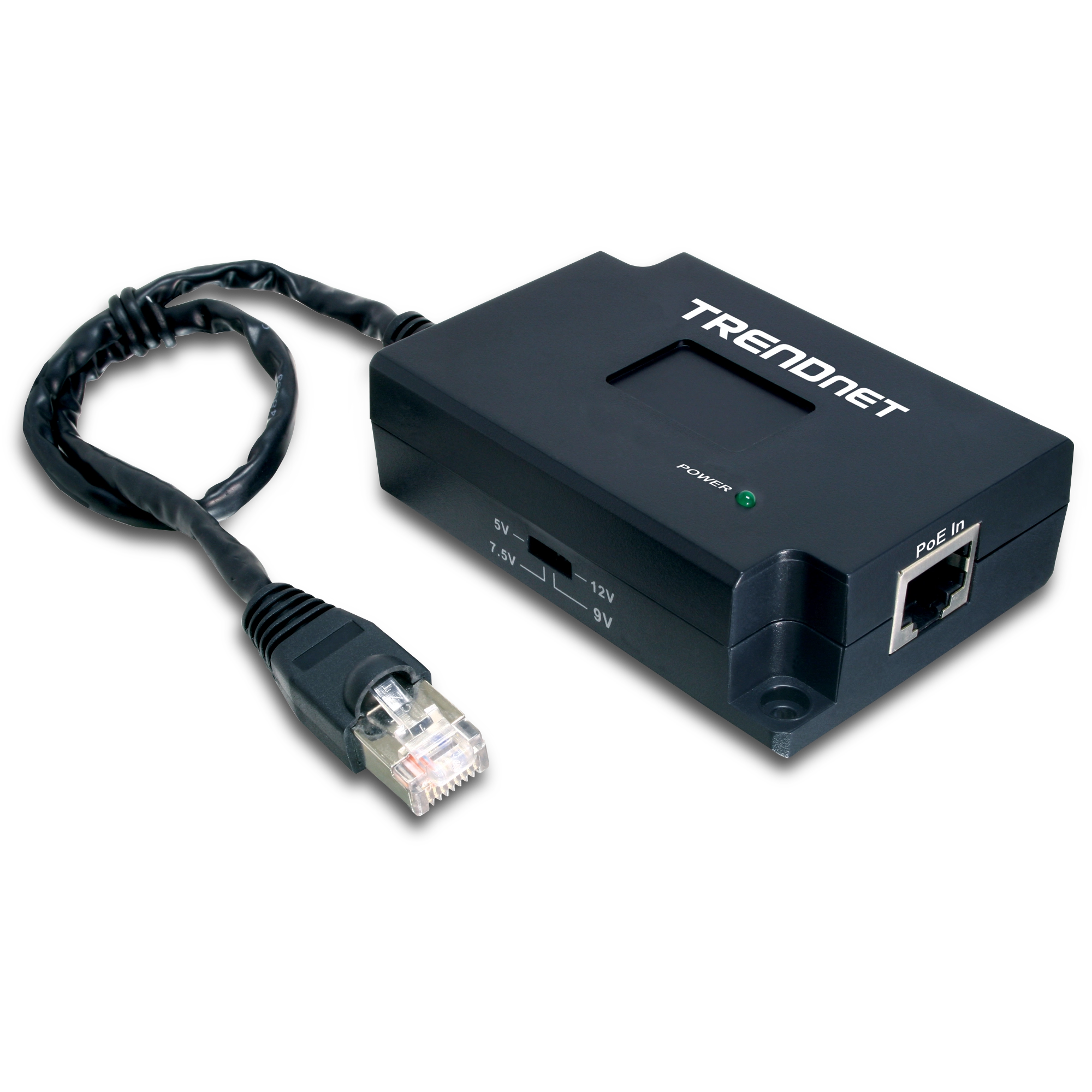

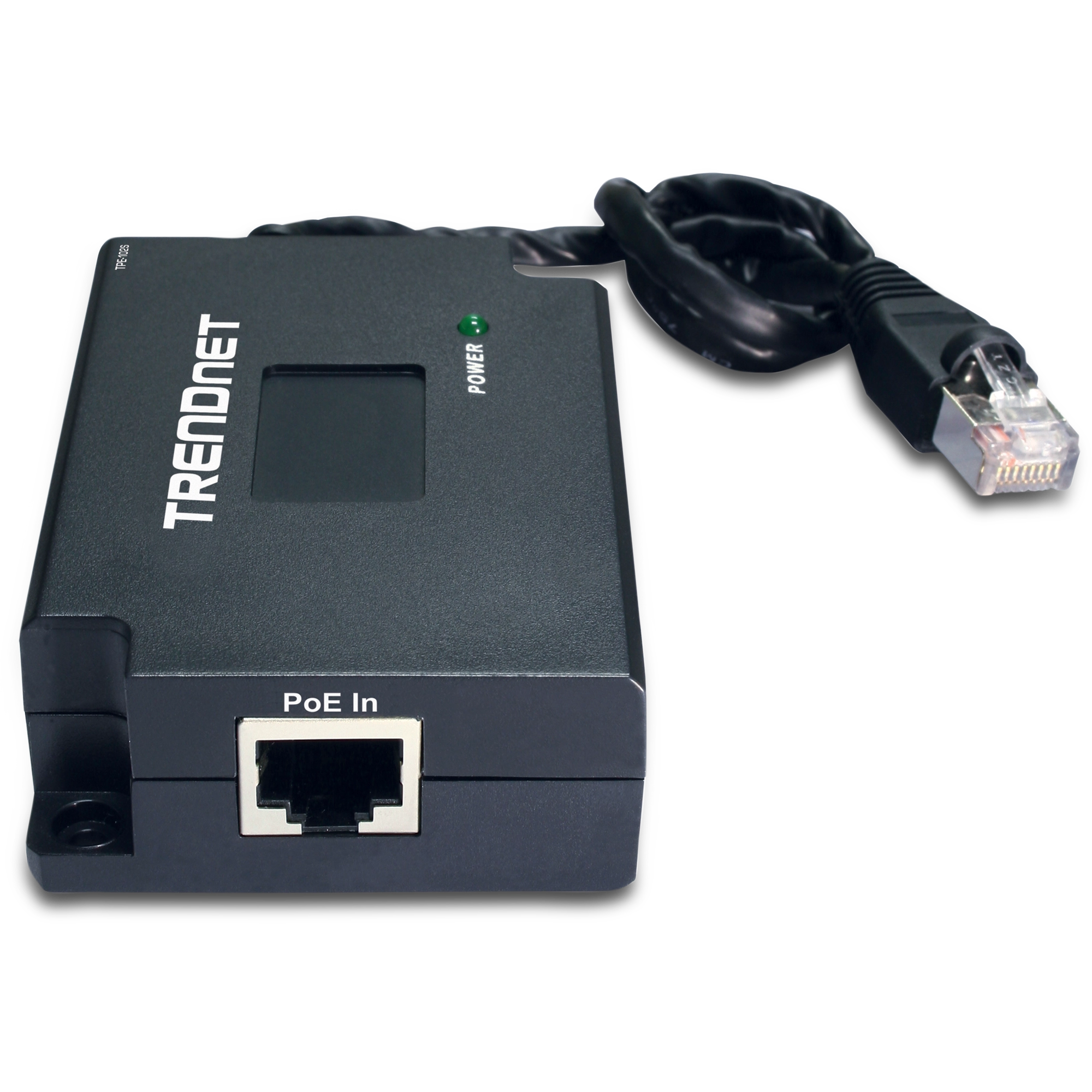

Product Images
| Hardware | |
| Standard | IEEE 802.3 10Base-T IEEE802.3u 100Base-TX IEEE 802.3af Power over Ethernet |
|---|---|
| Network Media | 10Mbps: Cat 3,4,5 Unshielded/Shielded/Screened Cable 100Mbps: Cat 5, 5E, 6 Unshielded/Shielded/Screened Cable |
| Protocol | CSMA/CD |
| Topology | Star |
| Ports | 1 x PoE-IN Port (Data + Power) 1 x Data-OUT Port (Data only) |
| Switch | Switch between 5V and 12V |
| Power | DC Output 5V/2.2A or 12V/1A |
| Jumper Cable | 2.5mm / 0.1” Diameter on the Connector (Center Positive) |
| Diagnostic LEDs | Power In: 48V (Green) Power Out: 5V (Green) / 12V (Amber) |
| Power Consumption | 15.4 watts (max) |
| Temperature | Operation: 0°C~40°C (32°F~ °F) Storage: -10°C~70°C (°F~ °F) |
| Humidity | 10%- 90% (non-condensing) |
| Dimensions | 87 x 85 x 24mm (3.425 x 3.35 x 0.95 inches) (L x W x H) |
| Weight | 156g (0.35 lb) |
| Certification | FCC, CE |
PACKAGE CONTENTS |
|
All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
