85Mbps Powerline Wireless Access Point
TPL-210AP (Version v1.0R)
- Provides wireless access to an existing building-wide powerline network
- Plug in this adapter into an electrical socket for immediate wireless connectivity
- Extends a wireless network into any room
DISCONTINUED PRODUCT
The TPL-210AP (Version v1.0R) has been discontinued. It has been replaced by the TPL-430AP (Version v1.0R). For a list of discontinued products, click here.Firmware
DO NOT upgrade firmware on any TRENDnet product using wireless connection. Firmware upgrade over wireless connection may damage the product. Please perform firmware upgrade with "wired" network connection only |
Firmware upgrade failure may permanently damage the unit and causing it not to function. Please check the "Firmware Release Note" on our web site and if the issues in the note do not address the problem you are experiencing, please do not upgrade the firmware. |
Firmware Version: 1.10 Build:0008 H/W: A1.0R
Release Date: April 2007
Filename: FW_TPL-210AP(1.00B0008).zip
SHA-1 Checksum: AC9EE88563F5BC469665F78C95458F6F8C95DA32
Date: 7/28/2017
File Size: 504.60 KB
Datasheet
Filename: EN_Spec_TPL-210AP(V1.0R).pdf
Date: 5/28/2013
File Size: 507.37 KB
Filename: FR_Spec_TPL-210AP(V1.0R).pdf
Date: 4/13/2007
File Size: 511.94 KB
Filename: GE_Spec_TPL-210AP(V1.0R).pdf
Date: 4/13/2007
File Size: 512.02 KB
Filename: SP_Spec_TPL-210AP(V1.0R).pdf
Date: 4/13/2007
File Size: 511.62 KB
Filename: RU_Spec_TPL-210AP(V1.0R).pdf
Date: 4/13/2007
File Size: 1.27 MB
Quick Installation Guide
Filename: EN_QIG_TPL-210AP.pdf
Date: 3/13/2007
File Size: 639.80 KB
Filename: FR_QIG_TPL-210AP.pdf
Date: 3/13/2007
File Size: 641.94 KB
Filename: GE_QIG_TPL-210AP.pdf
Date: 3/13/2007
File Size: 640.95 KB
Filename: PO_QIG_TPL-210AP.pdf
Date: 10/17/2007
File Size: 1.06 MB
Filename: SP_QIG_TPL-210AP.pdf
Date: 3/13/2007
File Size: 643.32 KB
Filename: RU_QIG_TPL-210AP.pdf
Date: 3/13/2007
File Size: 1.17 MB
User's Guide

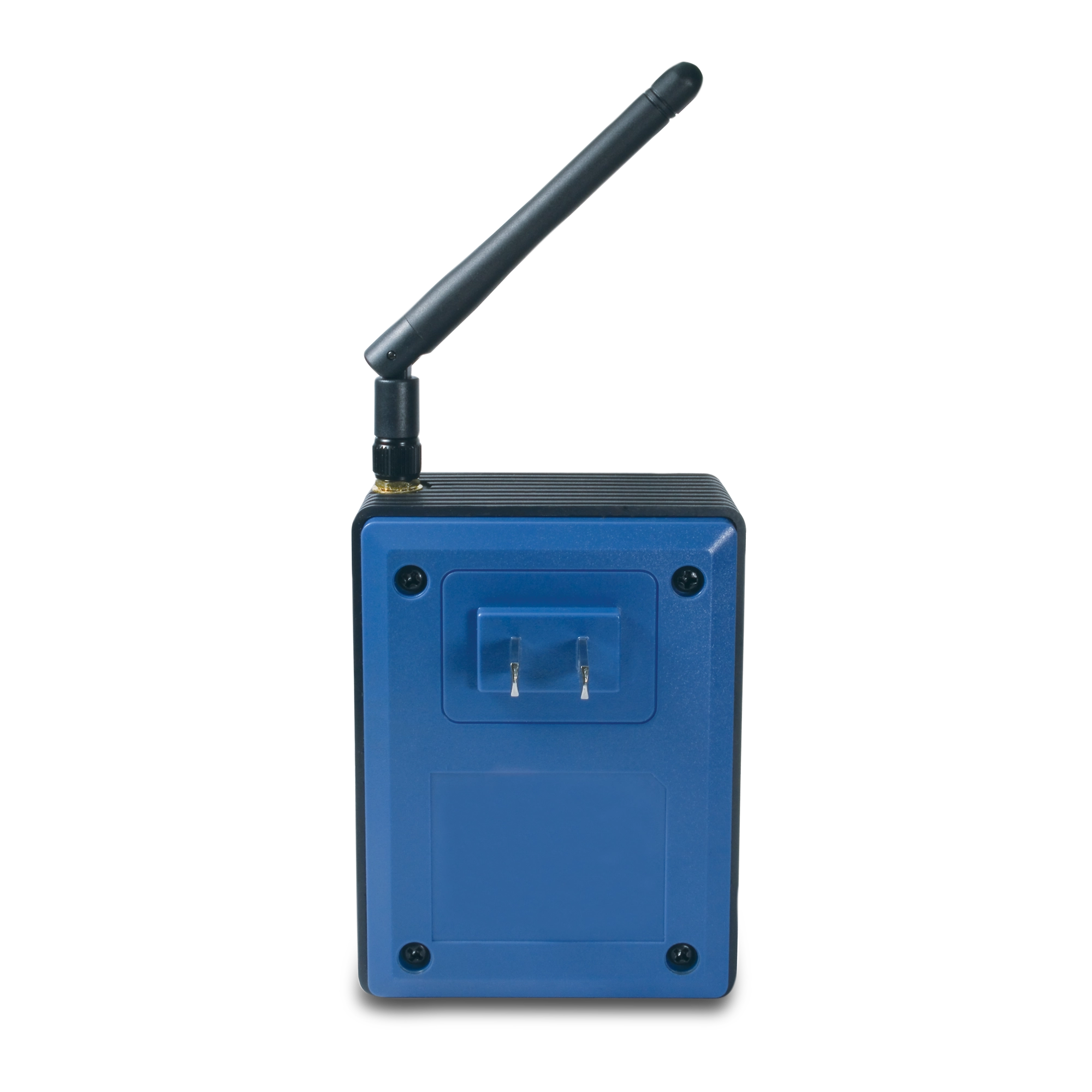

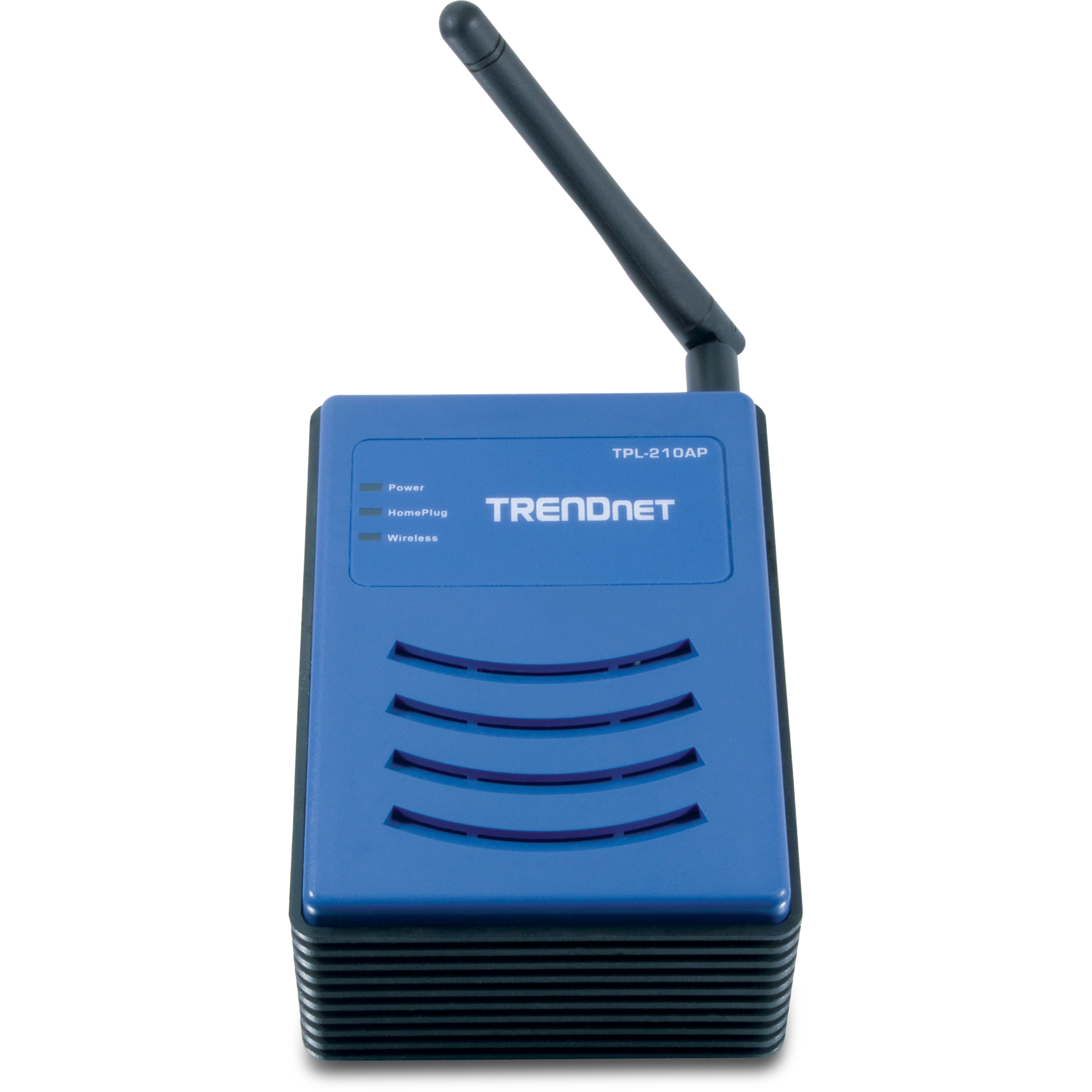

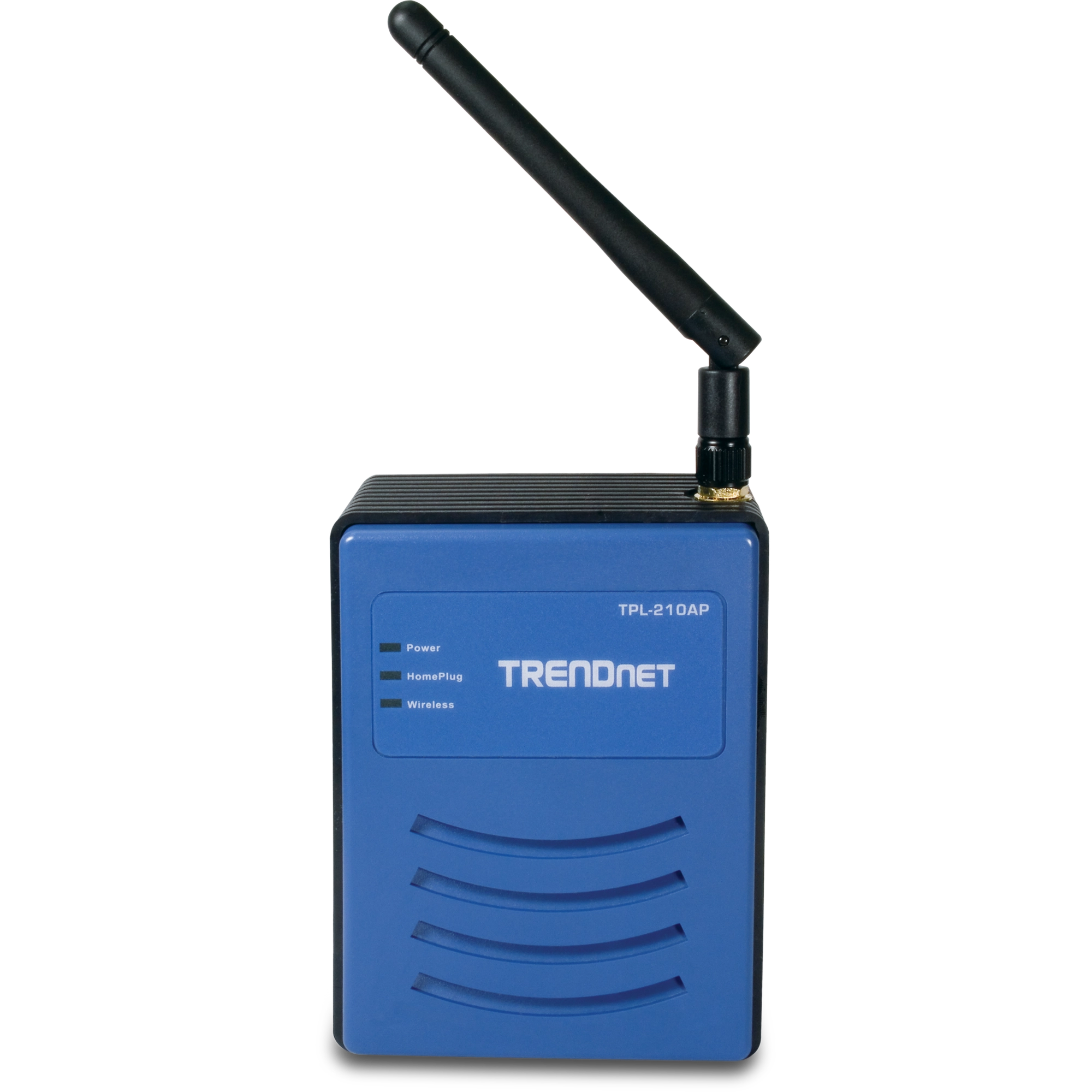

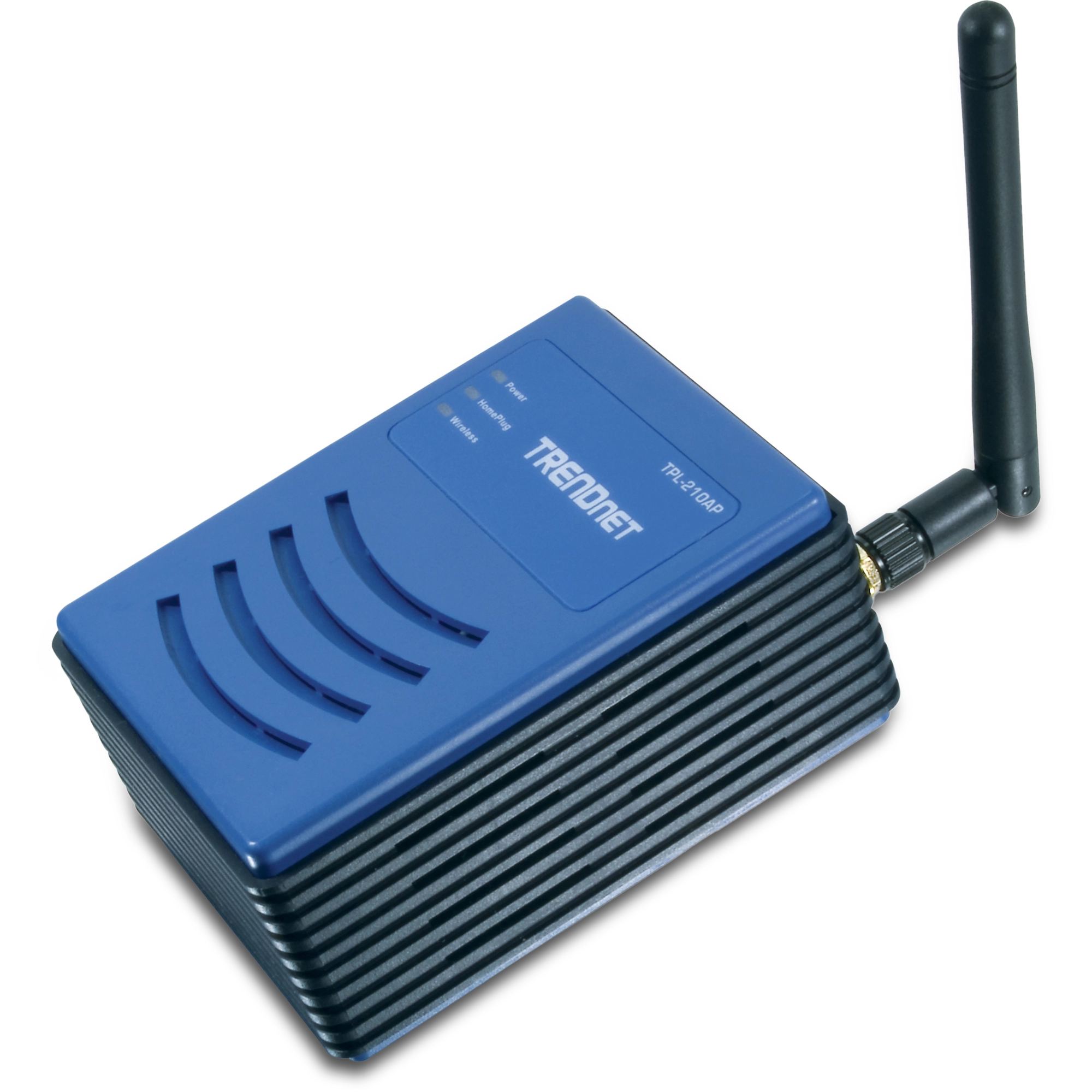

Product Images
| Specifications | |
| Hardware | |
| Standards | IEEE 802.11b (11Mbps), IEEE 802.11g (54Mbps) HomePlug 1.0 Turbo |
| LED Indicators | Power, HomePlug, WLAN |
| Network Protocols | TCP/IP, UDP |
| Power Source | 100~240V AC, 50~60Hz |
| Dimensions (LxWxH) | 74 x 100 x 35 mm (2.9 x 4 x 1.3 inches) |
| Weight | 200g (7oz.) |
| Power Consumption | 3.8 watts (max.) |
| Temperature | Operating: 0°~ 40°C (32°F~ 104°F) Storage:-10°~ 70°C (14°F~ 158°F) |
| Certification | FCC, CE |
| Powerline | |
| Frequency Band | 2MHz ~ 30MHz |
| Data Rate | Up to 85Mbps Transfer Rate |
| Nodes | Support up to 16 nodes per Network |
| Security | 56-bit DES Encryption |
| Wireless | |
| Module Technique | OFDM, CCK, DQPSK, DBPSK |
| Frequency Range | 2.4 ~ 2.4835 GHz |
| Antenna | 2dBi Detachable Dipole Antenna |
| Data Rate (auto fallback) | 802.11b: 11Mbps, 5.5Mbps, 2Mbps, and 1Mbps 802.11g: 54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps, 12Mbps, 9Mbps and 6Mbps |
| Security | 64/128-bit WEP (HEX/ASCII), WPA/WPA-PSK (AES/TKIP), WPA2/WPA2-PSK (AES/TKIP) |
| Transmit Power | 13.5 ±1.5dBm (typical) |
| Channels | 1~11 channels (US), 1~13 channels (EU) |
PACKAGE CONTENTS |
|
All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
