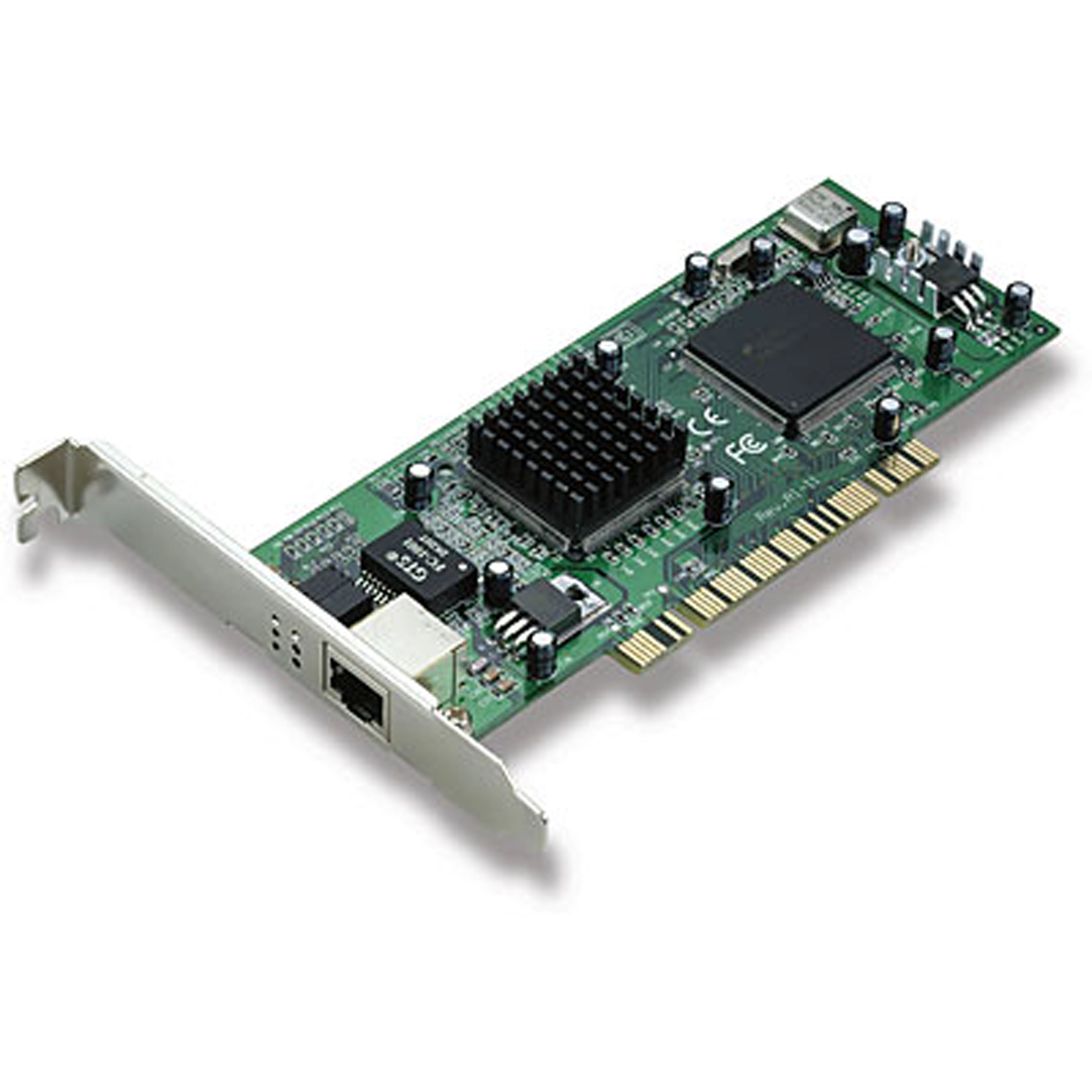

32-Bit PCI 10/100/1000Mbps NWay Copper Gigabit Ethernet Adapter

TEG-PCITX

  • The full-duplex gigabit adapter brings high bandwidth with 2000Mbps speeds
  • Plug and Play with drivers support all popular network operating systems.
  • Enjoy a 5-year warranty

DISCONTINUED PRODUCT

The TEG-PCITX  has been discontinued. For a list of discontinued products, click here.

Drivers

Driver (Linux)
Linux driver for TEG-PCITX.
Filename: Linux_TEG-PCITX.zip
SHA-1 Checksum: B928078283074C9A0991C35E037E6CE31BB347D8
Date: 7/25/2017
File Size: 204.43 KB
Download
Driver
Filename: Driver_TEG-PCITX.zip
SHA-1 Checksum: 78FFBAE4A80607F940E749F7D9A67688DDF06ACC
Date: 7/25/2017
File Size: 340.53 KB
Download

Datasheet

Datasheet
Filename: Spec_TEG-PCITX.pdf
Date: 5/10/2013
File Size: 215.62 KB
Download Email

User's Guide

Manual
Filename: UG_TEG-PCITX.pdf
Date: 8/18/2004
File Size: 45.19 KB
Download
Windows can't locate the driver for the Gigabit Network Adapter.
Double check the driver diskette and make sure it's labeled for this Adapter. For the latest driver, please visit https://www.TRENDnet.com, select the "Download" section on the page, and select the "product name" to download the driver.Please note the driver file on the web site is either in .EXE (e...
Windows does not detect the Gigabit Adapter installed.
The PCI card might not be inserted into the PCI slot correctly or securely. Please power off the computer, remove and reinstall the Adapter. Or, install the Adapter into a different PCI slot. The motherboard of your system might not be Plug & Play compatible. Please check your motherboard's user's m...
Hardware
Standards:
  • IEEE 802.3 10Base-T Ethernet, IEEE 802.3u 100Base-TX Fast Ethernet IEEE 802.3ab 1000Base-T Gigabit Ethernet, ANSI/IEEE 802.3 NWay Auto-Negotiation, IEEE 802.X Flow Control, IEEE 802.1P & 802.1Q priority queuing support
Data Transfer Rate:
  • Ethernet: 10Mbps (Half-Duplex) 20Mbps (Full-Duplex)
  • Fast Ethernet 100mbps (Half-Duplex), 200Mbps (Full-Duplex)
  • Gigabit Ethernet 1000Mbps (Half-Duplex), 2000Mbps (Full-Duplex)
Cabling:
  • Ethernet: 2-pair UTP CAT 3,4,5, EIA.ITA-568 100-ohm screened twisted pair (STP)
  • Fast Ethernet: 2-pair UTP CAT 5, EIA/TIA-568 100ohm screened twisted pair (STP)
  • Gigabit Ethernet: 4-pair UTP Cat 5, EIA/TIA-568 100-ohm screened twisted pair (STP)
Host Interface:
  • 32-bit 33/66Mhz PCI Rev.2.1/2.2
Connector:
  • Single RJ-45 UTP/STP, Auto MDI-II/MDI-X
Diagnostic LEDs:
  • 10 Link, 100 Link, 1000 Link, Full-Duplex, Collision, and Activity
Power Consumption:
  • 10 Watts (max)
Driver Support:
  • Windows 95/98/Me/2000/NT4/XP, Linux, and Novell Netware
Dimensions:
  • 164 x 69 mm (W x H)
Weight:
  • 120.5g (4.25 Oz)
Temperature:
  • Operating Temp.: -10° to 50° C (14° to 122°F)
  • Storage Temp.: -10° to 70° C (14° to 158°F)
Humidity:
  • Operating: 10 % to 90 % non-condensing o
  • Storage: 5% ~ 90% non-condensing
Certifications:
  • FCC Class B, CE Class B, VCCI Class B

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
