Cable/DSL Advanced VPN Firewall Router
TW100-BRV304
DISCONTINUED PRODUCT
The TW100-BRV304 has been discontinued. It has been replaced by the TWG-431BR (Version v1.0R). For a list of discontinued products, click here.Firmware
DO NOT upgrade firmware on any TRENDnet product using wireless connection. Firmware upgrade over wireless connection may damage the product. Please perform firmware upgrade with "wired" network connection only |
Filename: Firmware _TW100-BRV304_1635.ZIP
04-15-2005
TW100-BRV304 Firmware version 1.6. Release 35
Firmware file: "BRV304_1635.img"
Release Note:
This firmware is for TW100-BRV304 Version 1.00. To check the version number, please look for the serial number sticker on the bottom of the unit, the version number is printed on the sticker.
- Update from firmware version 1.6.28
- Updated Dynamic DNS client for DYNDNS.ORG
- Fixed "DYNDNS.ORG and DTDNS.NET account info could not be restored from the Config file".
- Improved "email log" function; added user name and password fields for " server requires login to send mail" and added "send log now" function.
- In "Firewall rules", fixed could not add "multiple WAN IP"-to-"single LAN IP" rules.
- Added "Microsoft PPTP VPN Server" function.
- Corrected "when running "setup wizard", setting the PPPoE "Disconnect after idle time of 0 min., but in the "WAN Port" setup, the time is still at default value.
- Corrected "password incorrect" after uploading Router's config file.
- Improved e-mail log mechanism.
- Improved firewall mechnism.
- Fixed "daylight saving" function.
Firmware Upgrade Instruction:
Please download and unzip the firmware file, then follow the instructions in the "readme.txt" to update the firmware.
Filename: Firmware_TW100-BRV304_1635.zip
SHA-1 Checksum: 718E4FACDF3DFCDAF3382EE4BADEB8810E9A6E73
Date: 7/28/2017
File Size: 1.16 MB
Datasheet
Filename: SP_Spec_TW100-BRV304(v1).pdf
Date: 12/2/2005
File Size: 246.95 KB
Filename: EN_Spec_TW100-BRV304(v1).pdf
Date: 12/2/2005
File Size: 257.93 KB
Filename: FR_Spec_TW100-BRV304(v1).pdf
Date: 12/2/2005
File Size: 259.95 KB
Filename: GE_Spec_TW100-BRV304(v1).pdf
Date: 12/2/2005
File Size: 275.43 KB
Quick Installation Guide
Filename: QIG_TW100-BRV304_EN.pdf
Date: 3/29/2005
File Size: 3.53 MB
Filename: QIG_TW100-BRV304_FR.pdf
Date: 3/29/2005
File Size: 3.66 MB
Filename: QIG_TW100-BRV304_GE.pdf
Date: 3/29/2005
File Size: 3.61 MB
Filename: QIG_TW100-BRV304_SP.pdf
Date: 3/29/2005
File Size: 3.63 MB
Filename: POL_QIG_TW100-BRV304.pdf
Date: 7/24/2007
File Size: 1.06 MB
User's Guide
Well Known Ports
1) Open your web browser and type the IP address of the TW100-BRV204/304
in the address bar. The default IP address is 192.168.0.1. At the login,
enter your username (blank) and password (blank).
2) Click Security then
Firewall Rules on the left hand side.
3) Select...
1) Open your web browser and type the IP address of the TW100-BRV204/304 in the
address bar. The default IP address is 192.168.0.1. At the login, enter your
username (blank) and password (blank).
2) Click Microsoft VPN then Server on
the left hand side. Place a check mark in Enable PPTP (VPN)...
Use the following screenshots as a guide.
Scenario
PC1 (192.168.1.x)-BRV204 (66.135.11.92) ~ BRV304 (64.11.212.22)–PC
2 (192.168.2.x) Simply match both ends information. After the connections are
created, 192.168.1.x should be able to ping 192.168.2.x.
Settings on BRV204
Settings on BRV3...
Use the following screenshots as a guide
Scenario
PC1 (192.168.1.x)-BRV204 (dynamic) ~ BRV304 (64.11.212.22)–PC 2 (192.168.2.x)
Simply match both ends information. After the connections are created, 192.168.1.x
should be able to ping 192.168.2.x.
Important Note:
1. Please match Local/Remote...
The MAC Address can be found on a label on the bottom of the router. You can
alternately find it by doing the following:
1) Open your web browser and type
the IP address of the TW100-BRV204/304 in the address bar. The default IP address
is 192.168.0.1. At the login, enter your username (bl...
1) Click Start then click on the Control Panel. For Windows 2000 click on Start,
highlight settings then click on the Control Panel.
2) Double-Click on the Network
Connection icon.
3) Right-Click on the Local Area Connection icon then click
on Properties.
4) Highlight the Internet ...
1) Open your web browser and type the IP address of the TW100-BRV204/304 in the
address bar. The default IP address is 192.168.0.1. At the login, enter your
username (blank) and password (blank).
2) Click on LAN on the left hand side.
3) Change the IP address in the IP Address field ...
The default username & password for the TW100-BRV204/304 are both (blank). There is no username and password set by default....
1) Locate the reset button on the back of the TW100-BRV204/304.
2) Press and
hold in the reset button for approximately 15 seconds.
This will reset the
unit back to its default configuration.
...
1) Open your web browser and type the IP address of the TW100-BRV204/304 in the
address bar. The default IP address is 192.168.0.1. At the login, enter your
username (blank) and password (blank).
2) Click on Security then Admin Login
on the left hand side.
3) Enter in the desired u...
1) Open your web browser and type the IP address of the TW100-BRV204/304 in the
address bar. The default IP address is 192.168.0.1. At the login, enter your
username (blank) and password (blank).
2) Click on Internet then WAN Port on
the left hand side.
3) Choose None (Direct Conne...
Note: The default setting of the router is configured for a Cable connection
using a Dynamic IP Address.
1) Open your web browser and type the IP address
of the TW100-BRV204/304 in the address bar. The default IP address is 192.168.0.1.
At the login, enter your username (blank) and passwor...
1) Open your web browser and type the IP address of the TW100-BRV204/304 in the
address bar. The default IP address is 192.168.0.1. At the login, enter your
username (blank) and password (blank).
2) Click on Internet then WAN Port on
the left hand side.
3) Choose PPPoE for the Logi...
Option 1: Go to the Status section of the configuration page, and click the Connection Detail button. Click the Release/Renew button to allow the router to refresh your connection. Then, try accessing a website such as https://www.TRENDnet.com with your web browser. Option 2: Turn off your Cable/DS...
You can simply contact your Internet Service Provider's (ISP) Customer Service or Technical Support Department for the correct information. ...
Verify your hardware and TCP/IP settings again by reviewing the instructions in sections 1-3. Also, make sure the Power, WAN, and on the LAN lights on the Router's front panel are on. Then, try accessing https://192.168.0.1 again using your web browser. ...
| Hardware | |
| Protocols: | NAT, PPPoE, NTP, SNMP, SMTP, HTTP, TFTP, DHCP, TCP/IP, PAP, CHAP, RIP1, DDNS |
|---|---|
| Firewall: | NAT firewall, Policy Base Packet Filter, Attack Alert (email) and log, Stateful Packet Inspection firewall for DoS (Denial of Service) attacks |
| VPN (IPSec): | MD5-HMAC/SHA1-HMAC authentication, DES-CBC, 3DES-CBC encryption, Internet Key Exchange, Manual Key Negotiation |
| Security: | URL Filter, Access Control by Time and Group, Local Password |

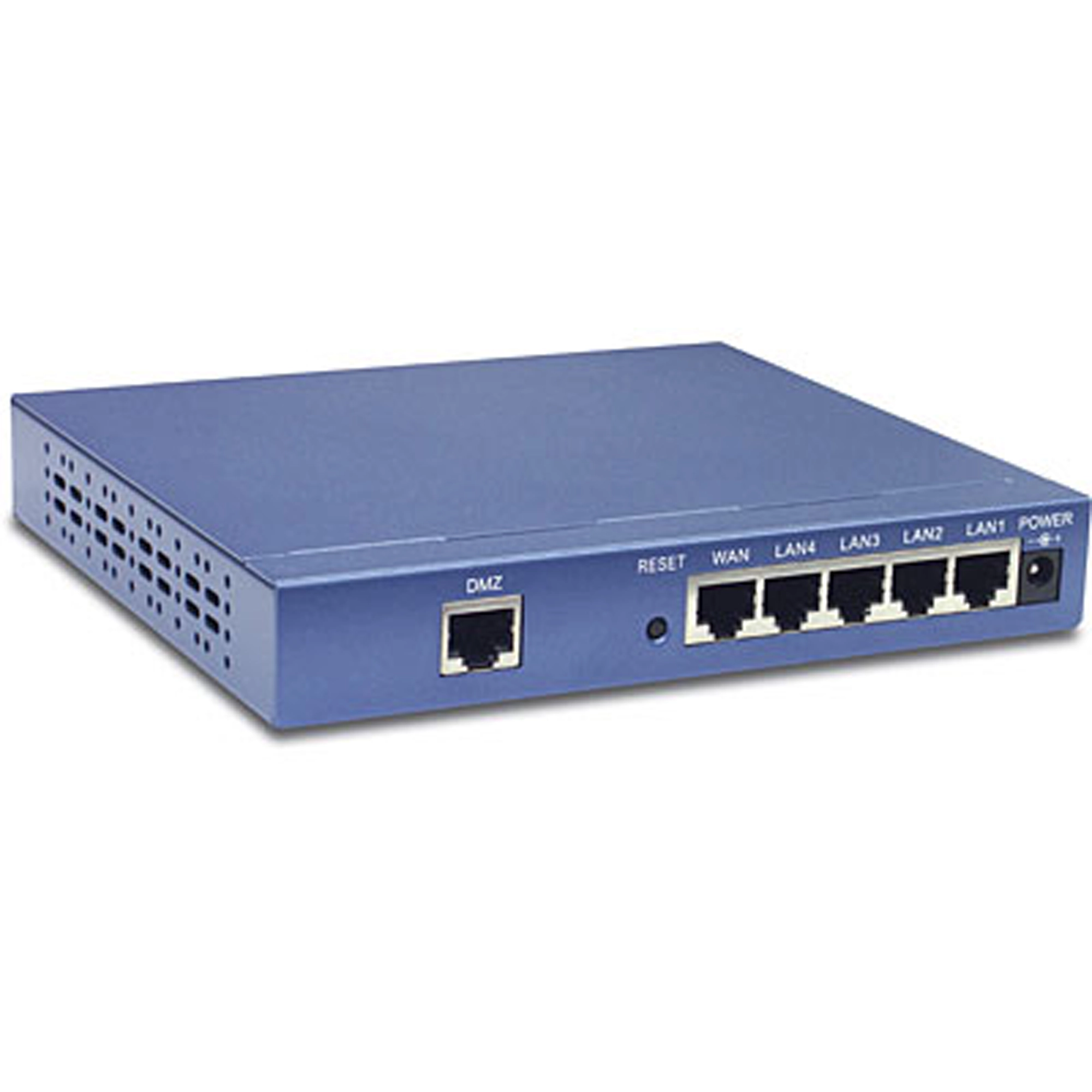

| Local Port: | 4x 10/100Mbps Ethernet port (RJ45), Auto-MDIX |
| Internet Port: | 1x 10/100Mbps Ethernet port (RJ45) |
| DMZ Port: | 1x 10/100Mbps Ethernet port (RJ-45) |

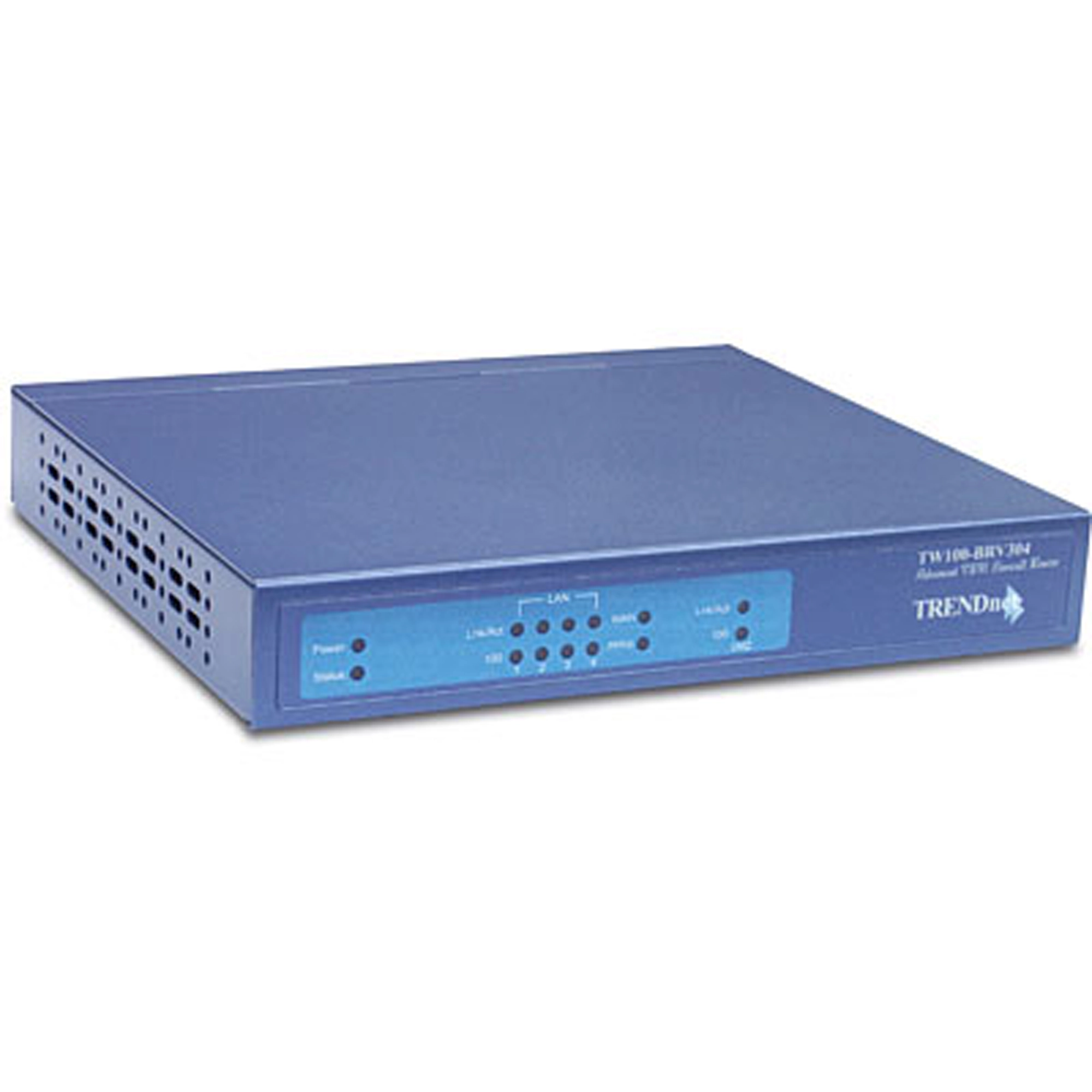

| LEDs: | Power, Status, Lnk/Act and 100 (LAN 1~4), WAN, DMZ |
| Power: | 12V DC 800~1000mA External Power Adapter |
| Dimensions (LxWxH): | 170 x 147 x 27 mm (6.7x 5.8 x 1.06 inches) |
| Weight: | Appr. 590 g ( 20.8 oz.) |
| Temperature: |
|
| Humidity: |
|
| Certifications: | FCC, CE, VCCI |
All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
