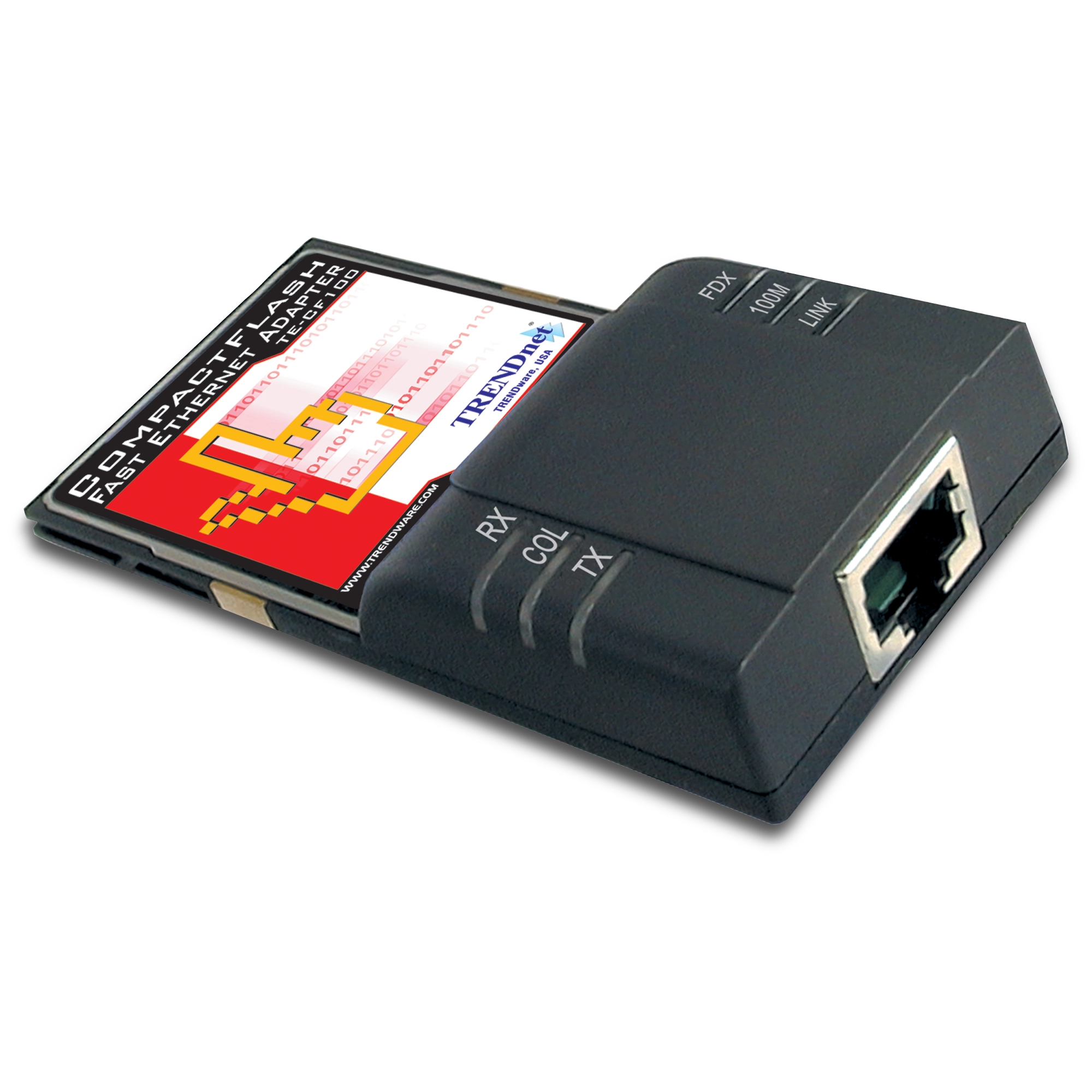

CompactFlash 10/100Mbps Fast Ethernet Adapter

TE-CF100   (Version 1.0)

  • Instantly upgrade your pocketpc to high speed internet through Compact Flash
  • Data rates up to 200Mbps
  • No external power source required

DISCONTINUED PRODUCT

The TE-CF100 (Version 1.0) has been discontinued. For a list of discontinued products, click here.

Drivers

Driver
Filename: TE-CF100_PC_Program_Disk_v1.2.zip
SHA-1 Checksum: CF25A2AEEAD99F4ECC28A23373C773EA5A1567BD
Date: 7/25/2017
File Size: 542.31 KB
Download
Driver
Release Notes:
  • This driver fixes PDA freezes up problem when hot-swapping the adapter or power up/down PDA with adapter inserted in iPaq 2215 and Dell Axim running Pocket PC 2003.
  • If you have installed the previous driver version, please follow the instructions in the “README.TXT” file to delete the driver file and then install the new driver.

Filename: Driver_TECF100_CE_PPCv1.5.zip
SHA-1 Checksum: 87C915479B98F71BD27EA4DF7ED1049DFF9BB782
Date: 7/25/2017
File Size: 920.65 KB
Download

Datasheet

Datasheet (English)
Filename: Spec_TE-CF100(English).pdf
Date: 3/16/2006
File Size: 300.43 KB
Download Email
Datasheet (Français)
Filename: Spec_TE-CF100(French).pdf
Date: 1/4/2005
File Size: 883.42 KB
Download Email
Datasheet (Deutsch)
Filename: Spec_TE-CF100(German).pdf
Date: 2/16/2005
File Size: 178.02 KB
Download Email
Datasheet (Português)
Filename: Spec_TE-CF100(Portuguese).pdf
Date: 2/24/2005
File Size: 194.04 KB
Download Email
Datasheet (Español)
Filename: Spec_TE-CF100(Spanish).pdf
Date: 2/23/2005
File Size: 173.81 KB
Download Email

User's Guide

Manual
Filename: UG_TE-CF100.pdf
Date: 8/18/2004
File Size: 1.59 MB
Download

Product Images

JPEG Image
File Size: : 321.47 KB
Date: : 9/9/2004
Download
TIFF Image
File Size: : 3.75 MB
Date: : 9/9/2004
Download
ROHS compliant WEEE crossed-out bin symbol.
Hardware
Standards:
  • IEEE 802.3 10Base-T, IEEE 802.3u for 100Base-TX
Data Transfer Rate:
  • 10/100Mbps and double in Full Duplex Mode
Power Requirement:
  • +3.3/5V auto-switch circuit
  • Normal Operation: +3.3V, 120mA (max.) / +5V, 140mA (max.)
Host Interface:
  • CF+ and CompactFlash Spec. Rev. 1.4
  • Type I CompactFlash I/O card
Cabling:
  • CAT3, 4, 5 UTP/STP for 10Mbps, CAT 5 UTP/STP for 100Mbps
Media Support:
  • UTP/STP RJ-45
Operating Systems:
  • Windows CE 2.0/3.0/4.0 Only. Supports synchronization from Microsoft Windows 95/98/98Me/2000 and Windows NT 4.0
LEDs:
  • Link, 100, RX, TX, Full, and COL
Dimensions:
  • 88 x 42.8 x 3.3 mm
Weight:
  • 30 grams
Certifications:
  • CE, FCC, VCCI-B

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
