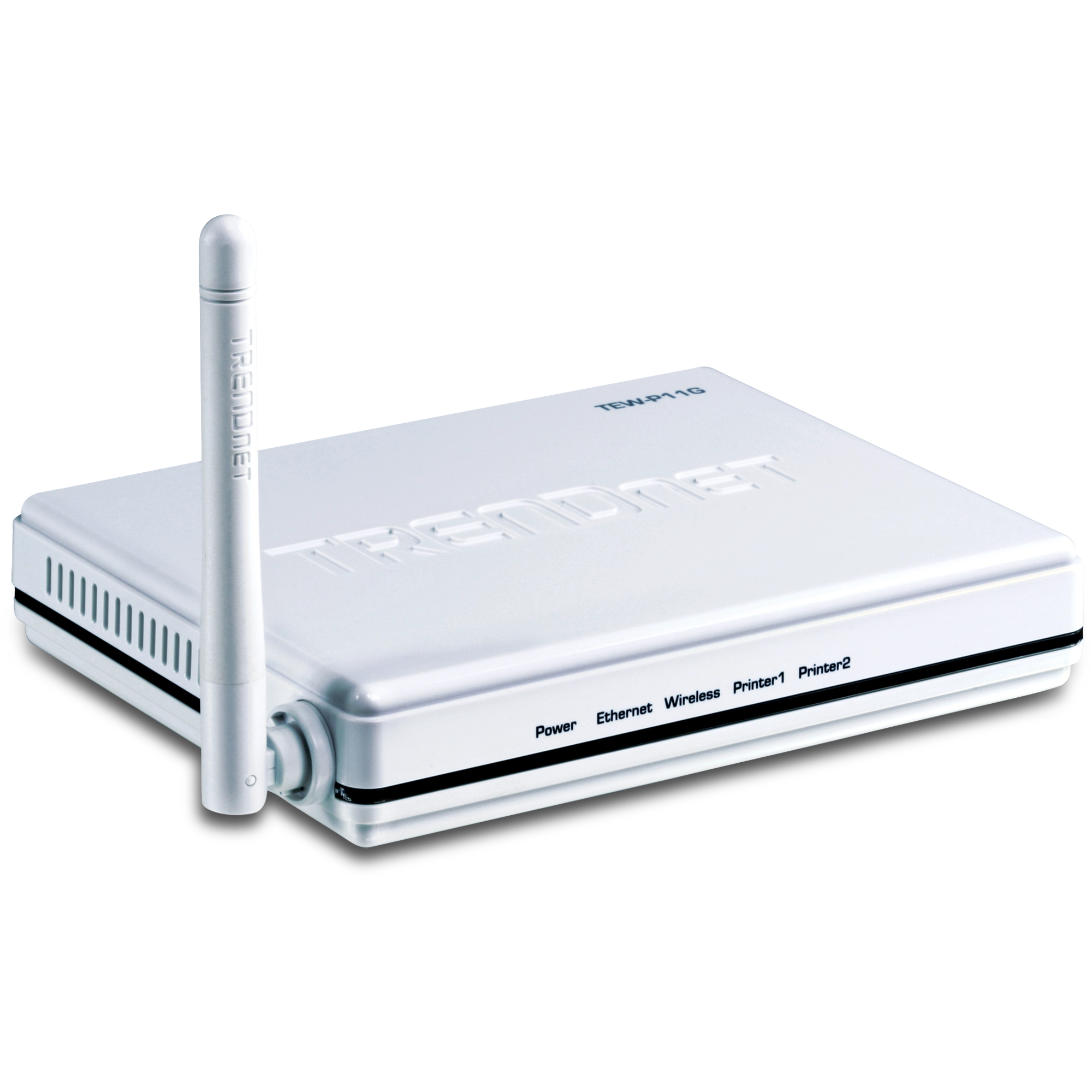

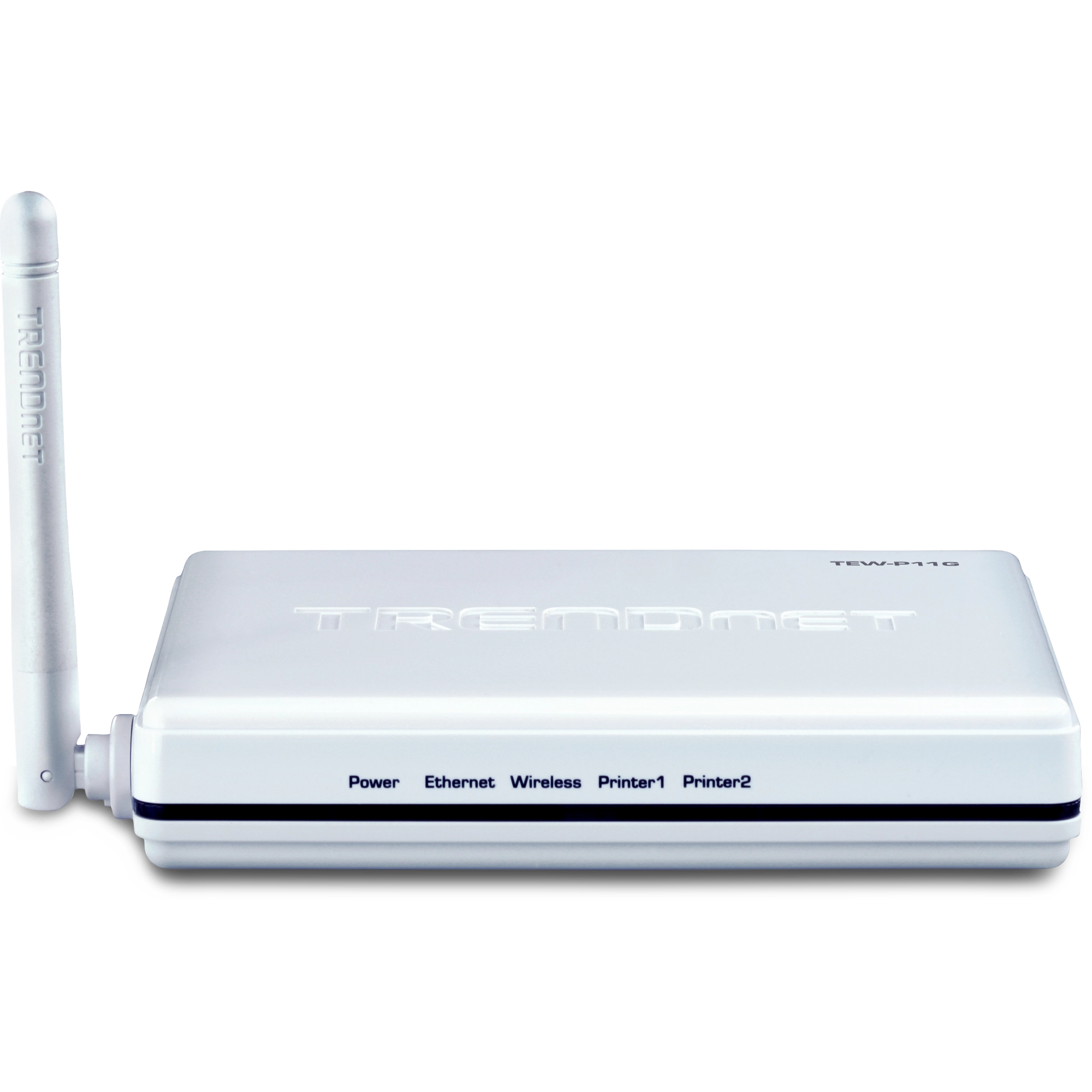

Wireless 2-Port USB/Parallel Print Server

TEW-P11G   (Version 1.0R)

  • Turns most standalone USB and Parallel printers into a shared network resource*
  • The compact wireless print server allows users to place printers in the most accessible location
  • Provides high speed USB 2.0 and Parallel printing
  • Print server management through the Web browser

DISCONTINUED PRODUCT

The TEW-P11G (Version 1.0R) has been discontinued. For a list of discontinued products, click here.

Utility

Utility
Filename: Utility_TE100-P11_TEW-P11G(V1.0).zip
SHA-1 Checksum: 04753A1EE3C87E5FB61BB02E559AA535B1567CC4
Date: 7/25/2017
File Size: 26.04 MB
Download

Firmware

Firmware
DO NOT upgrade firmware on any TRENDnet product using wireless connection.
Firmware upgrade over wireless connection may damage the product. Please perform firmware upgrade with "wired" network connection only

Firmware Version:v1.0.10
Release Date: 3/2009
Note: Initial Release


Filename: FW_TEW-P11G(v1.0.10).zip
SHA-1 Checksum: 2DFD89999E5DD681D6F9DBF36AEDEC9B9CBA50E5
Date: 7/25/2017
File Size: 312.29 KB
Download

Datasheet

Datasheet (English)
Filename: EN_Spec_TEW-P11G(V1.0R).pdf
Date: 8/24/2011
File Size: 856.78 KB
Download Email
Datasheet (Français)
Filename: FR_Spec_TEW-P11G(V1.0R).pdf
Date: 8/24/2011
File Size: 863.31 KB
Download Email
Datasheet (Deutsch)
Filename: GE_Spec_TEW-P11G(V1.0R).pdf
Date: 8/24/2011
File Size: 860.82 KB
Download Email
Datasheet (Español)
Filename: SP_Spec_TEW-P11G(V1.0R).pdf
Date: 8/24/2011
File Size: 1.11 MB
Download Email
Datasheet (Pусский)
Filename: RU_Spec_TEW-P11G(v1.0R).pdf
Date: 8/24/2011
File Size: 1.50 MB
Download Email
Datasheet (Italiano)
Filename: IT_Spec_TEW-P11G(v1.0R).pdf
Date: 8/24/2011
File Size: 859.07 KB
Download Email

Quick Installation Guide

Quick Installation Guide (English)
Filename: EN_TE100-P11TEW-P11G(V1).pdf
Date: 3/18/2009
File Size: 692.05 KB
Download
Quick Installation Guide (Français)
Filename: FR_TE100-P11TEW-P11G(V1).pdf
Date: 3/18/2009
File Size: 692.35 KB
Download
Quick Installation Guide (Deutsch)
Filename: GE_TE100-P11TEW-P11G(V1).pdf
Date: 3/18/2009
File Size: 693.95 KB
Download
Quick Installation Guide (Português)
Filename: PO_TE100-P11TEW-P11G(V1).pdf
Date: 5/16/2013
File Size: 699.21 KB
Download
Quick Installation Guide (Español)
Filename: SP_TE100-P11TEW-P11G(V1).pdf
Date: 3/18/2009
File Size: 694.86 KB
Download
Quick Installation Guide (Pусский)
Filename: RU_TE100-P11TEW-P11G(V1).pdf
Date: 3/18/2009
File Size: 1.24 MB
Download
Quick Installation Guide (Eesti)
Filename: EST_TE100-P11TEW-P11G(V1).pdf
Date: 3/18/2009
File Size: 693.31 KB
Download

User's Guide

User's Guide
Filename: UG_TE100-P11_TEW-P11G(V1.01).pdf
Date: 10/22/2012
File Size: 3.98 MB
Download

Product Images

JPEG Image
File Size: : 247.10 KB
Date: : 3/18/2009
Download
JPEG Image
File Size: : 221.58 KB
Date: : 3/18/2009
Download
JPEG Image
File Size: : 259.27 KB
Date: : 3/18/2009
Download
TIFF Image
File Size: : 1.94 MB
Date: : 3/18/2009
Download
TIFF Image
File Size: : 2.09 MB
Date: : 3/18/2009
Download
TIFF Image
File Size: : 2.49 MB
Date: : 3/18/2009
Download
ROHS compliant WEEE crossed-out bin symbol.
Hardware
Standards
  • Wired: IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX

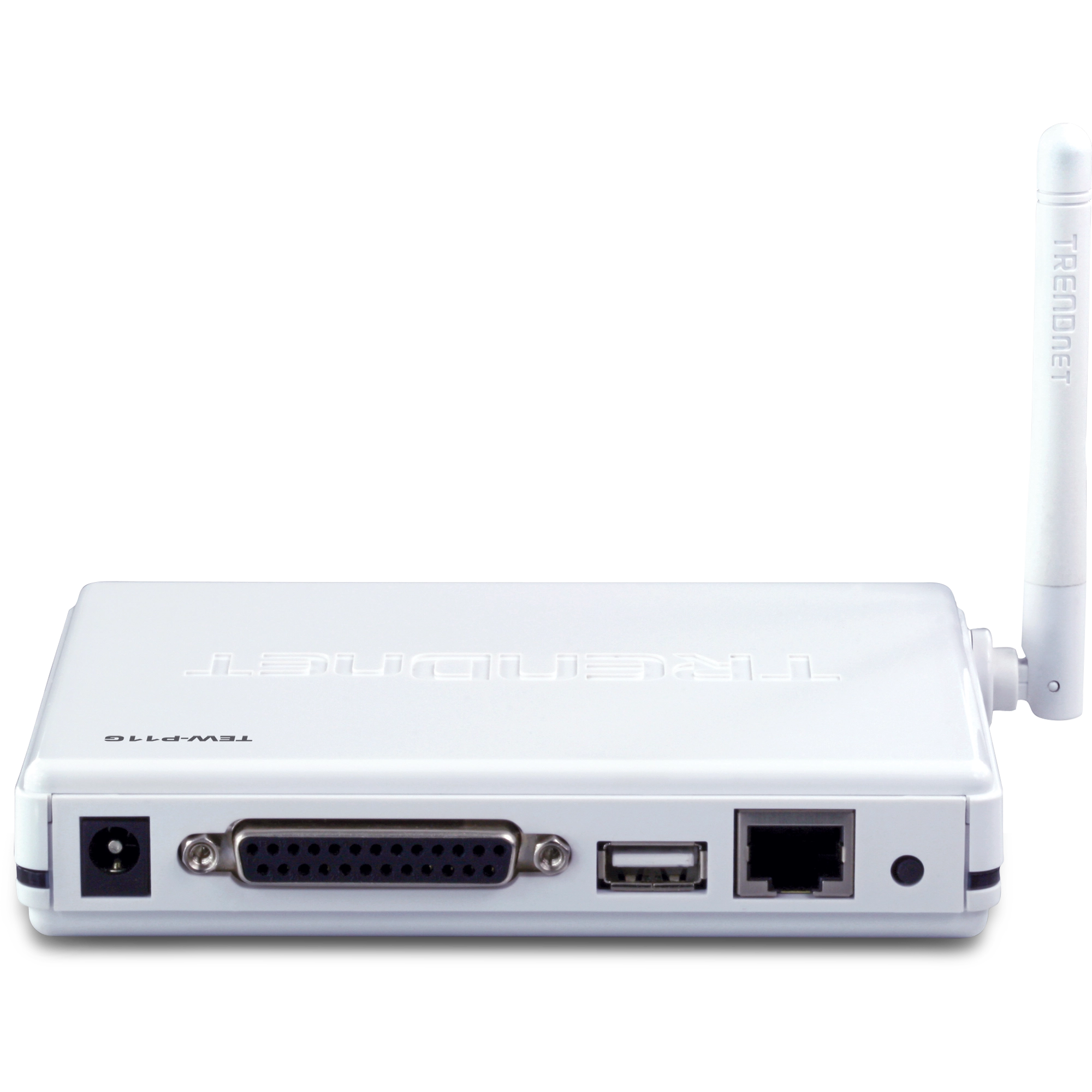

Printer Interface
  • USB 2.0, 1.1 compliant, 1 x USB Type A port, 1 x DB- 25 parallel port
LAN Port
  • 1 x 10/100Mbps Auto-Negotiation RJ-45 port
Diagnostic LEDs
  • Power, Ethernet, Wireless, Printer1, Printer2
TCP/IP Protocol Supported
  • TCP/IP, DHCP, NetBEUI and Appletalk
Supported OS
  • Windows 7(32-bit)/Vista(32-bit)/2003 Server/XP/2000, Mac OS
Management
  • Windows based utility or Web based configuration
Power
  • 5V DC, 2A external power adapter
Power Consumption
  • Max 2.5W (without a peripheral)
Dimensions
  • 135 x 105 x 30mm (4.3 x 4.1 x 1.1 inches)
Weight
  • 210g (7.4oz.)
Temperature
  • Operating: 0°C~40°C (32°F~104°F)
  • Storage: -25°C~70°C (-4°F~158°F)
Humidity
  • 10%~85% (non-condensing)
Wireless
Frequency
  • 2.412 ~ 2.462 GHz (FCC)
  • 2.412 ~ 2.472 GHz (ETSI)
Antenna
  • 1 x 1.8dBi external fixed dipole antenna
Media Access Protocol
  • CSMA/CA with ACK
Module Technique
  • 802.11b: CCK (11 and 5.5Mbps) DQPSK (2Mbps) DBSPK (1Mbps)
  • 802.11g: OFDM with BPSK, QPSK and 16/64-QAM sub-carrier modulations
Data Rate
  • 802.11b: 11Mbps, 5.5Mbps, 2Mbps, and 1Mbps
  • 802.11g: 54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps, 12Mbps, 9Mbps and 6Mbps
Security
  • Encryption: hardware 64/128-bit WEP (HEX/ passphrase)WPA: WPA-PSK/WPA2-PSK (AES/TKIP)
Output Power
  • 802.11b: 17dBm (typical)
  • 802.11g: 15dBm (typical)
Receiving Sensitivity
  • 802.11b: -84dBm (typical) @ 11Mpbs
  • 802.11g: -73dBm (typical) @ 54Mbps
Channels
  • 1~ 11 (FCC), 1~13 (ETSI)

PACKAGE CONTENTS
  • TEW-P11G
  • Multi-Language Quick Installation Guide
  • CD-ROM (Utility and User's Guide)
  • Power adapter (5V DC, 2A)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
