4-Port PS/2 Rack Mount KVM Switch
TK-401R (Version 1.1R)
- 4-port KVM switch with VGA and PS/2 connection to computers
- Device monitoring with Auto-Scan and audible feedback
- High quality 1920x1440 resolution for a crisp display
- Supports most operating systems
DISCONTINUED PRODUCT
The TK-401R (Version 1.1R) has been discontinued. For a list of discontinued products, click here.Datasheet
Filename: EN_Spec_TK-401R(V1.1R).pdf
Date: 1/4/2010
File Size: 468.10 KB
Filename: FR_Spec_TK-401R.pdf
Date: 12/15/2006
File Size: 327.67 KB
Filename: GE_Spec_TK-401R.pdf
Date: 12/15/2006
File Size: 327.63 KB
Filename: SP_Spec_TK-401R.pdf
Date: 12/15/2006
File Size: 325.70 KB
Filename: RU_Spec_TK-401R.pdf
Date: 12/15/2006
File Size: 356.00 KB
Quick Installation Guide
Filename: RU_Web_QIG_TK-401R_801R_1601R-081409.pdf
Date: 9/16/2009
File Size: 3.00 MB
Filename: PO_Web_QIG_TK-401R_801R_1601R-081409.pdf
Date: 9/16/2009
File Size: 1.70 MB
Filename: EN_Web_QIG_TK-401R_801R_1601R-081409.pdf
Date: 9/16/2009
File Size: 1.68 MB
Filename: FR_Web_QIG_TK-401R_801R_1601R-081409.pdf
Date: 9/16/2009
File Size: 1.68 MB
Filename: GE_Web_QIG_TK-401R_801R_1601R-081409.pdf
Date: 9/16/2009
File Size: 1.68 MB
Filename: SP_Web_QIG_TK-401R_801R_1601R-081409.pdf
Date: 9/16/2009
File Size: 1.68 MB
Filename: EST_Web_QIG_TK-401R_801R_1601R-081409.pdf
Date: 9/16/2009
File Size: 1.69 MB
User's Guide
Filename: UG_TK-401R(English).pdf
Date: 11/17/2004
File Size: 2.38 MB
Filename: UG_TK-401R(French).pdf
Date: 11/17/2004
File Size: 2.48 MB
Filename: UG_TK-401R(German).pdf
Date: 11/17/2004
File Size: 2.59 MB
Filename: UG_TK-401R(Spanish).pdf
Date: 11/17/2004
File Size: 2.57 MB
Filename: UG_TK-401R(Russian).pdf
Date: 11/17/2004
File Size: 2.36 MB

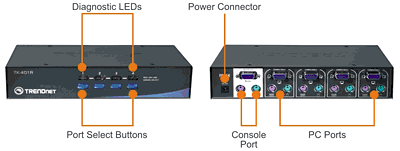

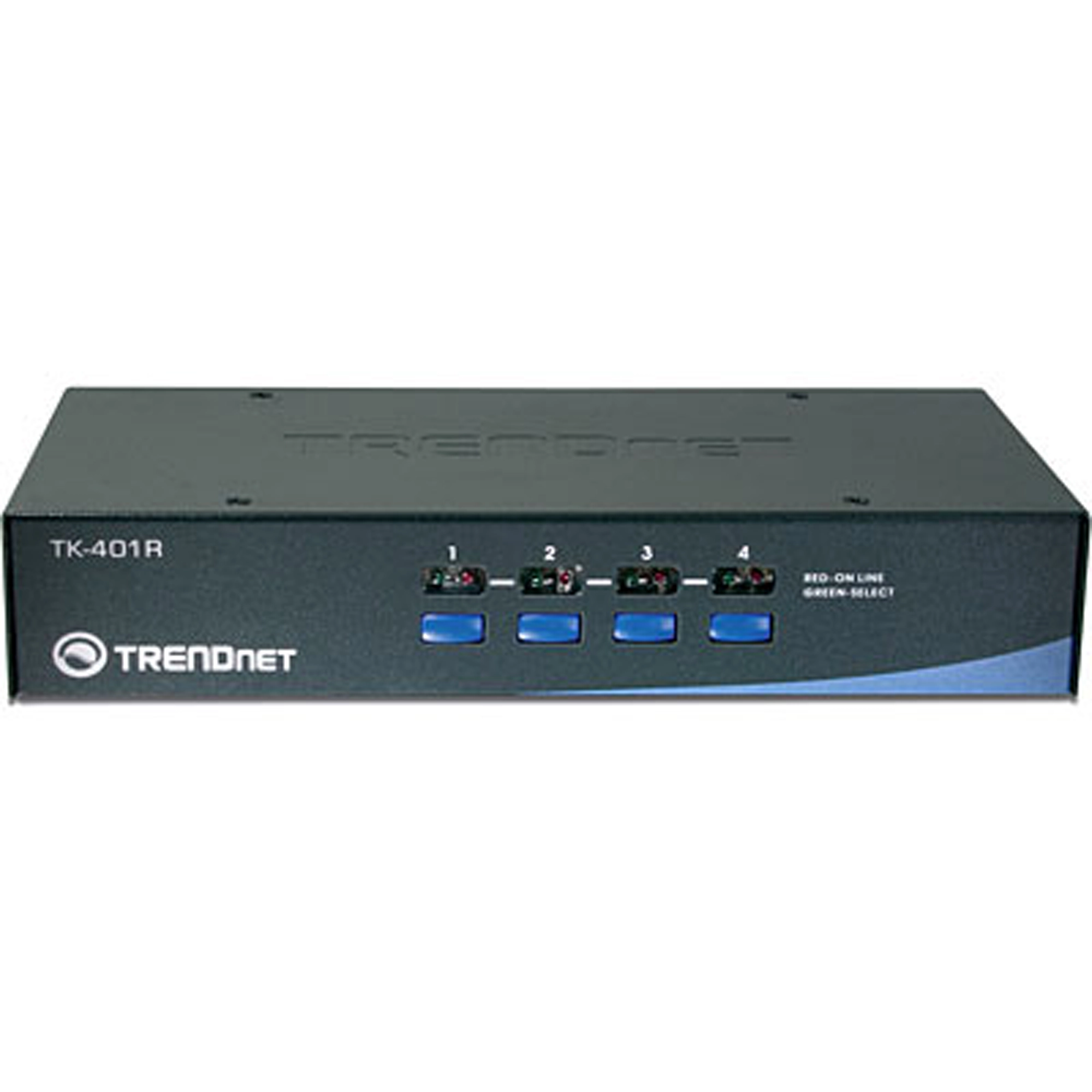

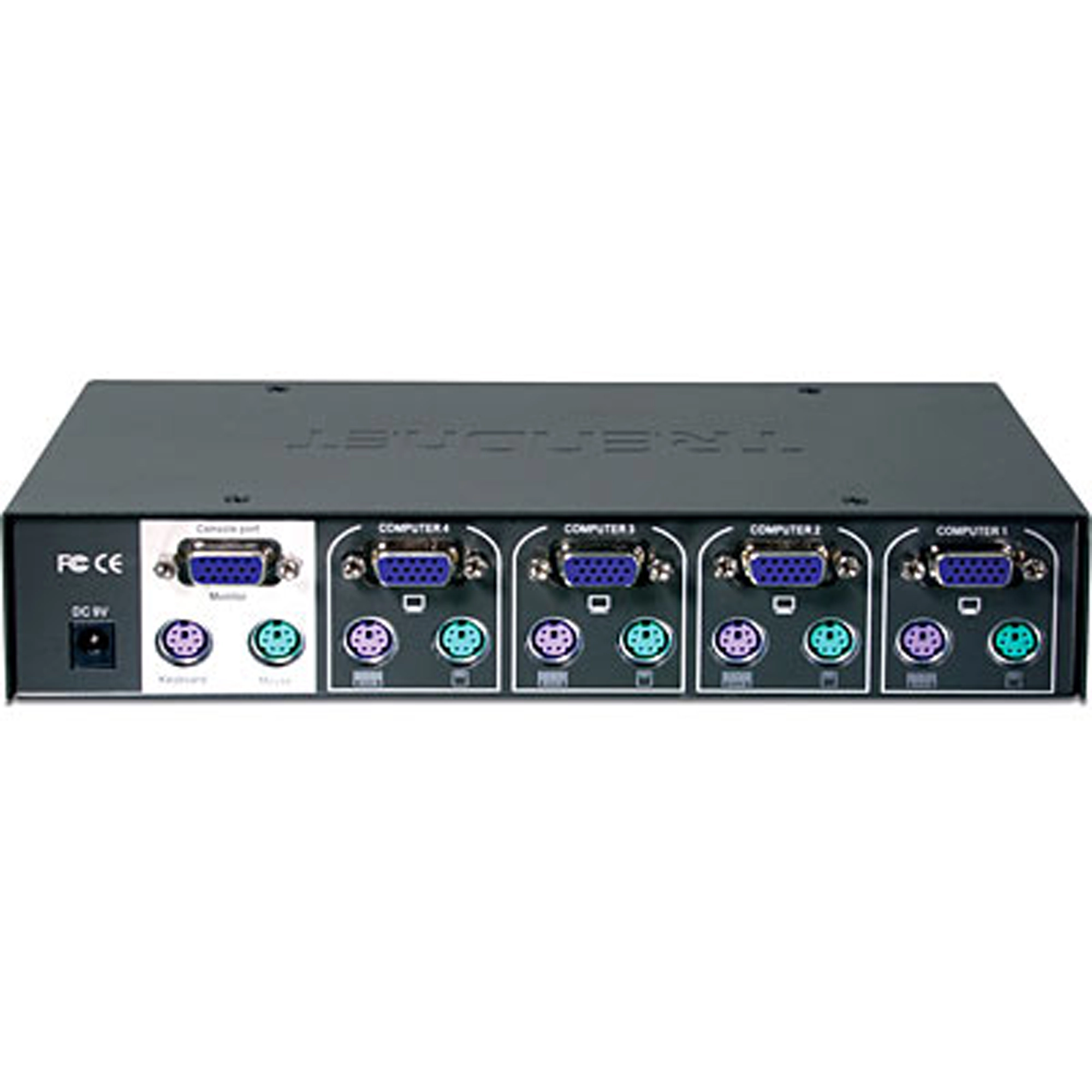

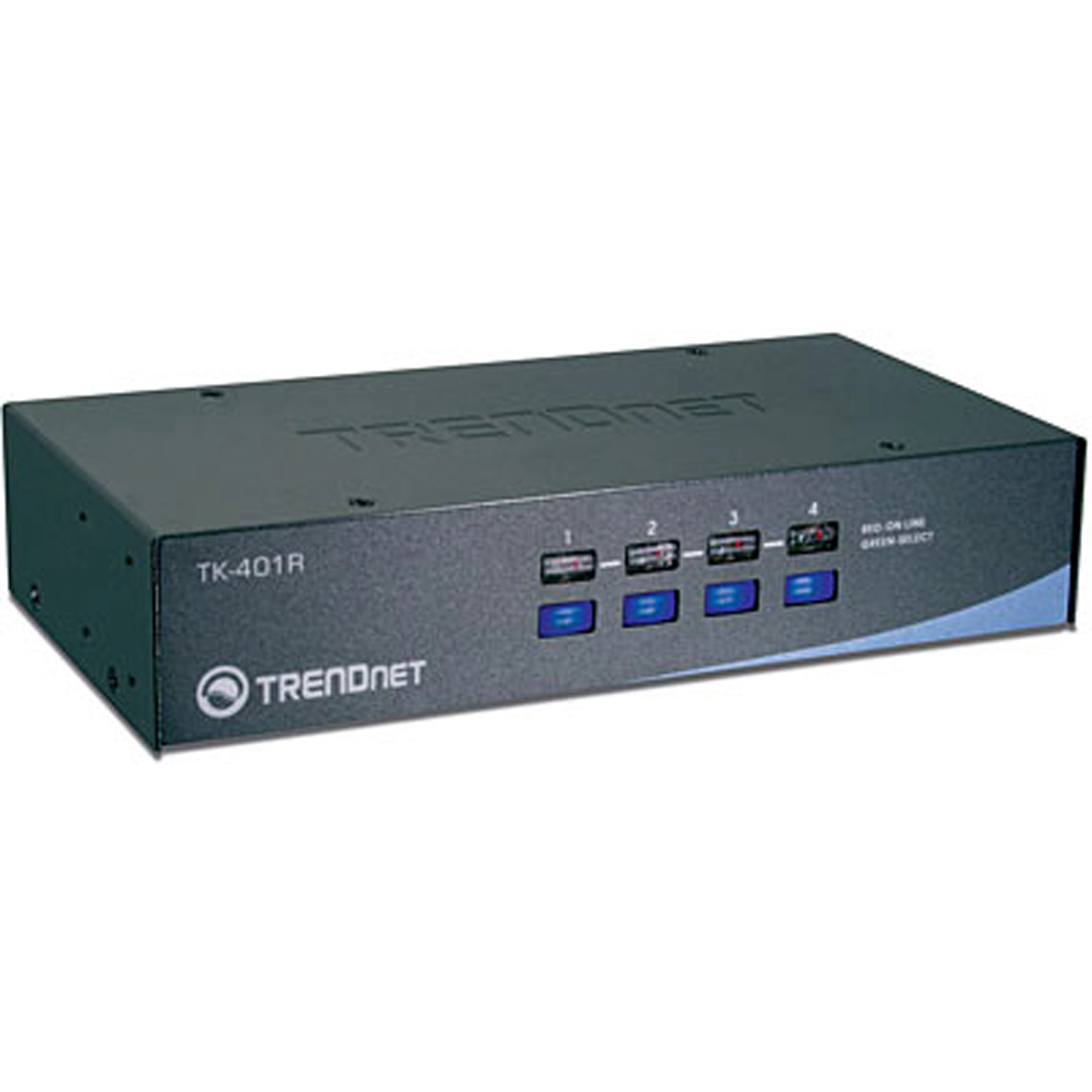

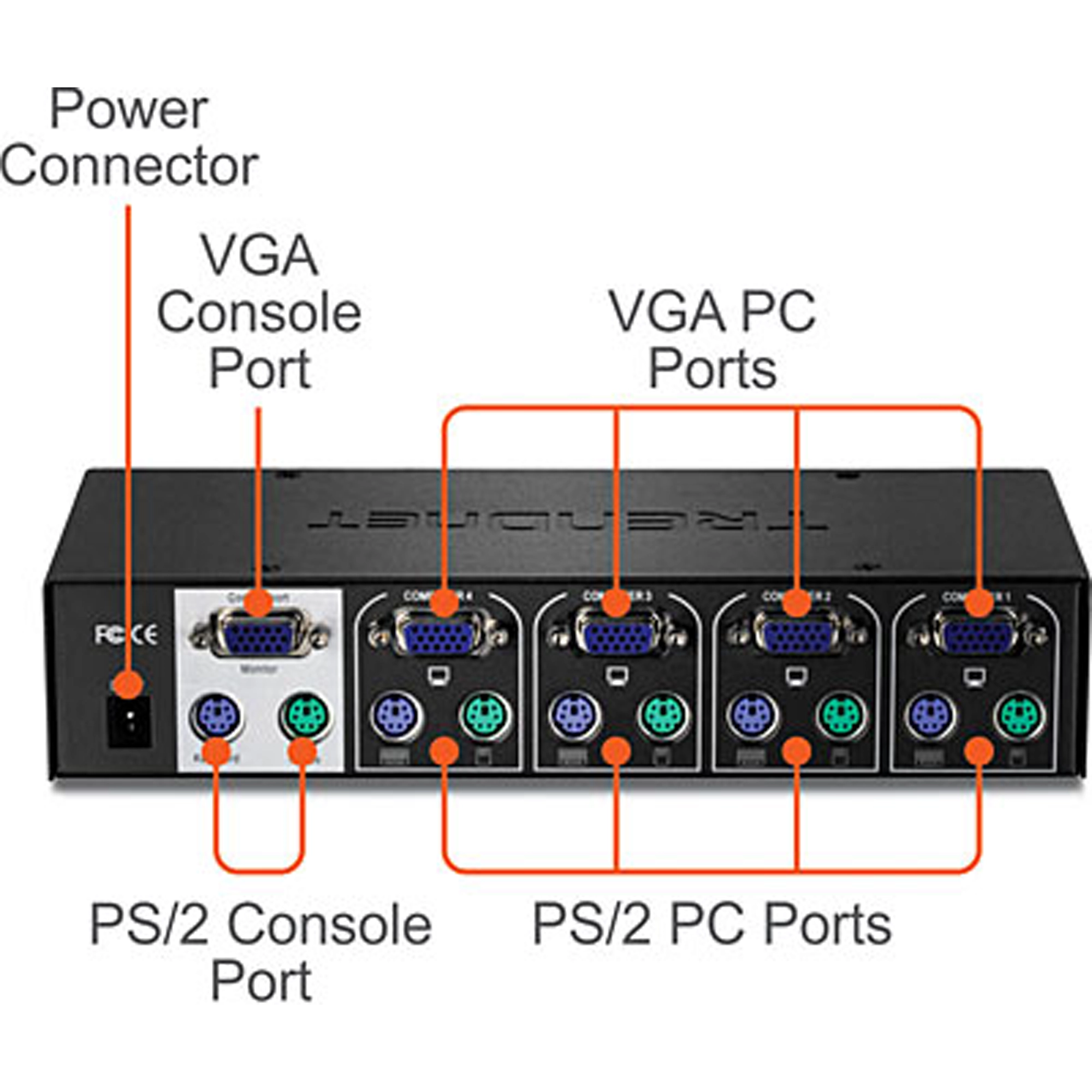

Product Images
| Hardware | |
Management | 4 Computers |
PC Port | 4 x PS/2 Mouse 6-pin Mini Din |
Console Port | 1 x PS/2 Mouse 6-pin Mini Din |
Supported OS | Dos, Windows 3.x/95/98(SE)/ME/NT/2000/XP/2003 Server |
PC Selection | Hot-Key or Push Buttons |
Auto-Scan Interval | 5-99 seconds |
LEDs | On-line (Red), Select (Green) |
Power Adapter | 9V DC 800mA External Power Adapter (Optional, not included) |
Dimensions | 202 x 104 x 45mm (8.0 x 4.1 x 1.8in.) |
Weight | 835g (1.84lb) |
Temperature | Operating: 0°C~40°C (32°F~104°F) |
Humidity | 0%~80% (non-condensing) |
Certification | CE, FCC |
PACKAGE CONTENTS |
|
All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
