Power over Ethernet (PoE) Injector
TPE-103I (Version v1.0R)
- Full Duplex Fast Ethernet speeds supported
- Use non-PoE switches to network PoE devices at distances of up to 100 meters (328 feet)
- Save on installation and equipment costs
- Create an integrated PoE and non-PoE network
DISCONTINUED PRODUCT
The TPE-103I (Version v1.0R) has been discontinued. It has been replaced by the TPE-113GI (Version v3.0R). For a list of discontinued products, click here.Datasheet
Filename: EN_spec_TPE-103I(v1.0R).pdf
Date: 3/12/2013
File Size: 892.42 KB
Filename: FR_spec_TPE-103I(v1.0R).pdf
Date: 3/12/2013
File Size: 811.48 KB
Filename: GE_spec_TPE-103I(v1.0R).pdf
Date: 3/12/2013
File Size: 790.47 KB
Filename: PO_spec_TPE-103I(v1.0R).pdf
Date: 3/12/2013
File Size: 902.15 KB
Filename: SP_spec_TPE-103I(v1.0R).pdf
Date: 3/12/2013
File Size: 785.20 KB
Filename: RU_spec_TPE-103I(v1.0R).pdf
Date: 3/12/2013
File Size: 799.90 KB
Filename: IT_spec_TPE-103I(v1.0R).pdf
Date: 3/12/2013
File Size: 801.08 KB
Quick Installation Guide
Filename: Web_EUNL_TPE-103I(V1.0R)_05082012.pdf
Date: 3/12/2013
File Size: 1.51 MB
Filename: Web_QIG_TPE-103I(V1.0R).pdf
Date: 3/12/2013
File Size: 3.19 MB

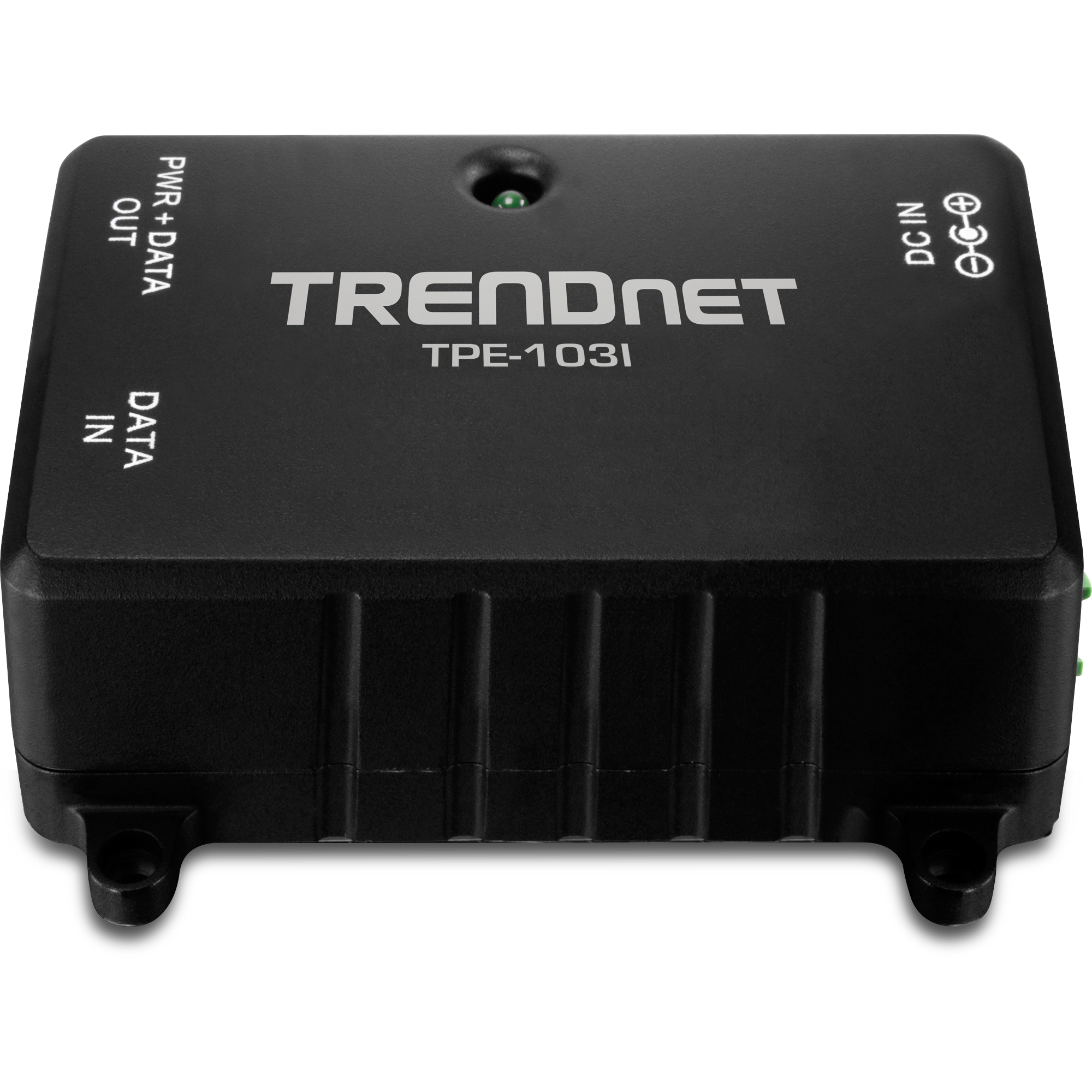

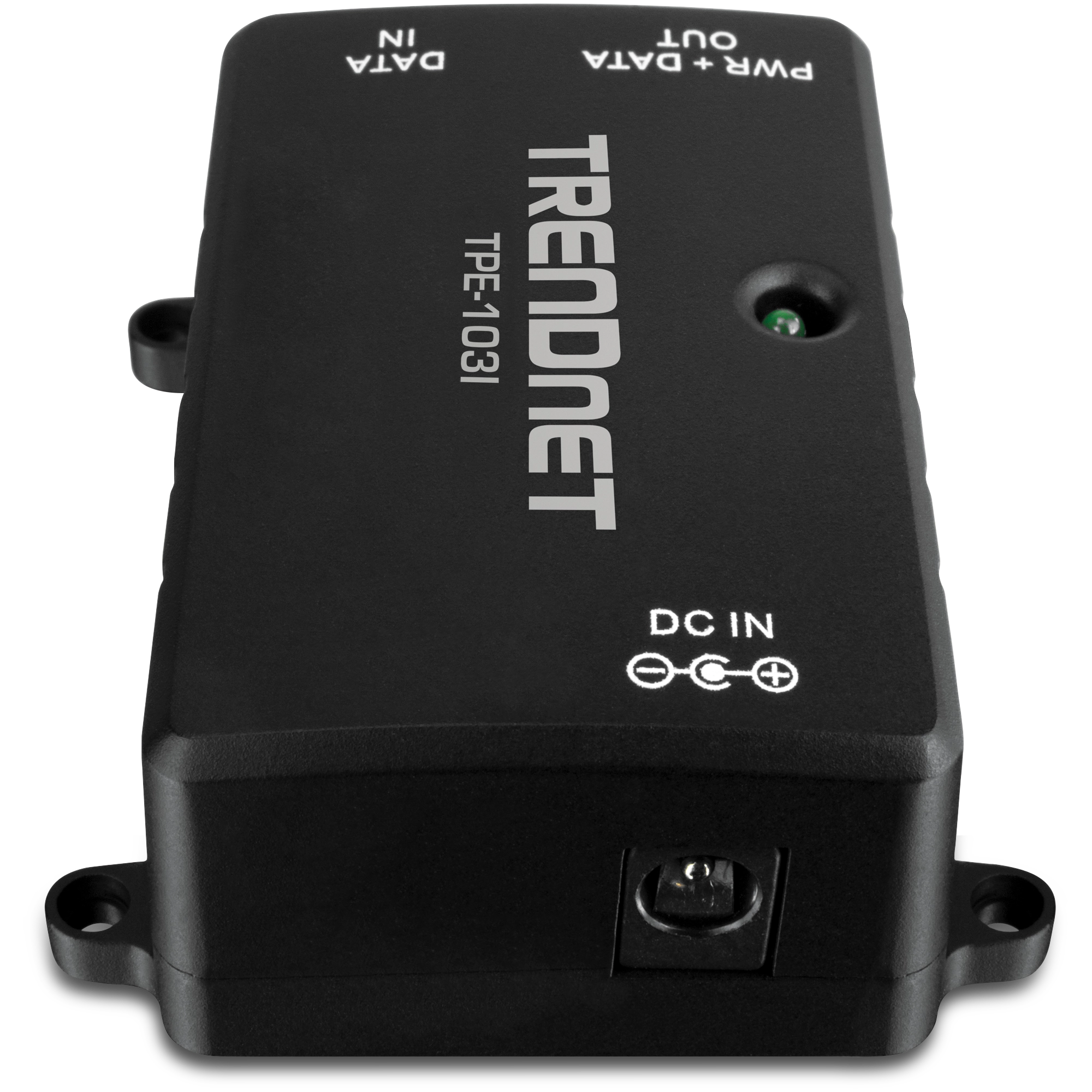

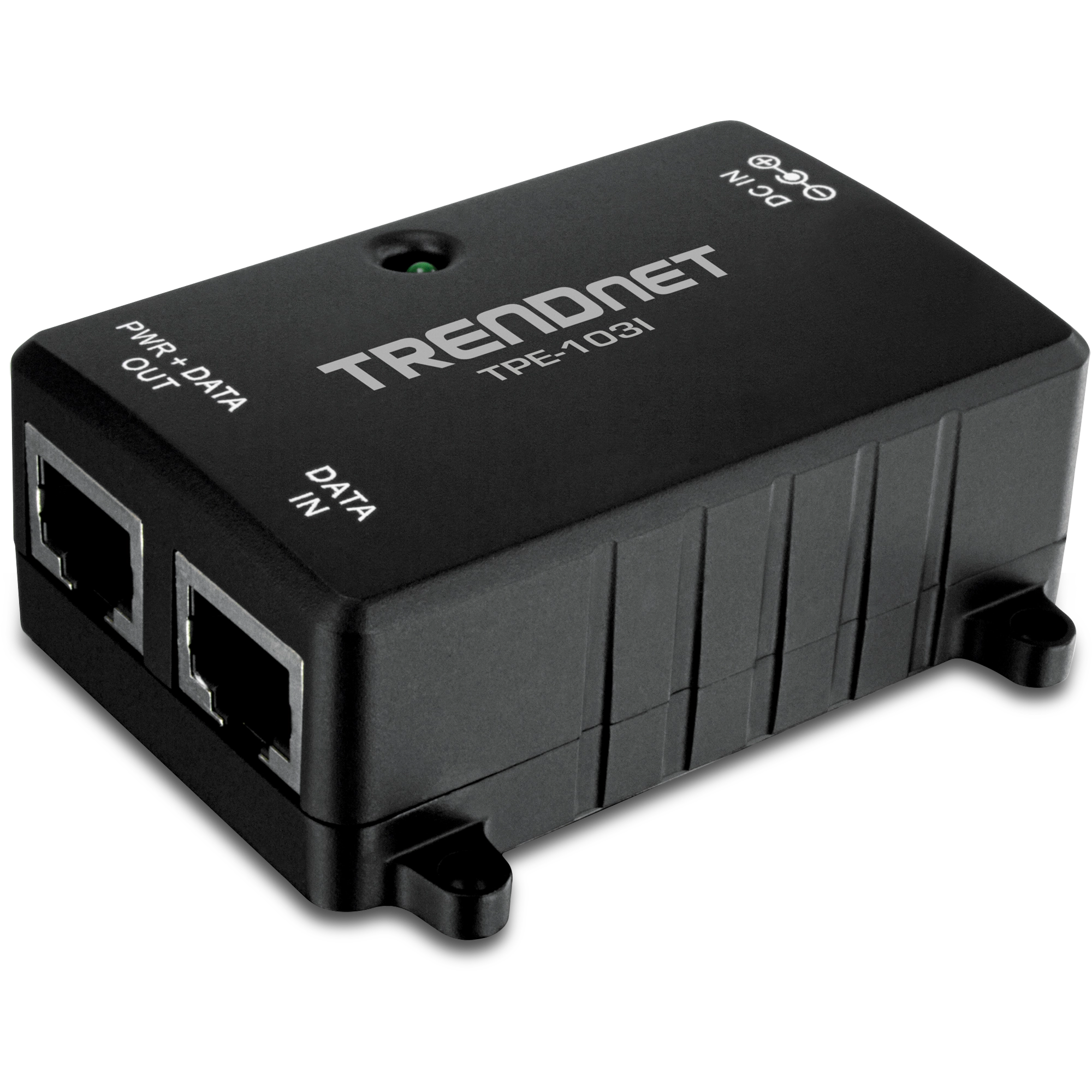

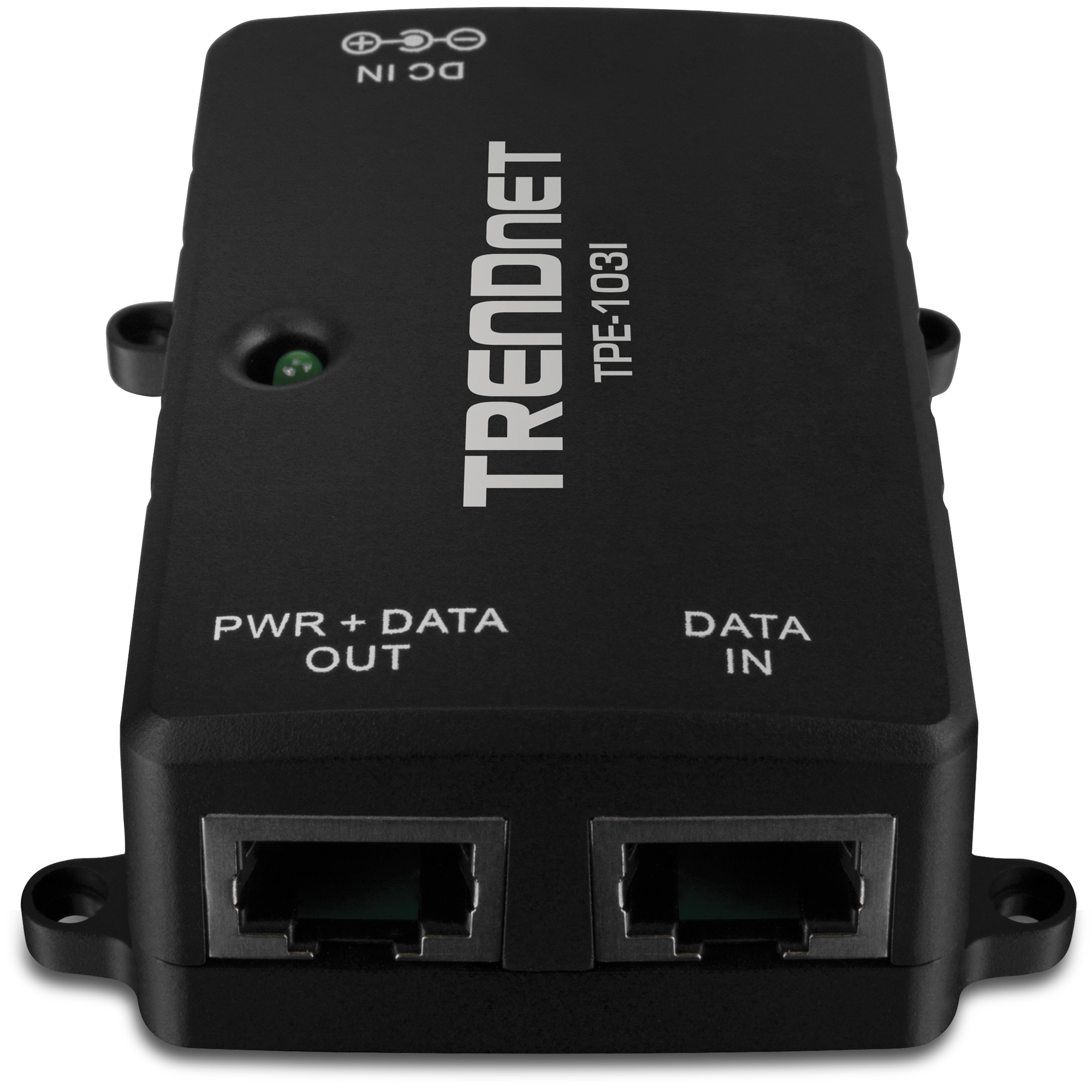

Product Images
Please ensure the Powered Device is 802.3af compliant and that the Ethernet cable is Cat5e rated or higher. Please also ensure the cable length does not exceed 100 meters. Swap out the cable as well to ensure the issue is not the cable itself and double check all physical connections for secure seat...
| Hardware | |
| Standard | IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX IEEE 802.3af Power over Ethernet |
| Network Media | 10Mbps: UTP/STP Cat. 5 and 5e up to 100 Meters 100Mbps: UTP/STP Cat. 5, and 5e up to 100 Meters |
| Ports | 1 x 10/100Mbps DATA-IN (Data only) 1 x 10/100Mbps PWR+DATA OUT (Power + Data) |
| Data Lines |
|
| Power | Input: 100~240V, 50~60Hz, 0.4A max. Output: 48V DC, 0.4A 18W max. |
| Power Consumption | Max. 15.4 Watts |
| Dimensions (W x D x H) | 70 x 45 x 25mm (2.75 x 1.8 x 1 in.) |
| Weight | 45 g (1.6 oz.) |
| Temperature |
|
| Humidity | Max. 90% (non-condensing) |
| Certifications | CE, FCC |
PACKAGE CONTENTS |
|
All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
