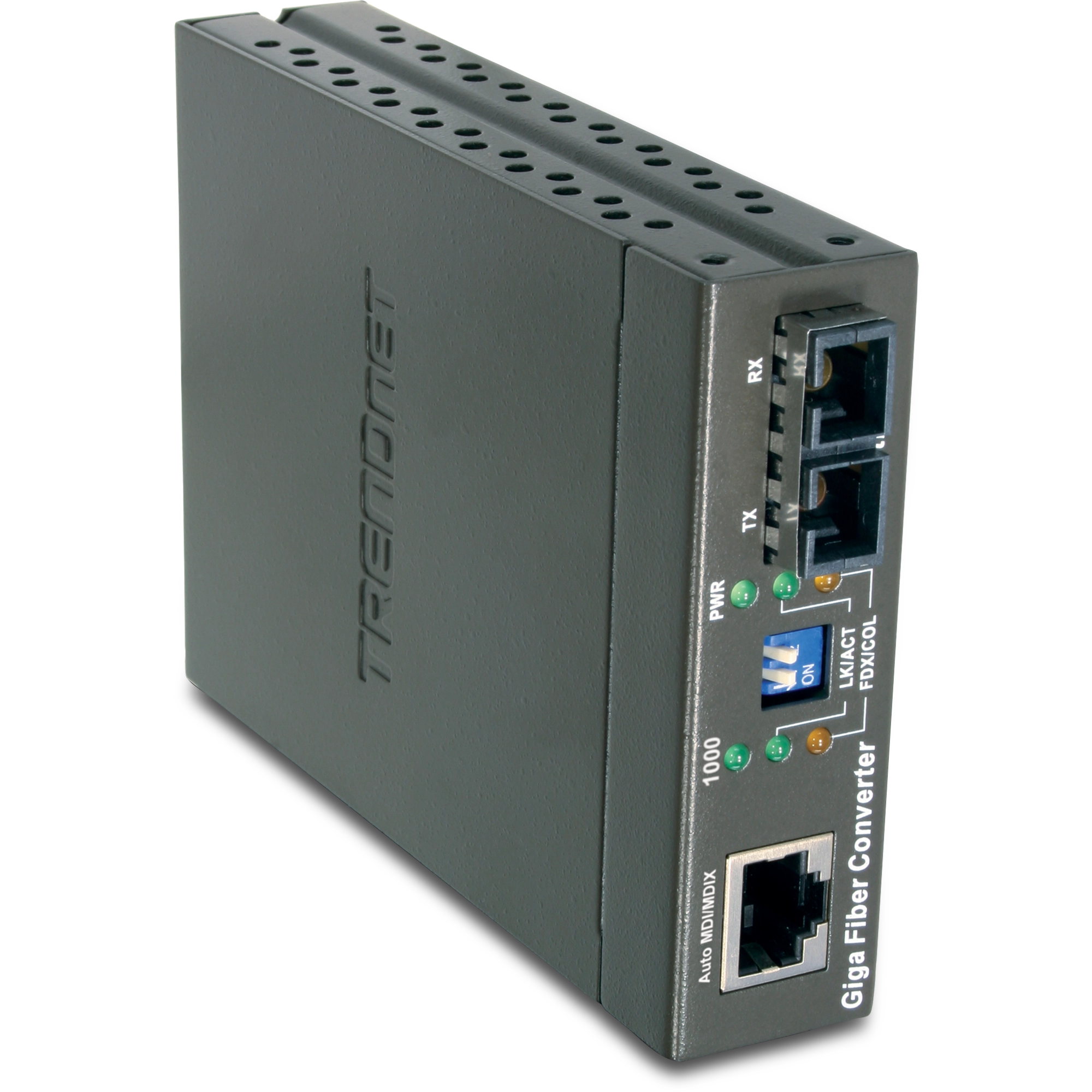

1000Base-T to 1000Base-LX Single Mode SC Fiber Converter

TFC-2000S50   (Version 1.0R)

  • SC-type single-mode fiber port connects over distances of up to 50km at Gigabit speed
  • 1000Base-T Gigabit copper port Full-Duplex mode
  • Functions as a stand alone converter or with the TFC-1000 fiber chassis

DISCONTINUED PRODUCT

The TFC-2000S50 (Version 1.0R) has been discontinued. For a list of discontinued products, click here.

Datasheet

Datasheet (English)
Filename: EN_Spec_TFC-2000S50(v1.0R).pdf
Date: 10/1/2007
File Size: 171.31 KB
Download Email
Datasheet (Français)
Filename: FR_Spec_TFC-2000S50(v1.0R).pdf
Date: 10/1/2007
File Size: 175.16 KB
Download Email
Datasheet (Deutsch)
Filename: GE_Spec_TFC-2000S50(v1.0R).pdf
Date: 10/1/2007
File Size: 175.96 KB
Download Email
Datasheet (Español)
Filename: SP_Spec_TFC-2000S50(v1.0R).pdf
Date: 10/1/2007
File Size: 173.14 KB
Download Email
Datasheet (Pусский)
Filename: RU_Spec_TFC-2000S50(v1.0R).pdf
Date: 10/1/2007
File Size: 824.28 KB
Download Email
Hardware
Standard
  • IEEE 802.3ab1000Base-T
  • IEEE 802.3z 1000Base-LX
Network Media
  • 1000Base-T: Cat. 5e, 6
  • 1000Base-LX: 9/125μm Single-Mode Duplex SC-Type Fiber Cable
Minimum Cable Length
  • 2KM (A third party attenuator is required if the cable length is less than 2KM)
Protocol
  • CSMA/CD
Frame Packet Size
  • 64 to 1536 Bytes
Ports
  • 1 x 1000Base-T RJ-45 Port
  • 1 x 1000Base-LX: Single-Mode SC-Type Fiber Port
Dip Switch 1
  • ON: TX Port LLCF Enable
  • OFF: TX Port LLCF Disable
    * After changing the DIP Switch settings, power cycle the Fiber Converter.
Dip Switch 2
  • ON: Fiber Port LLCF Enable
  • OFF: Fiber Port LLCF Disable
    * After changing the DIP Switch settings, power cycle the Fiber Converter.
Transfer Rate
  • 1000Mbps (Half/Full Duplex)
Diagnostic LED
  • Per Device: Power
  • Per Port
    • (TX): 1000Mbps, Link/Activity, Full Duplex/Collision
    • (FX): Link/Activity, Full Duplex/Collision
Power Adapter
  • 9V DC, 700mA External Power Adapter
Power Consumption
  • 3.6 Watts (max)
Dimensions
  • 85 x 125 x 25mm (3.35 x 4.92 x 0.98in.)
Weight
  • 300g (10.6oz.)
Temperature
  • Operating : 0° C ~ 45° C (32° F ~ 113° F)
  • Storage : -40° C ~ 70° C (-40°F ~ 158° F)
Humidity
  • 5% ~ 90% RH
Certification
  • CE, FCC

PACKAGE CONTENTS
  • TFC-2000S50
  • Multi-Language Quick Installation Guide
  • Power Adapter

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
