N300 Wireless Home Router
TEW-652BRP (Version V1.0R)
- 12x the speed and 4x the coverage of wireless g
- Stream video, download files, talk online and play games all at the same time
- Advanced wireless encryption and a firewall provides robust security
DISCONTINUED PRODUCT
The TEW-652BRP (Version V1.0R) has been discontinued. It has been replaced by the TEW-831DR (Version v1.0R). For a list of discontinued products, click here.Firmware
DO NOT upgrade firmware on any TRENDnet product using wireless connection. Firmware upgrade over wireless connection may damage the product. Please perform firmware upgrade with "wired" network connection only |
Firmware Version: 1.10.29
Release Date: 6/9/2011
Resolved:
- Resolved TFTP security vulnerability
- Improved MAC filter feature
- Improved Static IP function
- Enhanced Log display with "Host Name" setting
- Fixed "Default Gateway" cannot display in "Russia L2TP Static" mode
- Fixed display error in "IP/Protocol Filter"
- Improved L2TP connection
Filename: TEW-652BRPV1(FW1.10B29).zip
SHA-1 Checksum: 42AA020E8DF863237137F8A3F9287C645B15F4E1
Date: 7/28/2017
File Size: 3.12 MB
Datasheet
Filename: EN_Spec_TEW-652BRP(v1.0R).pdf
Date: 4/9/2009
File Size: 382.78 KB
Filename: FR_Spec_TEW-652BRP(v1.0R).pdf
Date: 4/9/2009
File Size: 386.27 KB
Filename: GE_Spec_TEW-652BRP(v1.0R).pdf
Date: 4/9/2009
File Size: 385.10 KB
Filename: SP_Spec_TEW-652BRP(v1.0R).pdf
Date: 4/9/2009
File Size: 385.72 KB
Filename: RU_Spec_TEW-652BRP(v1.0R).pdf
Date: 4/9/2009
File Size: 1.54 MB
Filename: ITA_Spec_TEW-652BRP(v1.0R).pdf
Date: 4/9/2009
File Size: 383.21 KB
Quick Installation Guide
Filename: EN_QIG_TEW-652BRP(V1.0R).pdf
Date: 7/23/2008
File Size: 801.90 KB
Filename: FR_QIG_TEW-652BRP(V1.0R).pdf
Date: 7/23/2008
File Size: 805.52 KB
Filename: GE_QIG_TEW-652BRP(V1.0R).pdf
Date: 7/23/2008
File Size: 806.20 KB
Filename: PO_QIG_TEW-652BRP(V1.0R).pdf
Date: 7/23/2008
File Size: 799.14 KB
Filename: SP_QIG_TEW-652BRP(V1.0R).pdf
Date: 7/23/2008
File Size: 807.23 KB
Filename: RU_QIG_TEW-652BRP(V1.0R).pdf
Date: 7/23/2008
File Size: 1.50 MB
Filename: EST_QIG_TEW-652BRP(V1.0R).pdf
Date: 7/23/2008
File Size: 799.17 KB
User's Guide
Filename: UG_TEW-652BRP(v1.0R).pdf
Date: 12/7/2012
File Size: 4.03 MB

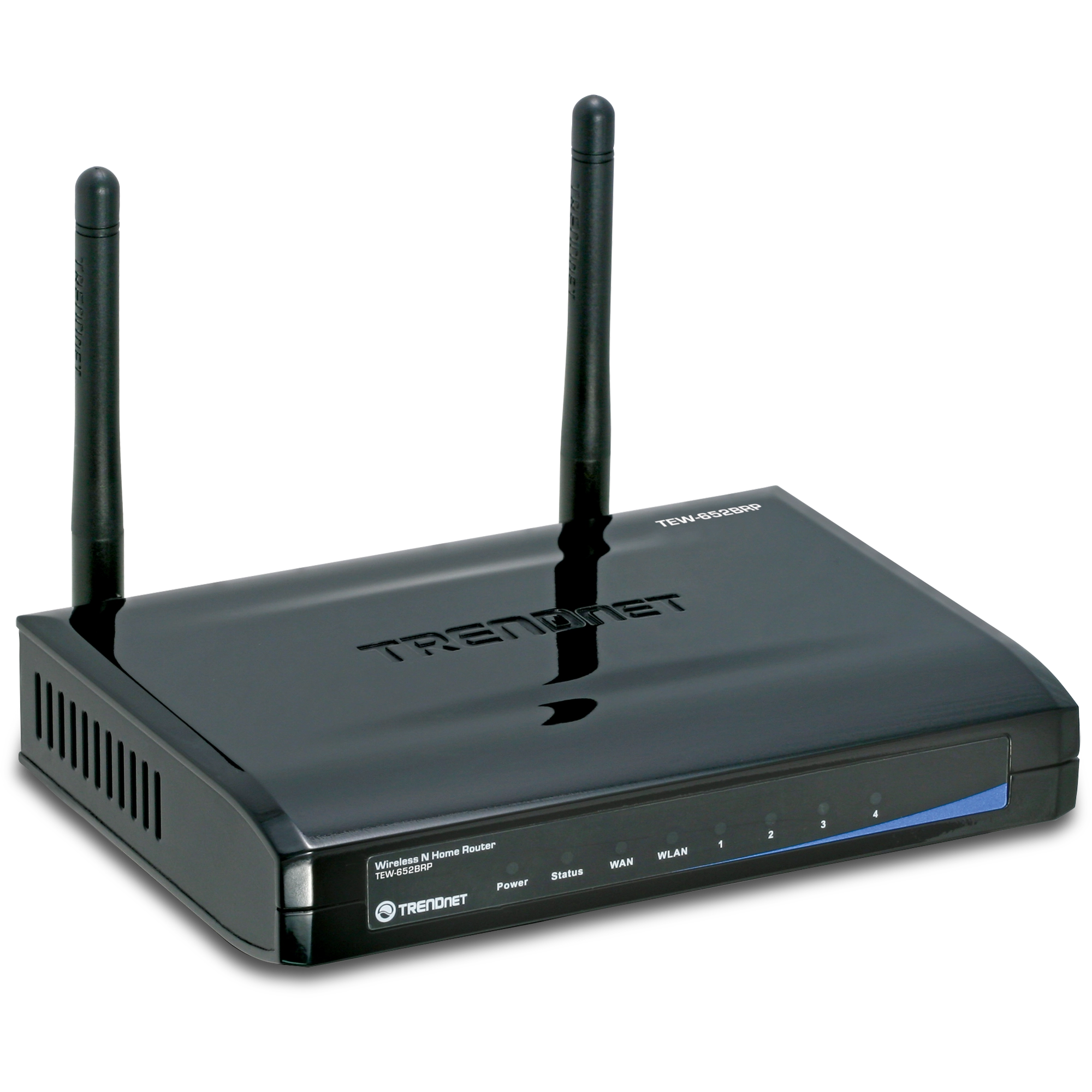

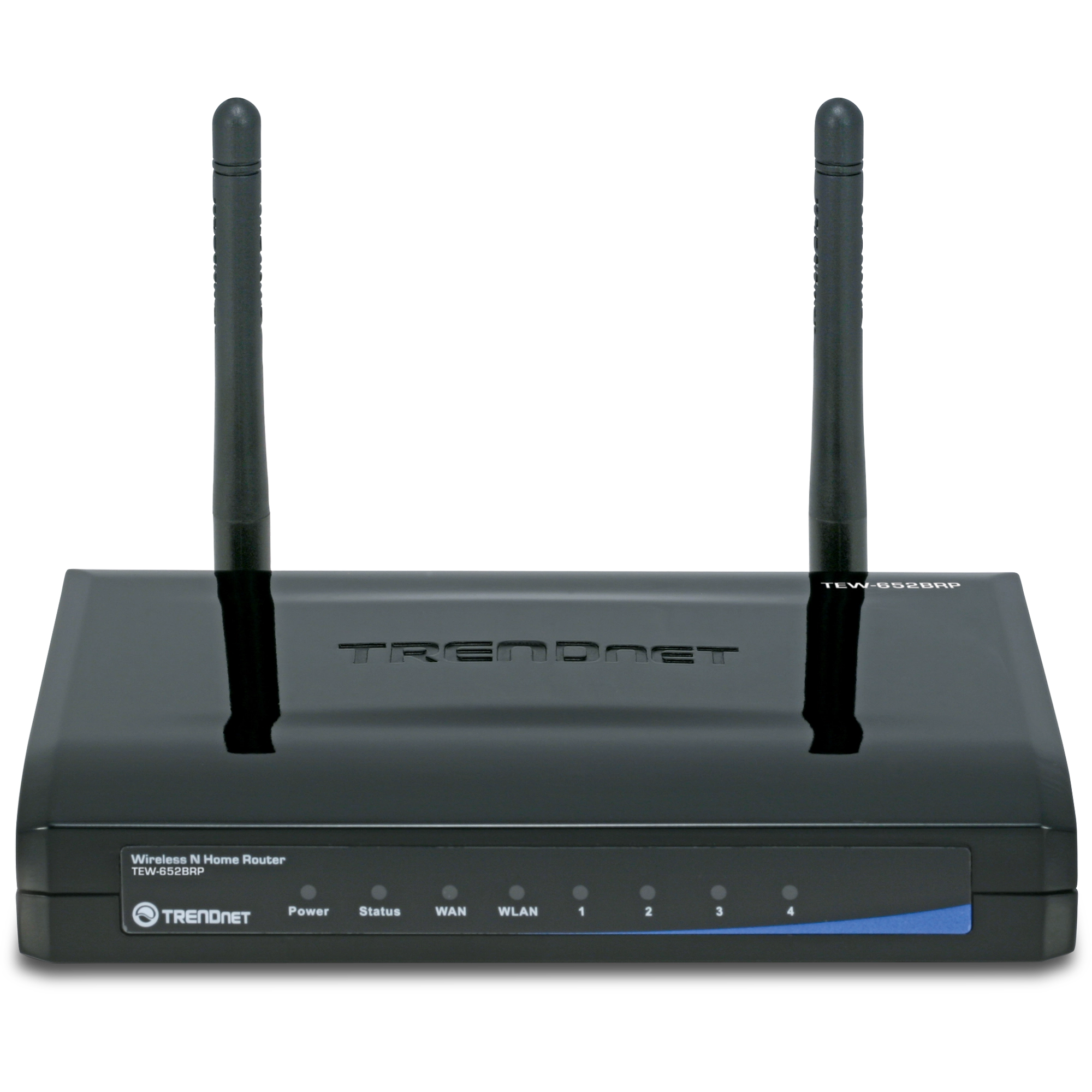

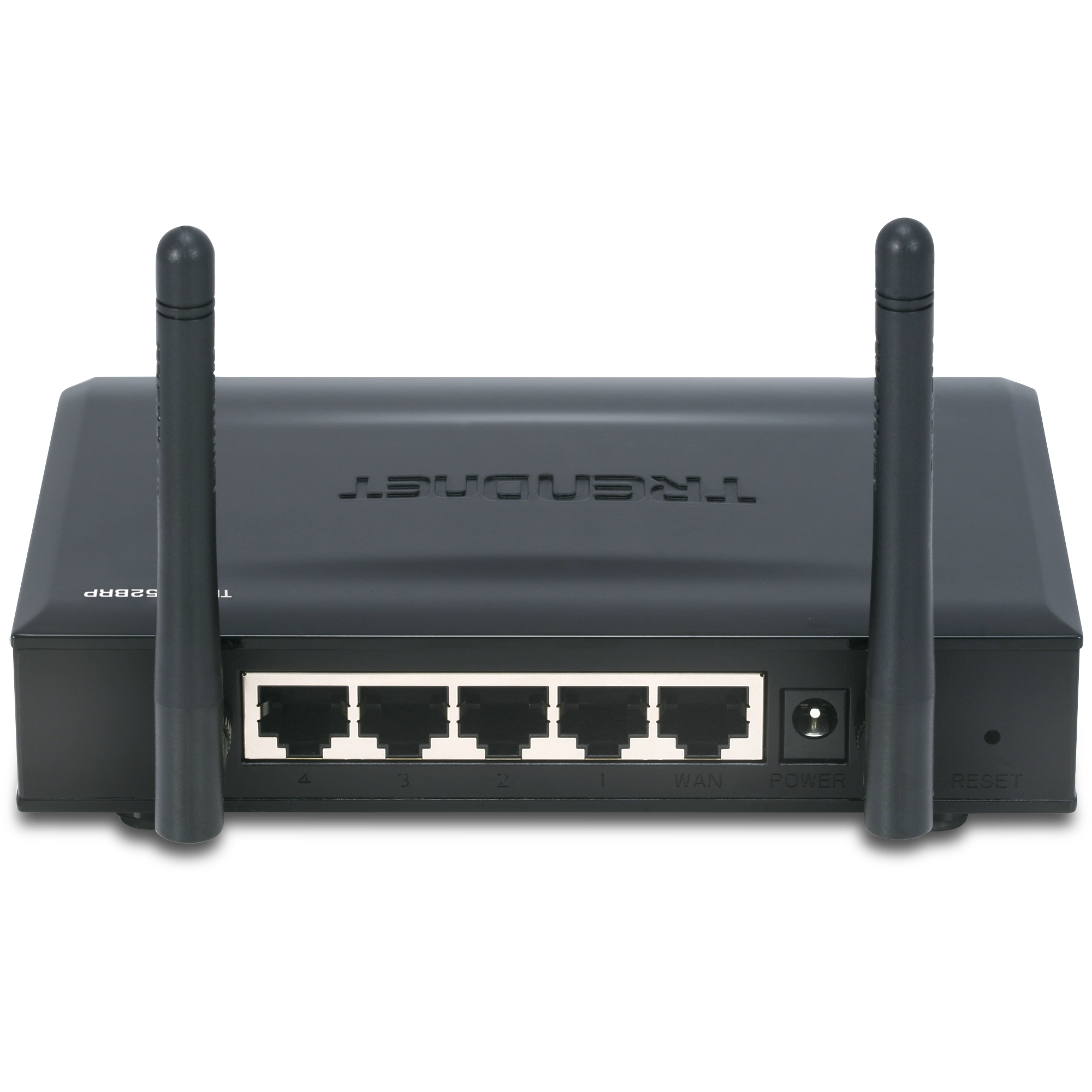

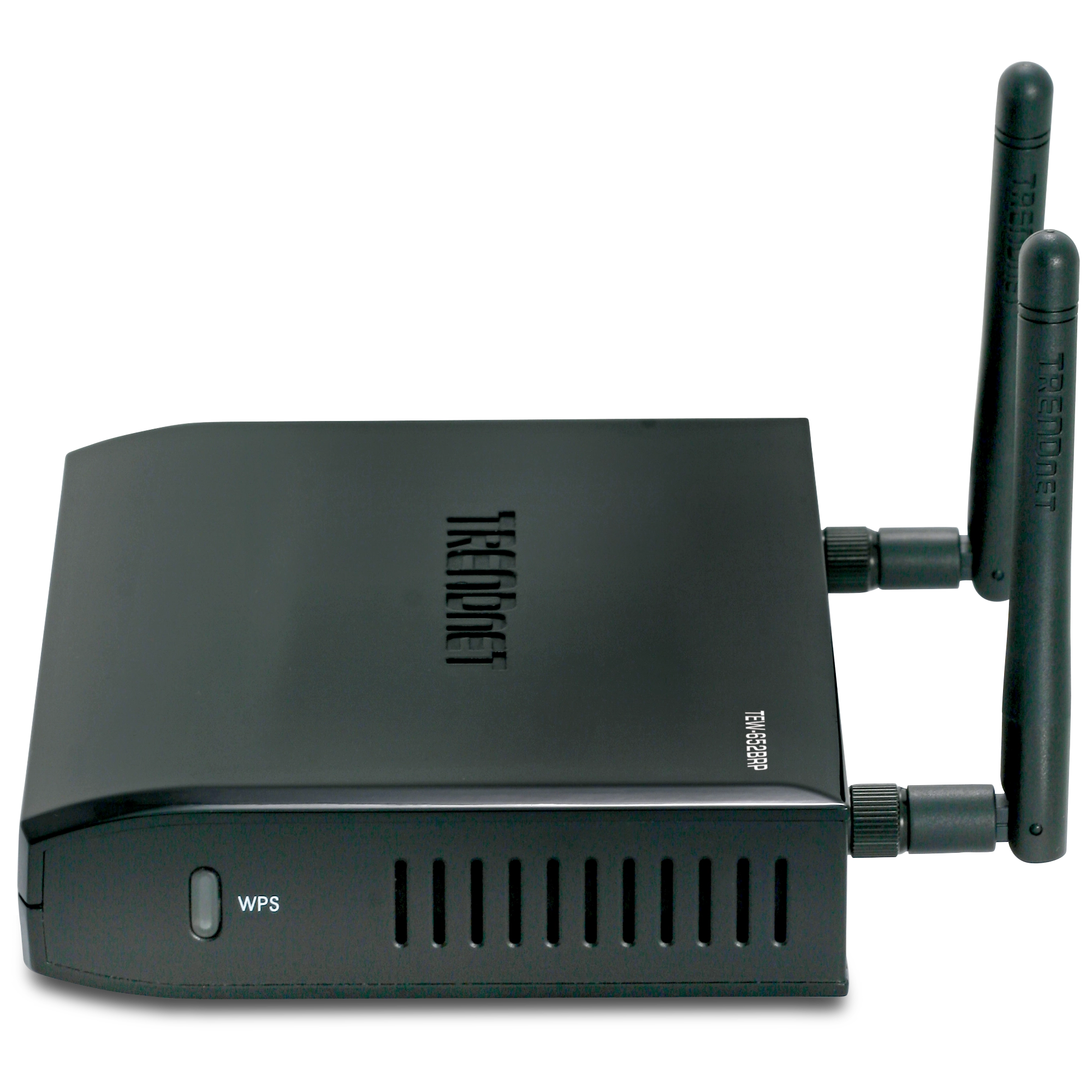

Product Images
| Hardware | |
| Standards | Wired: IEEE 802.3 (10Base-T), IEEE 802.3u (100Base-TX) Wireless: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n (draft 2.0) |
| WAN | 1 x 10/100Mbps Auto-MDIX port (internet) |
| LAN | 4 x 10/100Mbps Auto-MDIX ports |
| WPS Button | Enable Wi-Fi Protected Setup function |
| Connection Type | Dynamic IP, Static (Fixed) IP, PPPoE, PPTP, L2TP, BigPond |
| UPnP | UPnP IGD 1.0 compliant |
| DMZ | DMZ host & Virtual Servers |
| DNS | Static or WAN assigned DNS servers; 3 verified services for DDNS |
| Internet Access Control | MAC Address Filter, Domain/URL Filter, Protocol/IP Filter |
| Logging | 5 types of event logging; email report |
| LED Indicator | Power, LAN1~LAN4, WAN, WLAN |
| Power Adapter | 5V DC, 2.5A external power adapter |
| Power Consumption | 7watts (max.) |
| Dimension (L x W x H) | 150 x 110 x 30 mm (5.9 x 4.3 x 1.1 inches) |
| Weight | 245g (8.6 oz) |
| Temperature | Operation: 0°~ 40°C (32°F~ 104°F); Storage: -10°~ 70°C (14°F~158 °F) |
| Humidity | Max. 90% (non-condensing) |
| Certifications | CE, FCC |
| Wireless | |
| Frequency | 2412~2484MHz ISM band |
| Antenna | 2 x 2dBi detachable dipole antennas |
| Media Access Protocol | CSMA/CA with ACK |
| Data Rate | 802.11b: 11Mbps, 5.5Mbps, 2Mbps, and 1Mbps 802.11g: 54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps, 12Mbps, 9Mbps and 6Mbps 802.11n: up to 300Mbps |
| Security | WEP(HEX/ASCII): 64/128-bit WPA(AES/TKIP): WPA/WPA2, WPA-PSK/WPA2-PSK Enable/Disable broadcast SSID |
| Output Power | 802.11b: 17dBm (typical) 802.11g: 13dBm (typical) 802.11n: 13dBm (typical) |
| Receiving Sensitivity | 802.11b: -85dBm (typical) @ 11Mpbs 802.11g: -68dBm (typical) @ 54Mbps 802.11n: -62dBm (typical) @ 300Mbps |
| Channels | 1~ 11 (FCC), 1~13 (ETSI) |
PACKAGE CONTENTS |
|
All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
