300Mbps Dual Band Wireless N Gigabit Router
TEW-672GR (Version V1.0R)
- Increased wireless coverage and speed over standard wireless n
- Seamlessly stream HD video, download files, surf and play games all at the same time
- 14x the speed and 6x the coverage of a wireless g network*
- Features Wi-Fi Protected Setup (WPS) and a manual wireless on/off switch
DISCONTINUED PRODUCT
The TEW-672GR (Version V1.0R) has been discontinued. It has been replaced by the TEW-829DRU (Version v1.0R). For a list of discontinued products, click here.Firmware
DO NOT upgrade firmware on any TRENDnet product using wireless connection. Firmware upgrade over wireless connection may damage the product. Please perform firmware upgrade with "wired" network connection only |
Firmware : 1.0.9.161
Release Date: 01/2010
Note:
- Corrected "remote management always enabled" issue.
- Fixed schedule related issues.
- Resolved unnecessary packet broadcasting.
Filename: FW_TEW-639GR_672GR(v1.0.9.161).zip
SHA-1 Checksum: 30E09C14300DF8E3FB5A0C87742438A9B39AEEF4
Date: 7/28/2017
File Size: 2.72 MB
Datasheet
Filename: EN_Spec_TEW-672GR(v1_0R)_060710.pdf
Date: 6/27/2012
File Size: 786.81 KB
Filename: FR_Spec_TEW-672GR(v1_0R)_060710.pdf
Date: 6/27/2012
File Size: 796.01 KB
Filename: GE_Spec_TEW-672GR(v1_0R)_060710.pdf
Date: 6/27/2012
File Size: 796.94 KB
Filename: SP_Spec_TEW-672GR(v1_0R)_060710.pdf
Date: 6/27/2012
File Size: 799.82 KB
Filename: RU_Spec_TEW-672GR(v1_0R)_060710.pdf
Date: 6/27/2012
File Size: 831.97 KB
Filename: IT_Spec_TEW-672GR(v1_0R)_060710.pdf
Date: 6/27/2012
File Size: 802.71 KB
Quick Installation Guide
Filename: EN_QIG_TEW-672GR(V1).pdf
Date: 2/4/2009
File Size: 586.92 KB
Filename: FR_QIG_TEW-672GR(V1).pdf
Date: 2/4/2009
File Size: 584.47 KB
Filename: GE_QIG_TEW-672GR(V1.0R).pdf
Date: 2/4/2009
File Size: 656.69 KB
Filename: PO_QIG_TEW-672GR(V1).pdf
Date: 2/4/2009
File Size: 577.91 KB
Filename: SP_QIG_TEW-672GR(V1).pdf
Date: 2/4/2009
File Size: 586.80 KB
Filename: RU_QIG_TEW-672GR(V1).pdf
Date: 2/4/2009
File Size: 1.26 MB
Filename: EST_QIG_TEW-672GR(V1).pdf
Date: 2/4/2009
File Size: 585.94 KB
User's Guide

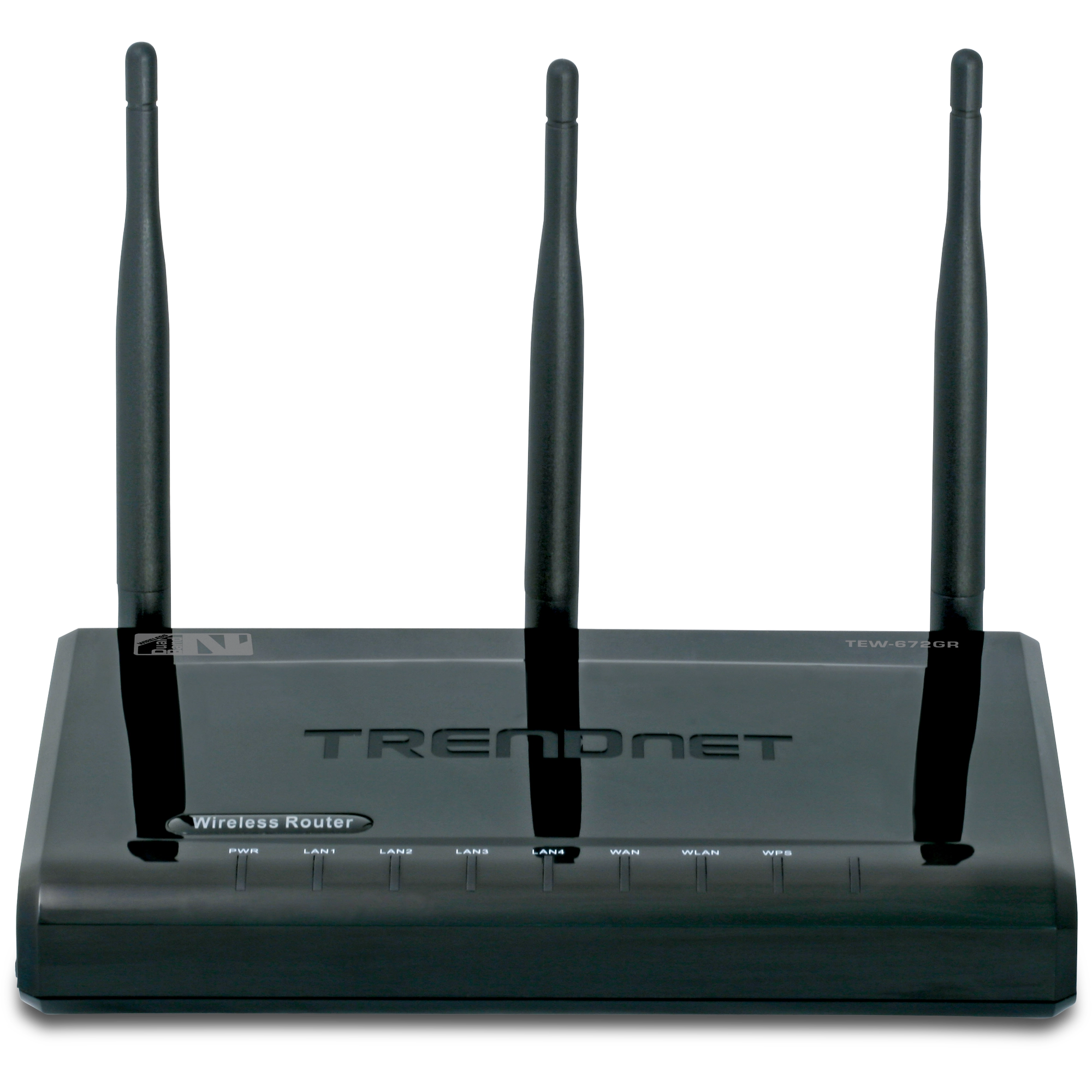

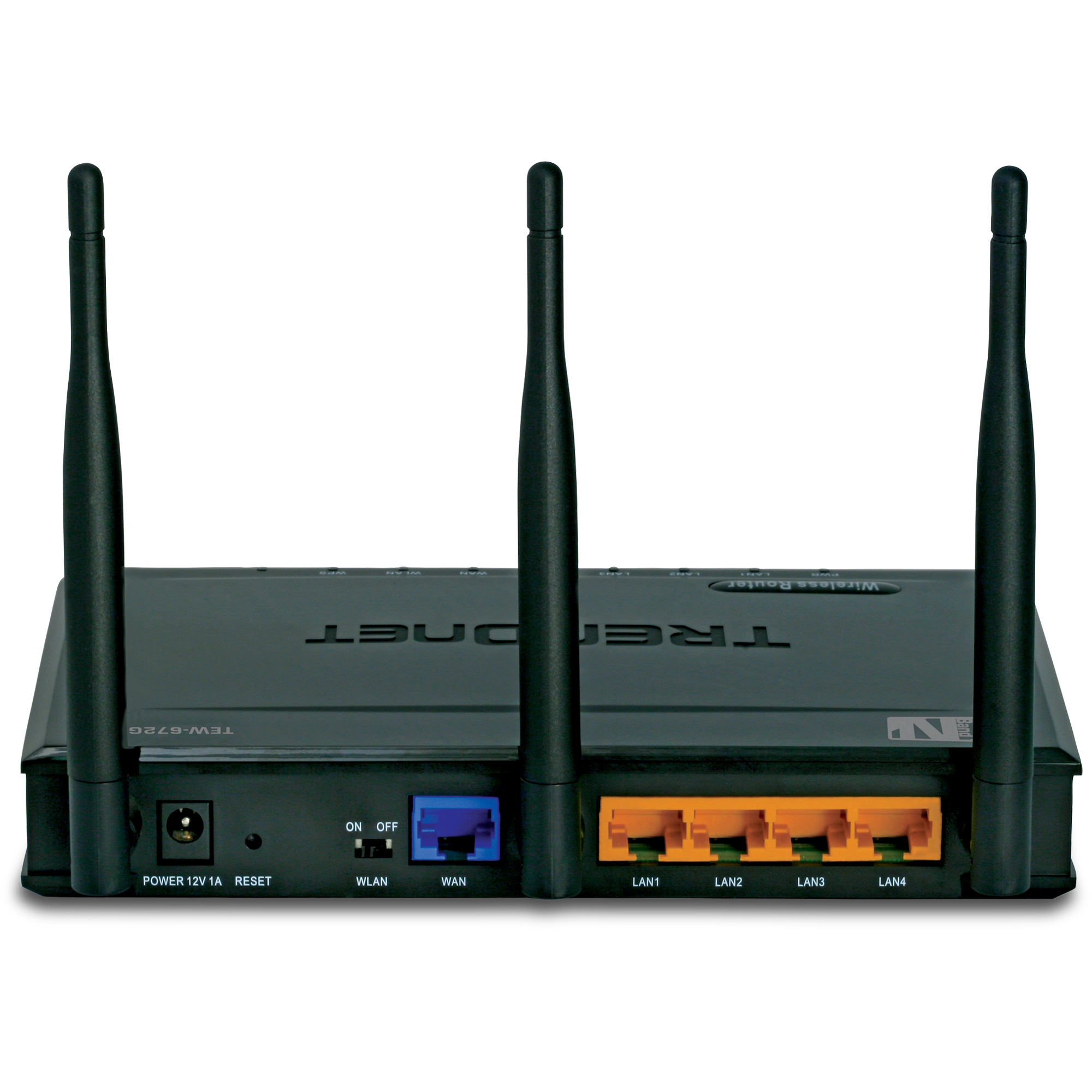

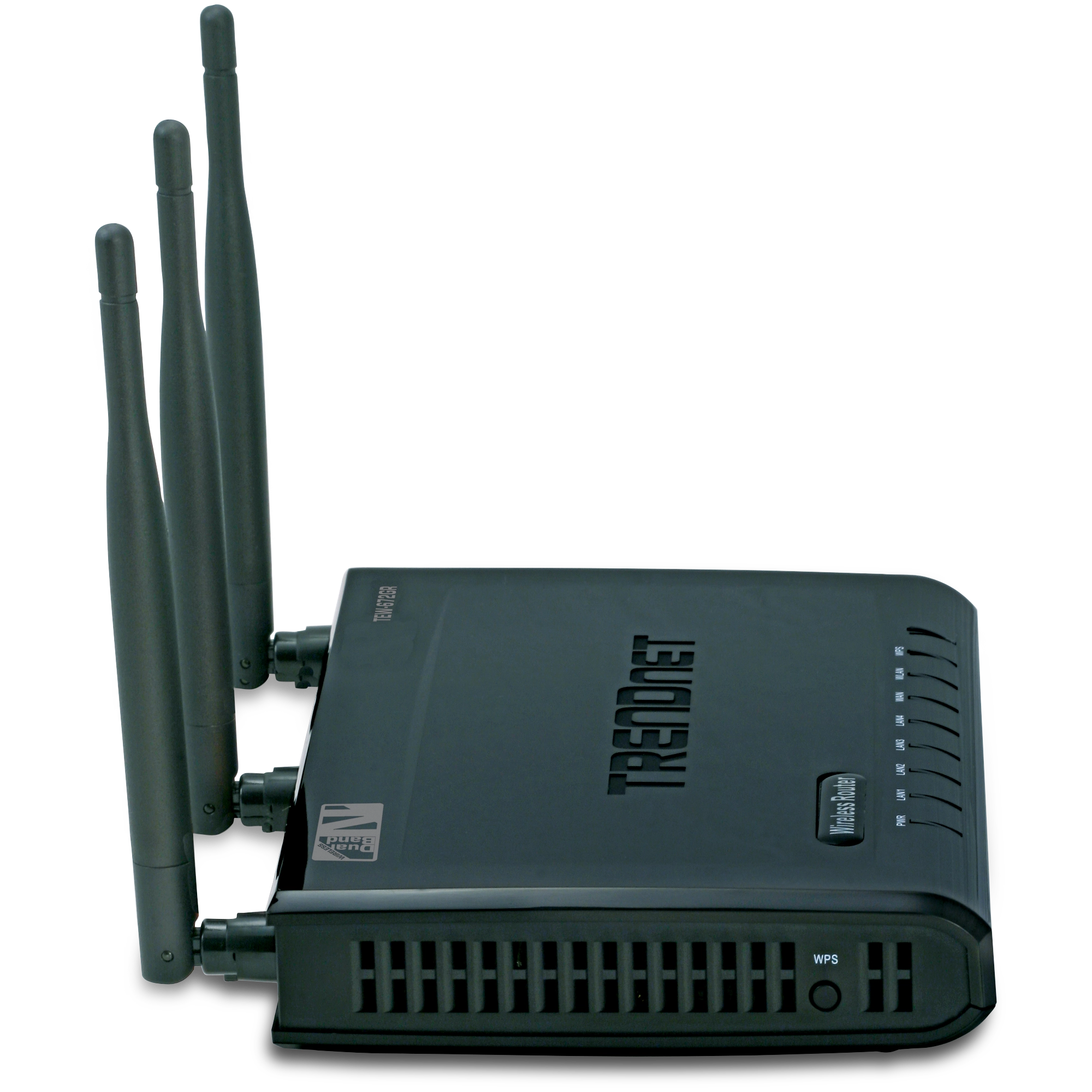

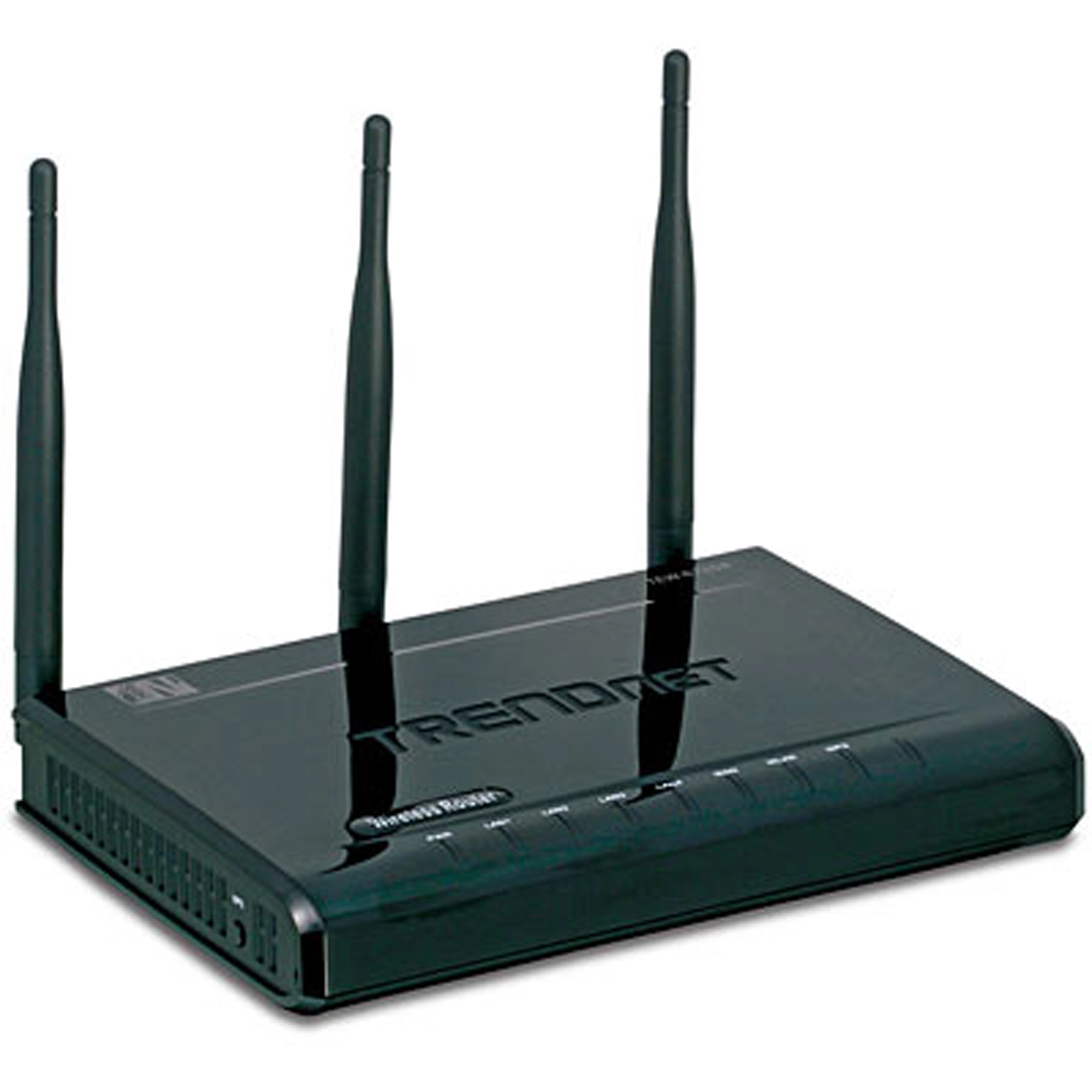

Product Images
Press and hold in the reset button on the back of the router for approximately 15 seconds while the power is on.
The default values are as follows.
IP Address: 192.168.10.1
Username: admin
Password: Leave blank
SSID: TRENDnet672
Encryption: none
...
Login to the TEW-672GR by entering https://192.168.10.1 into the address line of your browser.
The default User Name is "admin", without the quotes. There is no password by default. Click "Login"
Click Advanced on the left hand side and then click Virtual Server. The example shown fo...
The default username is "admin", without the quotes. There is no password by default.
Login to the TEW-672GR by entering https://192.168.10.1 into the address line of your browser.
The default User Name is "admin", without the quotes. There is no password by default. Click "Login"
...
Login to the TEW-672GR by entering https://192.168.10.1 into the address line of your browser.
The default User Name is "admin", without the quotes. There is no password by default. Click "OK"
Click Wireless and then Basic. You can define the wireless network parameters here.
...
Login to the TEW-672GR by entering https://192.168.10.1 into the address line of your browser.
The default User Name is "admin", without the quotes. There is no password by default. Click "OK"
Click on Wireless and then Security. Select the highest form of security supported by your wi...
Yes, the TEW-672GR will maintain 802.11n mode with WDS links.
In dual-band wireless devices, in which wireless Routers/Access Point and Adapters are compatible with both 2.4GHz and 5GHz frequencies in one device....
The TEW-672GR will only support one frequency at a time. You must select a wireless mode to be used, select wireless a or wireless n. ...
The TEW-672GR has two built in wireless radios for each of the two frequencies the Router supports (802.11a –5GHz and 802.11b/g/n –2.4GHz)....
To configure the TEW-672GR for either 802.11a or 802.11b/g/n, simply access the setup page of the TEW-672GR and look for the Wireless button on the left side. Look for Wireless mode and select the mode you want your TEW-672GR to operate in. Apply the setting at the bottom of the window. ...
Depending on the type of wireless adapter you are using, you should see the wireless network that your adapter will support. If the wireless adapter is an 802.11 b/g/n, you will see all 2.4GHz wireless networks (802.11 b/g/n). If your wireless adapter is an 802.11a, then you will see all 5GHz wirele...
Yes, the TEW-672GR is fully compatible with existing 802.11a wireless devices.
Yes, as long as the 3rd party manufactures dual band wireless adapters support 802.11a/b/g/n, it should work without any issue.
(Note: Please refer to 3rd party manufacture for correct setup of any non-TRENDnet wireless device(s))....
The TEW-672GR supports the following security for wireless network, WEP, WPA/WPA2, WPA/WPA2 Enterprise, Wireless MAC filtering, and WiFi Protected Setup (WPS)....
Yes, the TEW-672GR allows you to create up to three additional virtual SSIDs (Wireless Network Name) to connect with. Multiple Service Set Identifiers (SSID) allow the ability to create virtual wireless networks while only using one wireless Router/Access Point device as the main connecting point. C...
Yes, the TEW-672GR is fully compatible with WDS; you can add additional Access Point(s) to extend your coverage of your wireless network. This feature works with the TEW-637AP. (Note: WDS only supports wireless g speed. The use of multiple Access Points will reduces the overall network throughput to...
DHCP Reservation is used to assign a fixed IP Address to a device that always requires the same IP Address every time it is in use. This feature can be used for a print server, IP Camera, Network storage device as well as a computer. To setup DHCP Reservation, click on the Network button and select ...
This unique wireless mode allows both 2.4GHz and 5GHz to operate as one special channel range. This feature will automatically select the best channel to use in your wireless environment....
No, the Internet side of the TEW-672GR works independently from the wireless side the Router. Your Internet Service Provider controls your Internet speed. ...
802.11b/g mixed mode (2.4GHz) - This wireless mode works in the 2.4GHz frequency range and will allow both wireless b (11Mbps) and wireless g (54Mbps) clients to connect and access the TEW-672GR and share access at the same time. Although the wireless b/g operates in the 2.4GHz frequency, this mod...
I am not getting that many bars on my wireless signal, what can I do to improve the wireless signal?
When using the TEW-672GR from time to time you may experience issues with wireless signal loss or no signal, this is due to environmental conditions in and out of any structure or objects in the way. Since wireless is based on line of sight. The wireless signals do not pass through objects, walls or...
No, only wireless dual band or wireless 802.11a adapters will be able to see the wireless network that is operating in the wireless a/n mode. Even with the mode being mixed both wireless a and wireless n, the mode actually still works in the 5GHz frequency range. This frequency will exclude any 2.4G...
No, no software or utility is required to allow this product to work. The TEW-672GR is completely ready to use out of the box (Note: please refer to Quick Installation Guide that is included with this product)....
The TEW-672GR can support up to 32 wireless client connections per one Router/ Access Point.
| Hardware | |
| Standards | Wired: IEEE 802.3 (10Base-T), IEEE 802.3u (100Base-TX) and IEEE 802.3ab (1000BaseT) Wireless: IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n (draft 2.0) |
|---|---|
| WAN | 1 x 10/100/1000Mbps Auto-MDIX port (Internet) |
| LAN | 4 x 10/100/1000Mbps Auto-MDIX port |
| Wireless On/Off Switch | Turn on/off wireless LAN |
| WPS Button | Wi-Fi Protected Setup (WPS) with other WPS compliant devices |
| Connection Type | Dynamic IP, Static (fixed) IP, PPPoE, PPTP, L2TP |
| NAT Firewall | 3K configurable NAT entries; restricted NAPT |
| SPI Firewall | Up to 24 rules; cyber attack protection – verified against over 2000 attacks |
| WDS | Enable/disable Wireless Distribution System support |
| UPnP | UPnP IGD 1.0 compliant |
| DMZ | DMZ host, 24 configurable Virtual Servers and Game Servers |
| DNS | Static or WAN assigned DNS servers; 10 verified services for DDNS |
| Internet Access Control | Policy based parental control; time based Internet access; port range/service filtering; 16 user defined schedules, 24 MAC address filter entries |
| Logging | 3 types and 3 severities event logging; up to 1,000 entries Email notifications |
| LED Indicator | Power, LAN1~LAN4, WAN, and WLAN |
| Power Adapter | 12V DC, 1A external power adapter |
| Power Consumption | 779mA |
| Dimension (L x W x H) | 180 x 122 x 30 mm (6.8 x 4.6 x 1.1 inches) |
| Weight | 350g (0.8 lb) |
| Temperature | Operation: 0°~ 40°C (32°F~ 104°F); Storage: -20°~ 60°C (-4°F~140 °F) |
| Humidity | Max. 90% (non-condensing) |
| Certifications | CE, FCC |
| Wireless | |
Frequency | 2.412 ~ 2.462 GHz (FCC); 2.412 ~ 2.472 GHz (ETSI) |
Antenna | 3 x 2dBi fixed dipole antenna |
Media Access Protocol | CSMA/CA with ACK |
| Module Technique | 802.11n: BPSK, QPSK, 16QAM, with OFDM |
Data Rate | 802.11a: 54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps, 12Mbps, 9Mbps and 6Mbps |
| Security | Encryption: hardware AES/TKIP, 64/128-bit WEP (HEX/ passphrase, 11a/b/g/n) 802.1X/EAP: EAP-TLE, EAP-TTLE/MSCHAPv2, PEAPv0/EAP-MSCHAPv2, PEAPv1/EAP-GTC WPA: WPA/WPA2, WPA-PSK/WPA2-PSK (AES-11b/g/n, TKIP-11b/g) WPS: support PIN and PBC SSID broadcast control |
| Output Power | 802.11a: 14dBm (typical) 802.11b: 18dBm (typical) 802.11g: 15dBm (typical) 802.11n: 11dBm (typical) with HT20 or HT40 |
Receiving Sensitivity | 802.11a: -72dBm (typical) @ 54Mbps |
Channels | 2.4GHz 1~ 11 (US), 1~13 (EU) 5GHz 36, 40, 44, 48, 149, 153, 157, 161, and 165 |
 | |
PACKAGE CONTENTS |
|
All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
